IMAC Double Build, Carden Pro 124" Extra 300 40%

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by orthobird, Mar 18, 2016.


  1. tl3

    tl3 50cc

    128
    65
    28
    VT
    Unless ZDZ has changed their mount pattern since the days of the Super 160 (and they may have) they have the same mounting dimensions as DA 150 - 200. You just have to accomodate for the the rear carb configuration. I used to use SWB mounts with ZDZs with out issue.

    orthobird likes this.
  2. orthobird

    orthobird 150cc

    hello Ty, I used the template from the ZDZ USA website, and it is different.

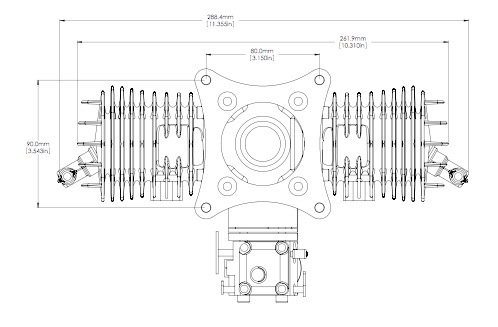

    Da 200 is 80 mm x 90 mm
    da 200 mount copy.jpg

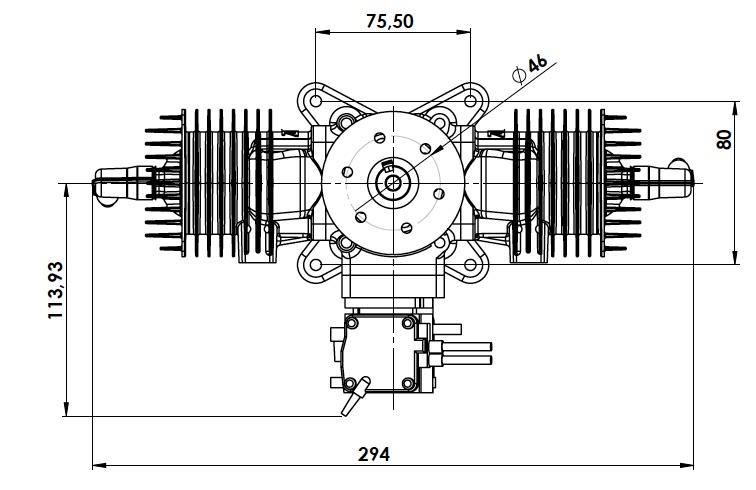

    ZDZ 224 is 75.5 x 80 mm
    ZDZ 224 mount copy.jpg

    scruffmeister likes this.
  3. orthobird

    orthobird 150cc

    Dean was correct. The tail stock rudder servo location will not work. I will have to move them forward some.

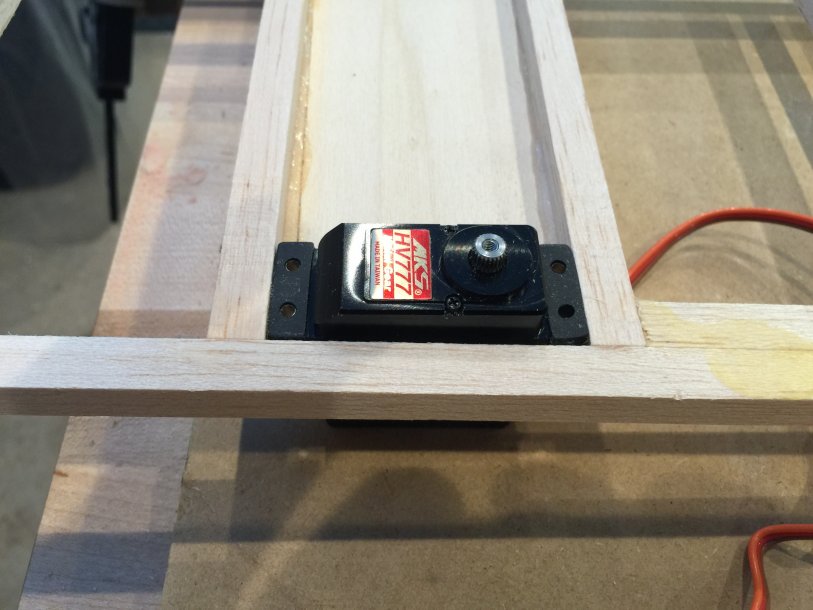

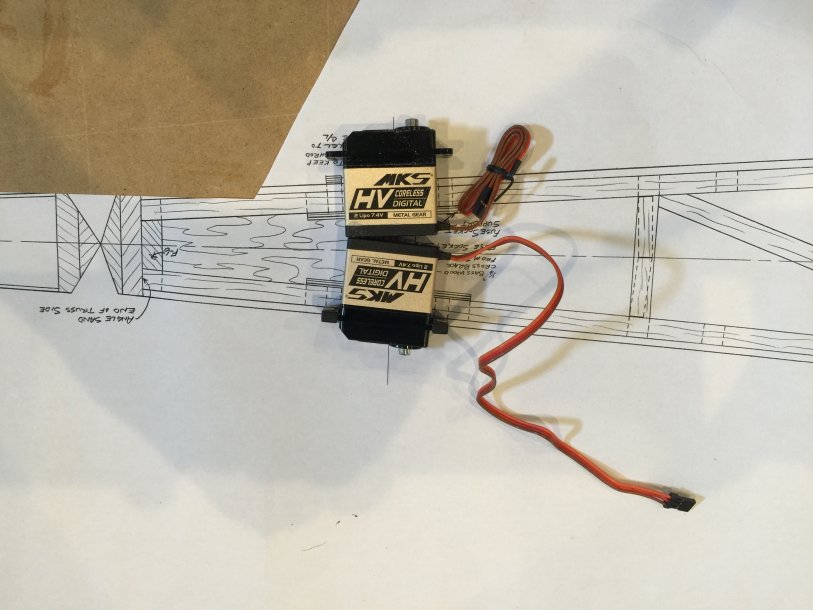

    the serve will fit well in the stock location from this side view.

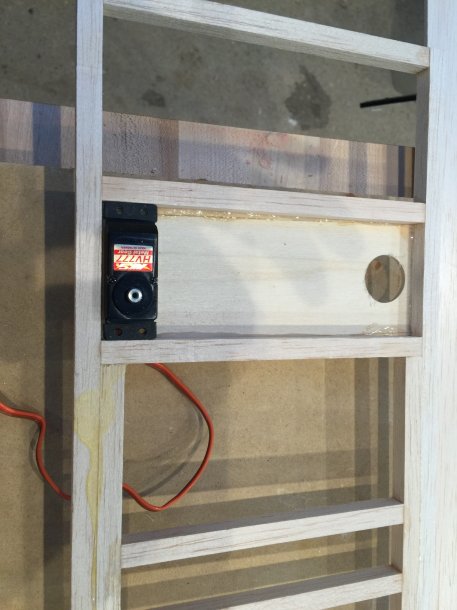

    IMG_0888.JPG IMG_0889.JPG

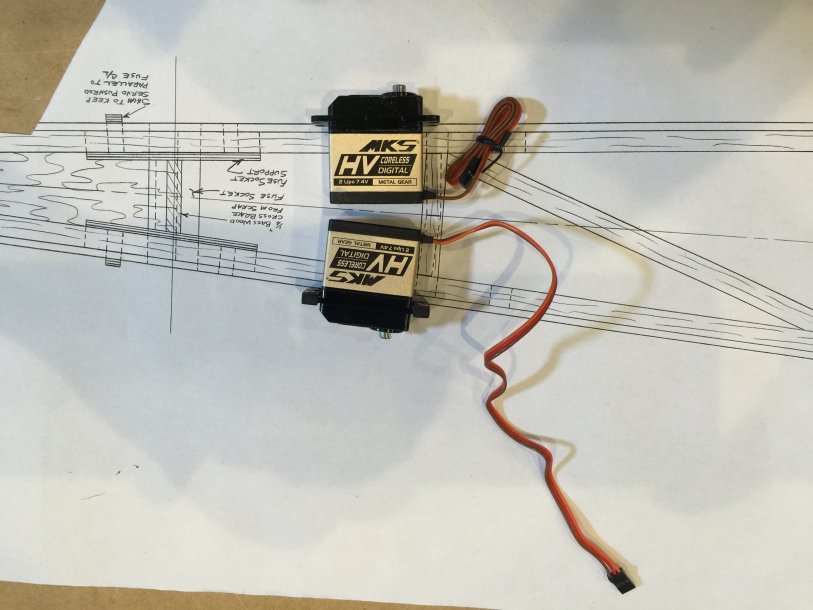

    However, you can see how it crosses the midline,





    so both servos will not fit in that location.




    Now, if i move them to here, then they will. I will have to work on making a hardwood mount for them, in this location. Now is the time to do it, since it will be easiest to do now.

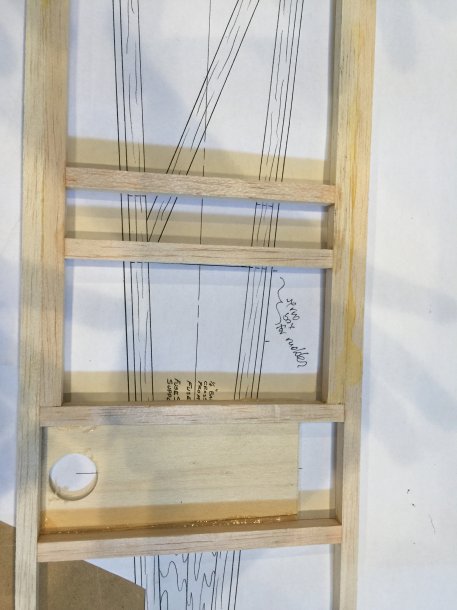

    Here is the location on the truss relative to the plans, where the new rudder servo location will be.



    Vince, pay attention to that, when you start to build yours.


    Thanks Dean for all the advice so far.

    Rusty 73 and pawnshopmike like this.
  4. orthobird

    orthobird 150cc

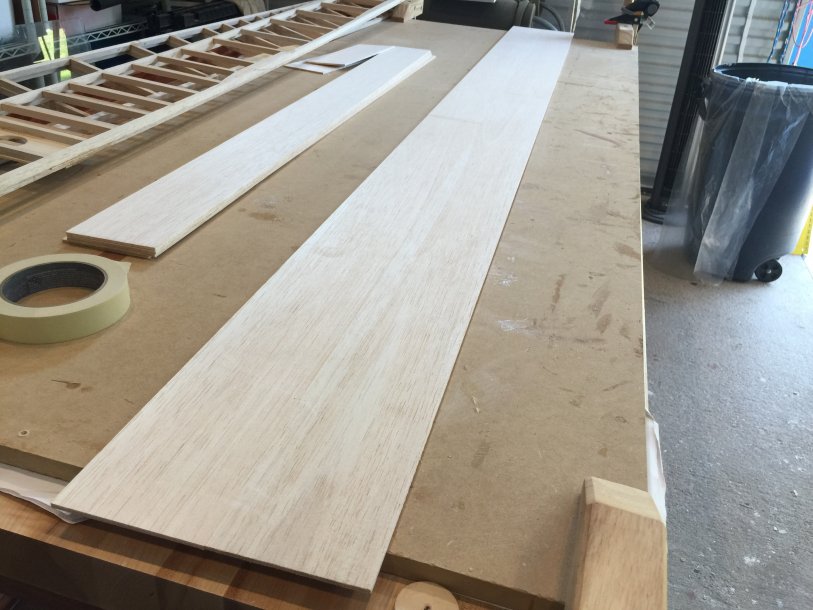

    Got the right side, Bird#1, fuselage sheeting done. Here it is:

    Still have to do 3 more. I will not post any more pictures regarding that, unless someone has a question or wants to see something in more detail, as I will do those over the next few days.


    Robotech and thurmma like this.
  5. orthobird

    orthobird 150cc

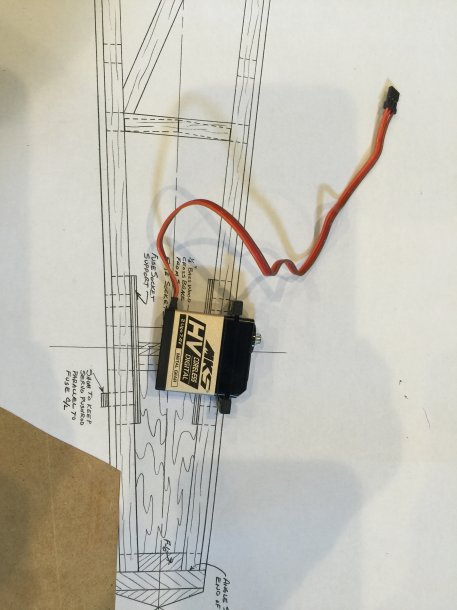

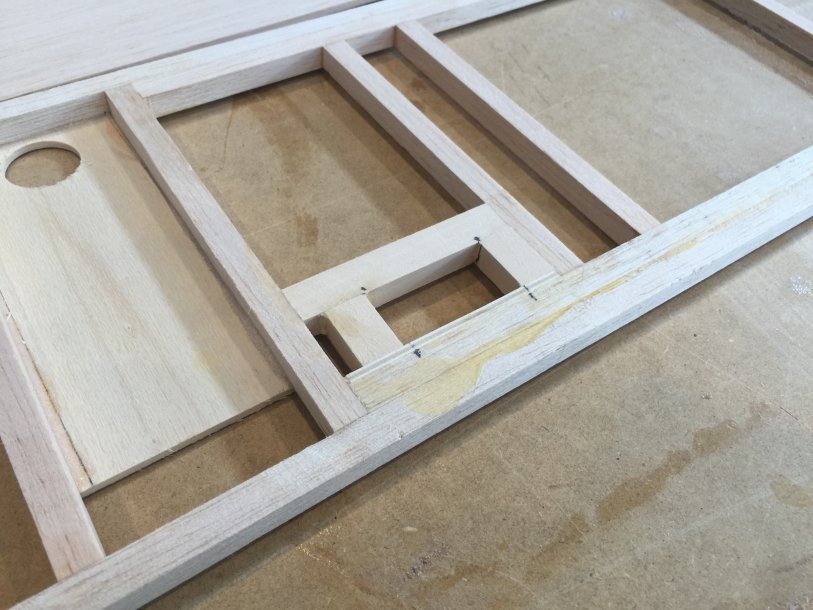

    I worked on the right side #1 Truss, to get the rudder servo mount on, using bass wood and plywood.


    I made this mount, forward of where the plans call for the installation of the servo. Also, this servo will sit 1/2" higher than the stock position, and thus, the hard point on the rudder will also be shifted 1/2" up.

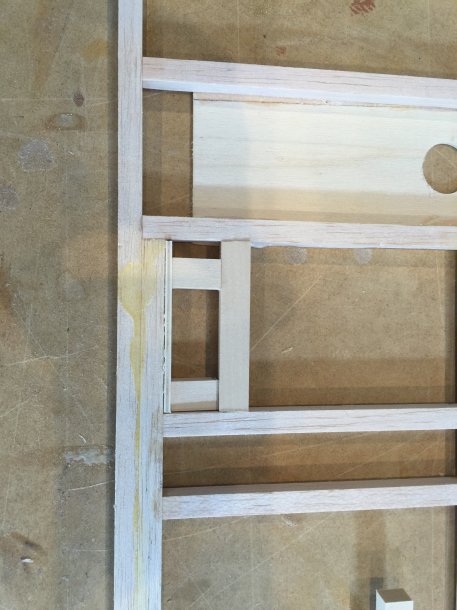

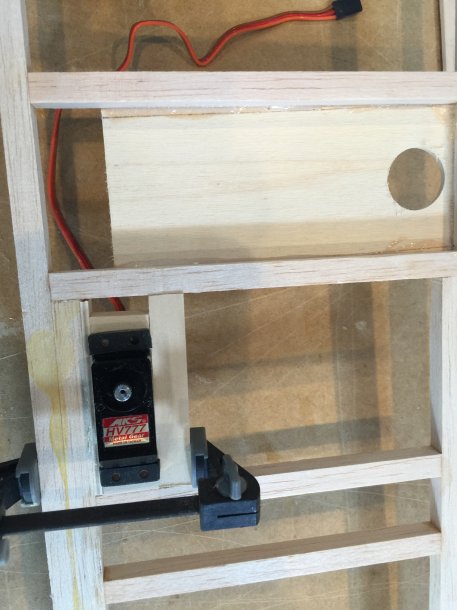

    IMG_0896.JPG IMG_0897.JPG

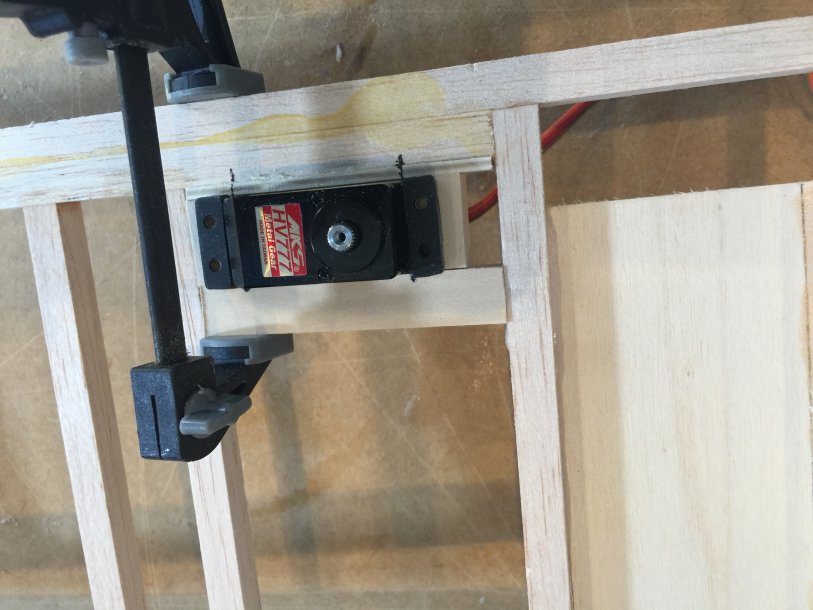

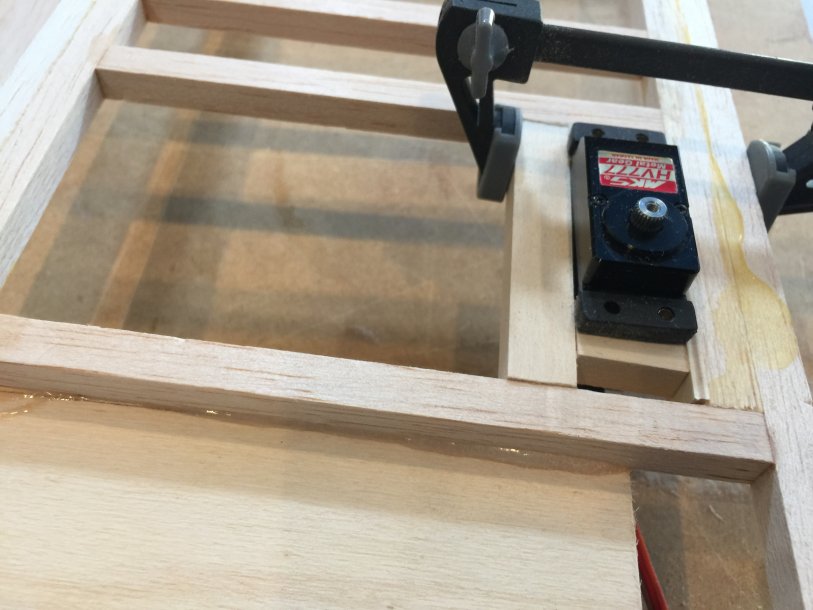

    Side view, before i applied glue.
    IMG_0898.JPG IMG_0899.JPG

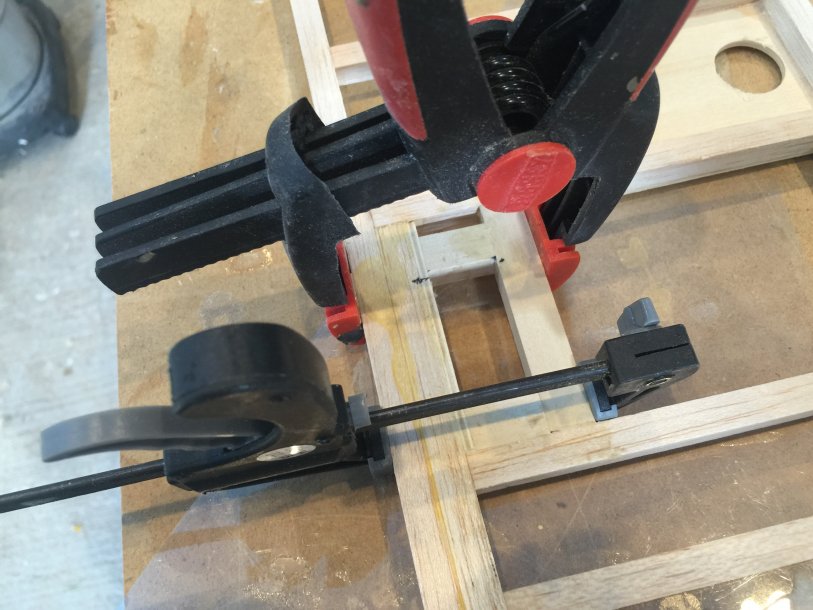

    glue is in, and clamped.




    sanded this flush.





    next step, is to glue the Truss to the balsa sheeting...

    Rusty 73, thurmma and pawnshopmike like this.
  6. orthobird

    orthobird 150cc

    I want to remind everyone, that I am still on the 4th step of the Carden Manual, with regards to: "Fuselage Construction", where it says:

    4. a. Build the Truss side over the Plans. (3/8” sq. and 3/8” x 1/2” Vertical Braces are pre-cut).
    b. Install the Fuse Socket Supports. We line up the socket hole over the Plans and mark the Truss Sides for an accurate measurement.

    (it does not state, make the fuselage side balsa sheeting and stagger them.)

    c. Using the Socket Support as a guide, mark the Socket hole on the 1/8” Balsa Fuse Side. Cut the Socket hole in the 1/8” Balsa using a Circle Cutter or Dremel.

    d. Properly position and glue the 1/8” Balsa Fuse Side to the Truss.


    e. Trial fit the Motor Box and Fuse Sides upside down over the Top View Plan. Line up the Motor Box so F-2 matches the Top View Plan. Make sure to position the Motor Box so the Top Plate hangs over the front of your building board so the Box can sit level with the Fuse Sides.

    f. Sand the taper on the front and back edge of the Fuse Side to match the Plans. Complete steps 5, 6, & 7 in this position.


    The Italic is what I will do next, except, the holes will be cut out, after the balsa sheeting is glued on.

    Rusty 73 and pawnshopmike like this.
  7. orthobird

    orthobird 150cc

    SO I position the truss over the sheeting, and make sure the top of the sheeting lines up flush and straight with the truss.

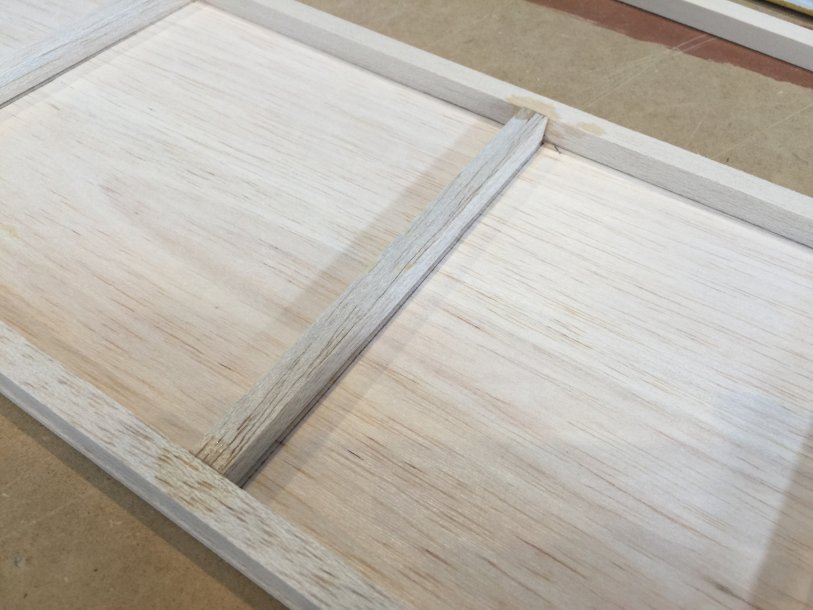

    If you recall, earlier, it was mentioned that we want the butt to butt joints to land on one of the vertical truss sticks, and the staggered one, to do the same on another one...

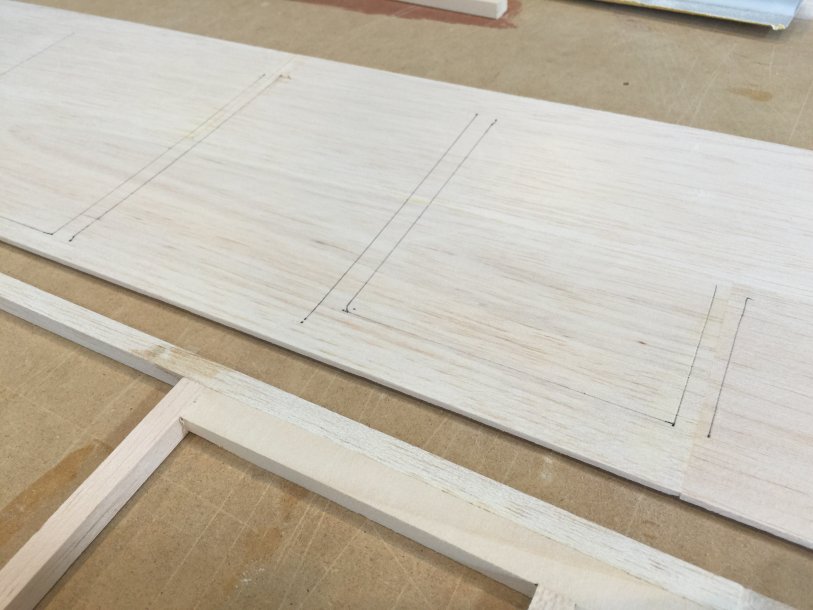

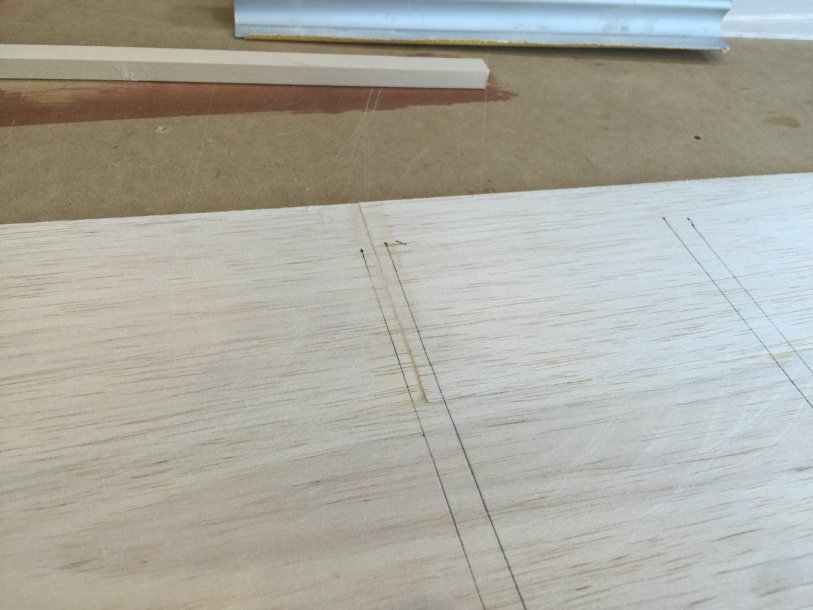

    after overlaying the truss, I marked where it would be...





    Then, it was positioned to cover it.



    Now, to glue this all on, I am using Titebond glue.

    Afterwhich, I will take some pictures of the end result. I will not post any further pictures of this step, being that I have to do 3 more, however, If anyone wants me to show, in particular, any step along the way, please do not hesitate to ask, as I will be doing these over next few days.

  8. orthobird

    orthobird 150cc

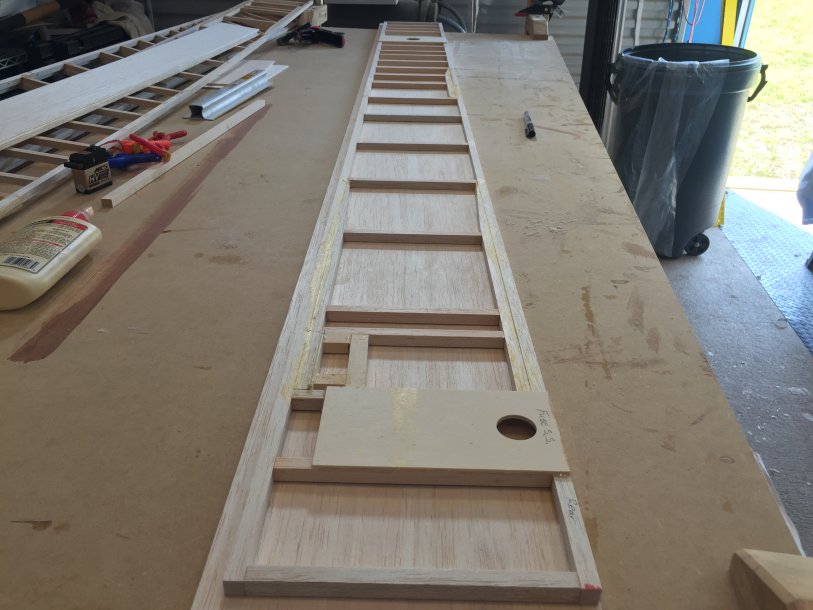

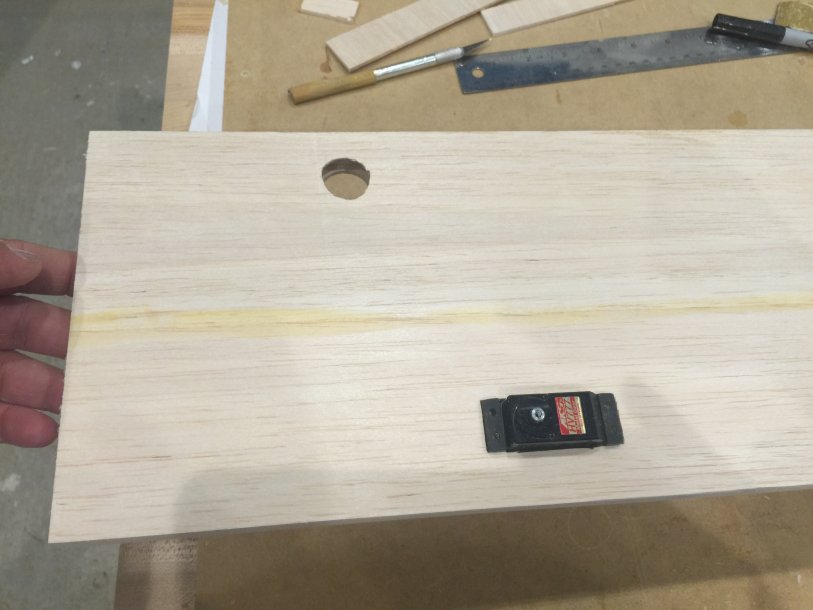

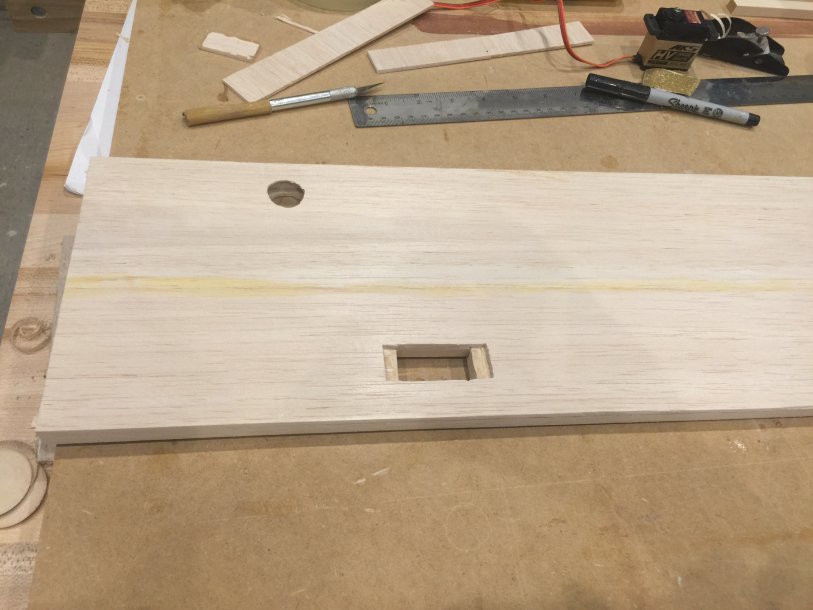

    Here it is after I glued the skin to it, trimmed the edges, sanded every thing flush, and cut out the openings.

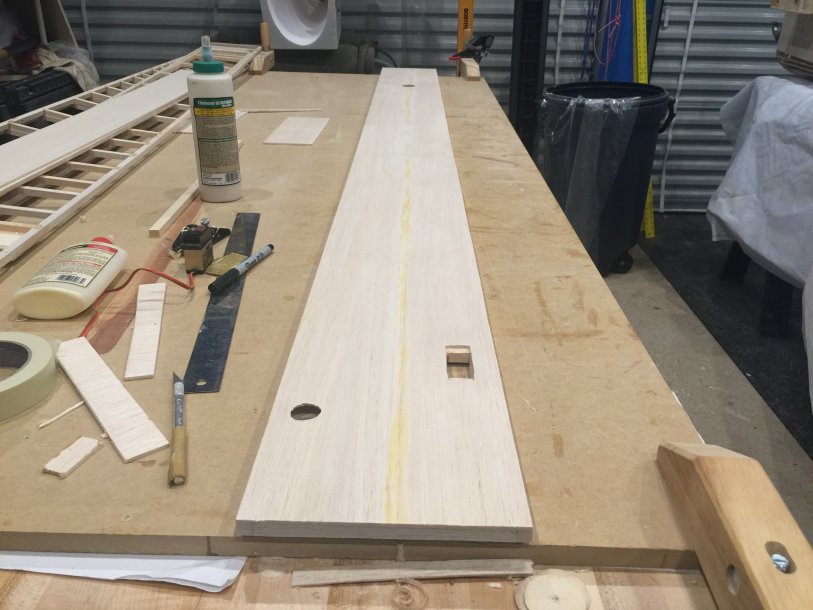

    IMG_0906.JPG IMG_0907.JPG IMG_0908.JPG

  9. IMAC FANATIC

    IMAC FANATIC 40% happier than most folks.

    Subd'
    Sure was good to meet you in your home town and hang out Cam, cant wait to get back again.
    Build sure is looking good !

    orthobird likes this.
  10. It would be so nice if ZDZ would change up their engine mount pattern to match other engines on the market.

    scruffmeister and orthobird like this.
