Mini lathe (and mill) discussion.

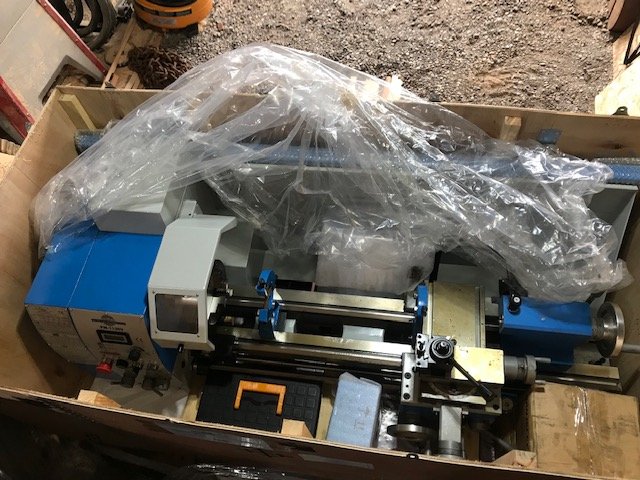

Something showed up!


Attachments

  • Lathe.jpg
    90.4 KB · Views: 124

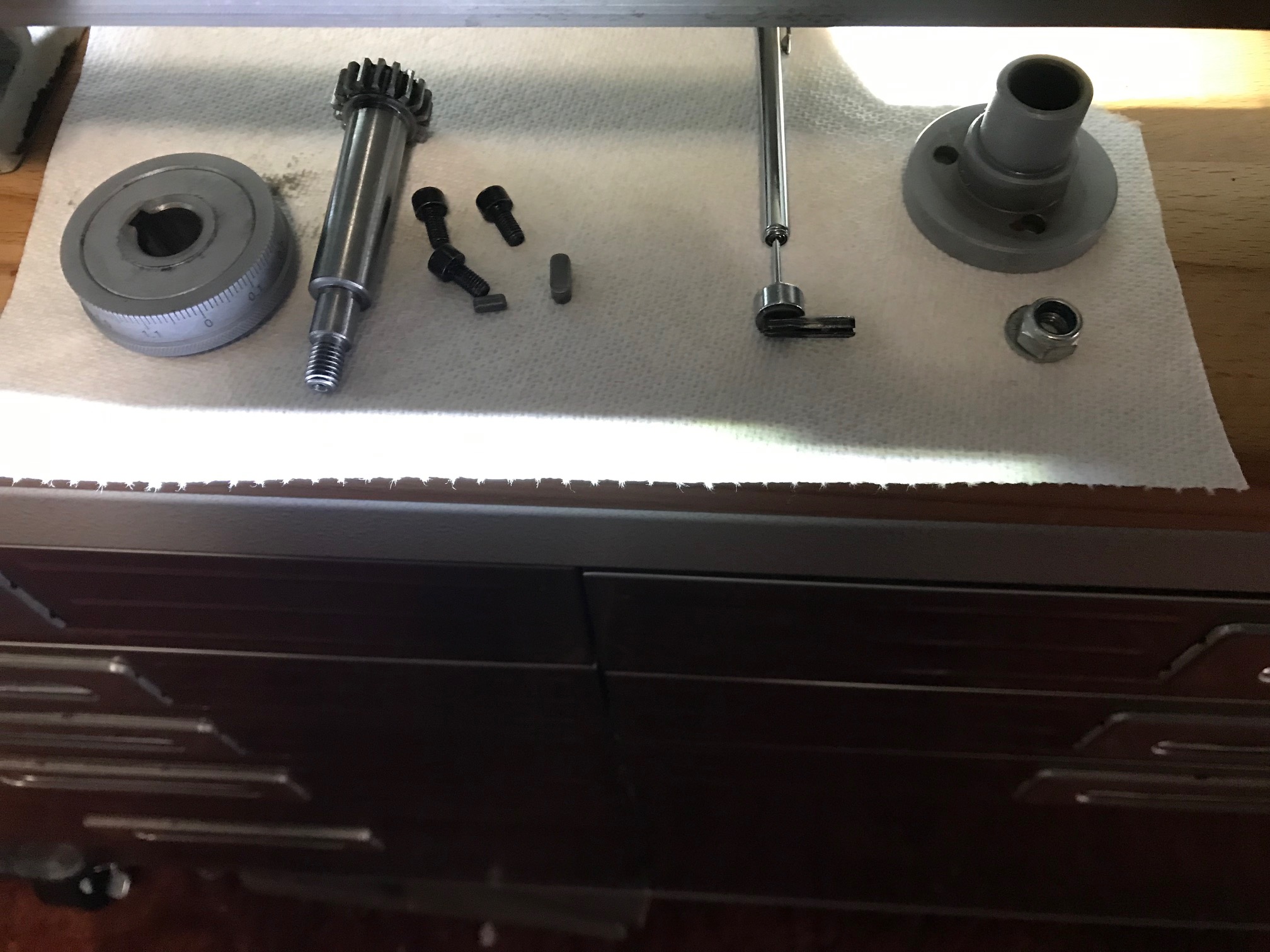

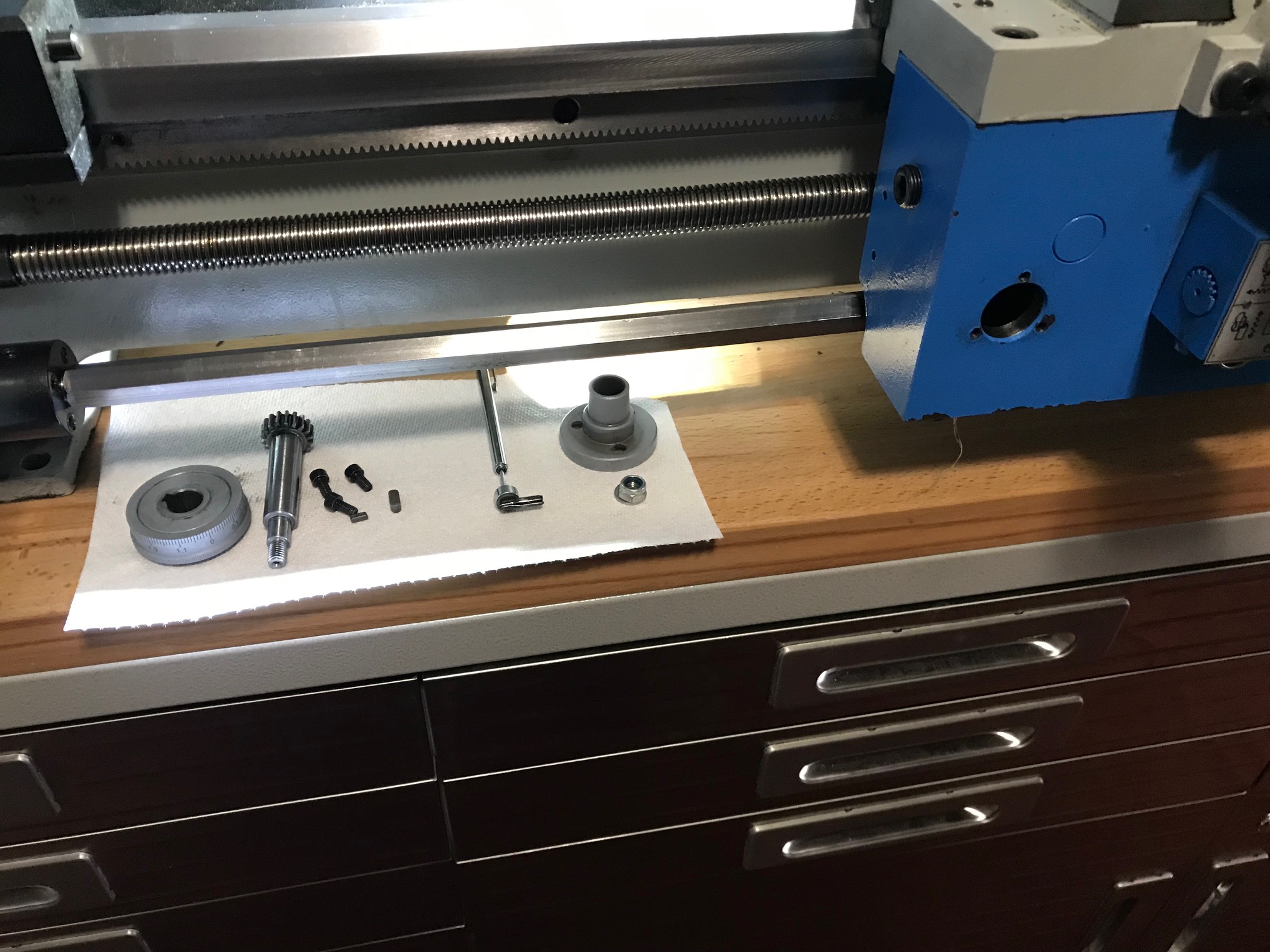

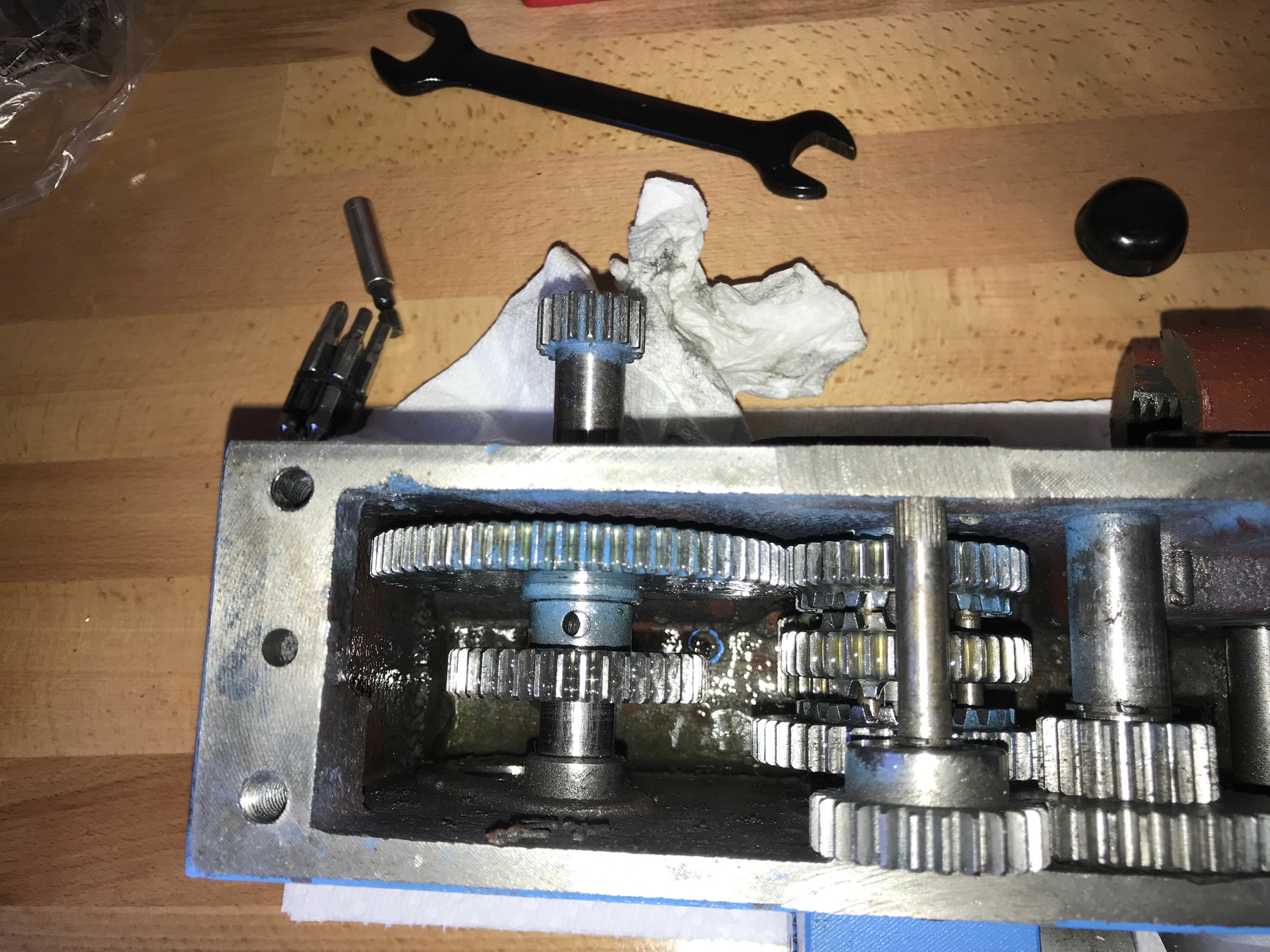

Had a snafoo right off the bat. Precision Matthews has been really good with getting things right. The carrage moved just fine for a couple of runs back and forth by hand, then it just started to free spin. I took a peak at the parts break down and figured something was wrong with the gear assembly the handwheel gear engages. I pulled the handwheel assembly out and sure enough a pin dropped out of the gear. I used a magnet to fish around in the bottom of the oil resivor and found the pin. I pulled the apron off and installed a new pin and all is well again.


Attachments

  • IMG_6910.jpg
    616 KB · Views: 98
  • IMG_6909.jpg
    480.6 KB · Views: 96
  • IMG_6918.jpg
    770.9 KB · Views: 120

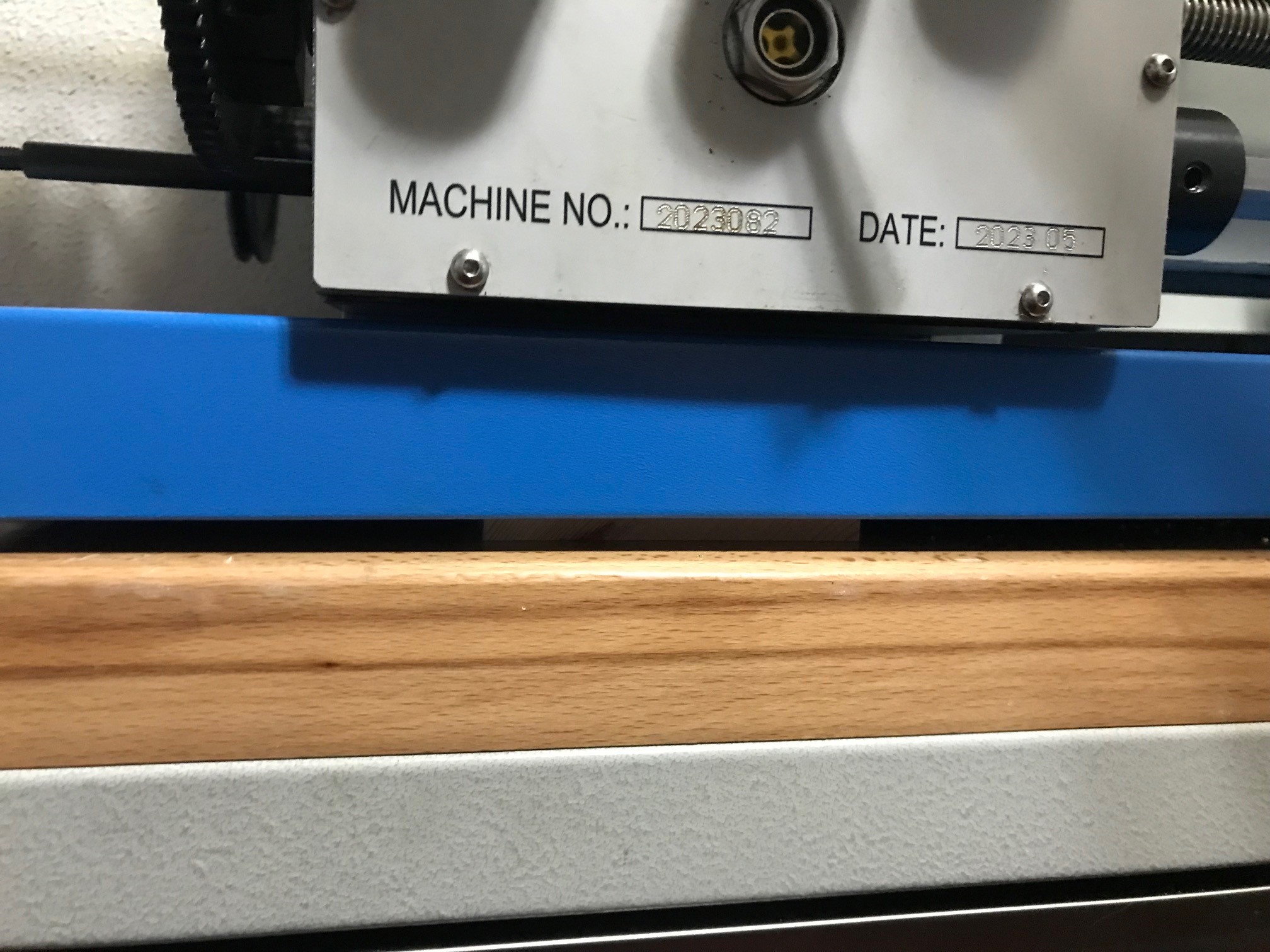

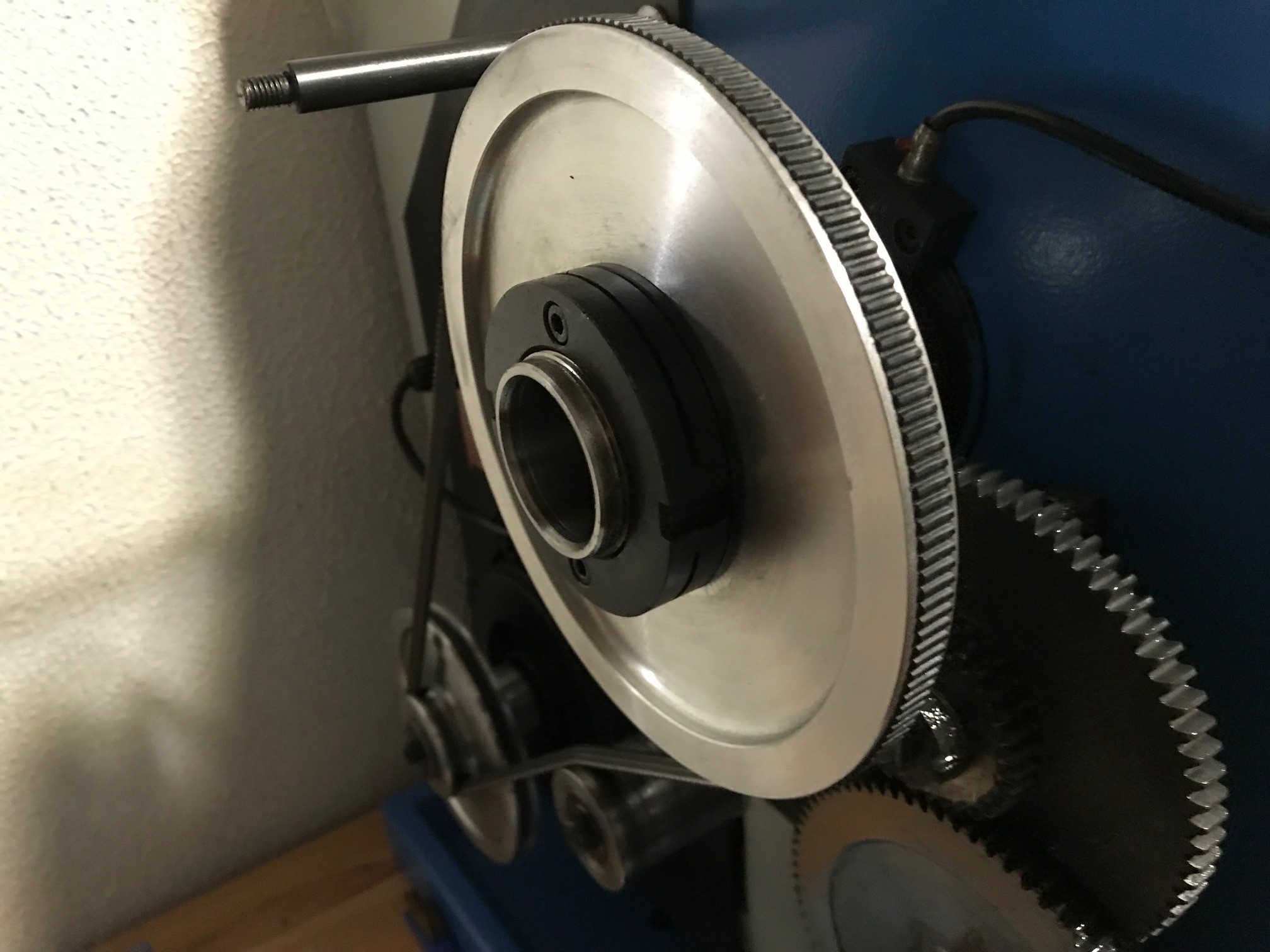

So far so good. I tightened up the gibs just a touch and leveled it out. One thing I wasn't aware of was that the chip pan bottom is elevated. I had to put some 3/4" boards under the chip pan so the lathe was on solid ground. The spindle also doesn't have any extra meat for a screw on type spider. I had to make one that slips inside the spindle, so I can only use it on stock that's 1 1/16 or less. witch shouldn't be a problem anyway.


Attachments

  • lathe18.jpg
    442.4 KB · Views: 102
  • lathe16.jpg
    514.2 KB · Views: 106

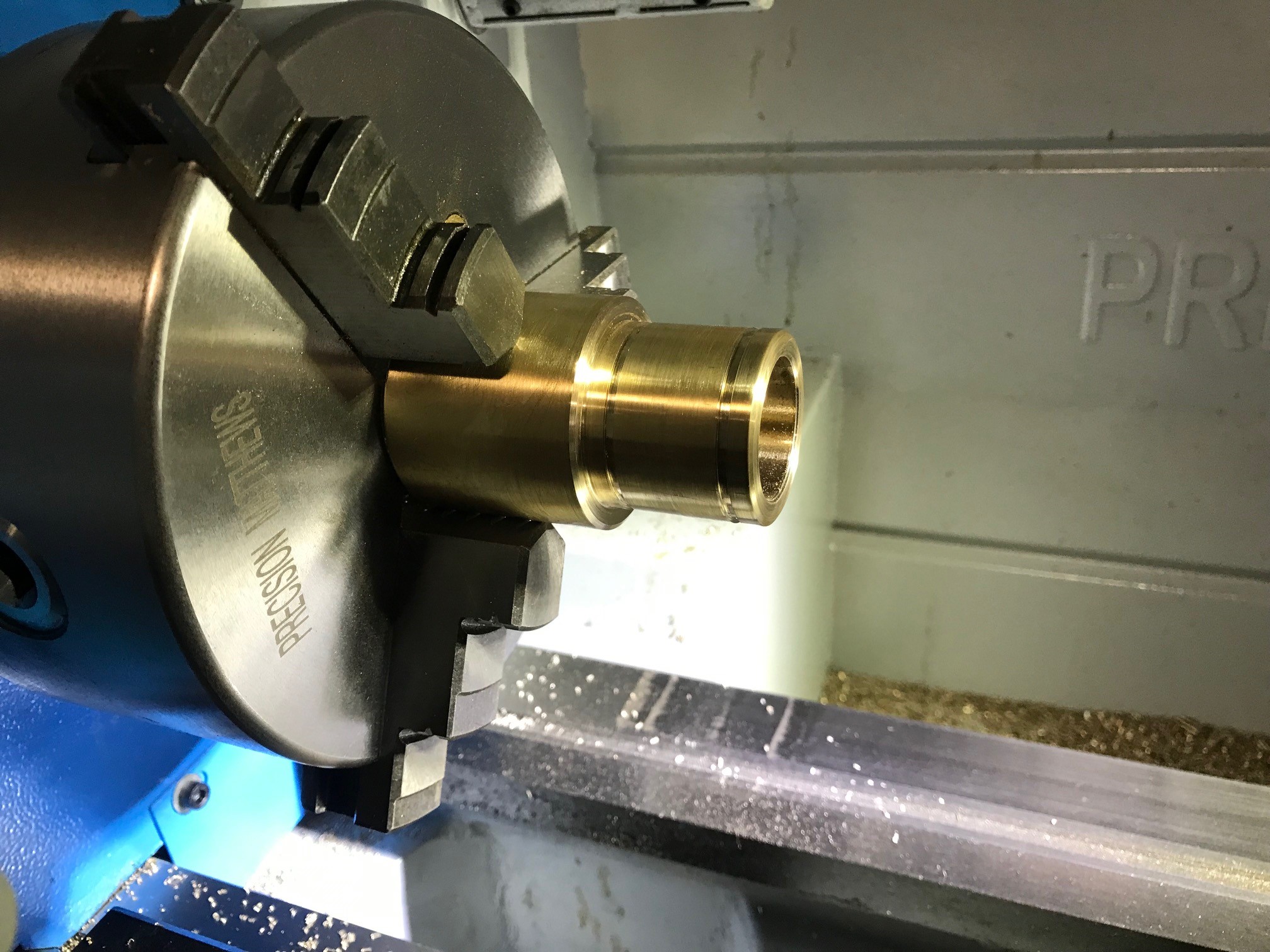

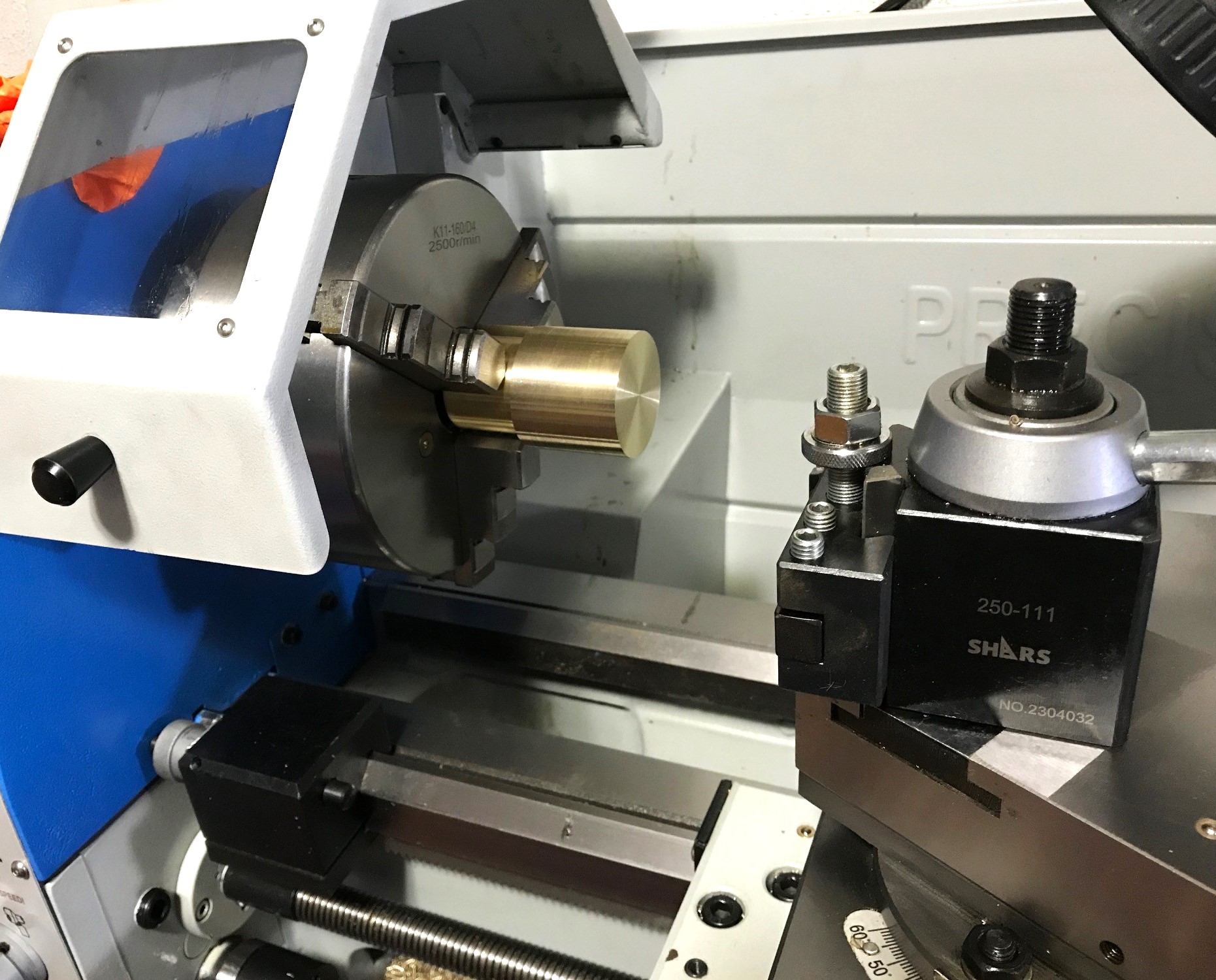

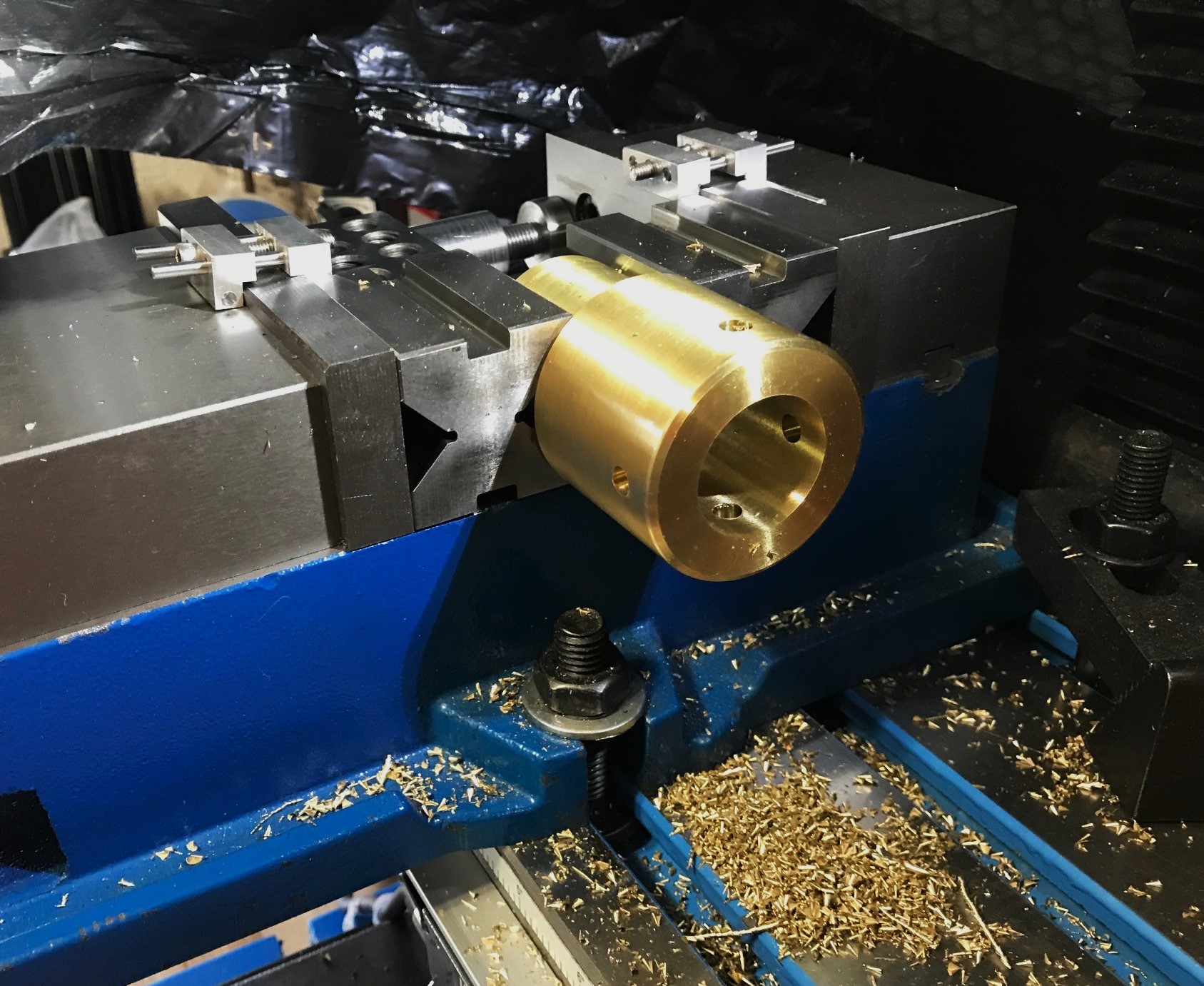

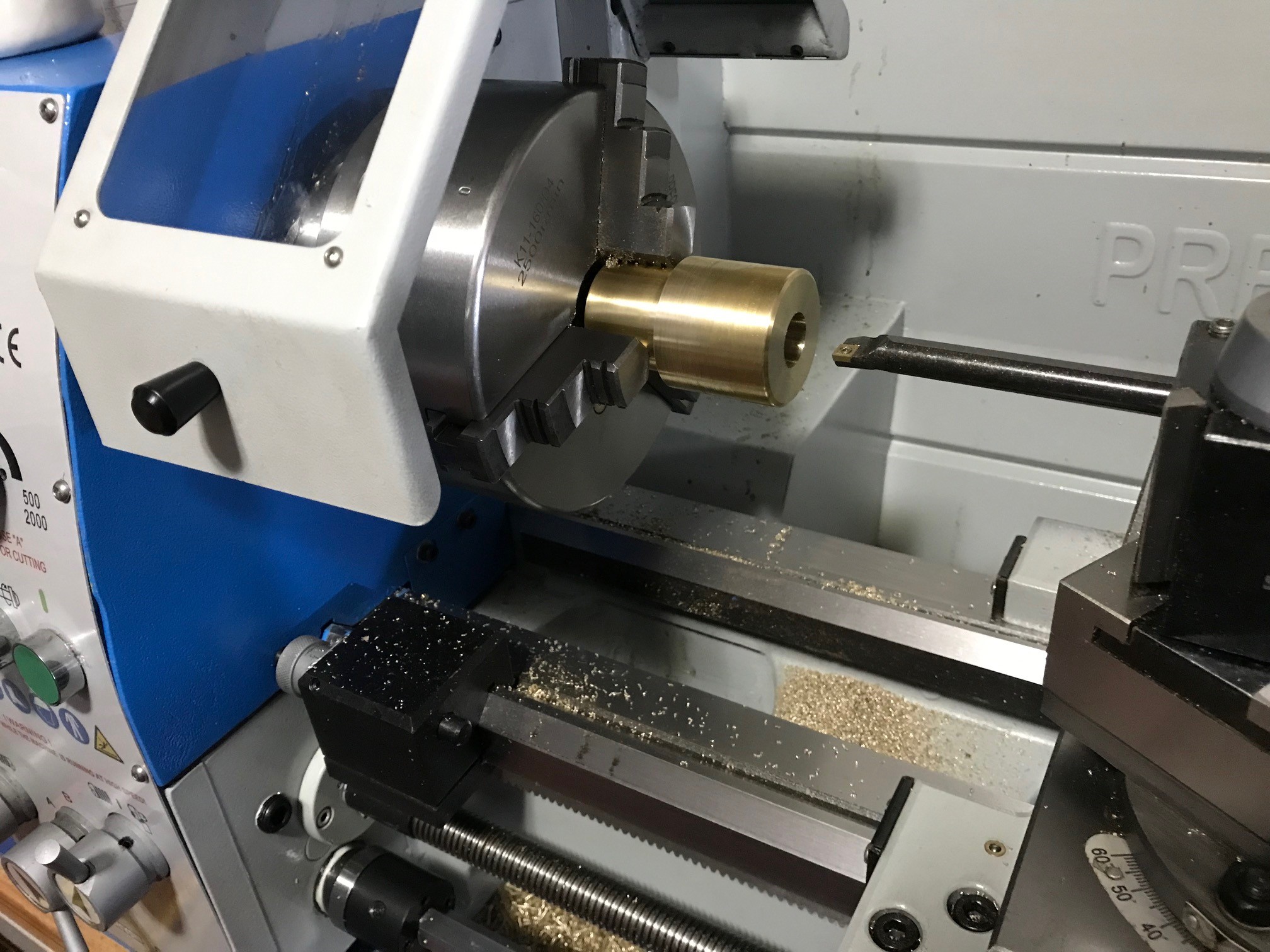

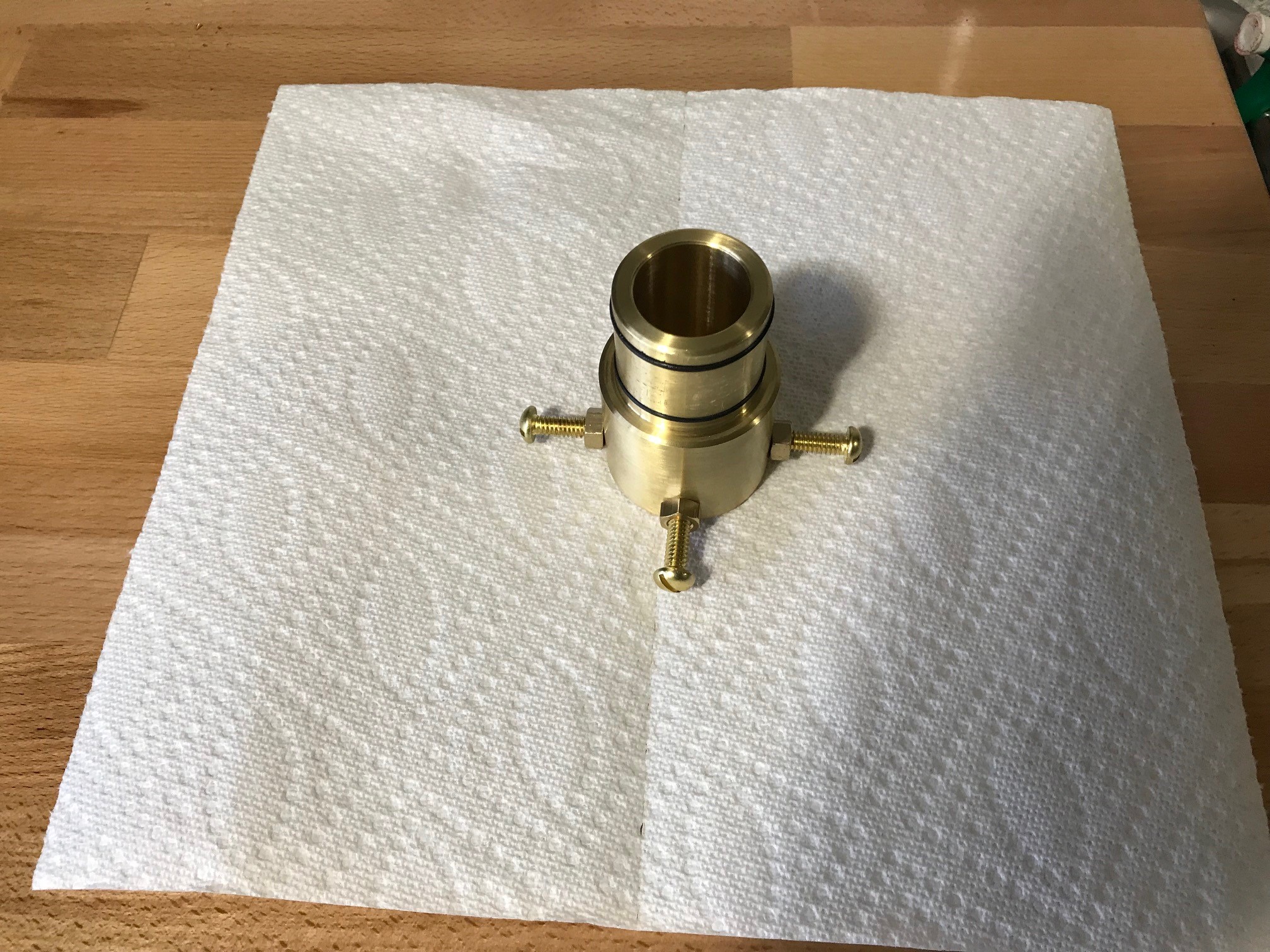

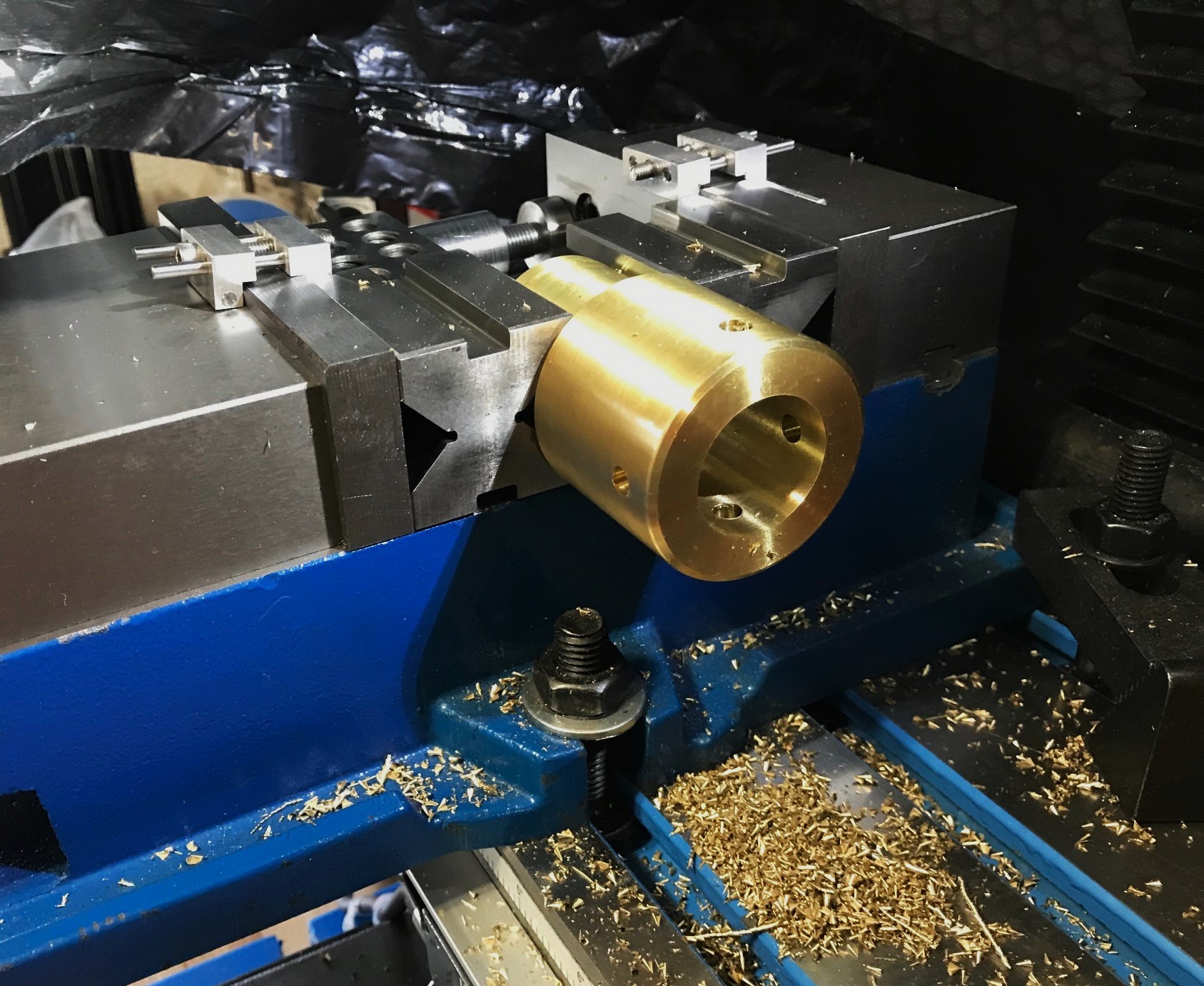

A few pics of the first project. I have some 2 1/4" brass stock I used.


Attachments

  • lahte2.jpg
    514.9 KB · Views: 89
  • latrhe1.jpg
    542.9 KB · Views: 88
  • lathe4.jpg
    526 KB · Views: 90
  • lathe15.jpg
    562 KB · Views: 92
  • lahte12.jpg
    791.2 KB · Views: 104
