IMAC Delro Raven 3.1M build

[Jlc]

For info..... If you use a digital meter and place it on top of the incidence bar...you can actually set incidence in 1/10th decree increments. Originally, I set my wings for 1/10th degree positive...before moving them back to 0 degrees.
Wayne

That is awsome you can feel 1/10th degree difference. Good idea on the digital meter.



[Silver Fox]

That is awsome you can feel 1/10th degree difference. Good idea on the digital meter.

I don't remember typing or saying anything about feeling any difference?? All I was showing was that there IS a way to actually get less than 1 degree accurately.

I put my wings back at 0 degrees because I spoke with Mark Leseberg at the Joe Nall and he said the airplane (Dalton Extra 300ML) was designed for 0 degrees for competition.



[Jlc]

I don't remember typing or saying anything about feeling any difference?? All I was showing was that there IS a way to actually get less than 1 degree accurately.

I put my wings back at 0 degrees because I spoke with Mark Leseberg at the Joe Nall and he said the airplane (Dalton Extra 300ML) was designed for 0 degrees for competition.

Sorry I wasn't being a smart a** I was impressed. Thanks for the information. The way my build is going right now I'll be lucky to get +-1. Silver Fox I've read a lot of information you've posted and it has been very helpful!



[Naughty Monkey]

Yeah, lucky to have people like him to learn from. Not saying he's old or anything, but LOTS of experience in that noggin.



[Silver Fox]

We are all good.... even in the silver "noggin"
There is so much to learn...and I still do when I read all the stuff that comes up in the forums.
Wayne



[Jlc]

I have the KS header in mine. they are very good quality!! some pics of my pipe install.. I will be getting on with mine soon. my set up is.
delro raven 3.1M
DA170
KS 1090 pipes
futaba bls 172 2x per ail 1x per elevator 2x rudder- direct drive mounted in fuzz under the tailplane
2x futaba 70008 sv Sbus 2x lipo
2x powerbox smart switches

mejzlik 29/12 3 blade

Allan how did you attach your landing gear? Do you happen to have any pictures? Thanks



[Allan]

Certainly. I will take some tomorrow.


Glue all the formers in place and used 5mm captive nuts, due to the threads not being great on captive nuts I will use slightly longer bolts and back up the captive nuts with nylocks. never had any issues with this method in any of my planes.



[Jlc]

Certainly. I will take some tomorrow.


Glue all the formers in place and used 5mm captive nuts, due to the threads not being great on captive nuts I will use slightly longer bolts and back up the captive nuts with nylocks. never had any issues with this method in any of my planes.

Thanks. I think a visual would really help me!



[Jlc]

Back on the build after a busy summer.

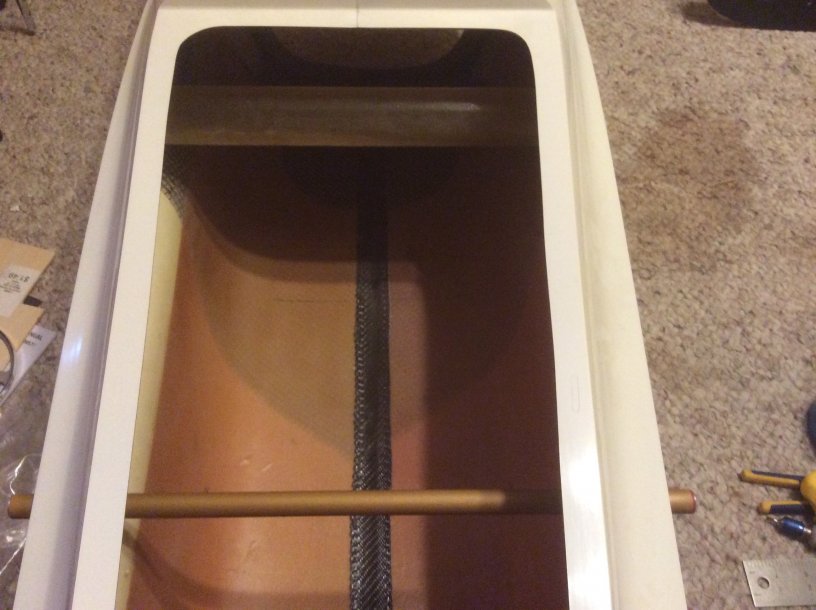

Wing tube in and antirotation tube.

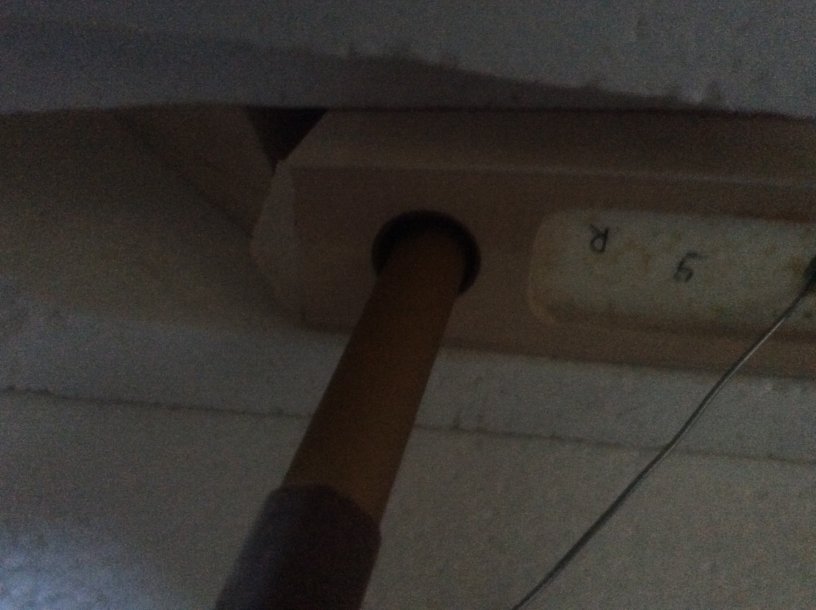

I think I've run into my first problem with the kit. I think I have the wrong stab tube.



[Wacobipe]

Woop! A Delro Raven will one day fly from this site...I'm just not sure which one of us will take longer!

That stab tube does look small...but it seems hard to believe they screwed that part up. It's hard to tell but the sleeve on the tube looks the right size...is there a sleeve already mounted in the stab?
