PM Research Mini Engine Lathe Build

Thanks Tony,
And yep, a 90* chamfer end mill. I've never used one before, so I went with small cuts. I was worried about ending up with a lip at the bottom of each cut and there was a slight lip I couldn't get rid of, but it's very minor and easy to blend in. You can see them in the second pic of the previous post.

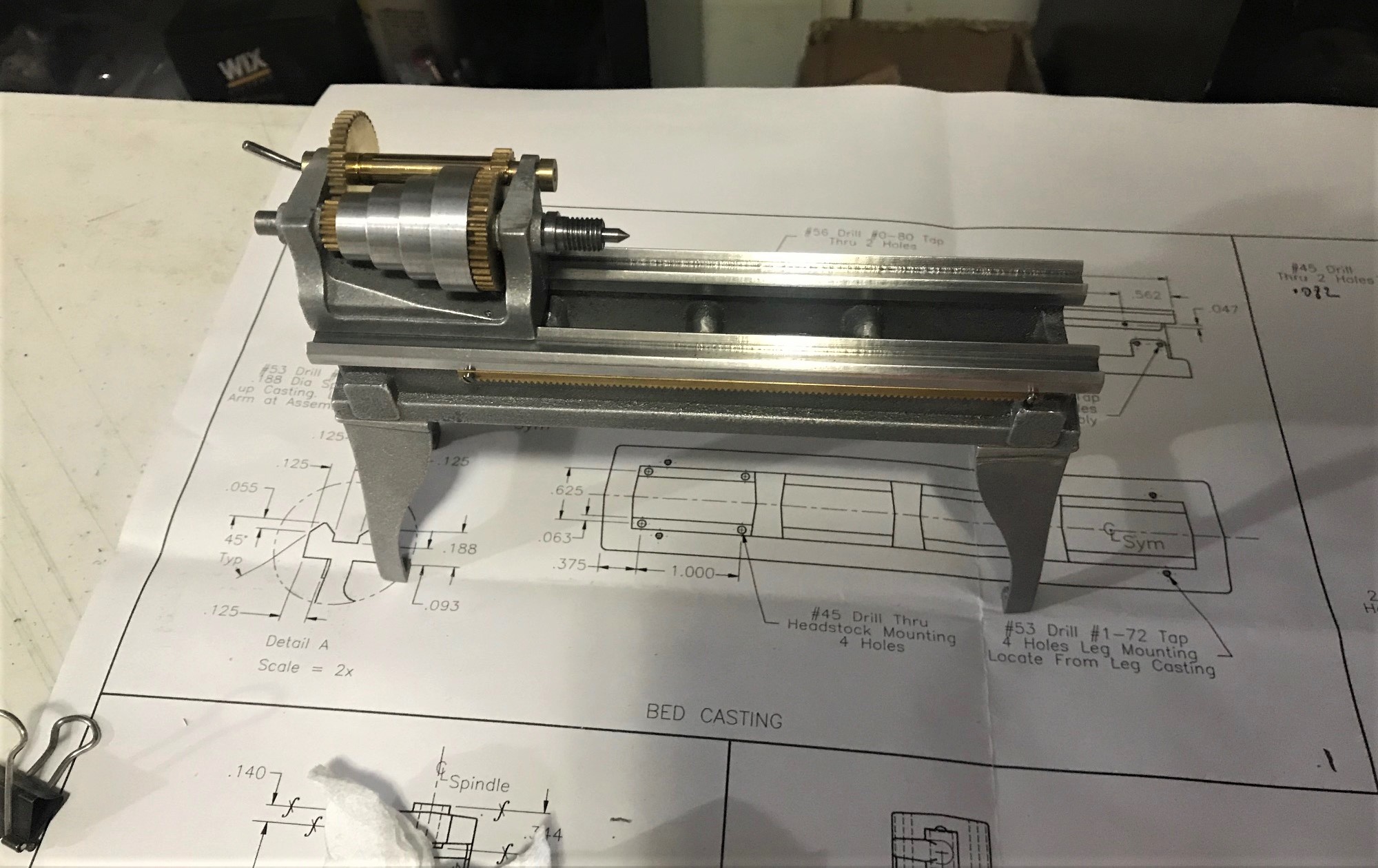

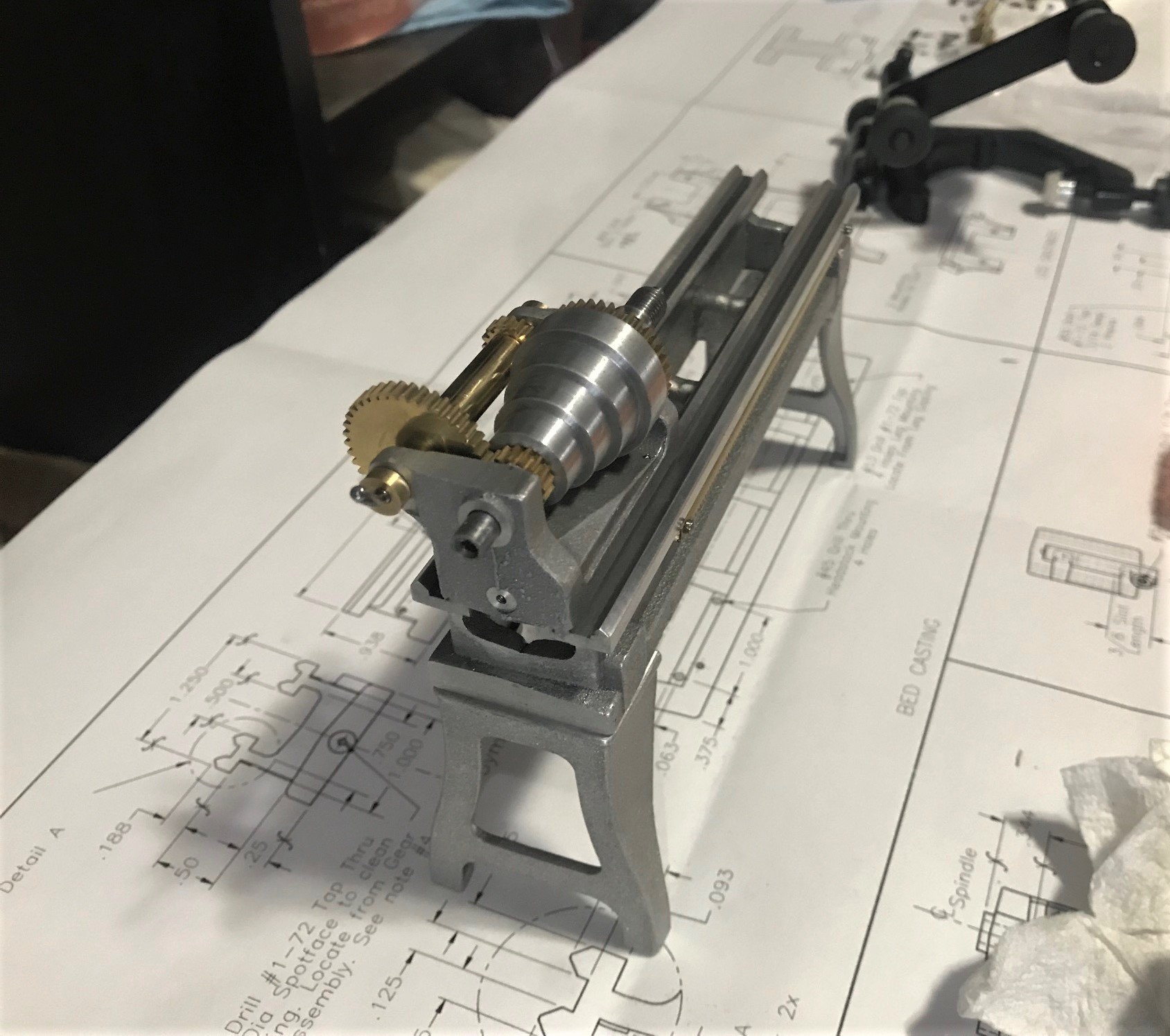

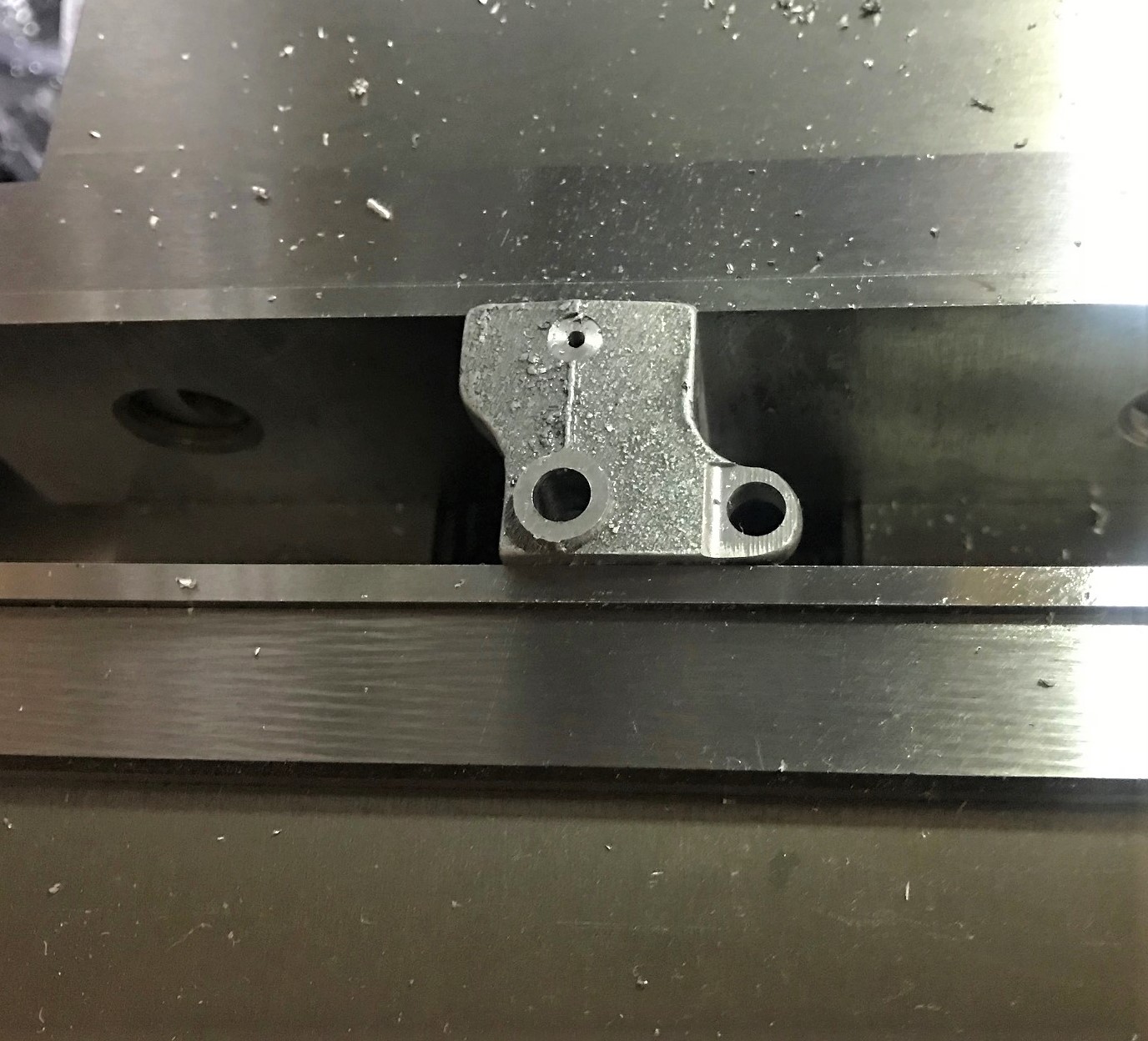

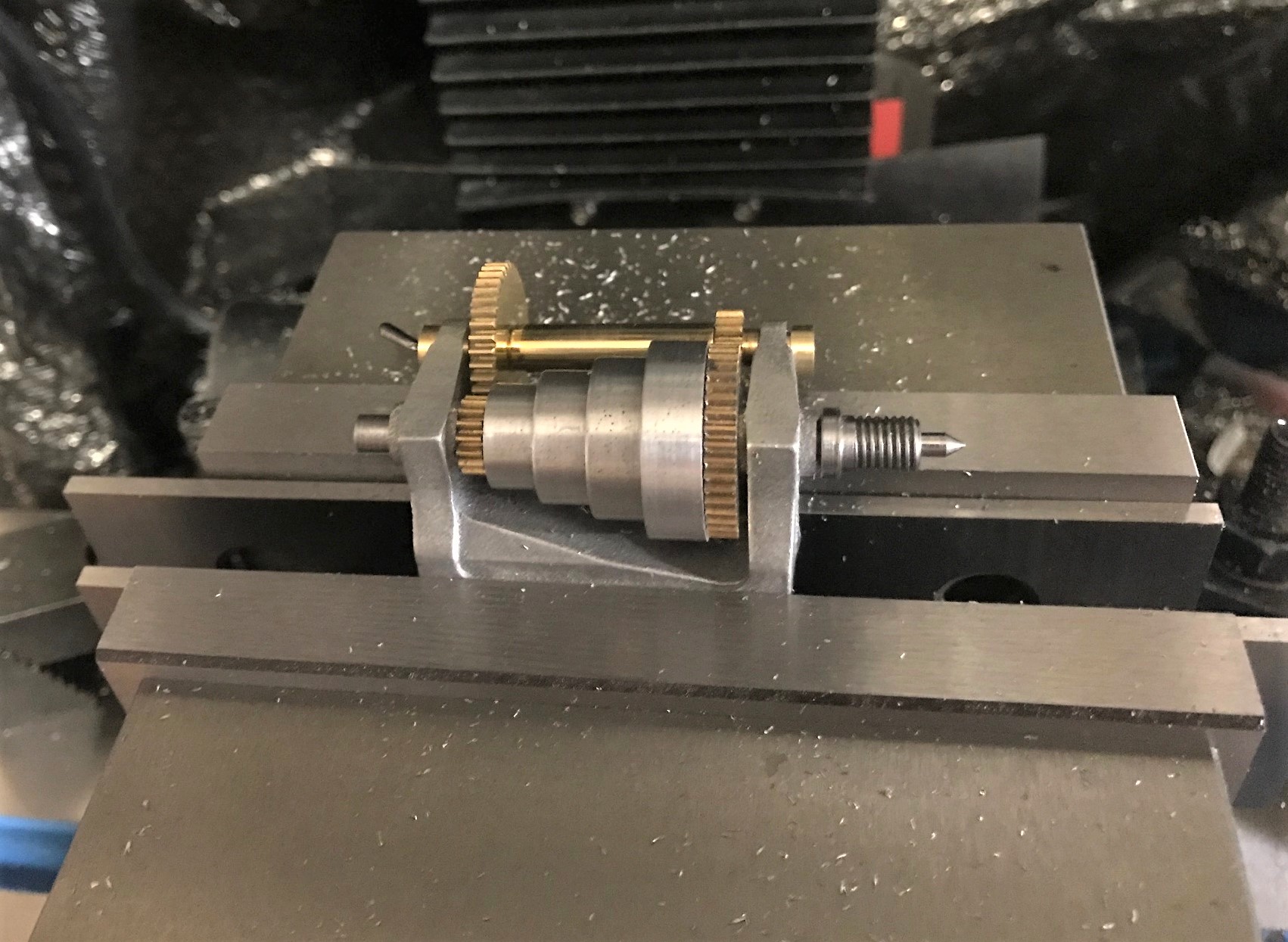

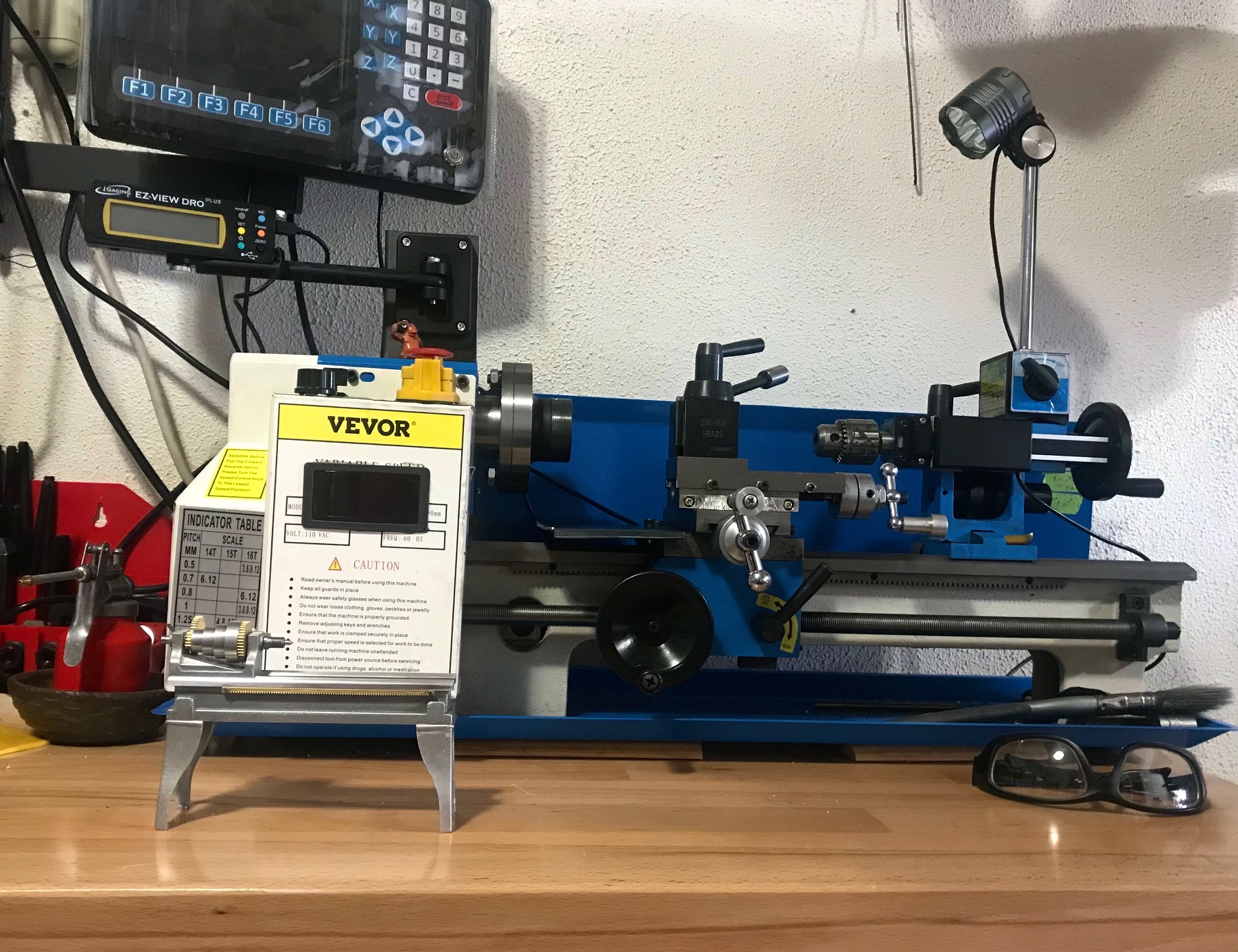

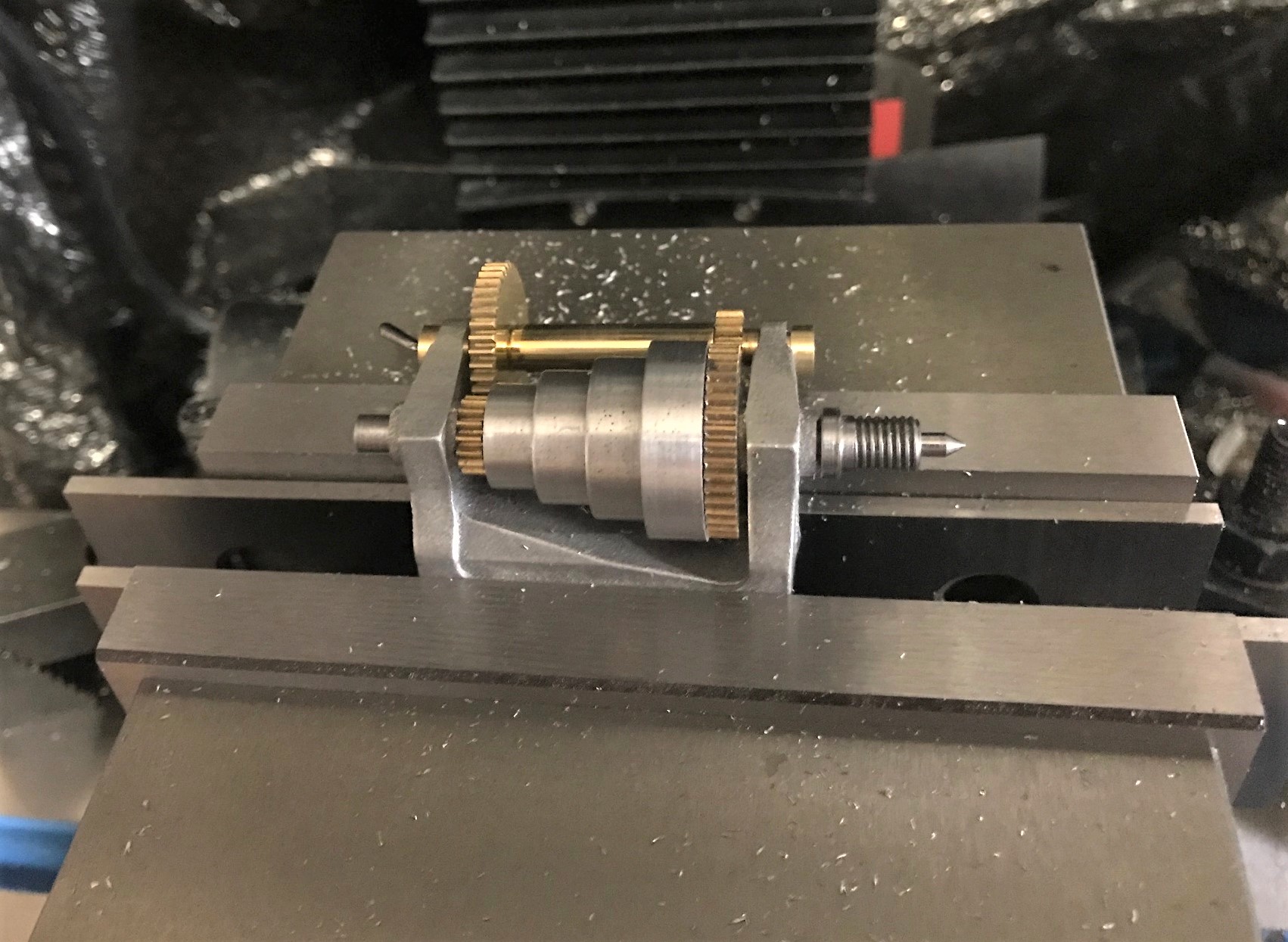

Spent a little time yesterday and worked on the headstock. I still have to take a file to it and smooth out all the casting marks, but so far so good.


Attachments

  • Stock3.jpg
    325.6 KB · Views: 161
  • lath3.jpg
    423 KB · Views: 143
  • lath6.jpg
    394.3 KB · Views: 156
  • lath2.jpg
    448 KB · Views: 142
  • IMG_6387.jpg
    695.1 KB · Views: 153

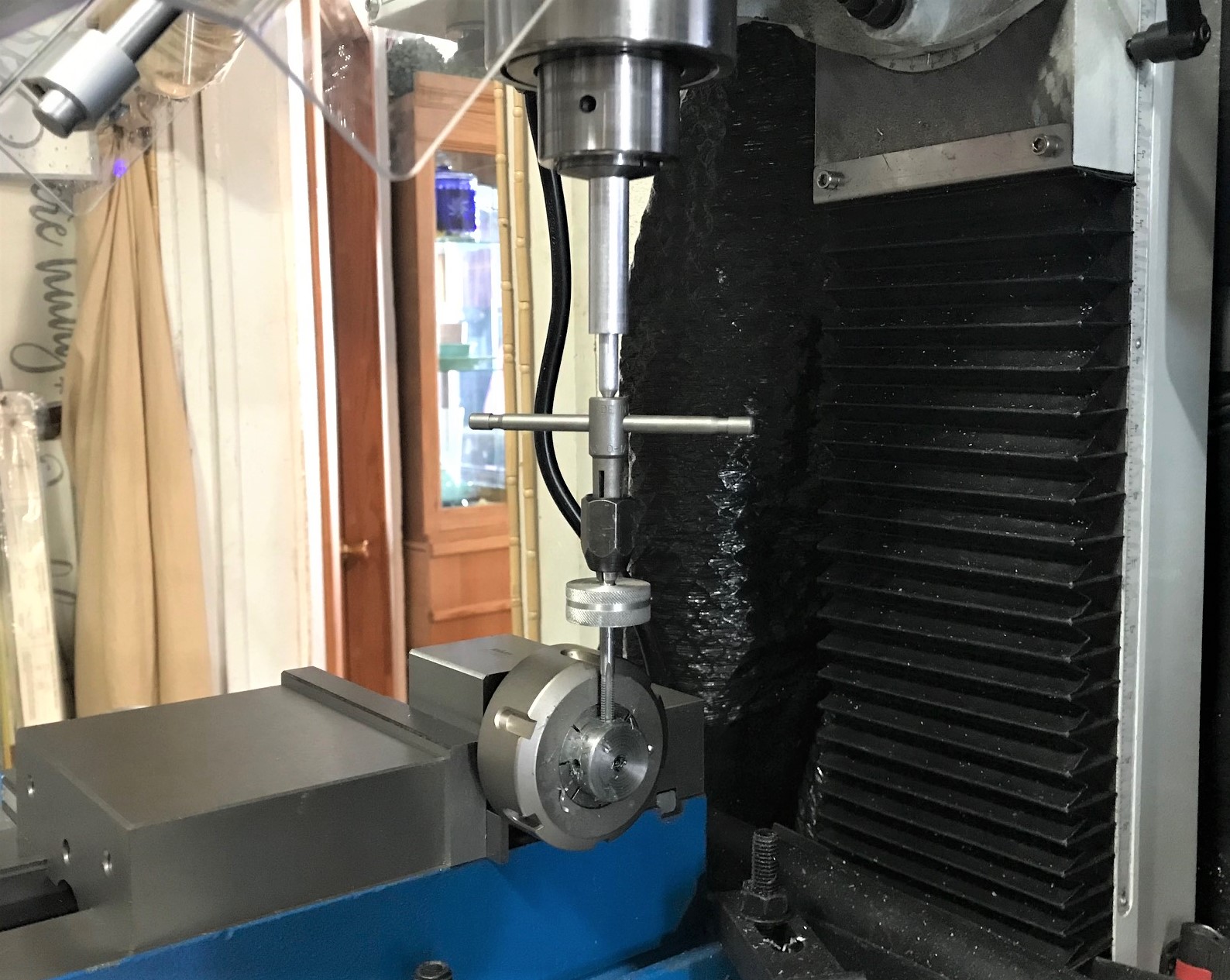

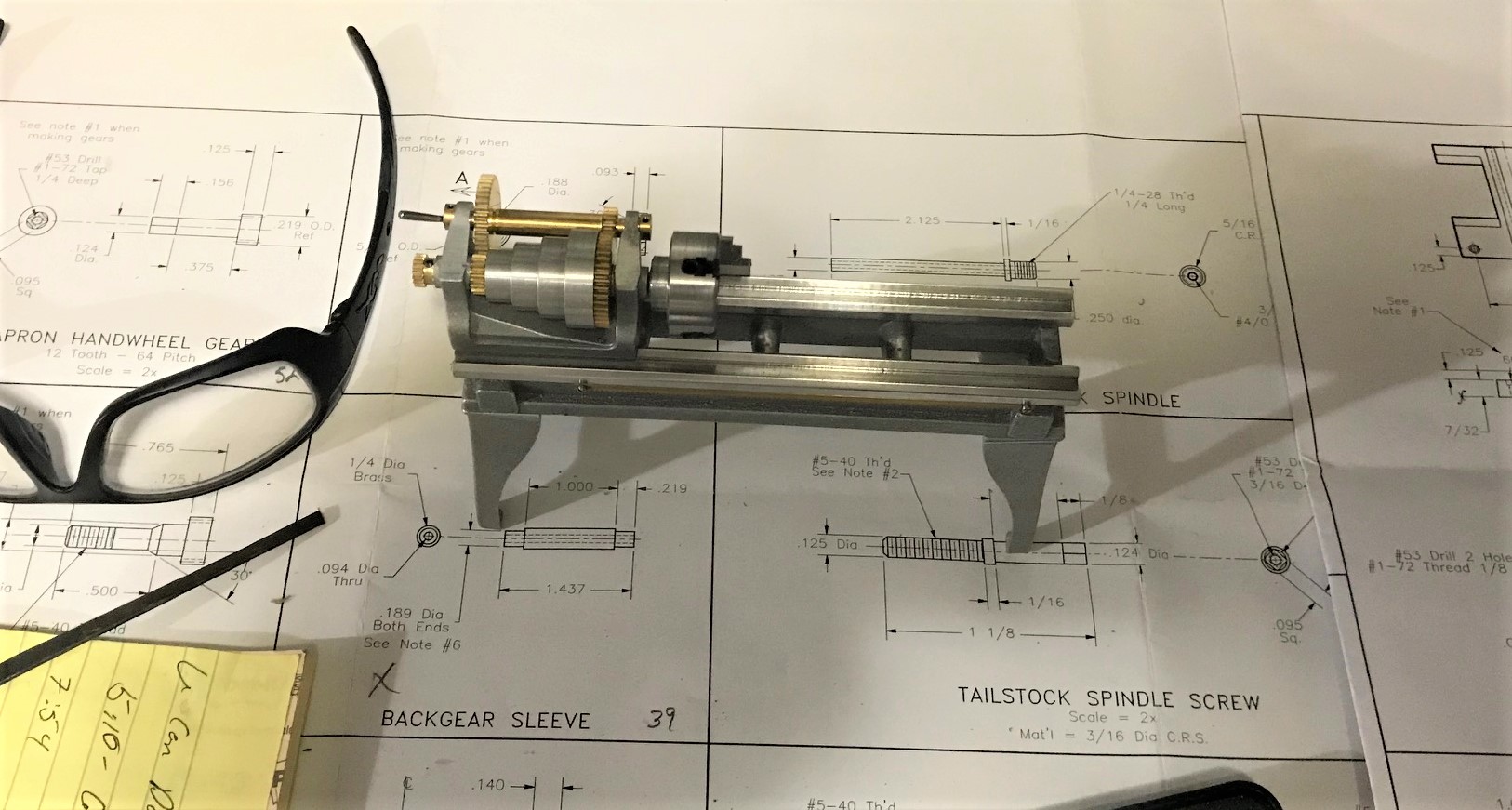

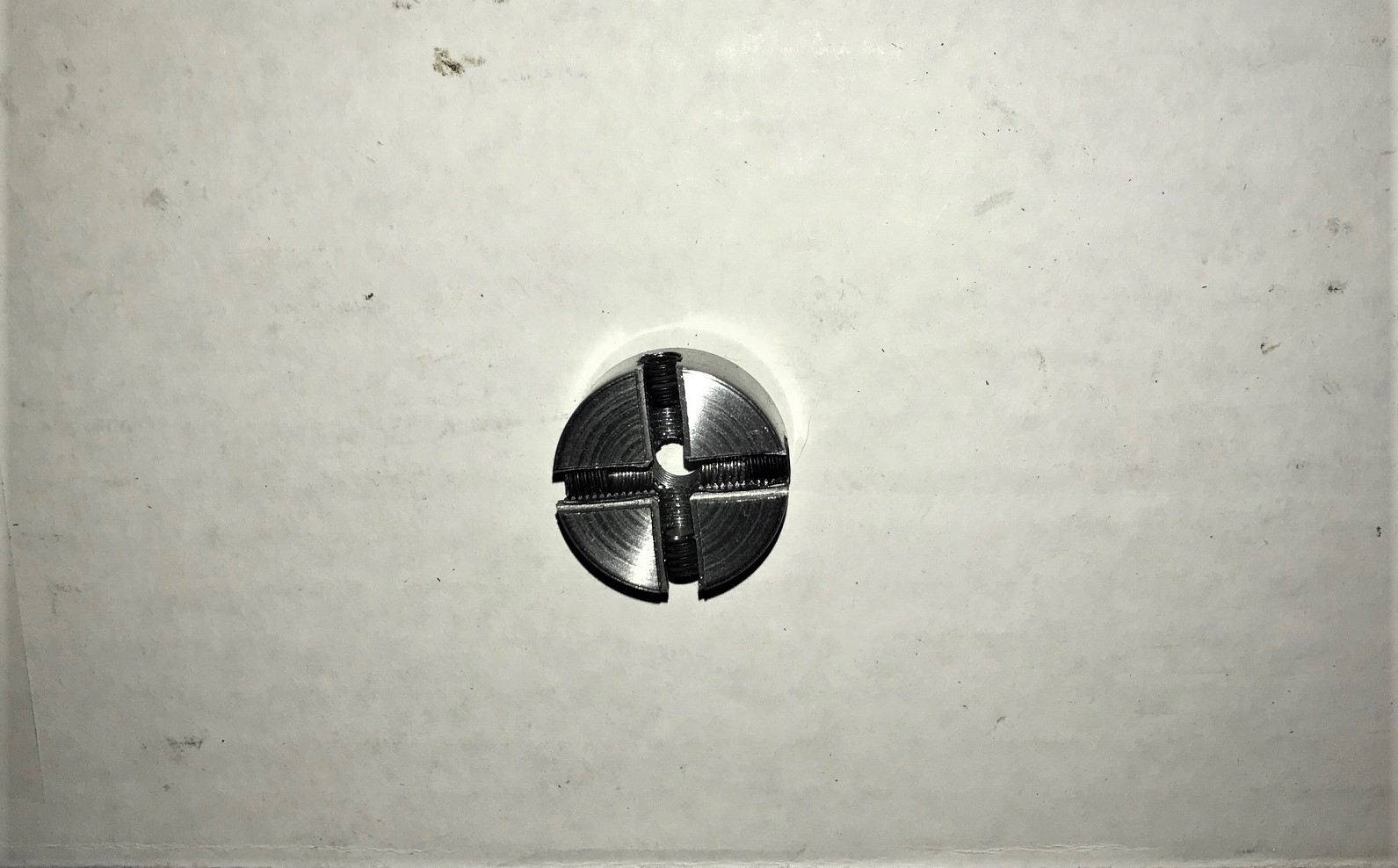

Got back to work on the lathe. I had started on the four jaw chuck, but needed some tooling and it finally got here. So I got back to work on it. I still have to make three more jaws. They take some time to make. Here's the progress so far.


Attachments

  • IMG_6428 (2).jpg
    IMG_6428 (2).jpg
    415.9 KB · Views: 150
  • IMG_6439 (2).jpg
    IMG_6439 (2).jpg
    261.4 KB · Views: 138
  • IMG_6440 (2).jpg
    IMG_6440 (2).jpg
    247.3 KB · Views: 140
  • IMG_6447 (2).jpg
    IMG_6447 (2).jpg
    209.1 KB · Views: 145
  • IMG_6448 (2).jpg
    IMG_6448 (2).jpg
    280.7 KB · Views: 168

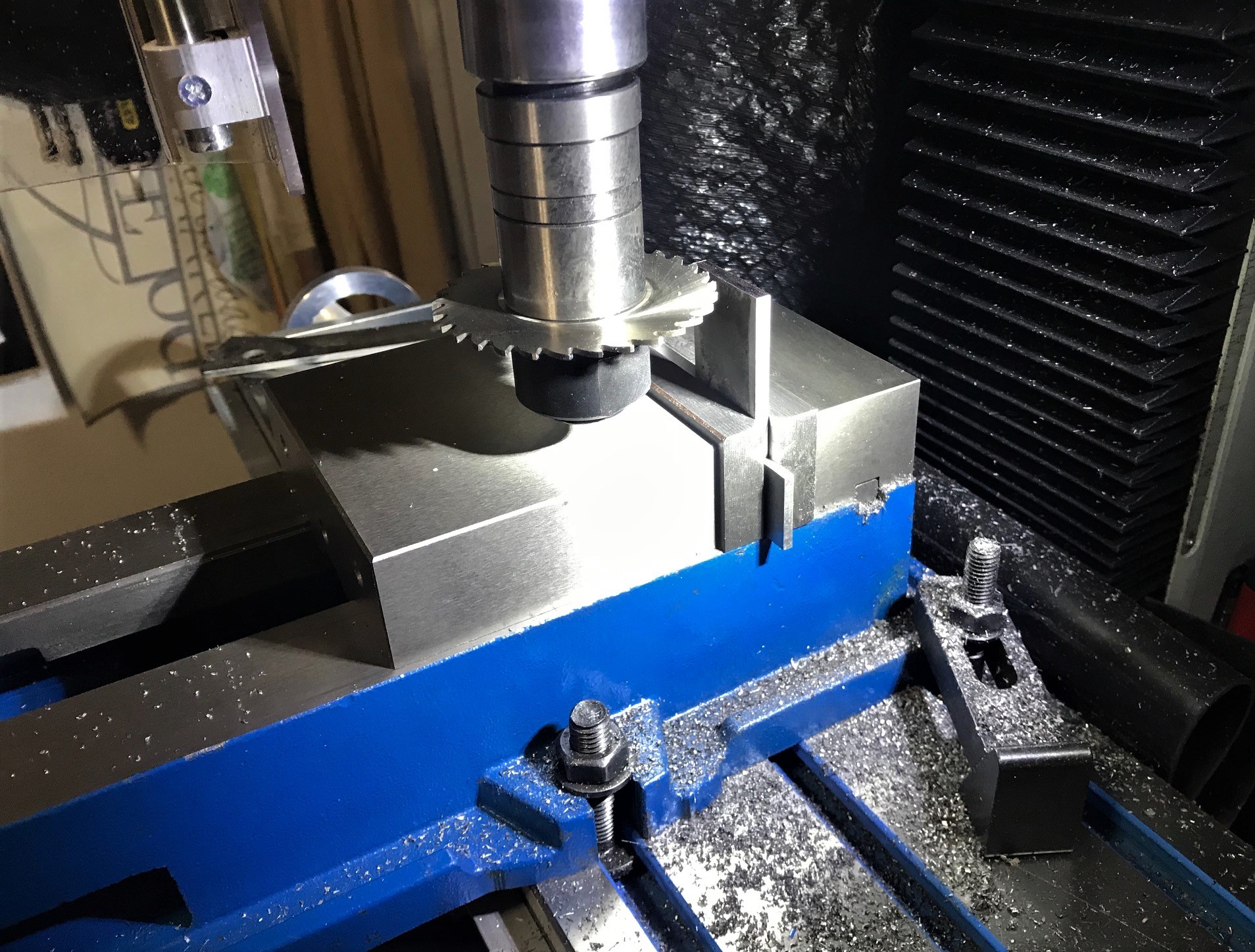

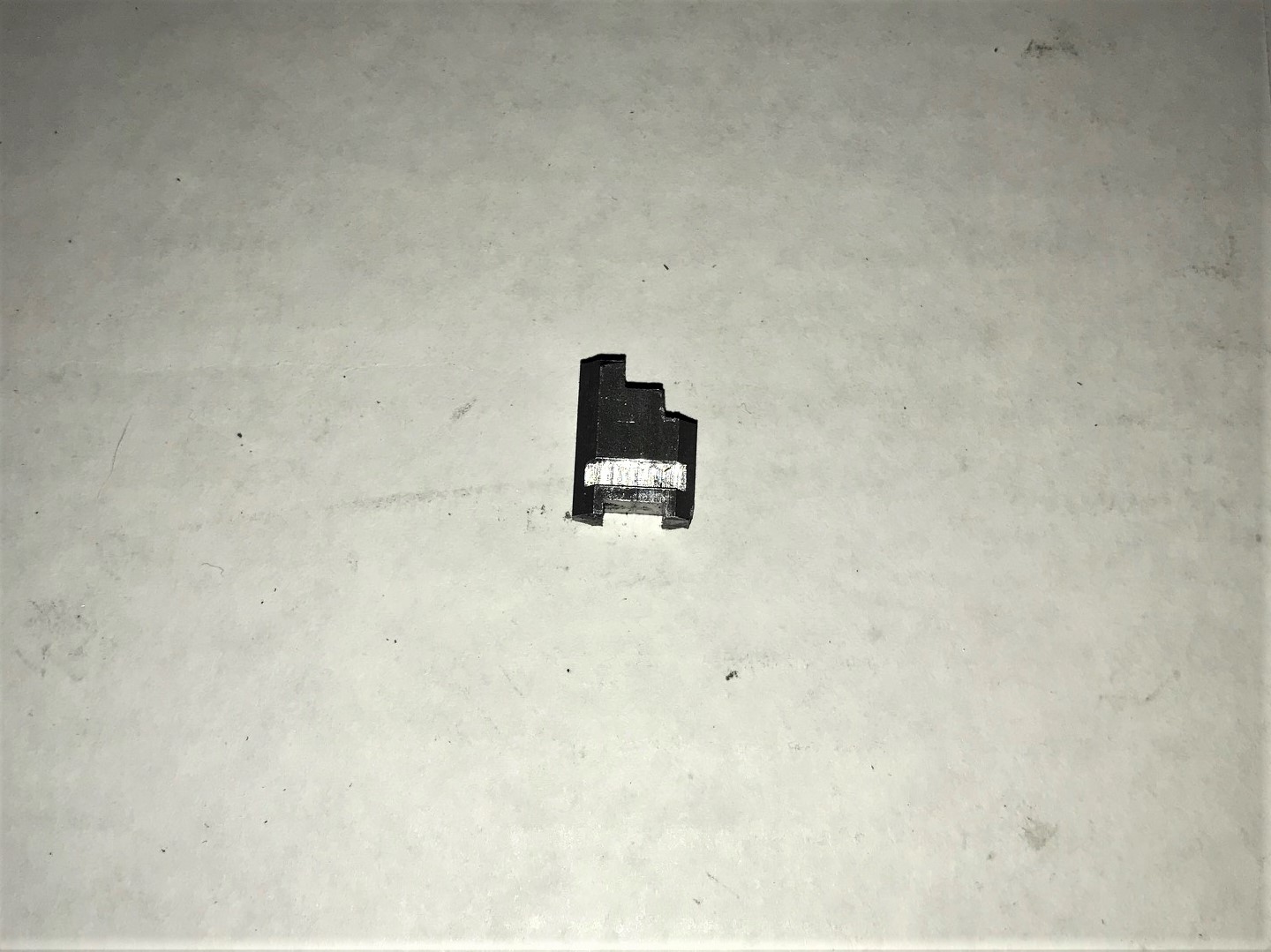

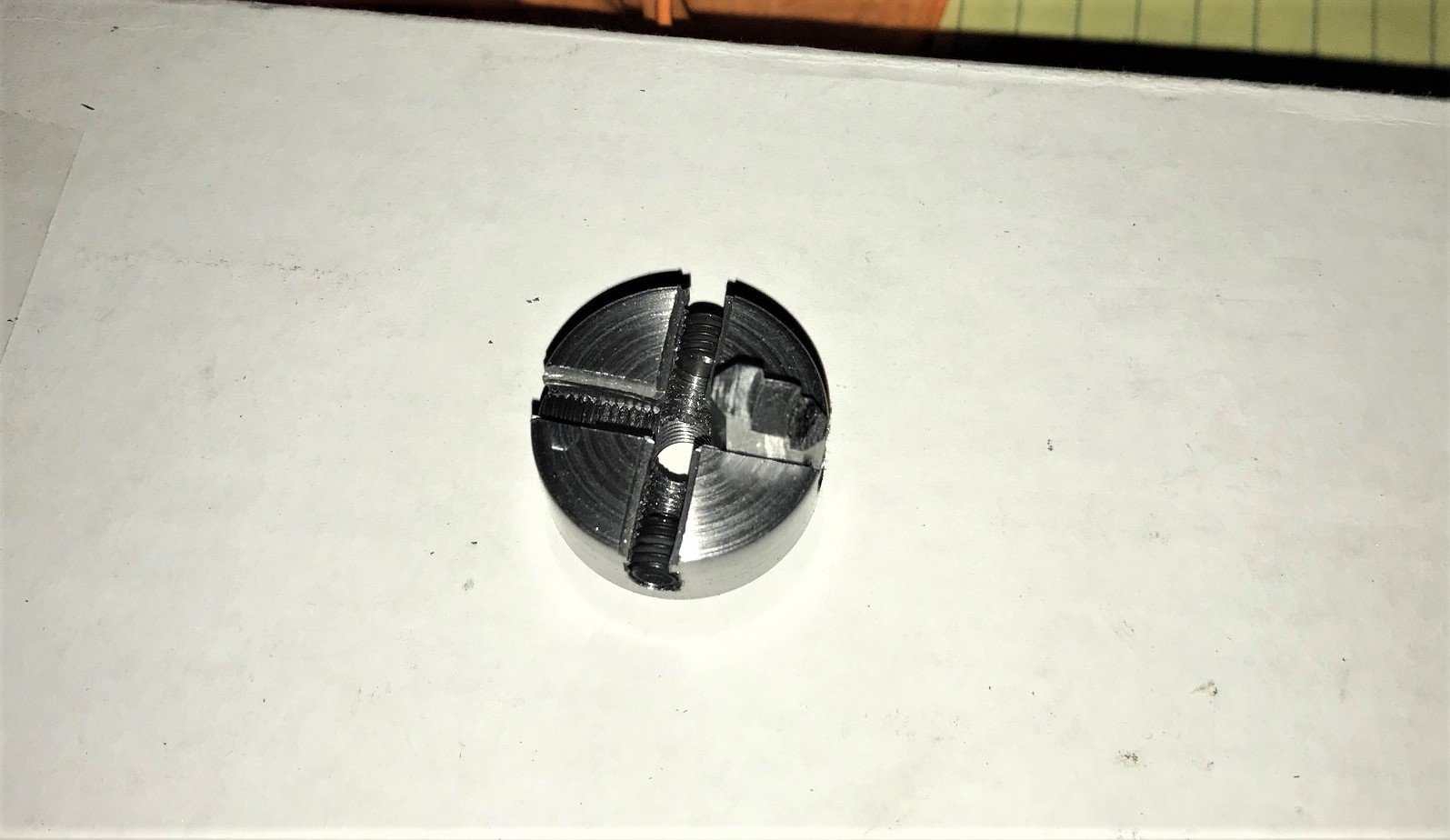

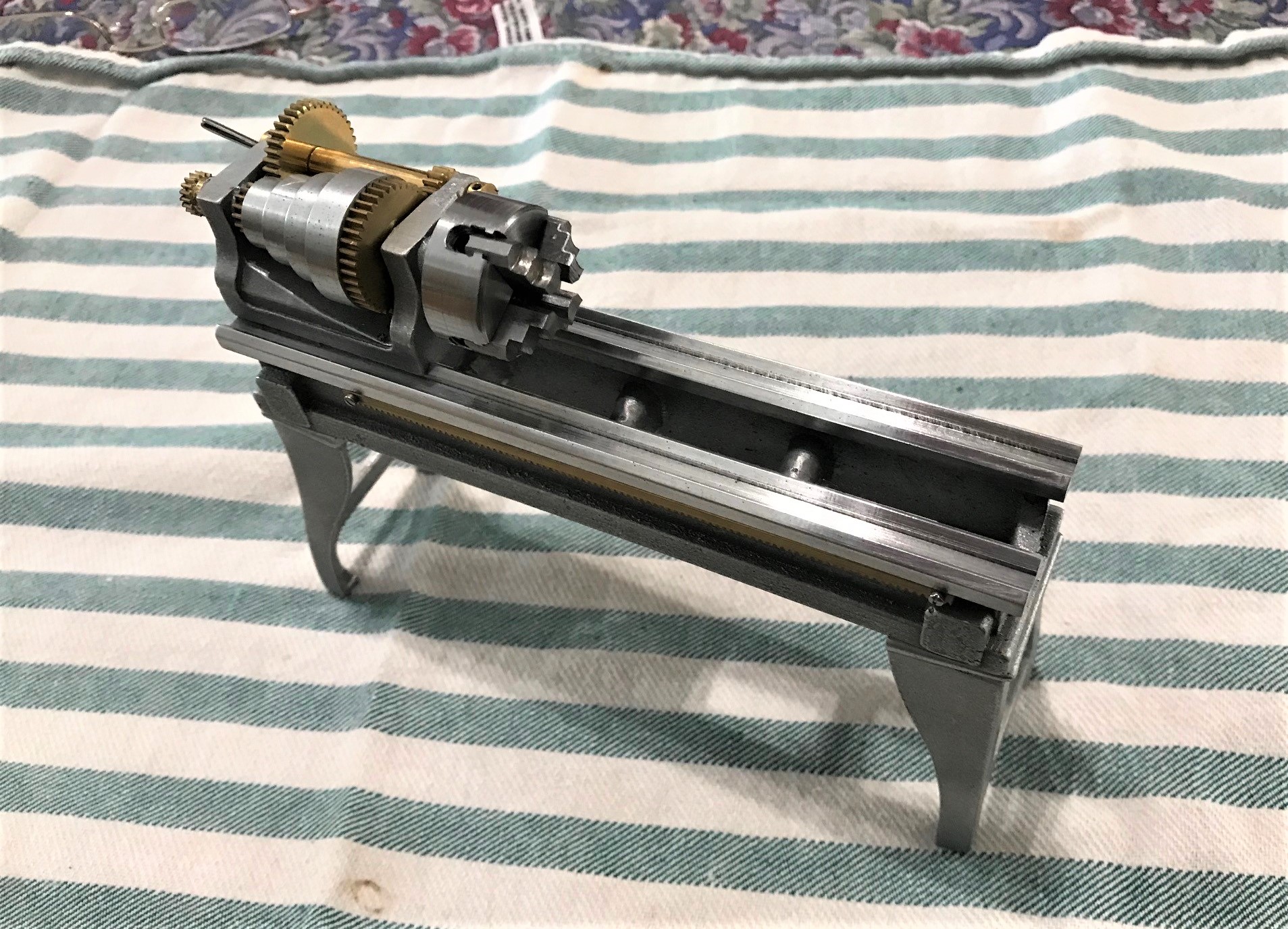

Lots of time and chips, but I got the 4 jaw chuck done. Picked up an arbor saw for the mill as well.


Attachments

  • jaw2 (2).jpg
    jaw2 (2).jpg
    726.9 KB · Views: 136
  • jaw1 (2).jpg
    jaw1 (2).jpg
    613.7 KB · Views: 140
  • jaw7 (2).jpg
    jaw7 (2).jpg
    409.1 KB · Views: 146
  • jaw6 (2).jpg
    jaw6 (2).jpg
    694.9 KB · Views: 163

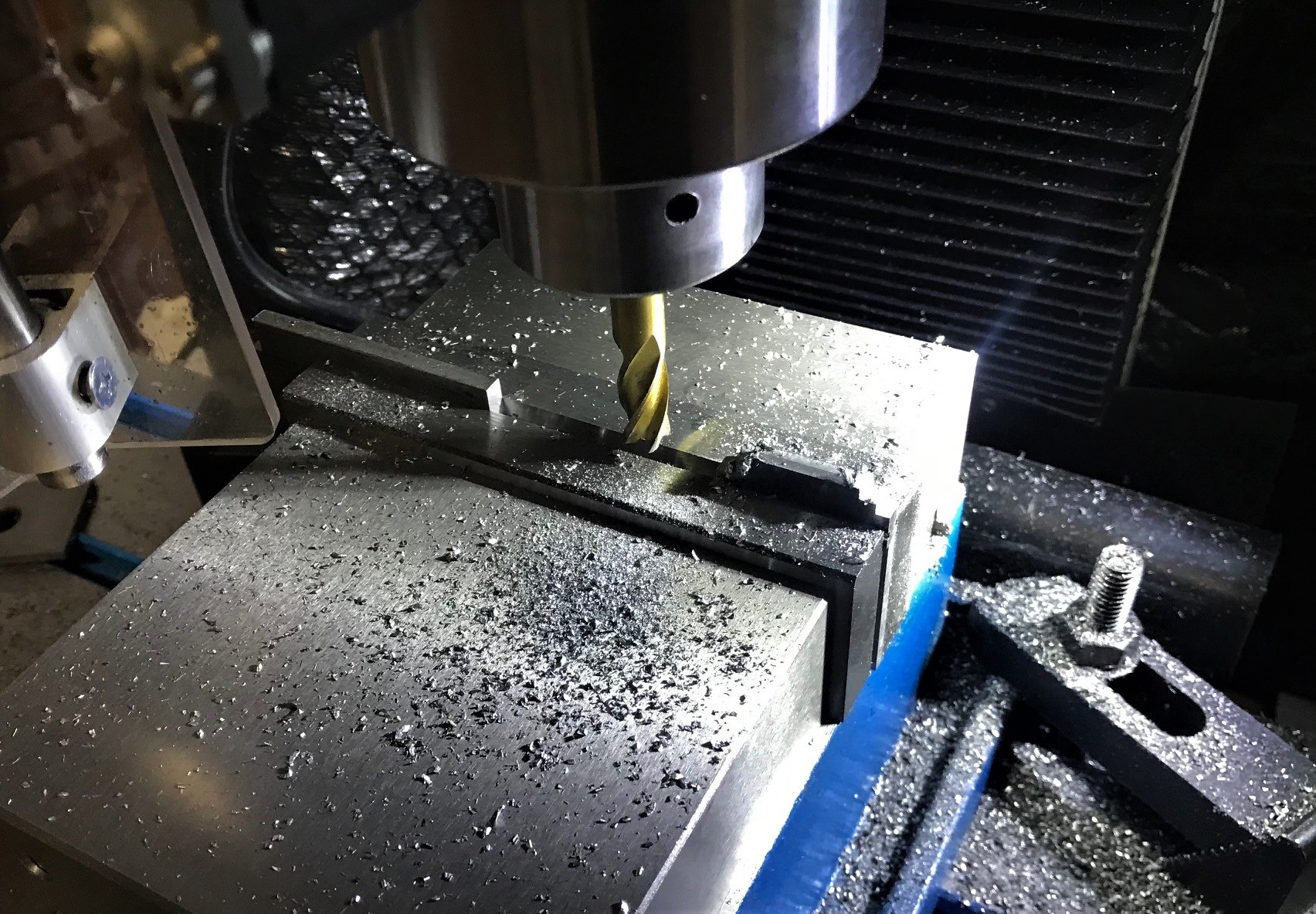

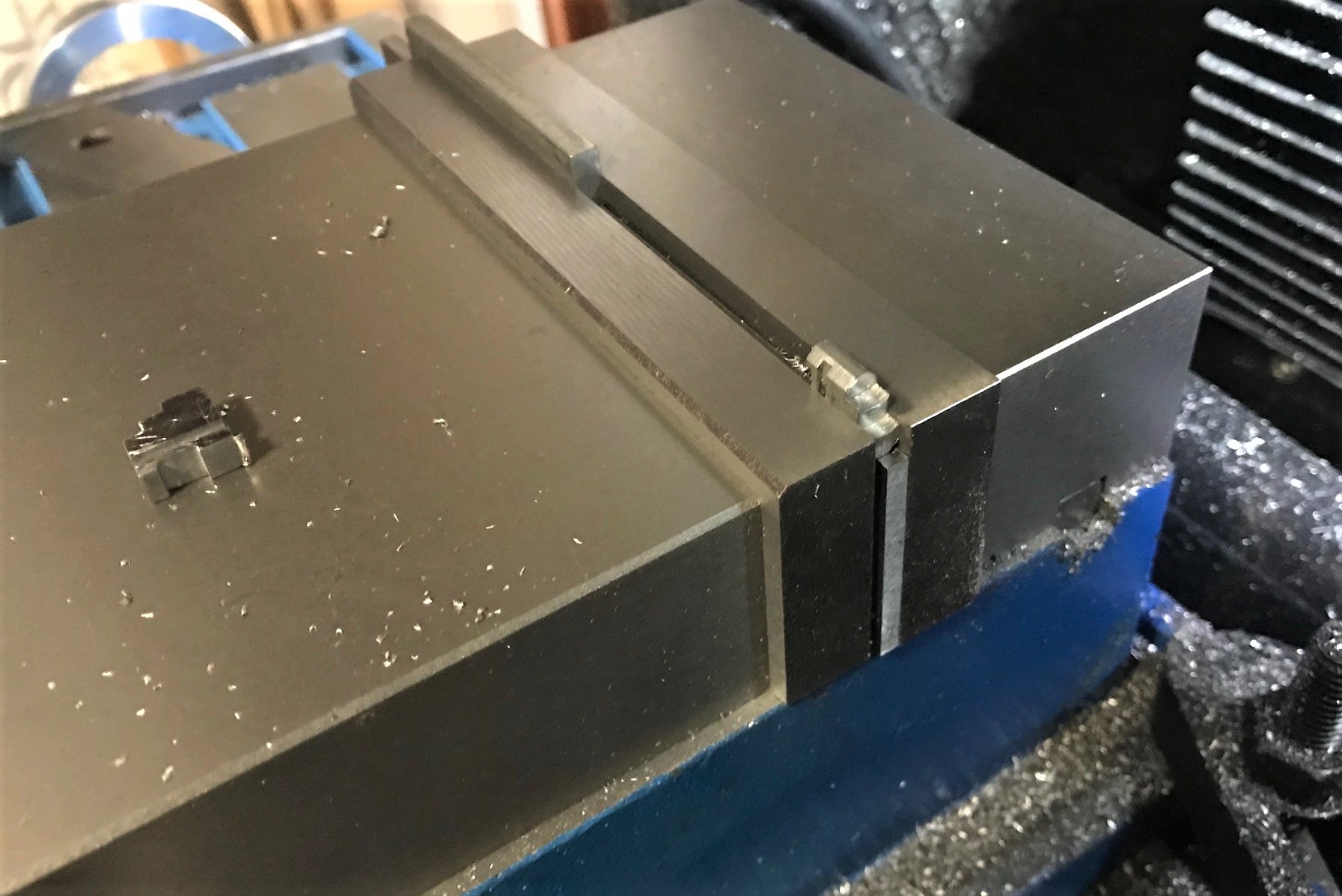

I went ahead and purchased one. I picked up a Micro 100 KC-125-190-060 Keyseat Cutter just for that job. It worked out good. Just made several light cuts to get it done. I should also be able to use it for making the T-Slots in the face plate when the time comes.
