PM Research Mini Engine Lathe Build

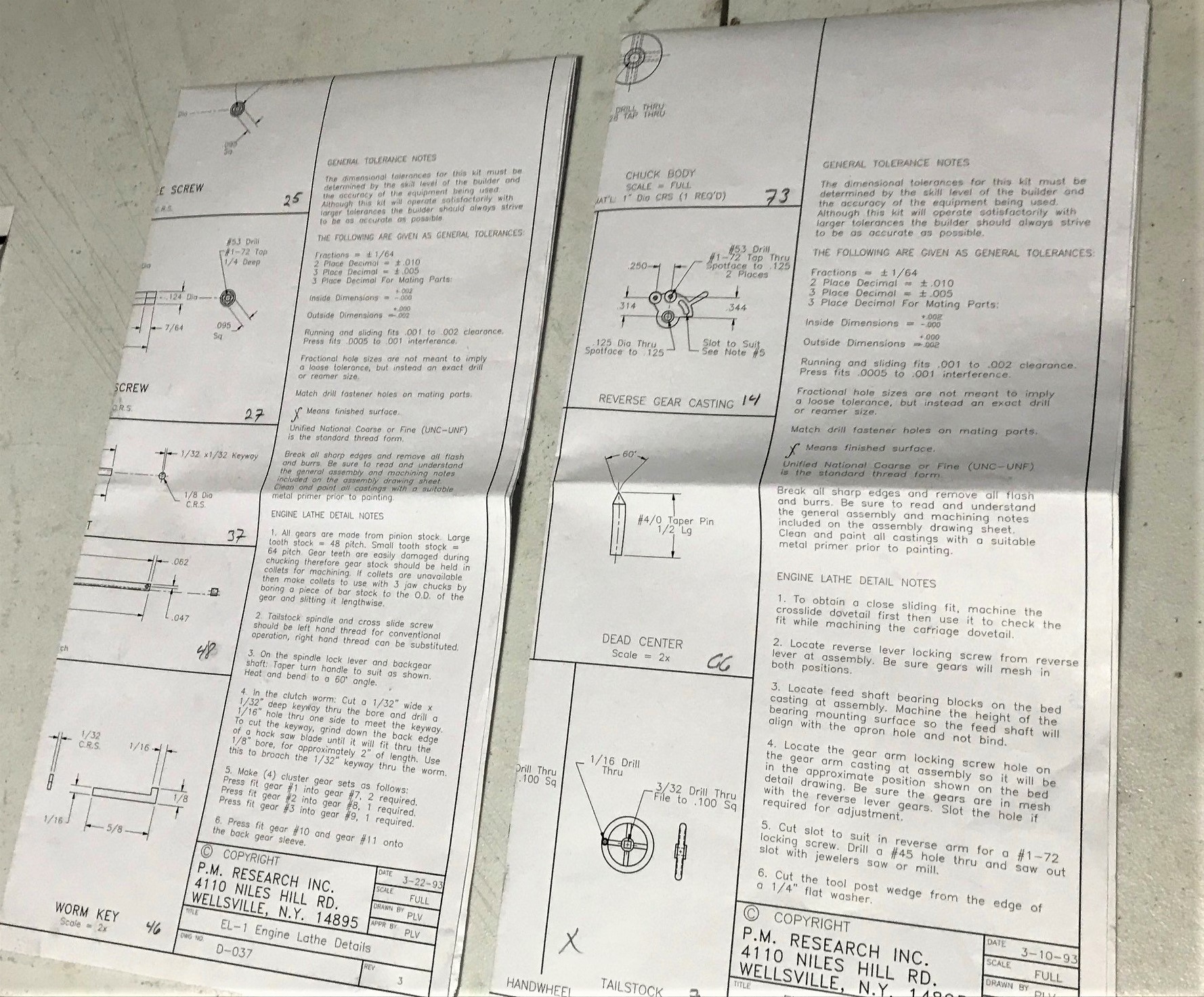

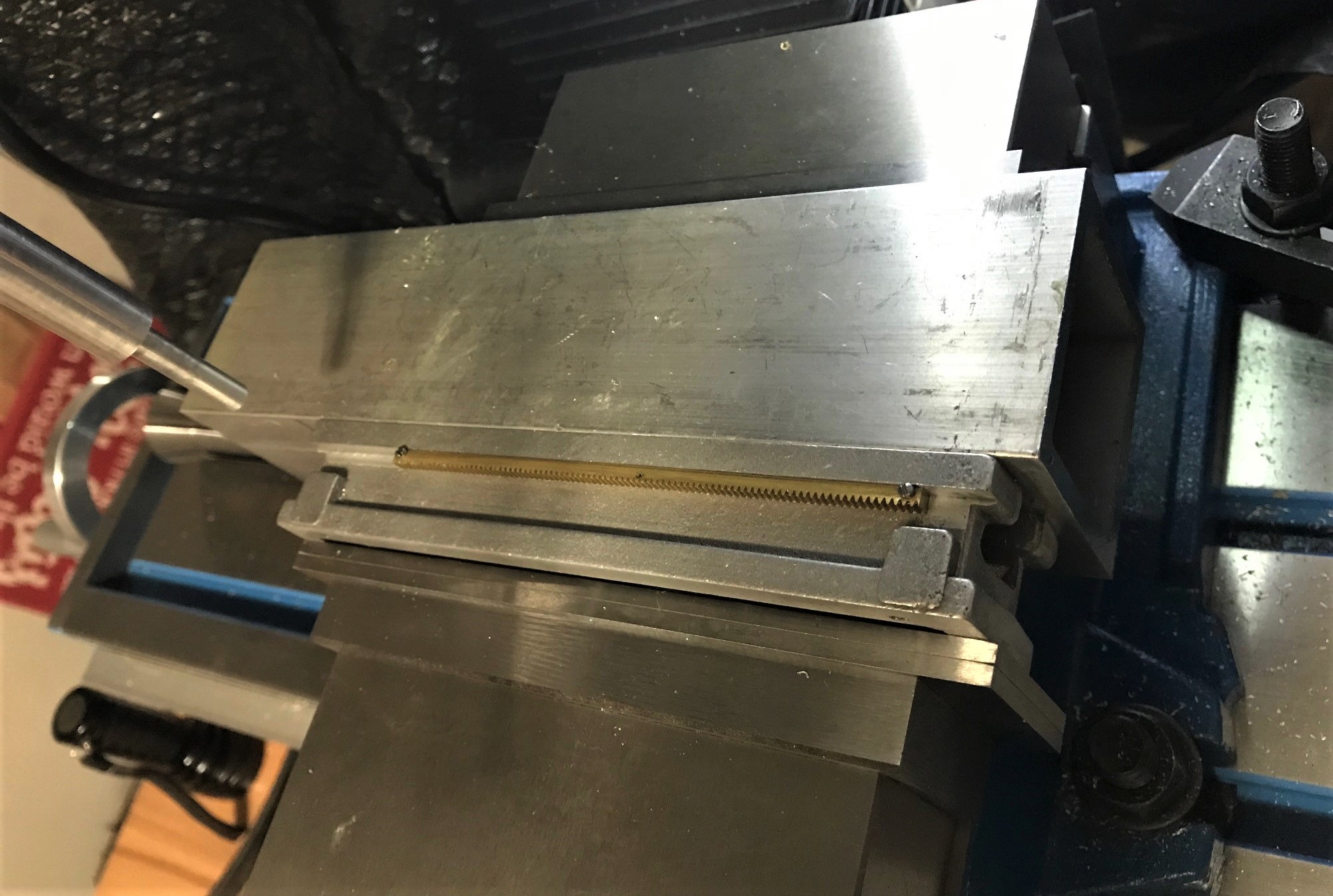

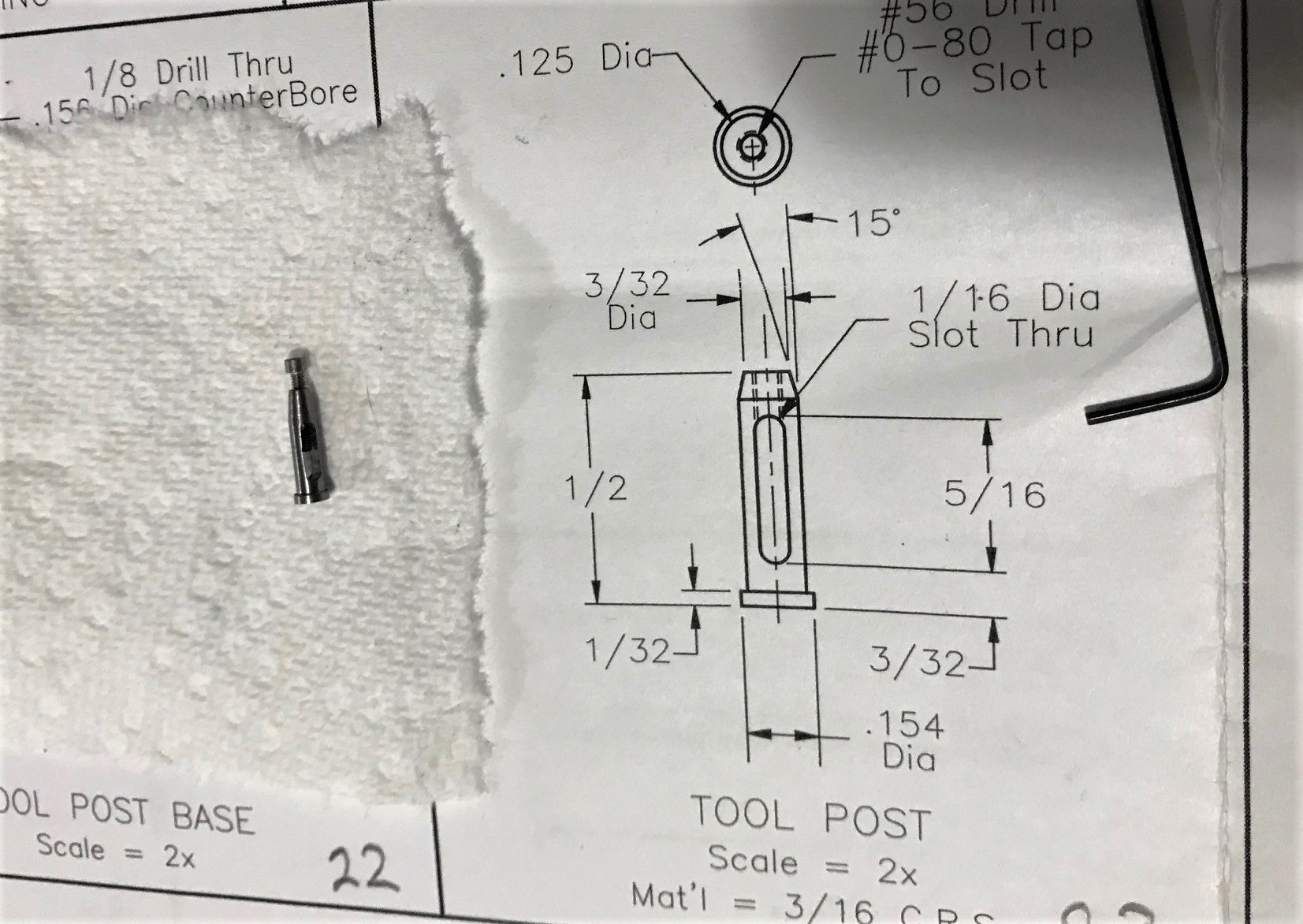

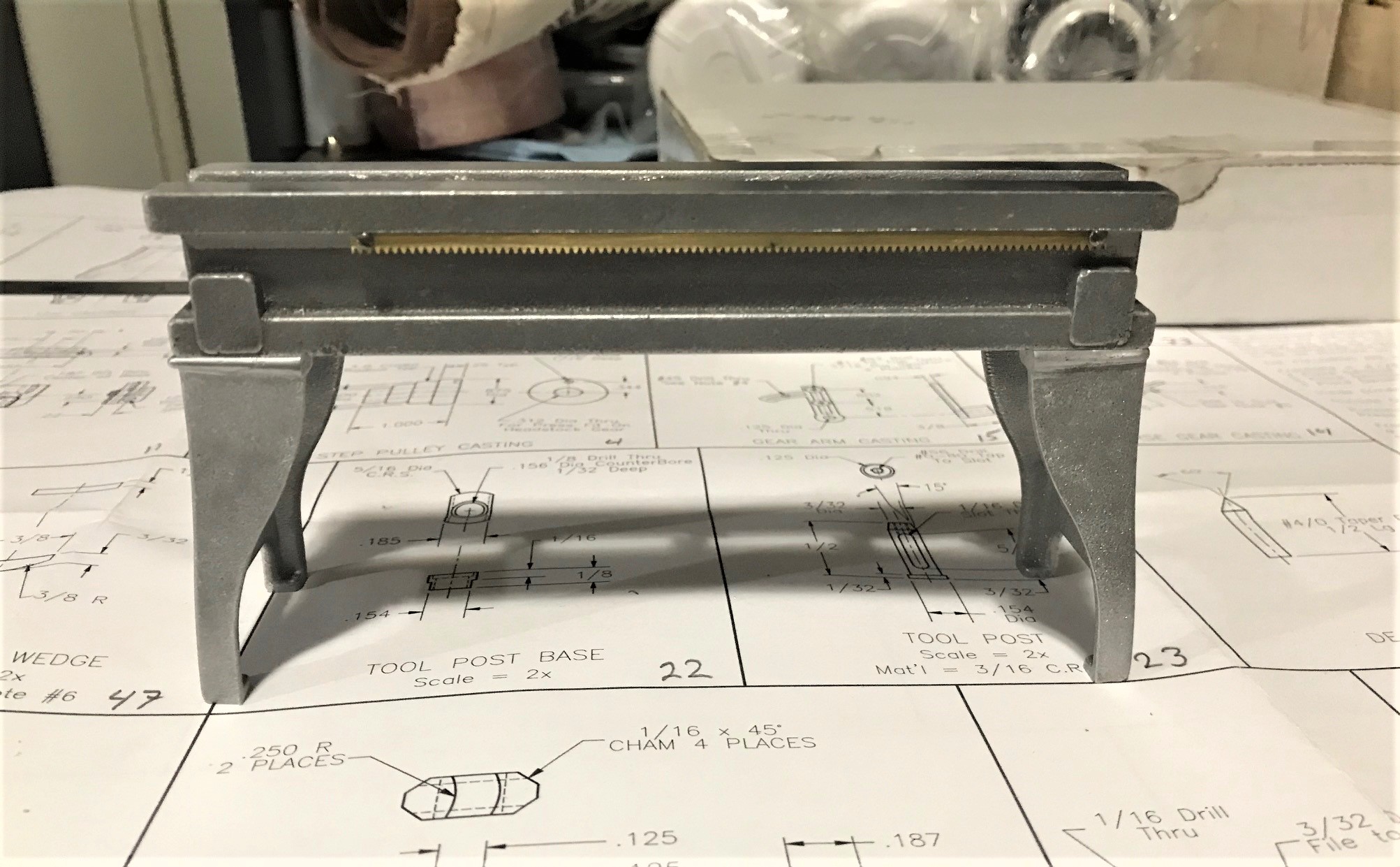

Spent most of the day on snow removal, we've had some big storms roll through, but I had some time tonight to get the carriage gear installed.


Attachments

  • carrage1 (2).jpg
    carrage1 (2).jpg
    515 KB · Views: 121
  • carrage2 (2).jpg
    carrage2 (2).jpg
    453.1 KB · Views: 120

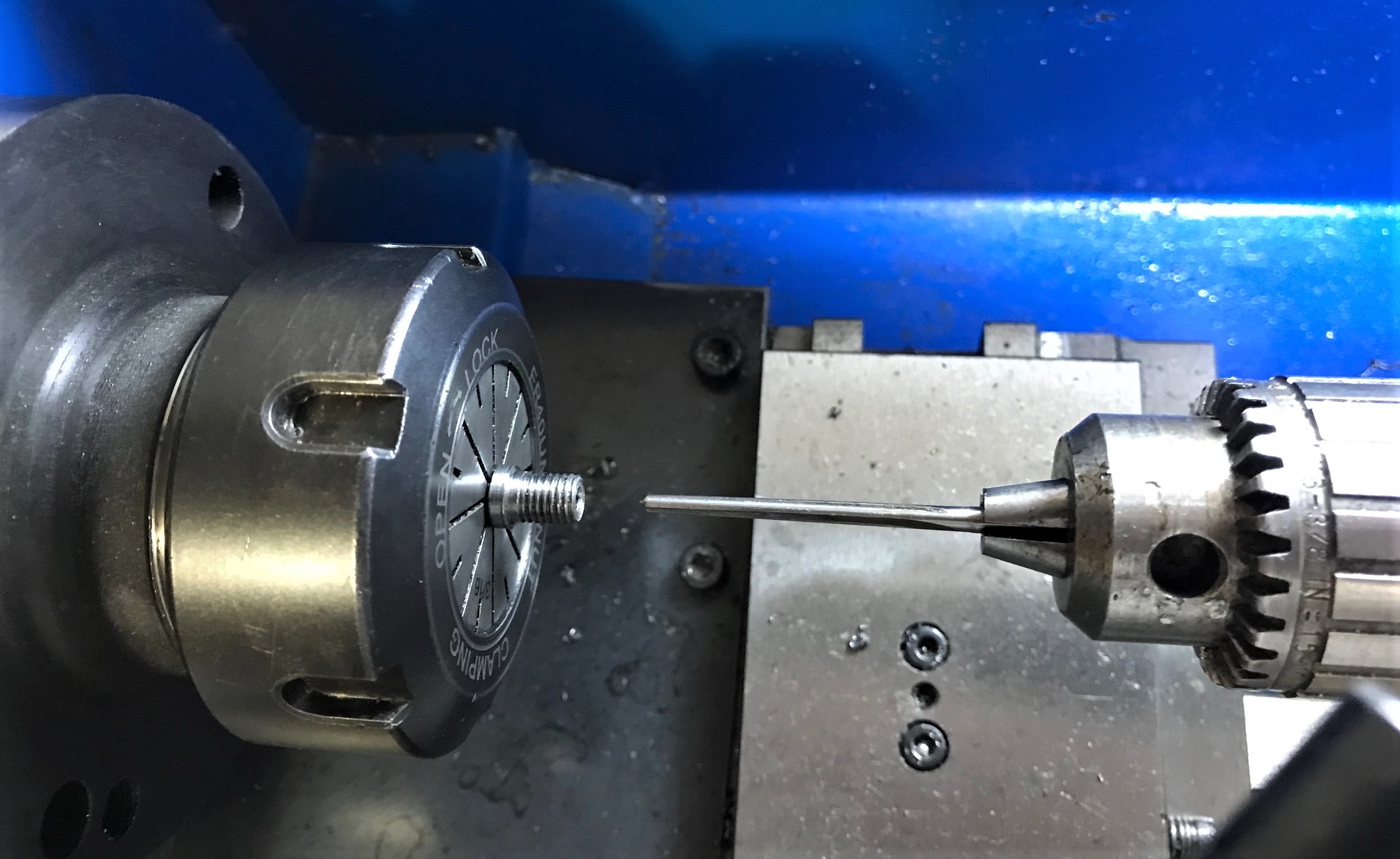

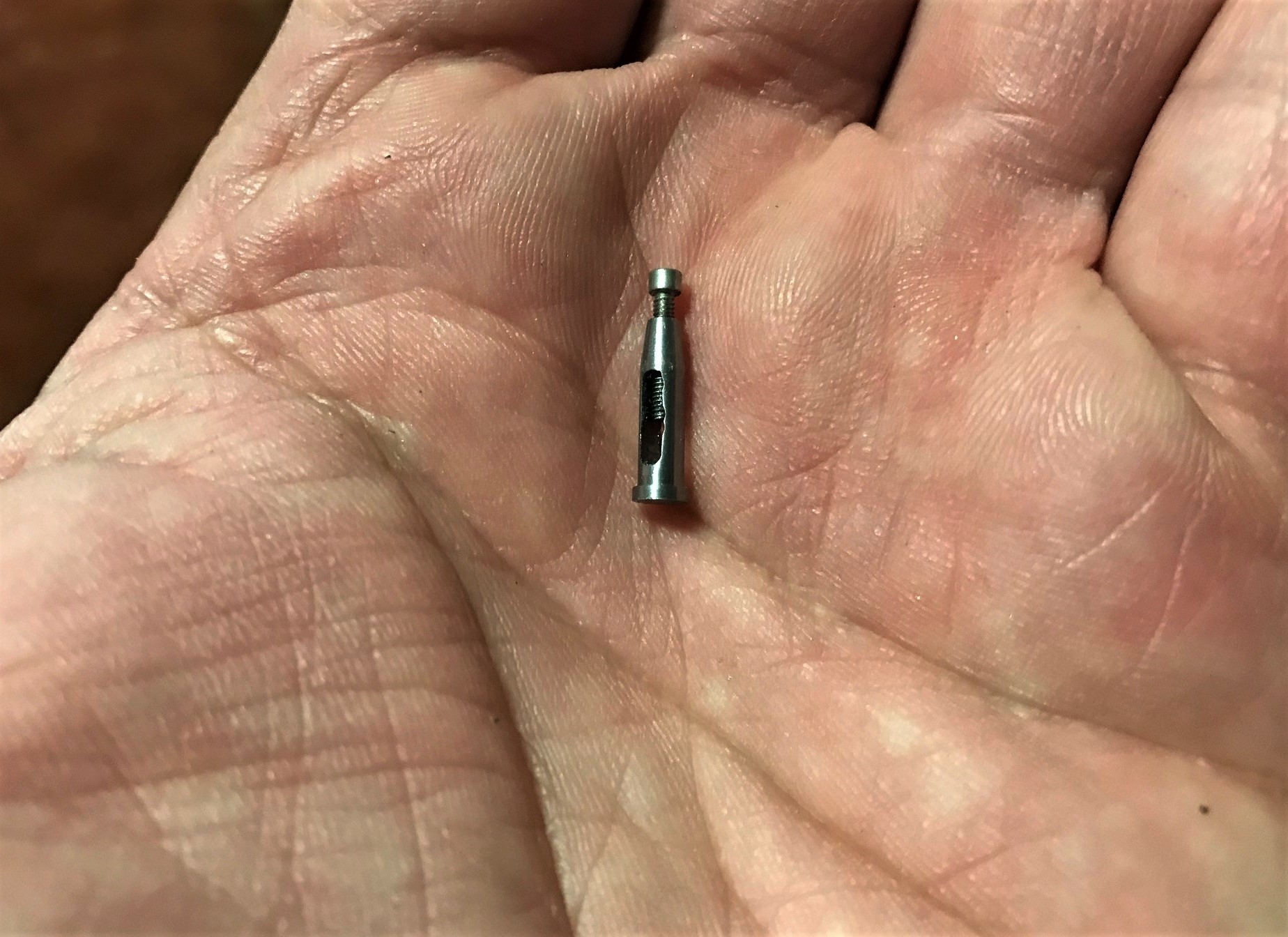

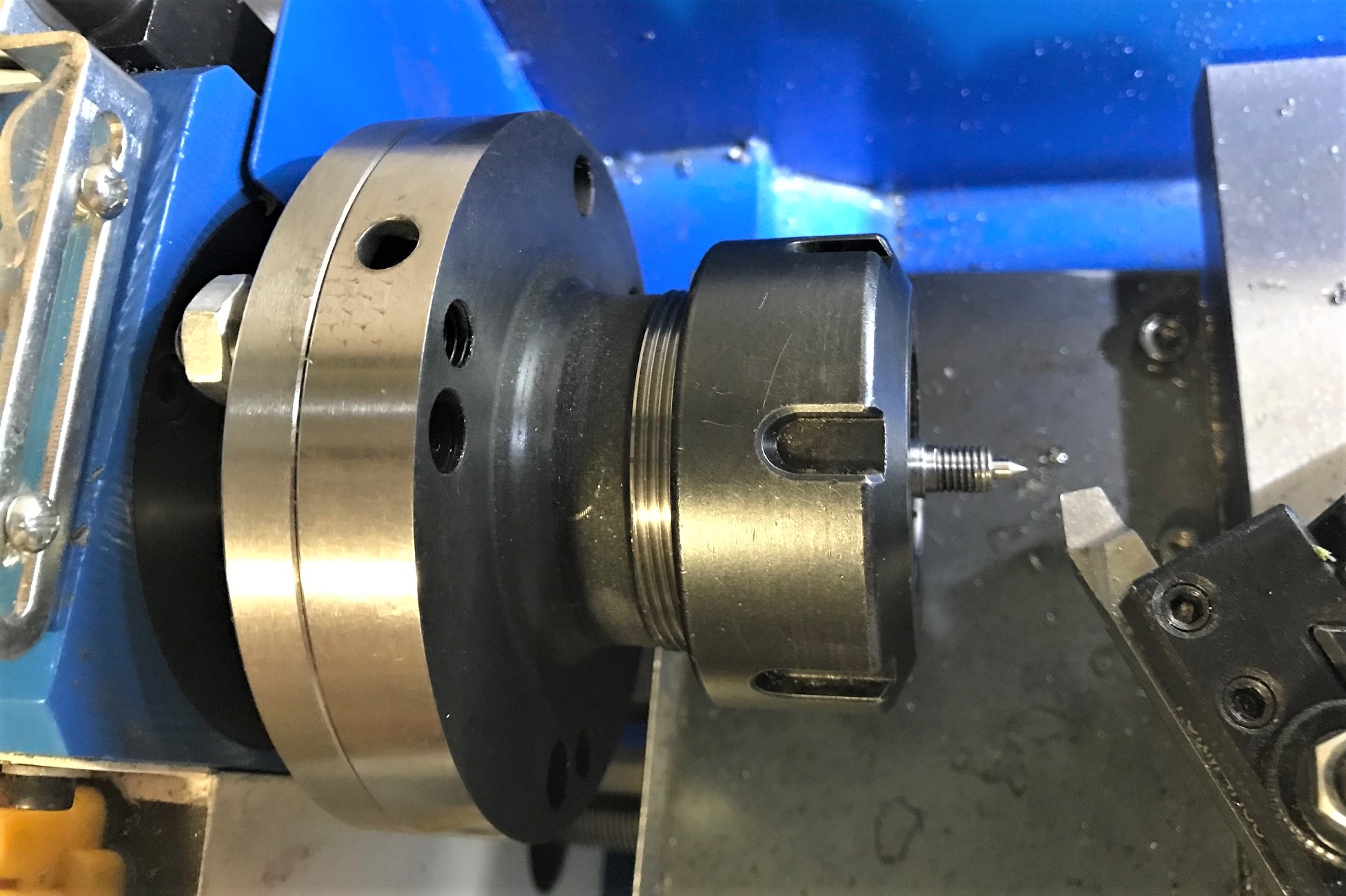

Was able to get a little time on the mini lathe. Put an 04 taper in the headstock spindle and got the two dead centers done!


Attachments

  • IMG_6256 (2).jpg
    IMG_6256 (2).jpg
    435.1 KB · Views: 97
  • IMG_6252 (2).jpg
    IMG_6252 (2).jpg
    489.1 KB · Views: 99
  • IMG_6254 (2).jpg
    IMG_6254 (2).jpg
    275 KB · Views: 95
One piece at a time, before you know it', it will be done. Did you start with a number 4 taper pin?

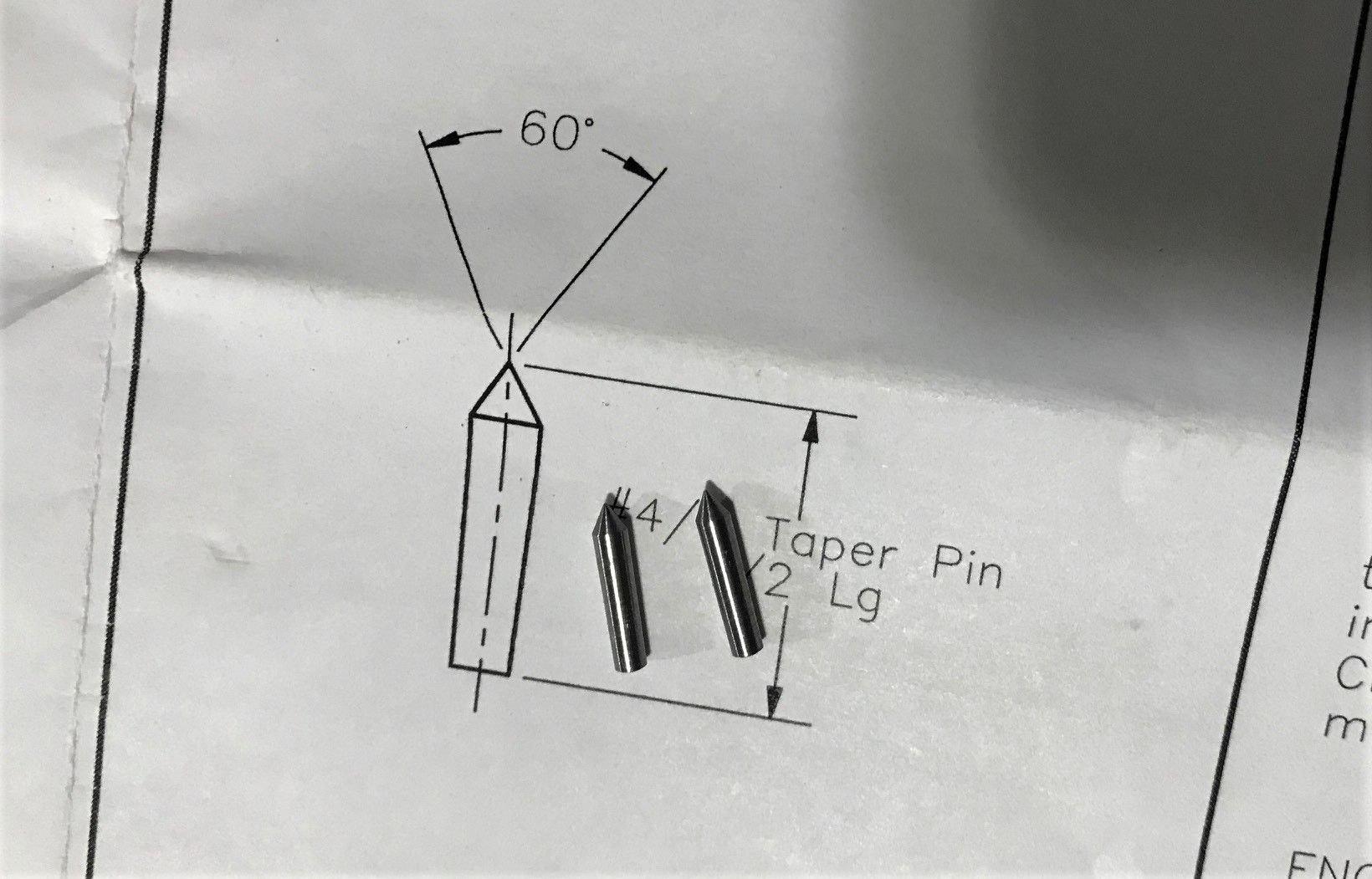

I started with reaming the spindle shaft. The kit came with some small taper pins, I just had to cut the 60* point into them. I reamed the spindle shaft, then installed the tapered pins into the spindle so I could cut the 60* points using the compound slide. It worked out good. The dead centers have a very good fit.

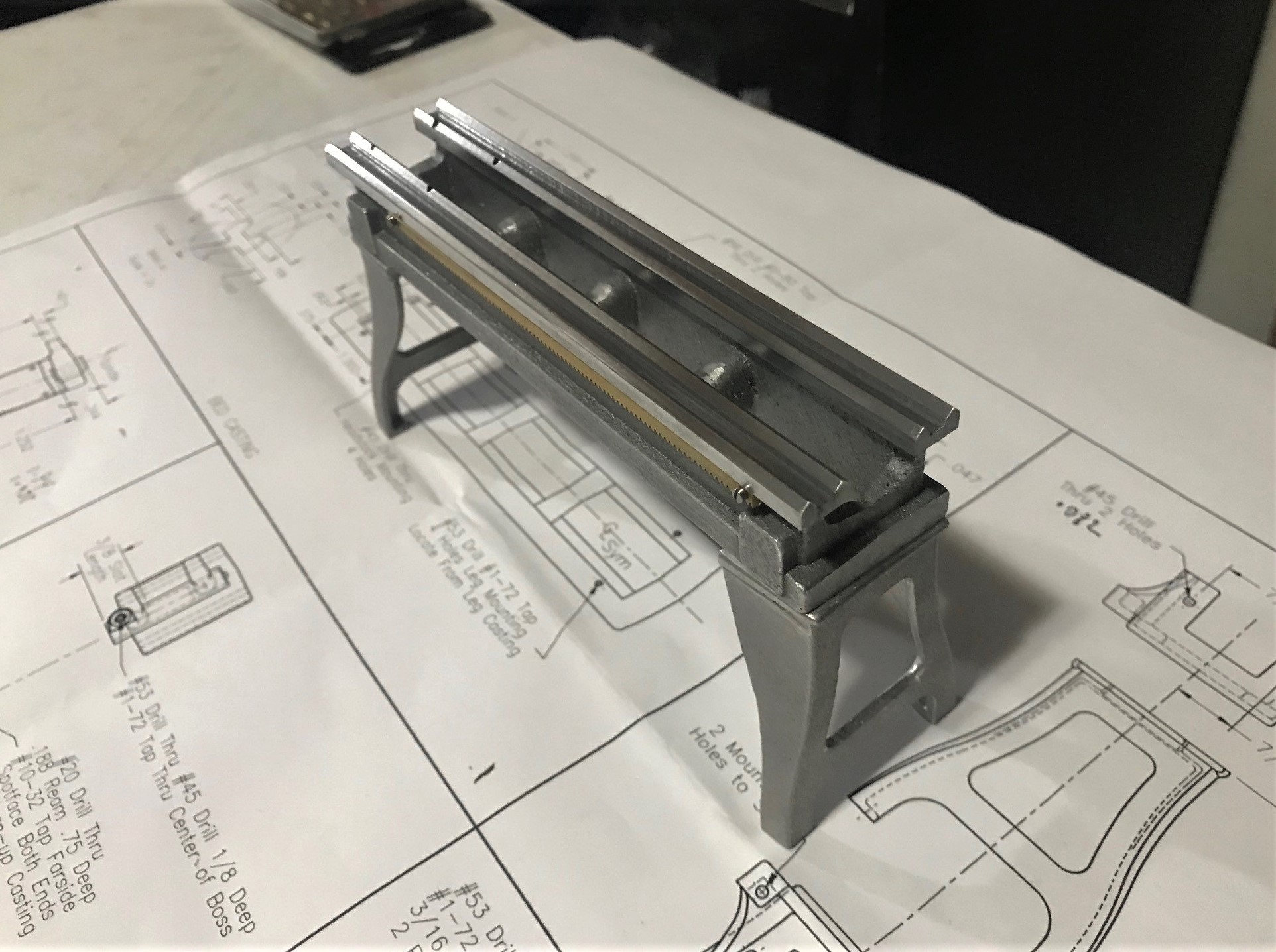

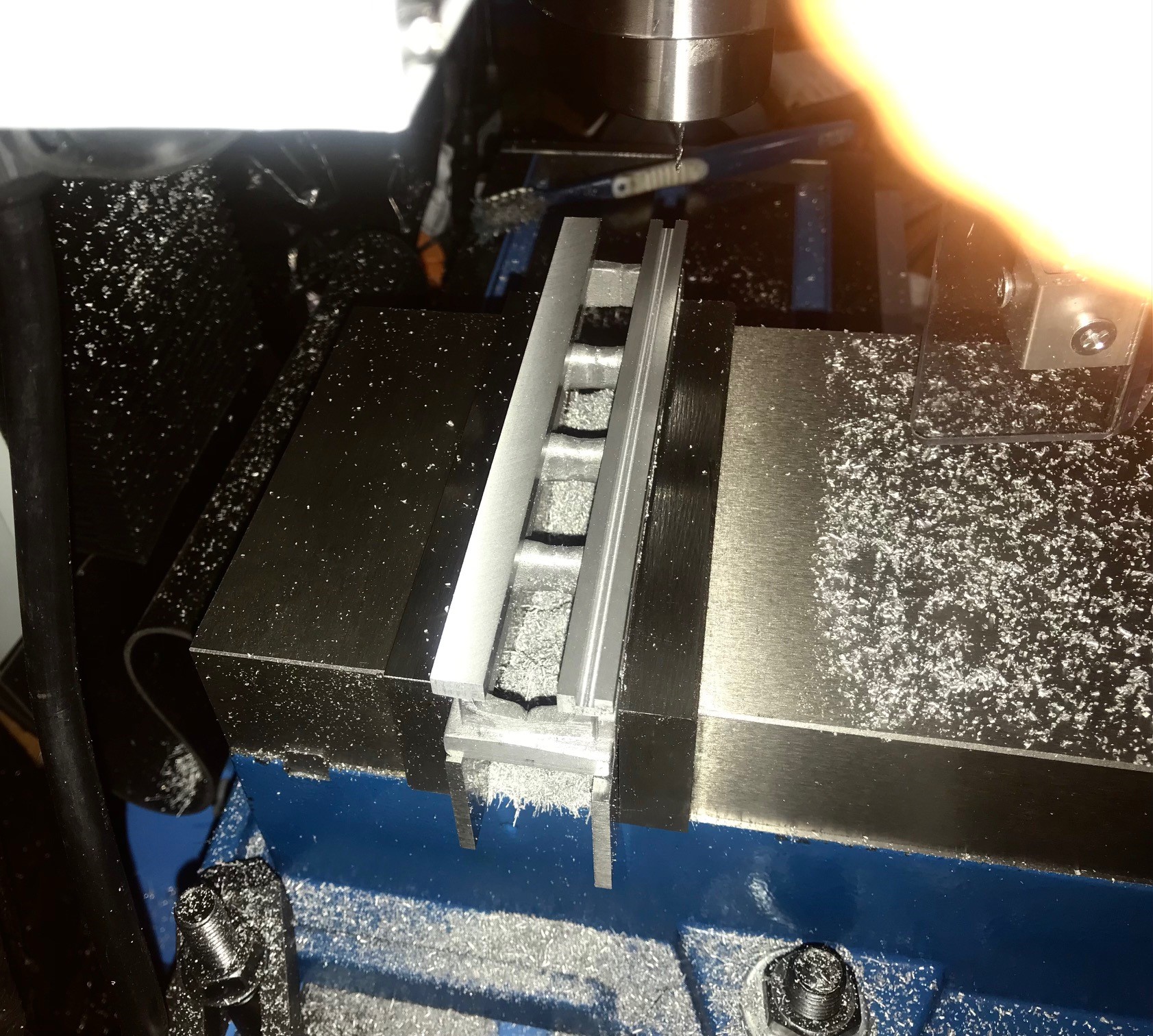

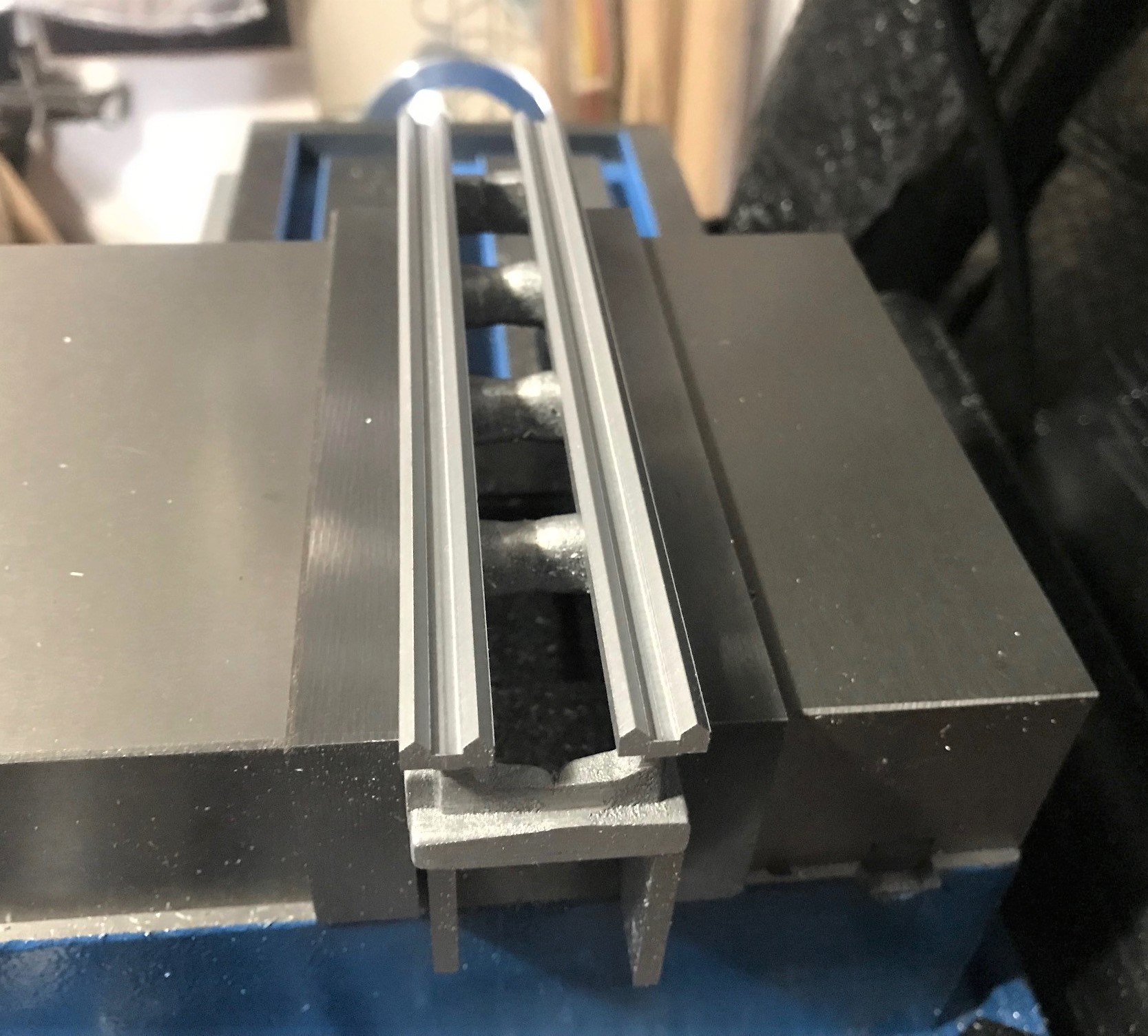

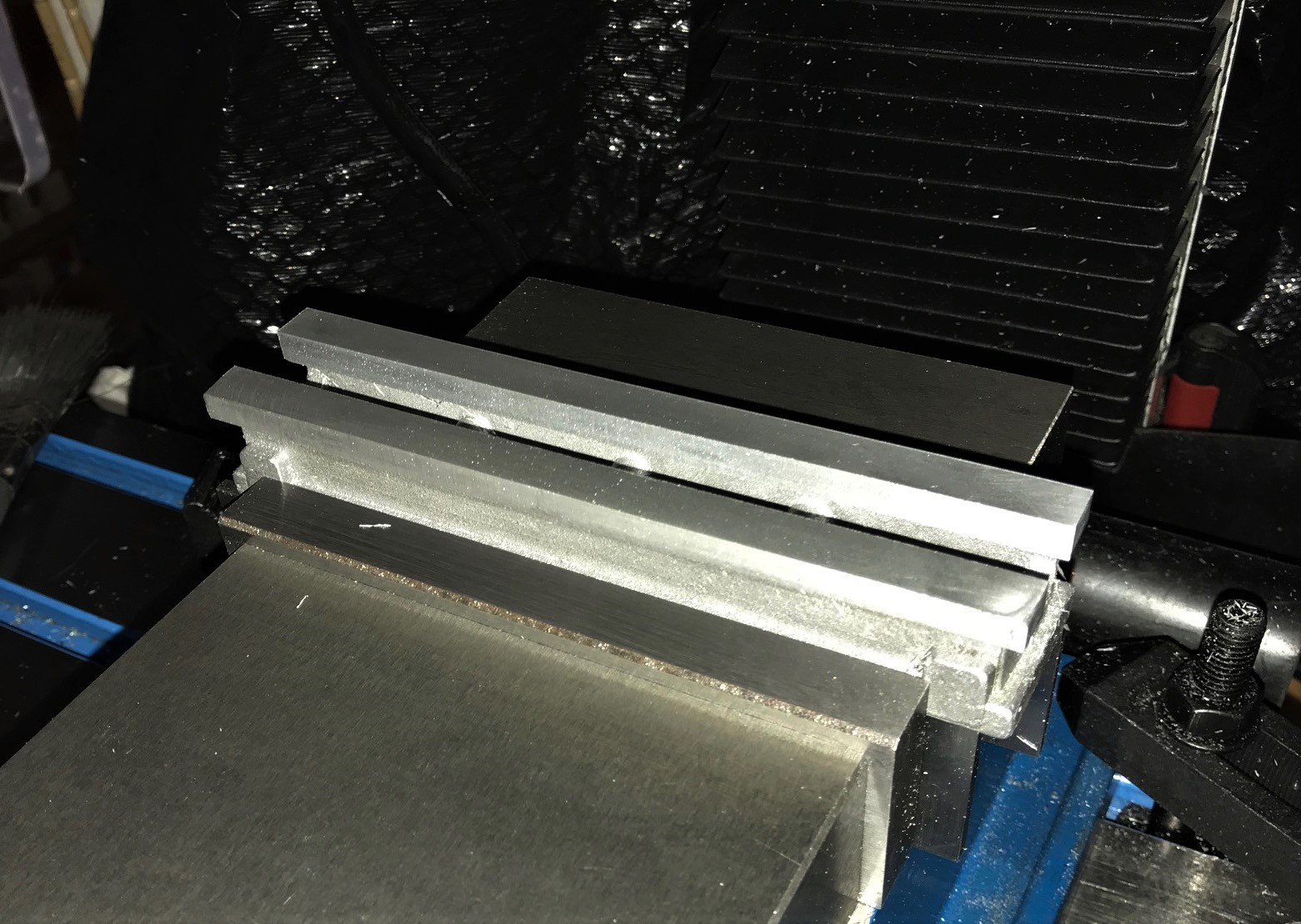

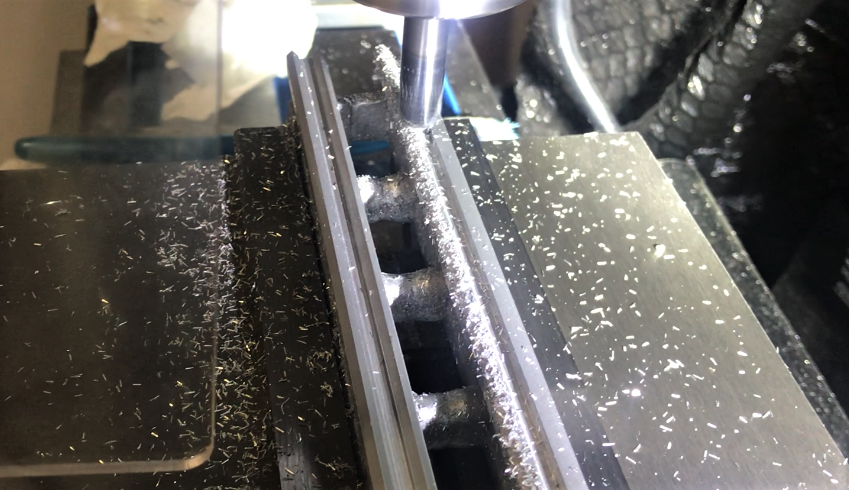

Got some more work done on the lathe bed. I used a 1/16" end mill to cut the center slots. Took small cuts and many passes. Then I got the bed ways cut in. I think it turned out good so far.


Attachments

  • bed3.jpg
    657.4 KB · Views: 99
  • ways2 (2).jpg
    ways2 (2).jpg
    450 KB · Views: 98
  • ways7 (2).png
    ways7 (2).png
    897.4 KB · Views: 106
  • ways5 (2).jpg
    ways5 (2).jpg
    469.7 KB · Views: 105
  • a2 (3).jpg
    a2 (3).jpg
    387.9 KB · Views: 98
