PM Research Mini Engine Lathe Build

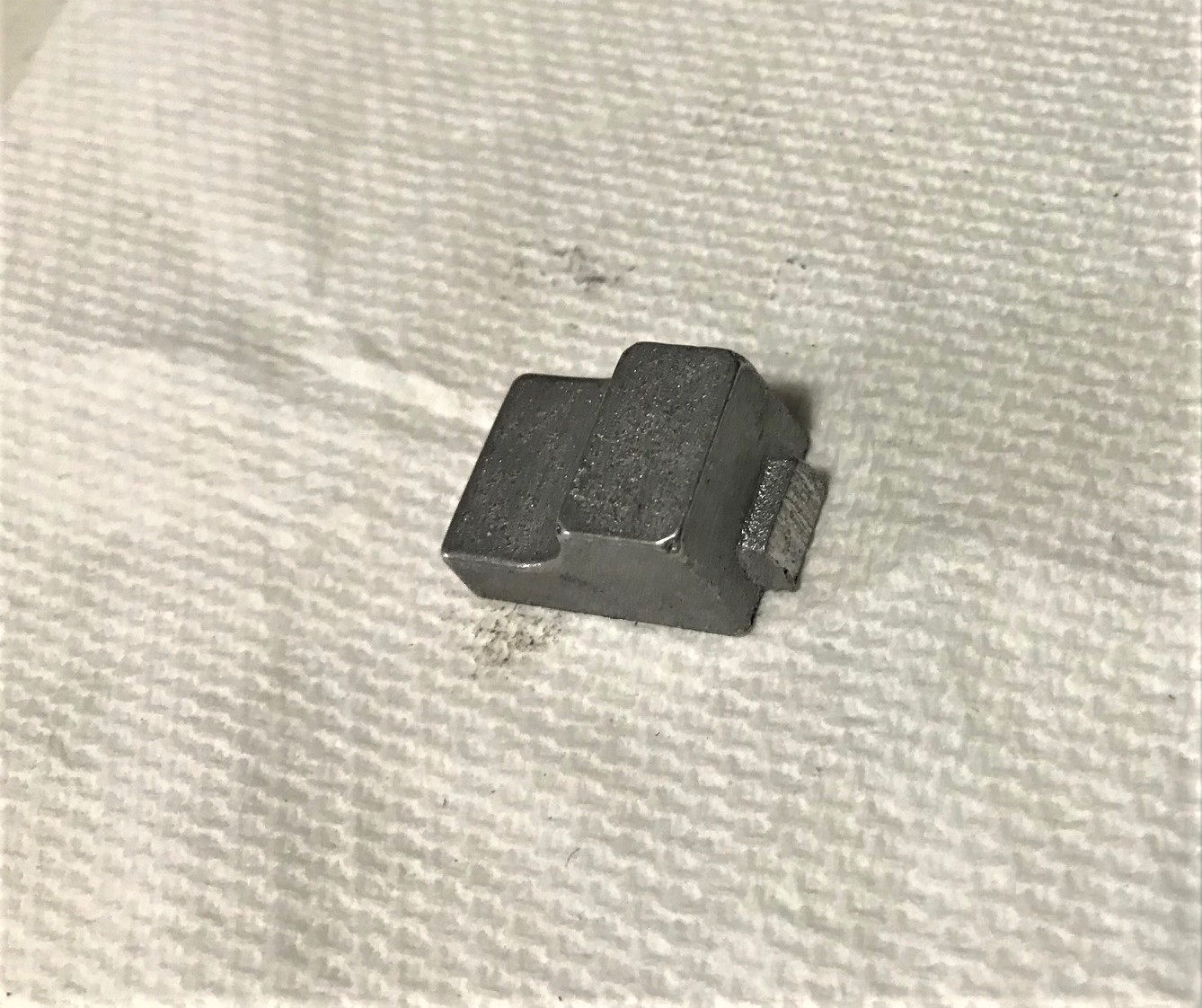

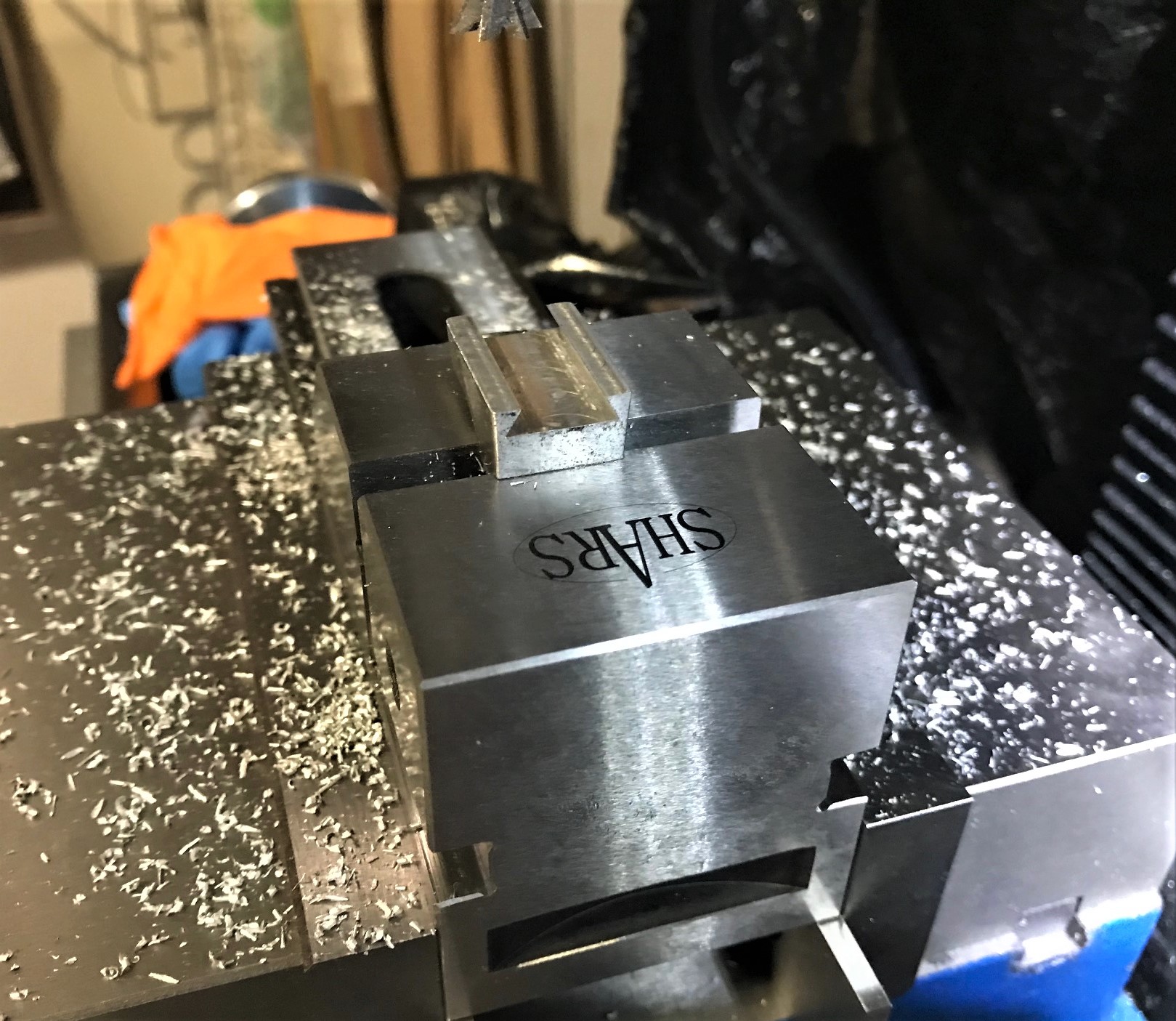

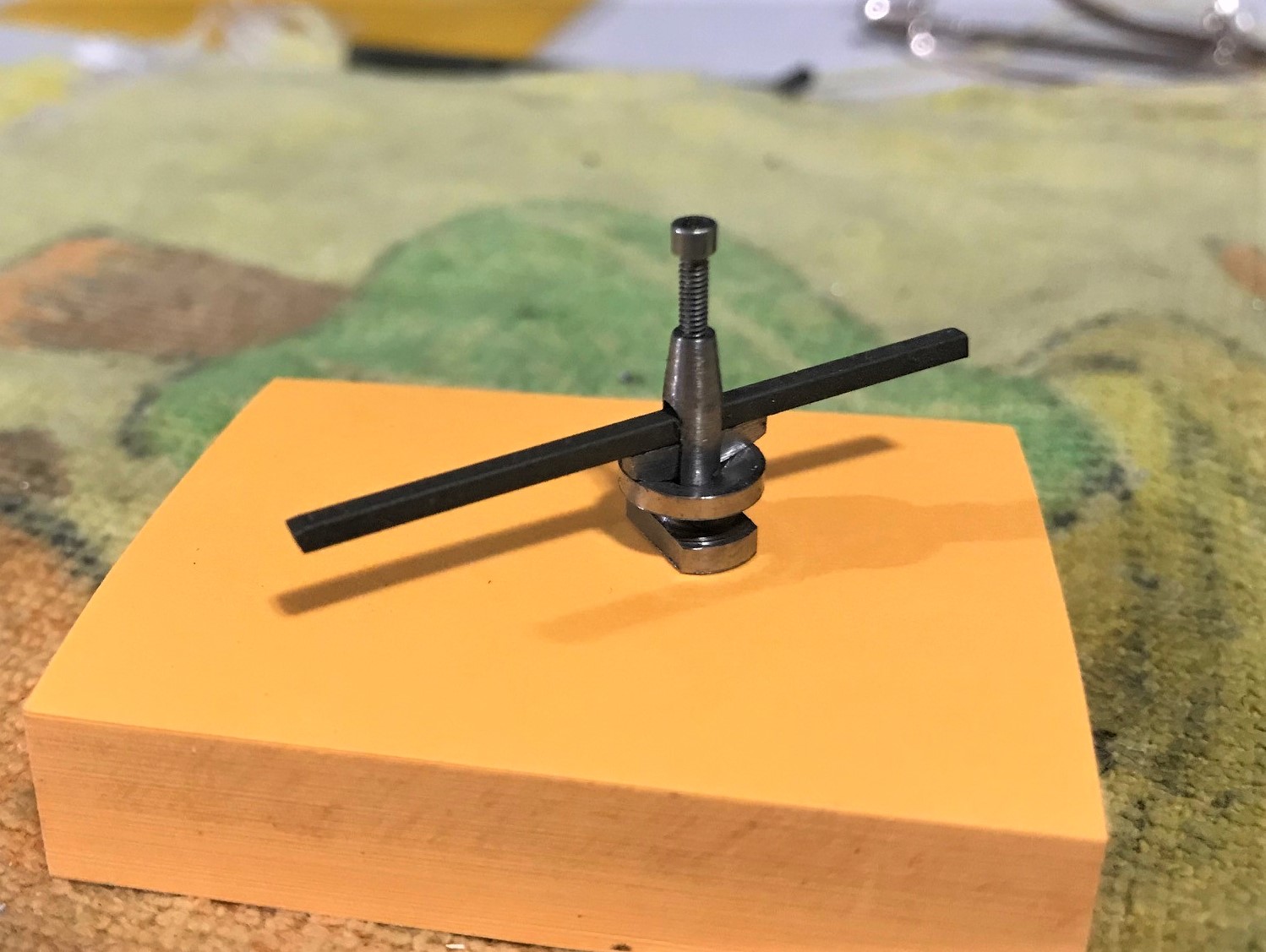

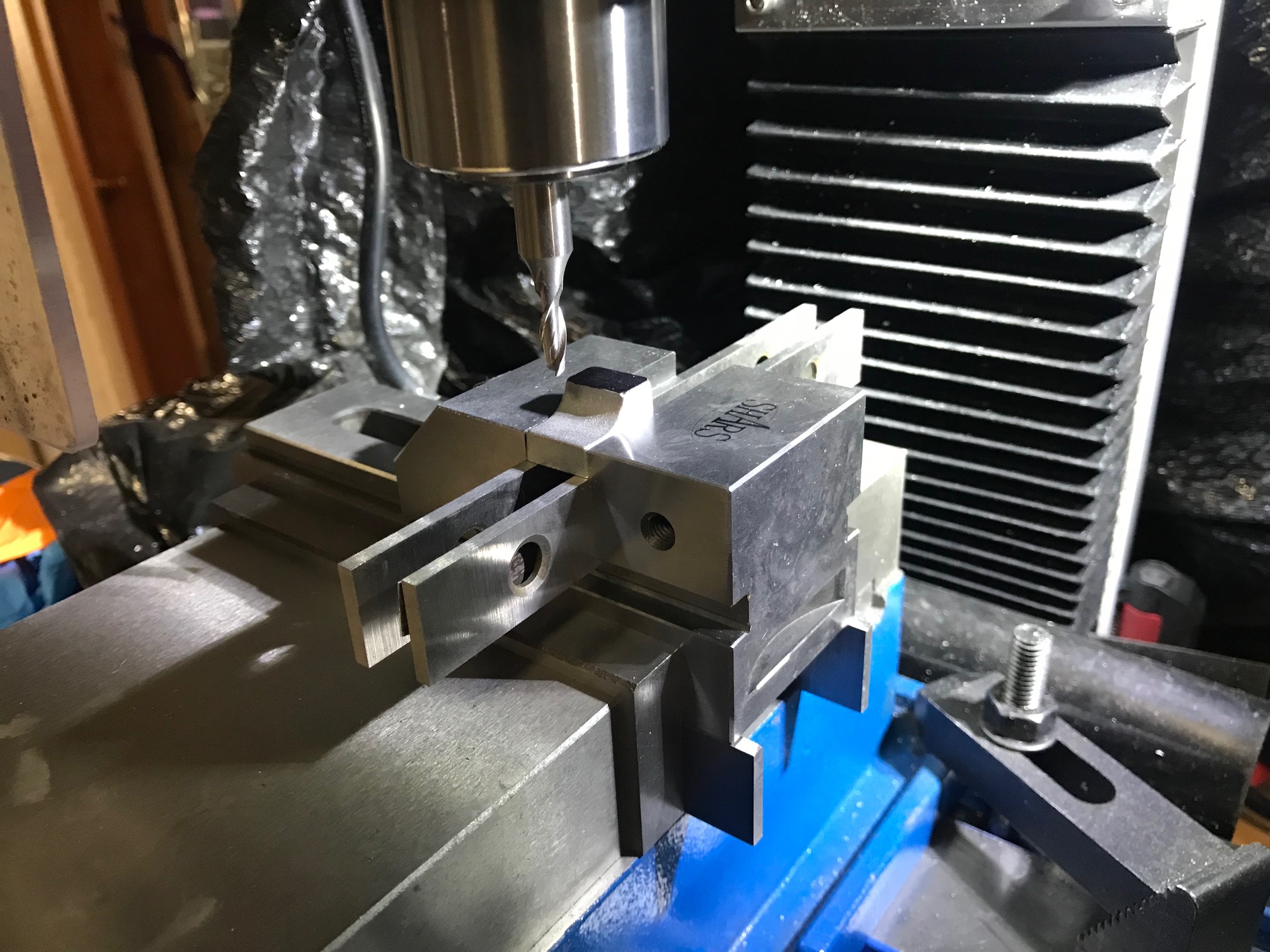

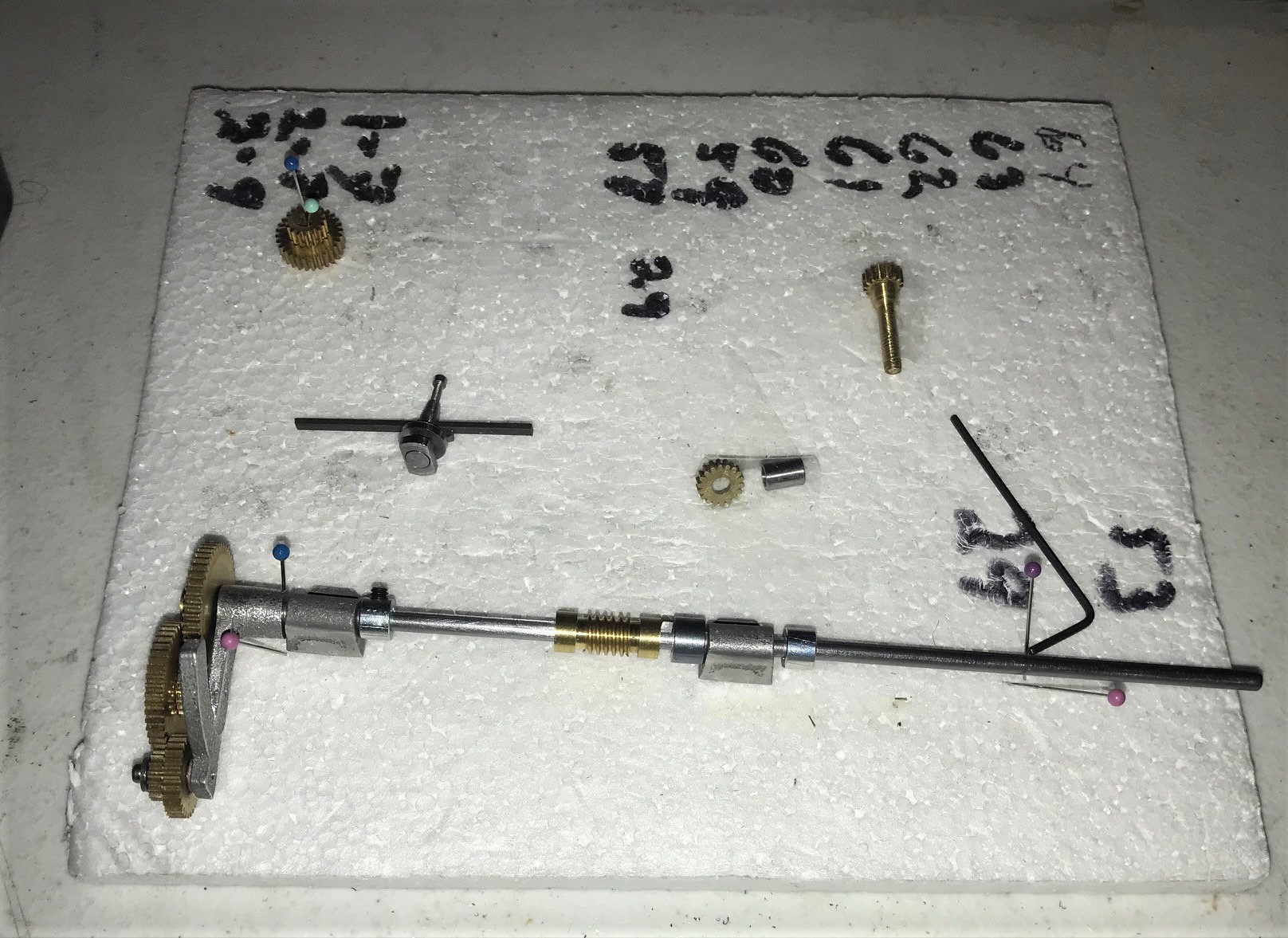

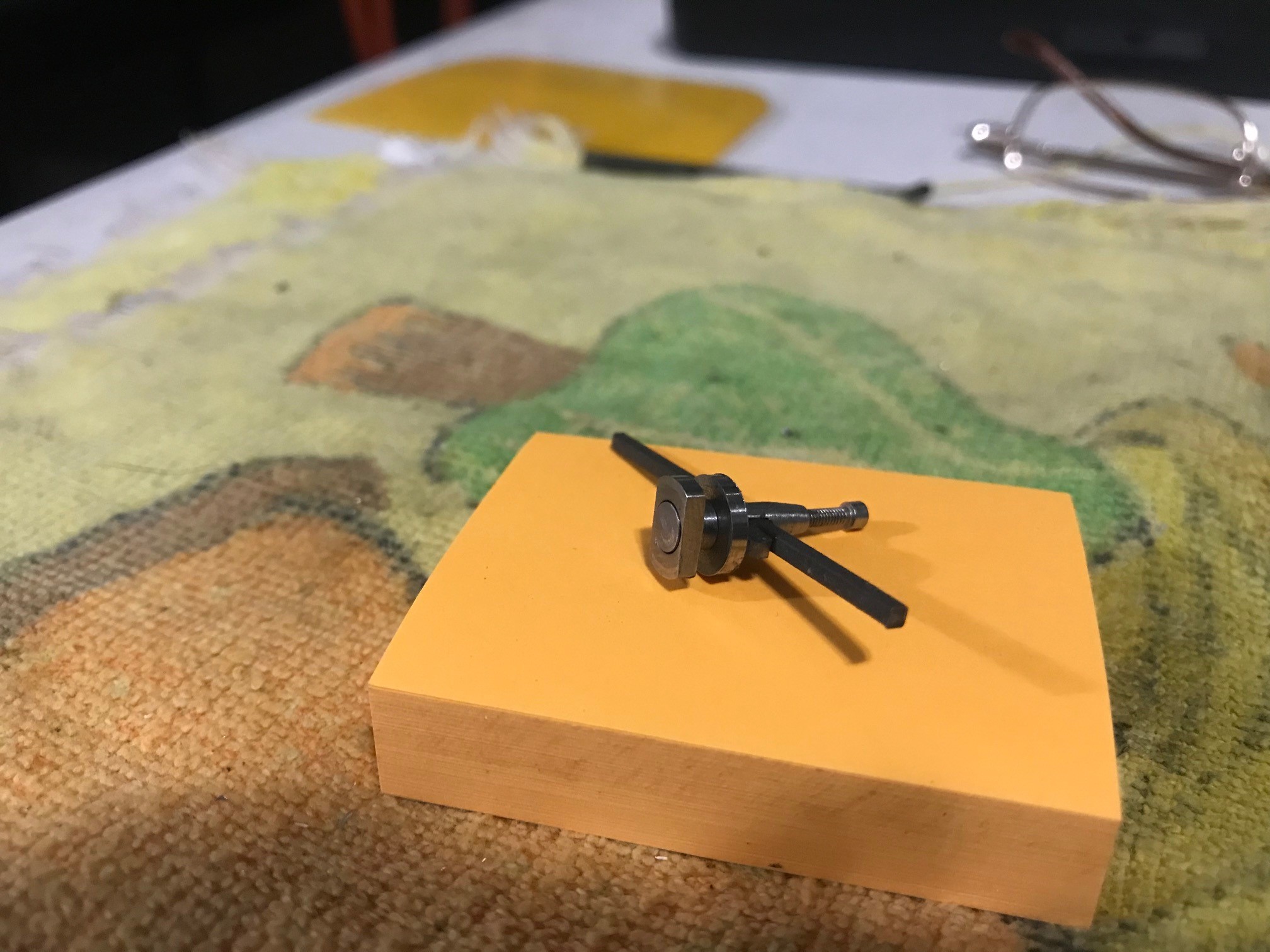

Got some work done on the tool post and lead screw components.


Attachments

  • b4 (2).jpg
    b4 (2).jpg
    544.3 KB · Views: 134
  • b8.jpg
    432.9 KB · Views: 99
  • b9 (2).jpg
    b9 (2).jpg
    246.6 KB · Views: 98
Hey Tony,

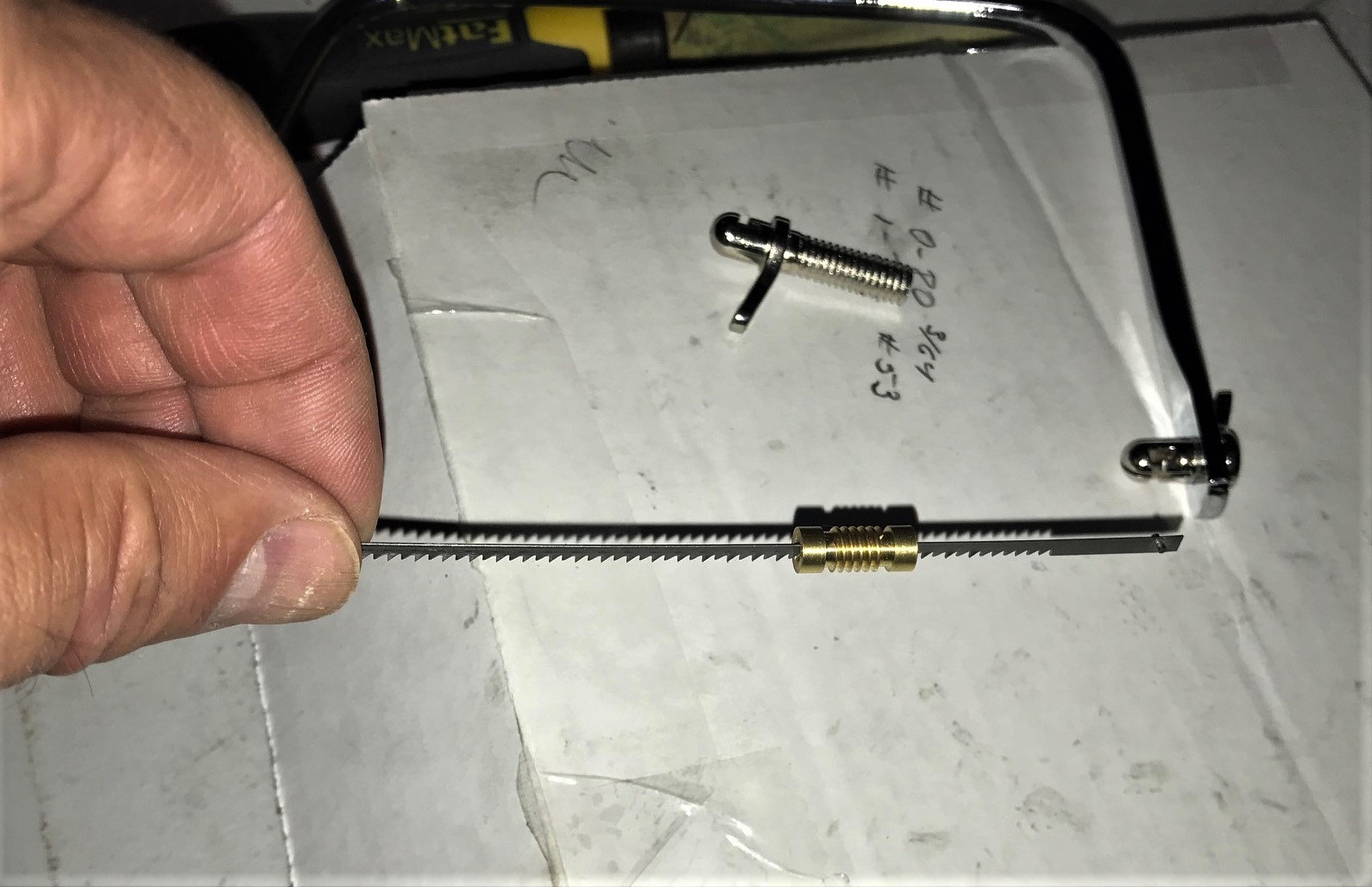

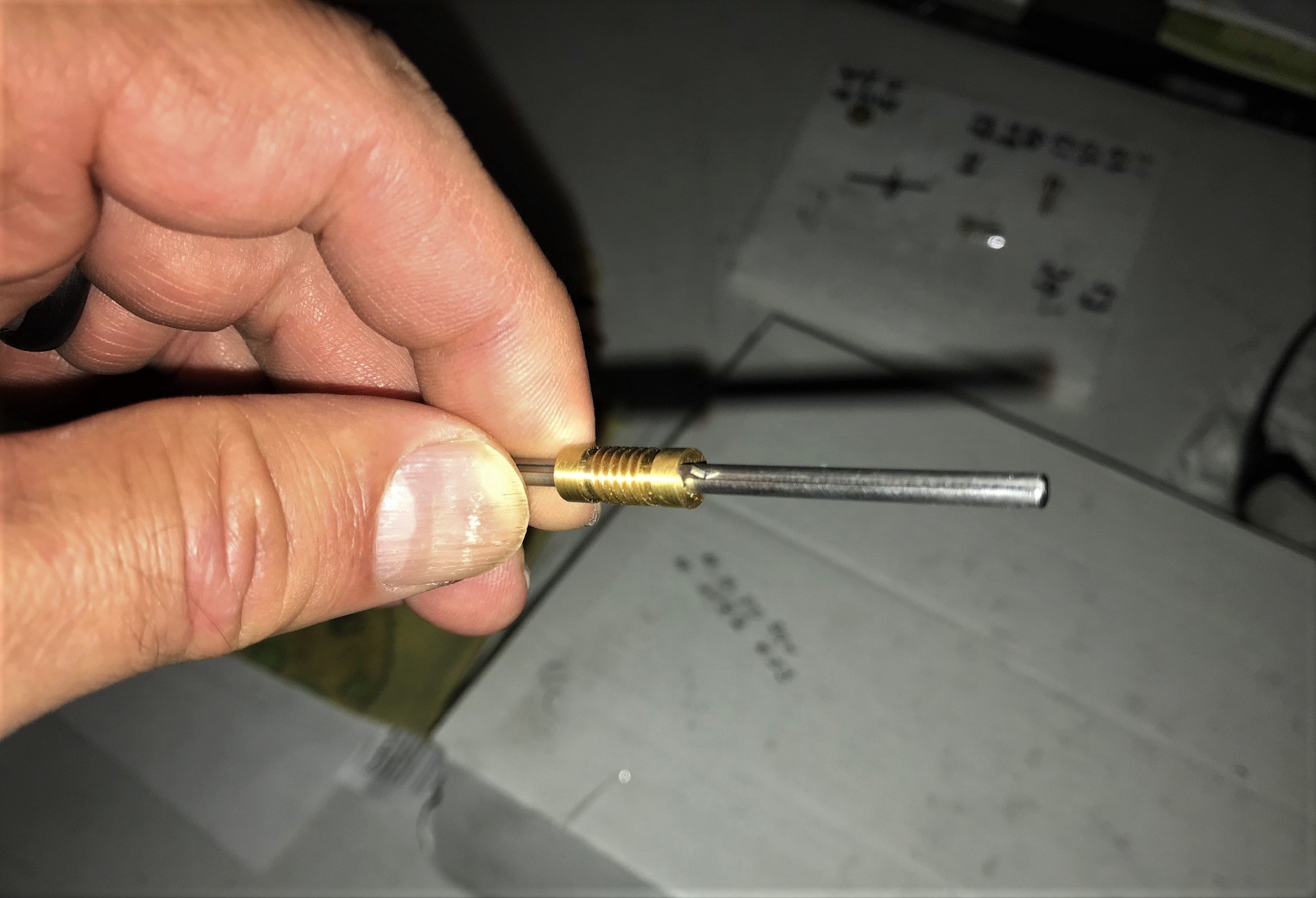

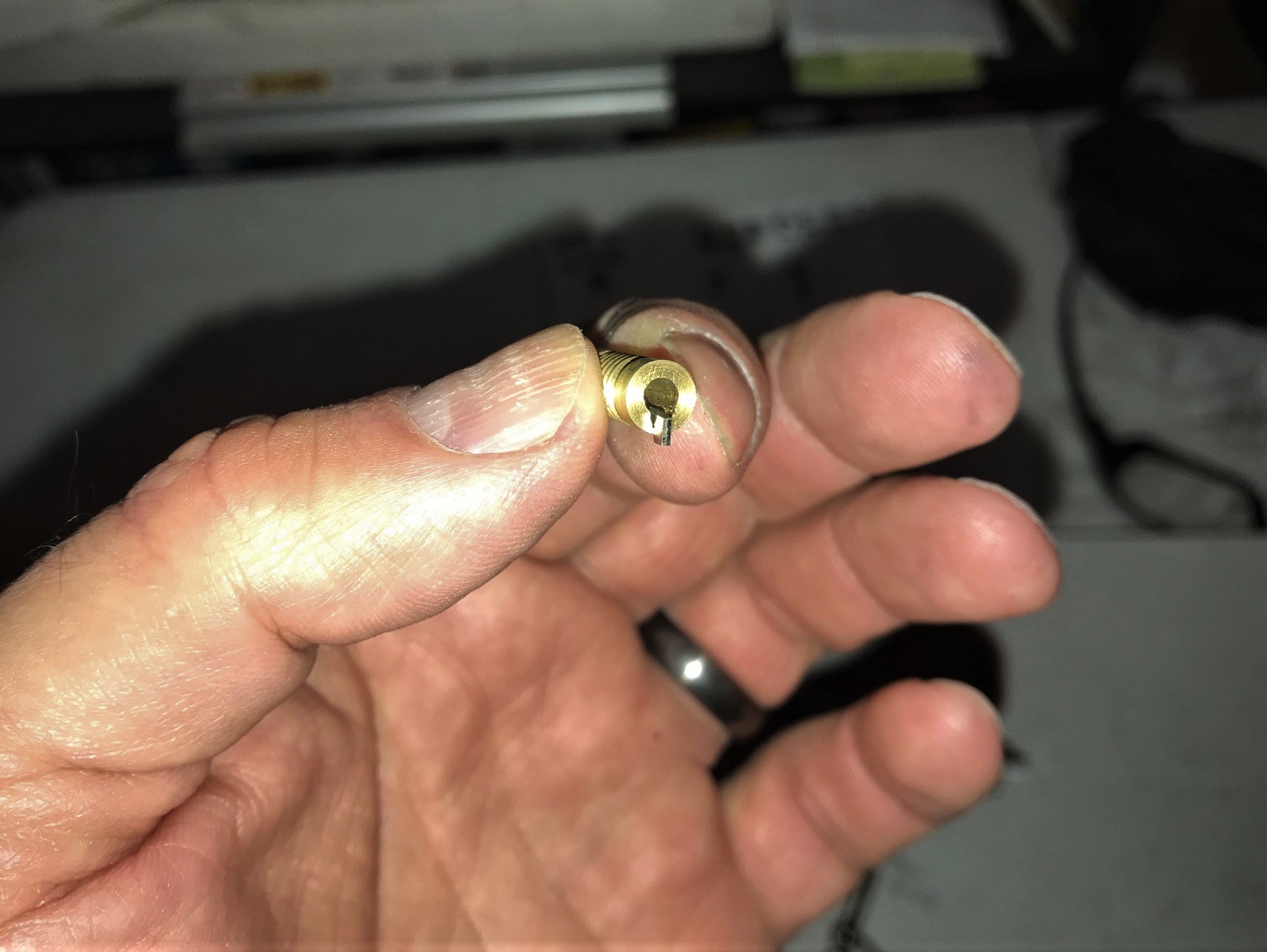

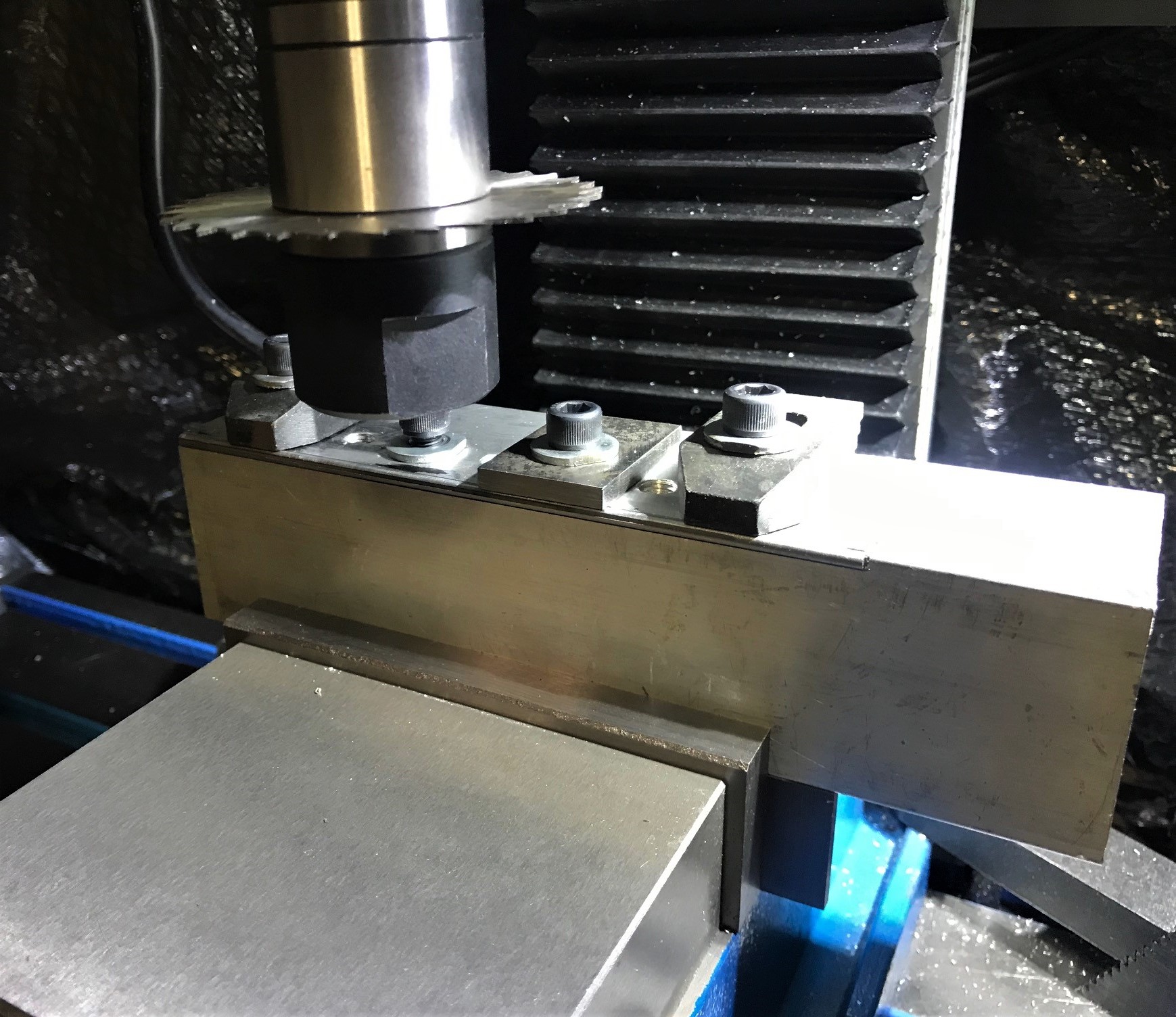

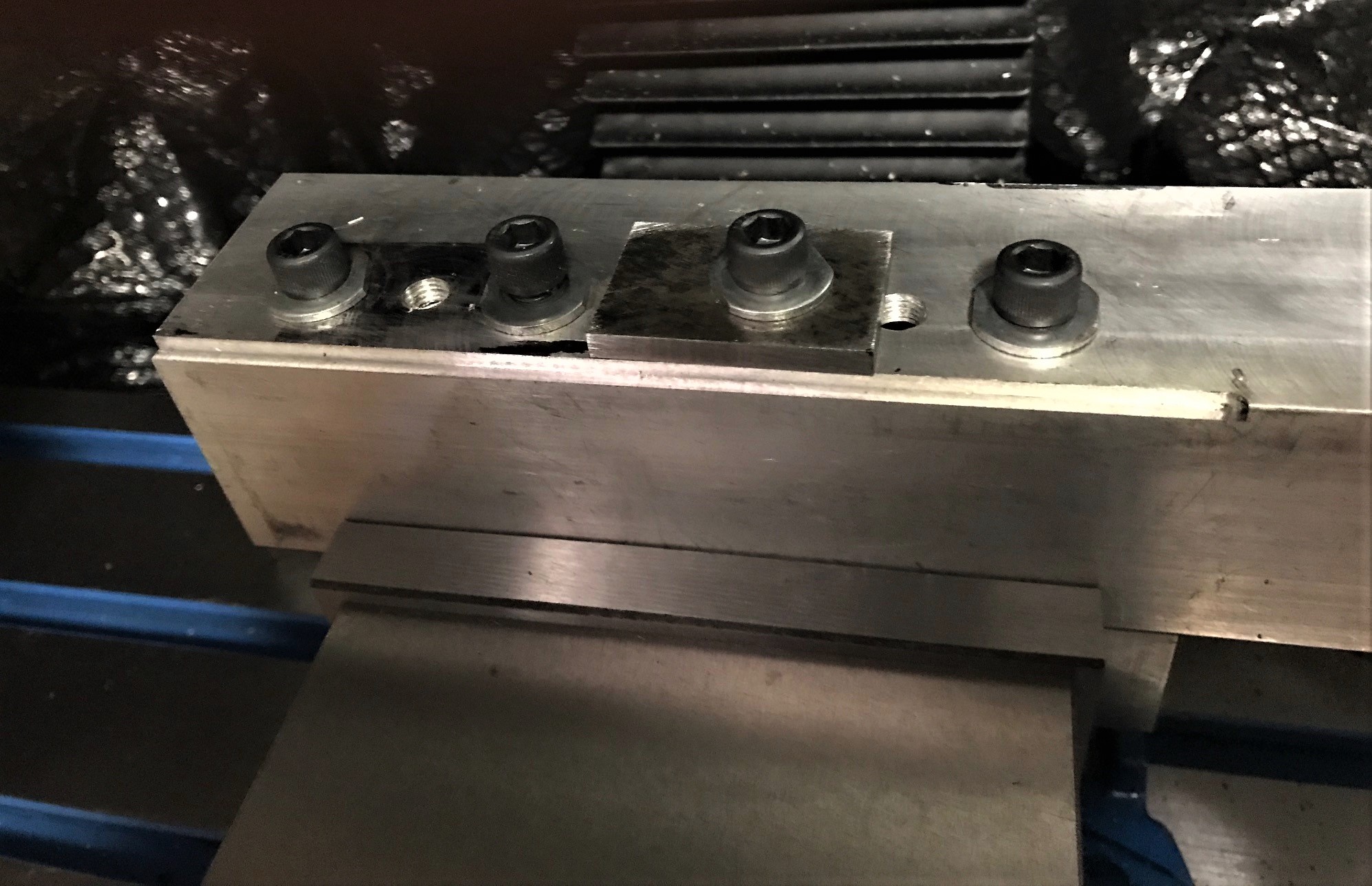

To cut the slit in the lead screw I used the same fixture I used on the lathe bed. I just cut a pinching groove in the side of it and clamped the lead screw in and cut it with a slitting saw. I used a coping saw to cut the groove in the worm gear you made, for the worm gear key. It worked out good. Your only dealing with a 1/32 on each piece.


Attachments

  • b12 (2).jpg
    b12 (2).jpg
    500.4 KB · Views: 98
  • b14 (2).jpg
    b14 (2).jpg
    531.5 KB · Views: 92
  • b18 (2).jpg
    b18 (2).jpg
    273.7 KB · Views: 93
  • b17 (2).jpg
    b17 (2).jpg
    352.2 KB · Views: 97
  • b15 (2).jpg
    b15 (2).jpg
    311.5 KB · Views: 110

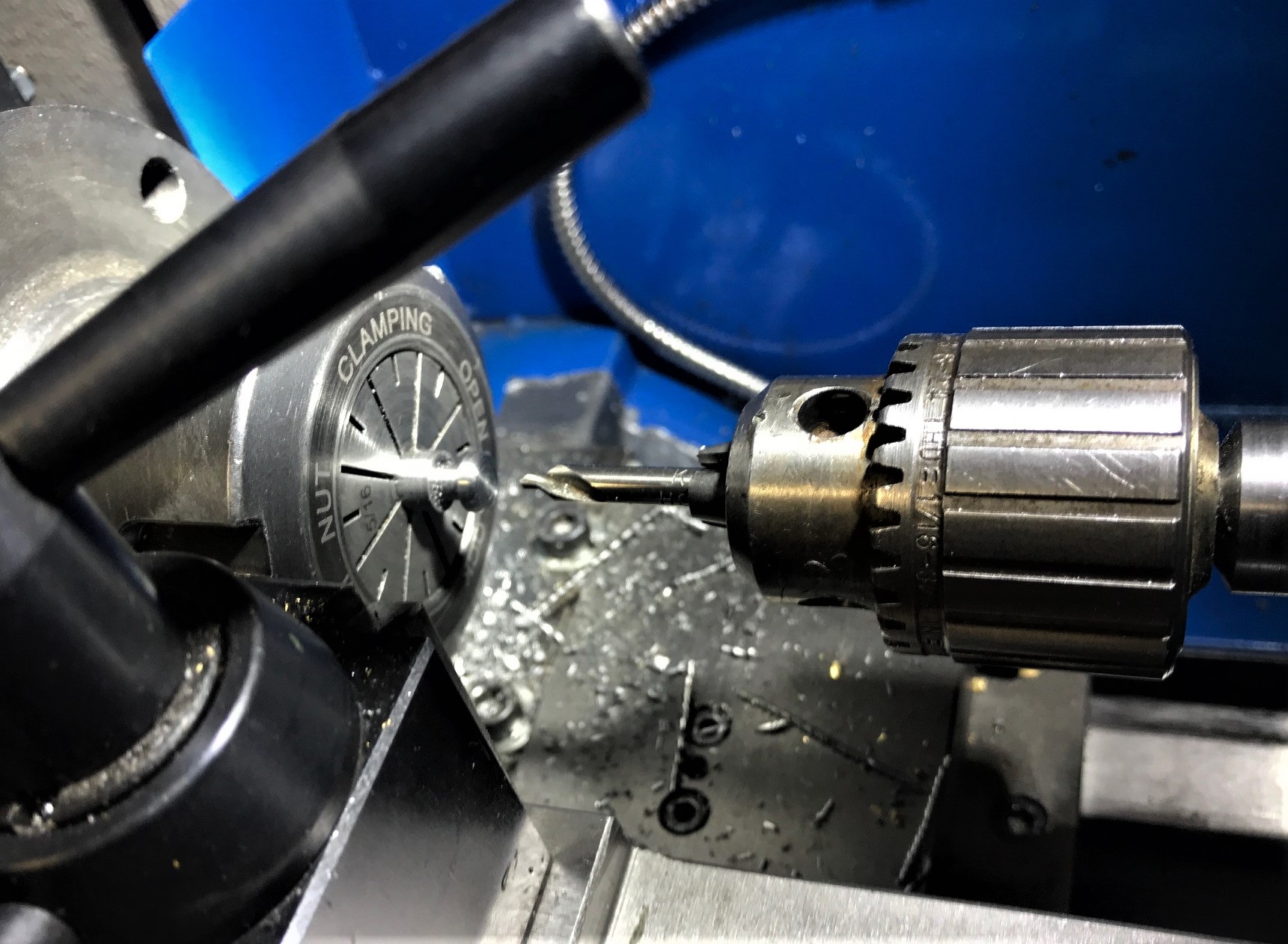

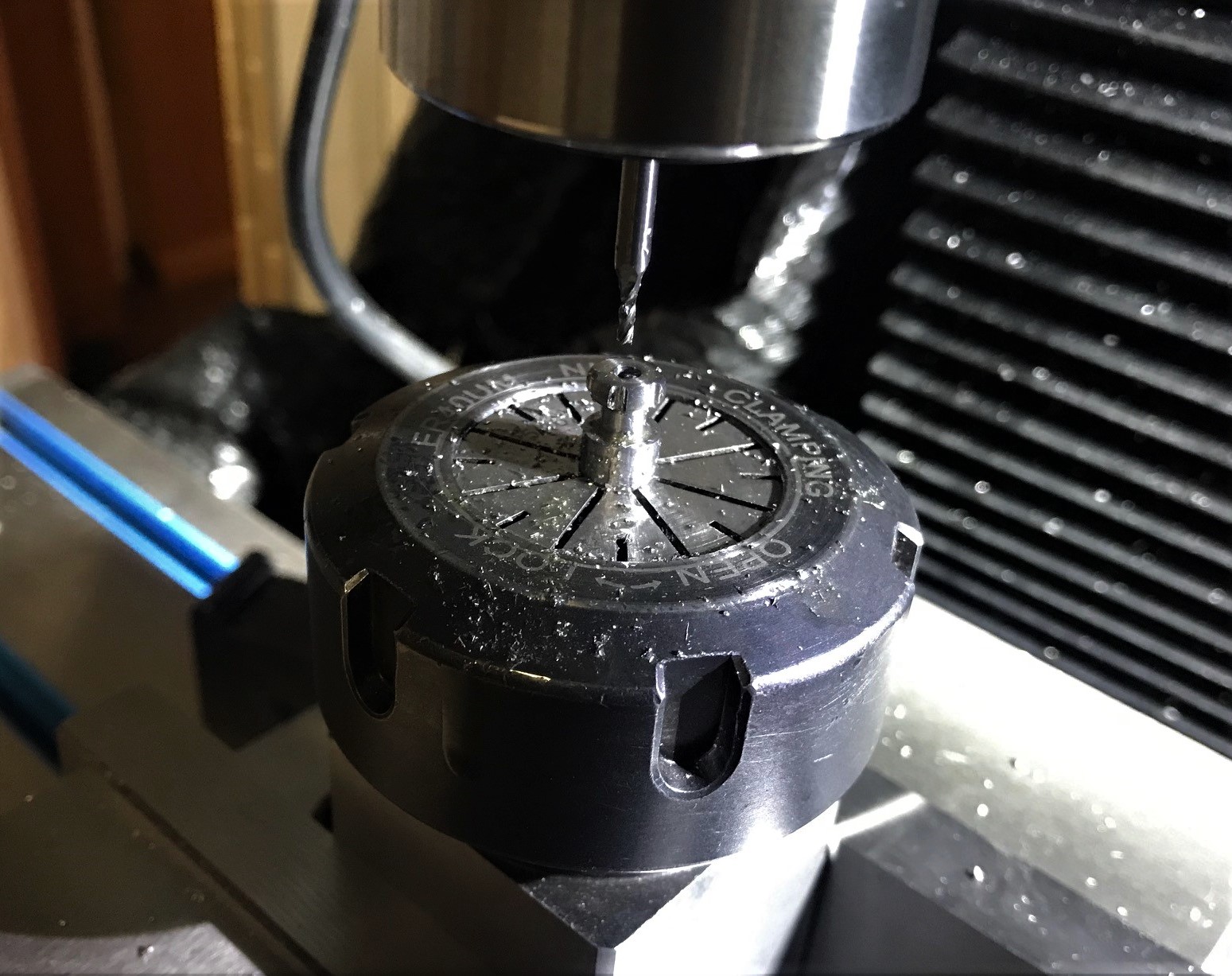

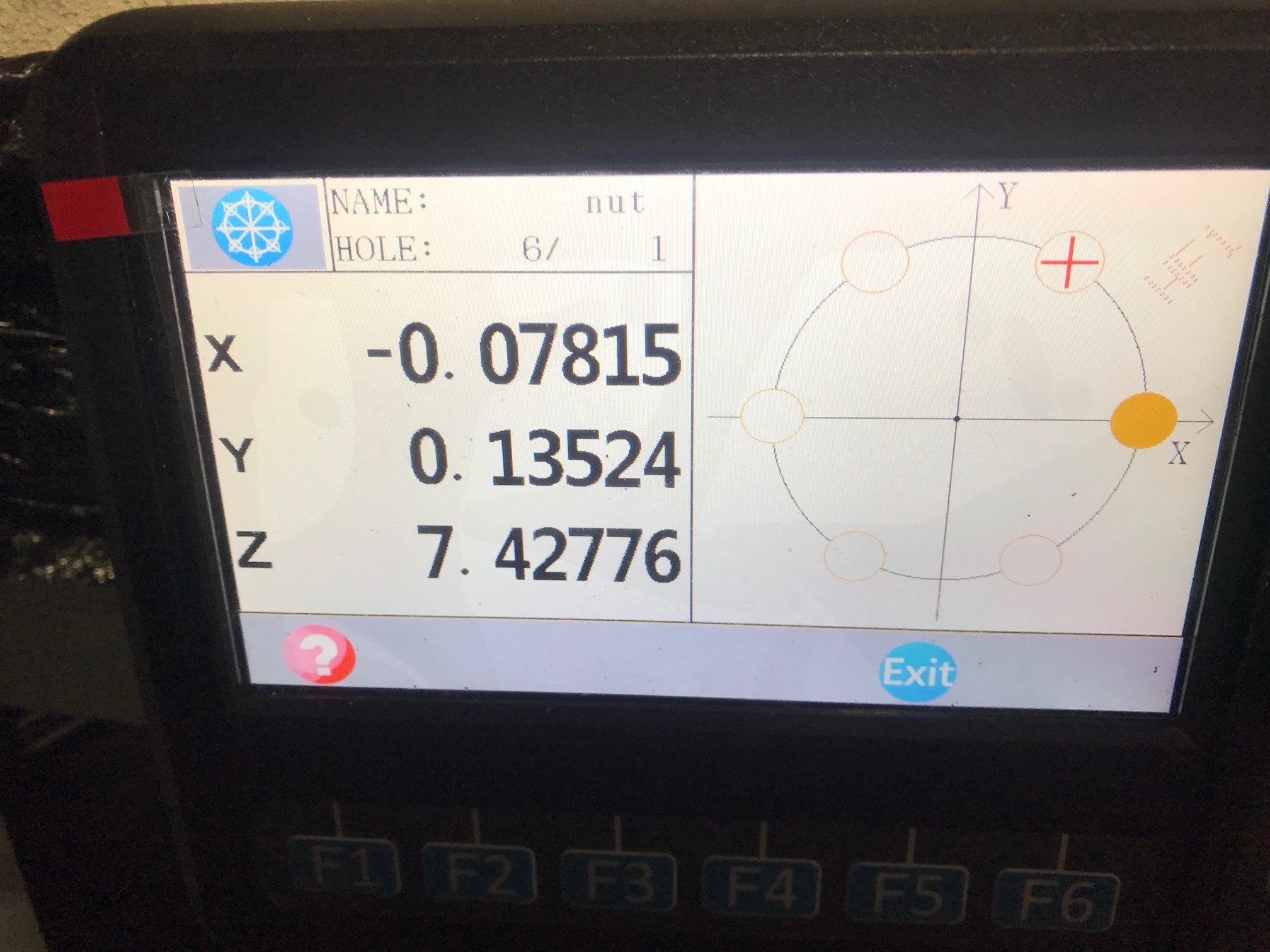

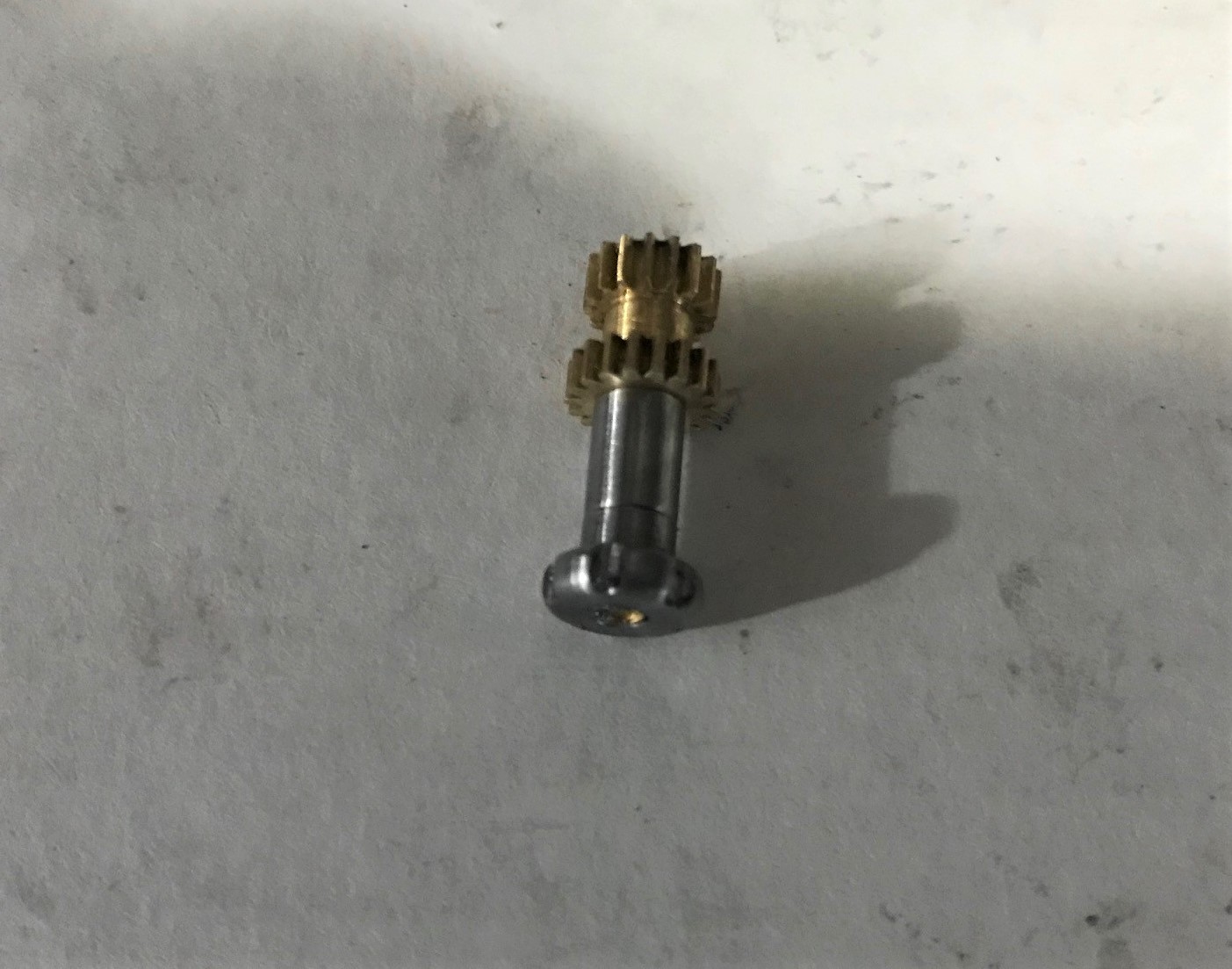

Got the carriage clutch assembly done. I'm really liking the DRO functions!!


Attachments

  • b22 (2).jpg
    b22 (2).jpg
    415.9 KB · Views: 87
  • b20 (2).jpg
    b20 (2).jpg
    386.3 KB · Views: 93

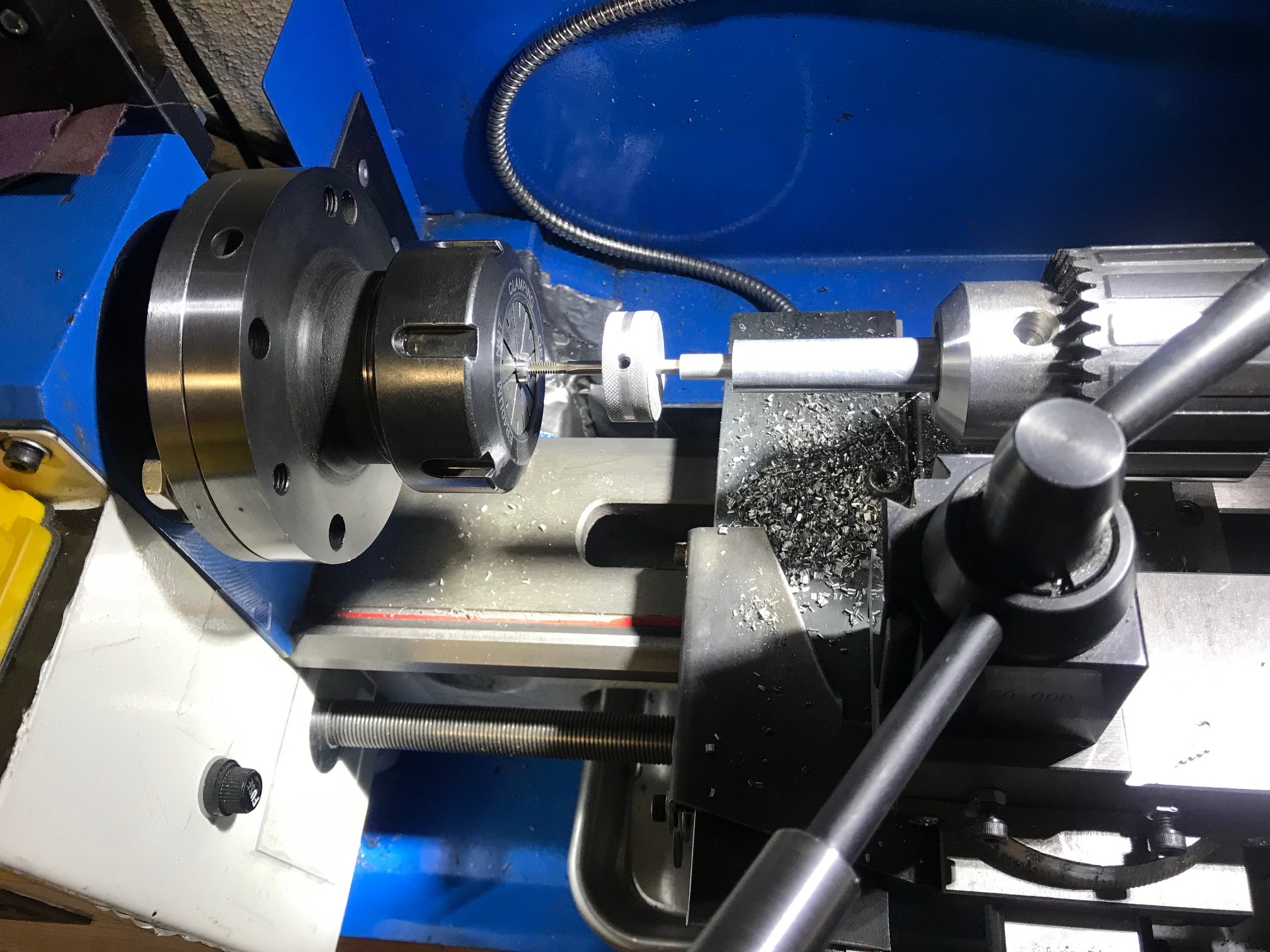

  • b26.jpg
    656.2 KB · Views: 92
  • b23.jpg
    535.7 KB · Views: 94
  • b25 (2).jpg
    b25 (2).jpg
    254.7 KB · Views: 120
