Dual BuildNew PAU 35cc Edge and 35cc Extra

Discussion in 'Giant / Scale ARF Build Threads' started by Tseres, Jan 4, 2016.


  1. On the elevator control arm what is the distance from servo centre to the ball joint connection , about 1.5" to 1.75" ? Love the usage of the carbon fibre rod on the elevators , not chance of bowing there .:I_agree:


  2. 1,5

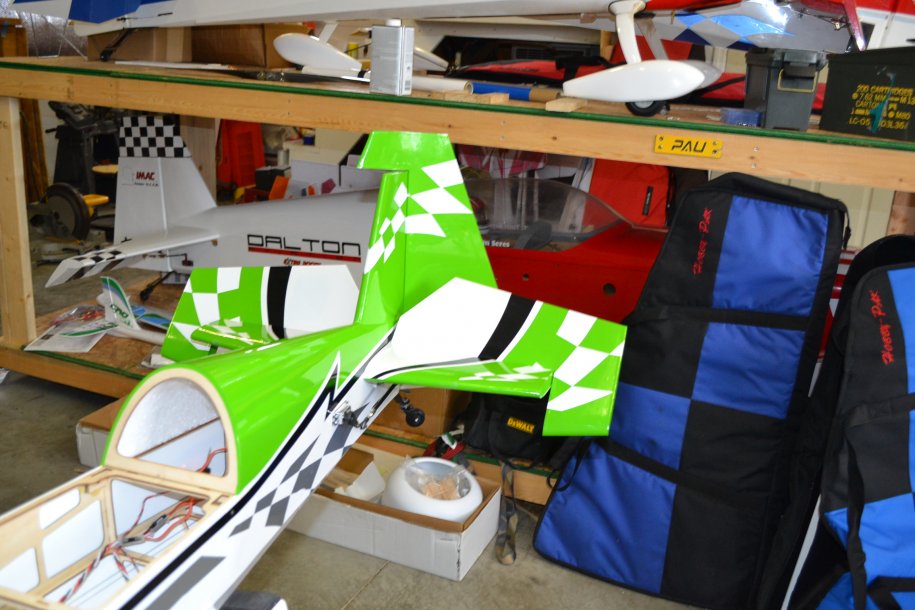

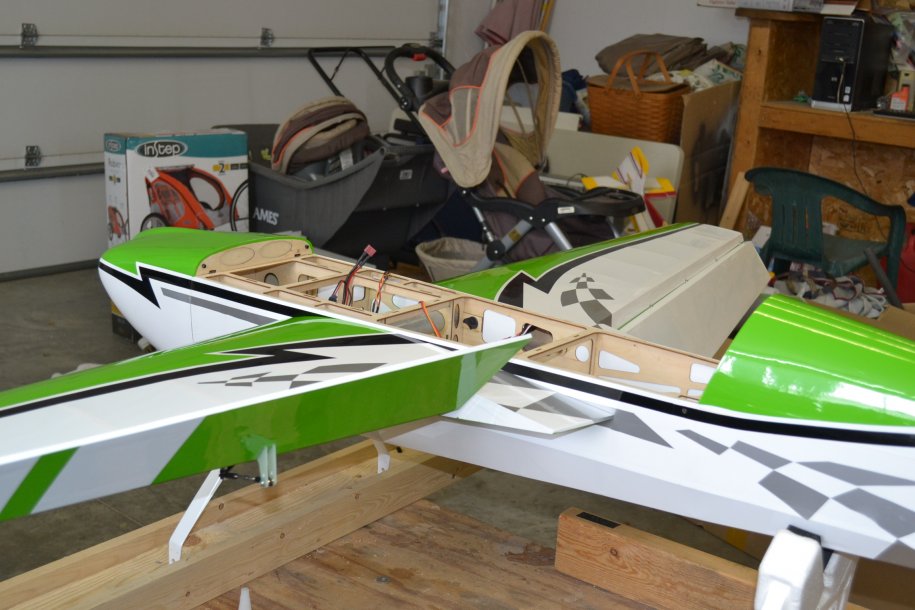

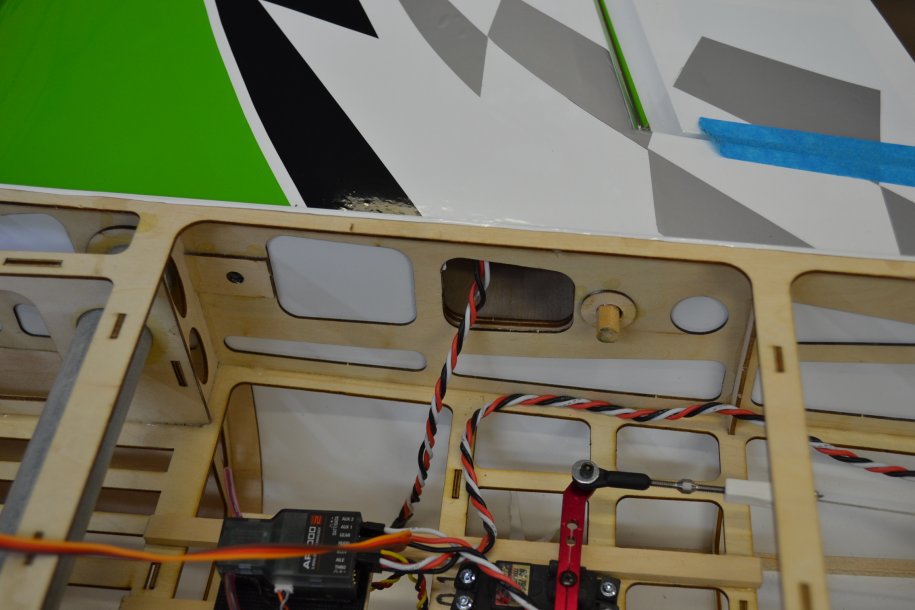

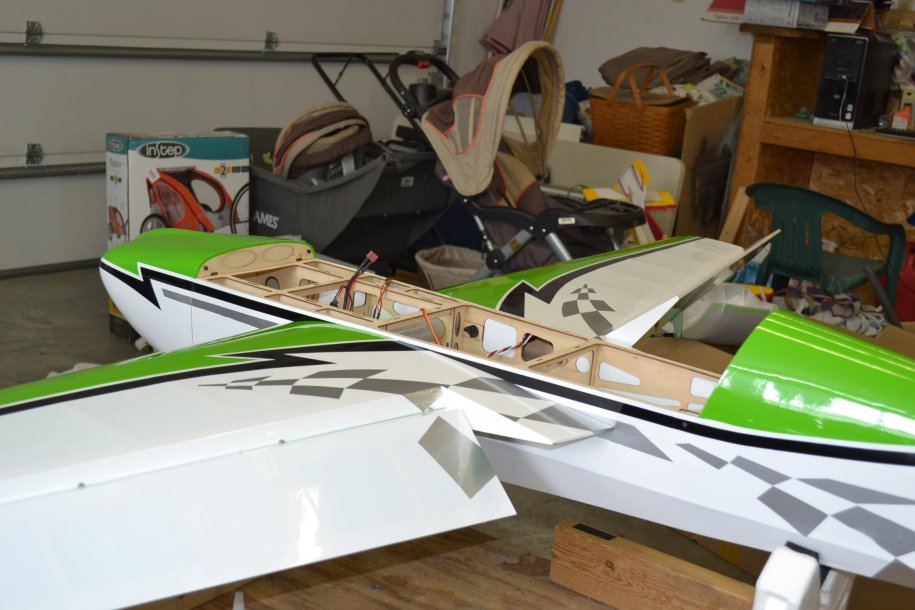

  3. Finished the Extensions for the Flying Surfs on the Edge. Hooked everything up and set the max throws.

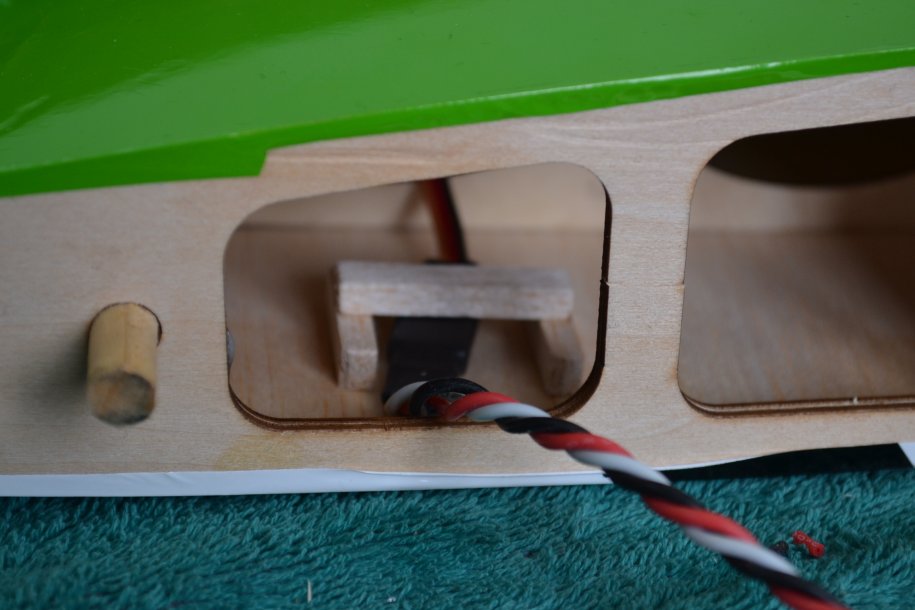

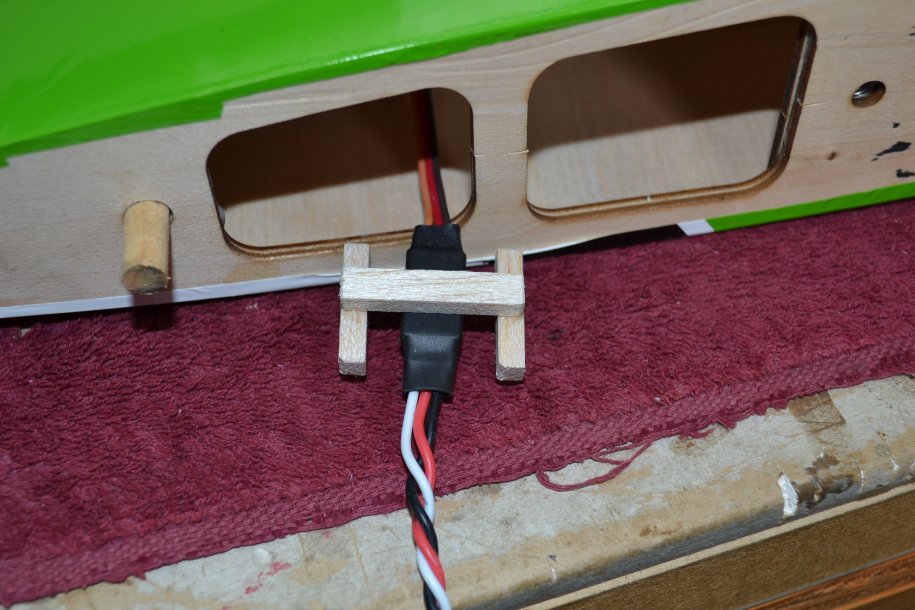

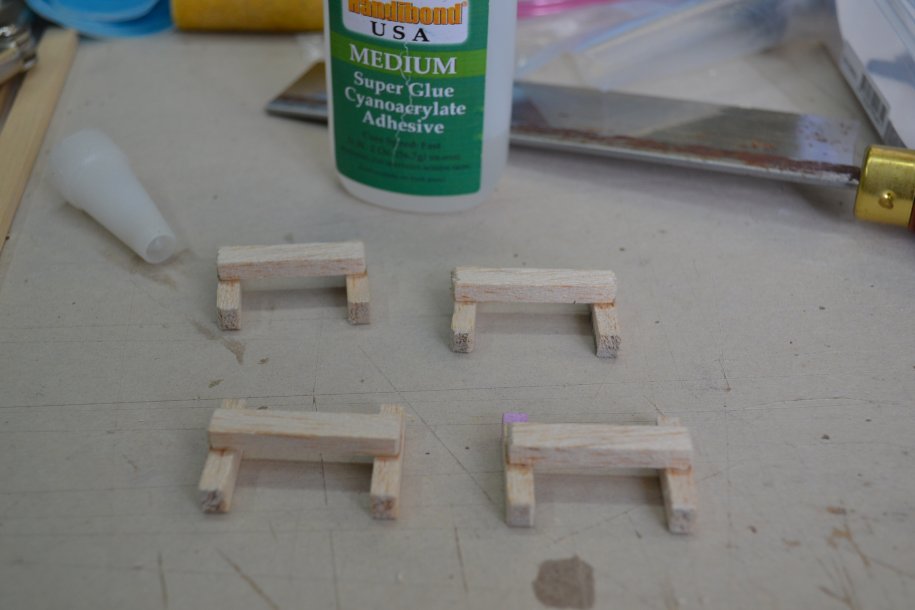

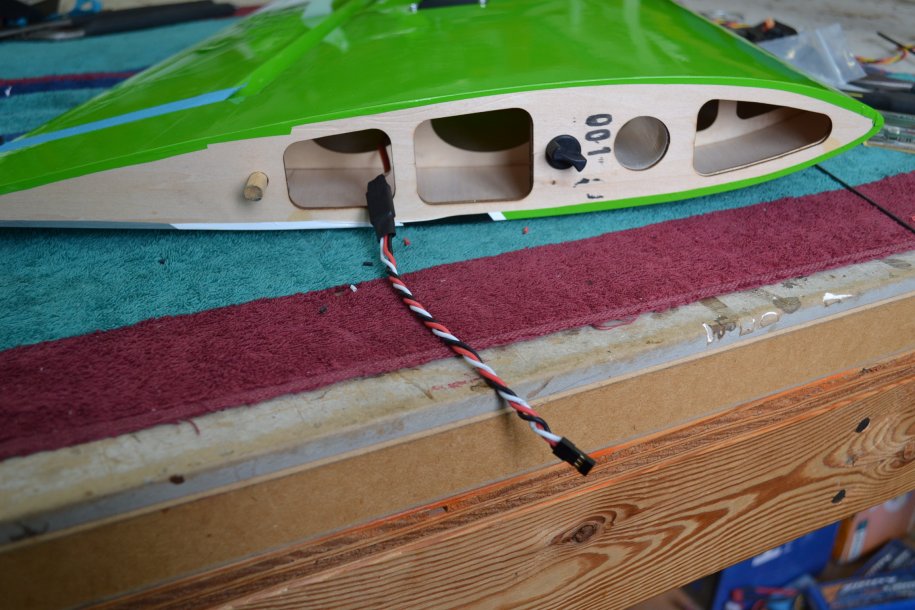

    I make these little bridge wire keepers so the extensions don't fall back into the wing. Nothing fancy. loose enough to be able to get the wire out without breaking the bridge back out but tight enough not to let the wire fall in. opening dimension is about 1/4" X 1". Not to important but you can make it out of 1/4" square balsa sticks.

    DSC_0070.JPG DSC_0071.JPG DSC_0072.JPG DSC_0073.JPG DSC_0074.JPG DSC_0075.JPG DSC_0076.JPG DSC_0077.JPG DSC_0078.JPG DSC_0079.JPG

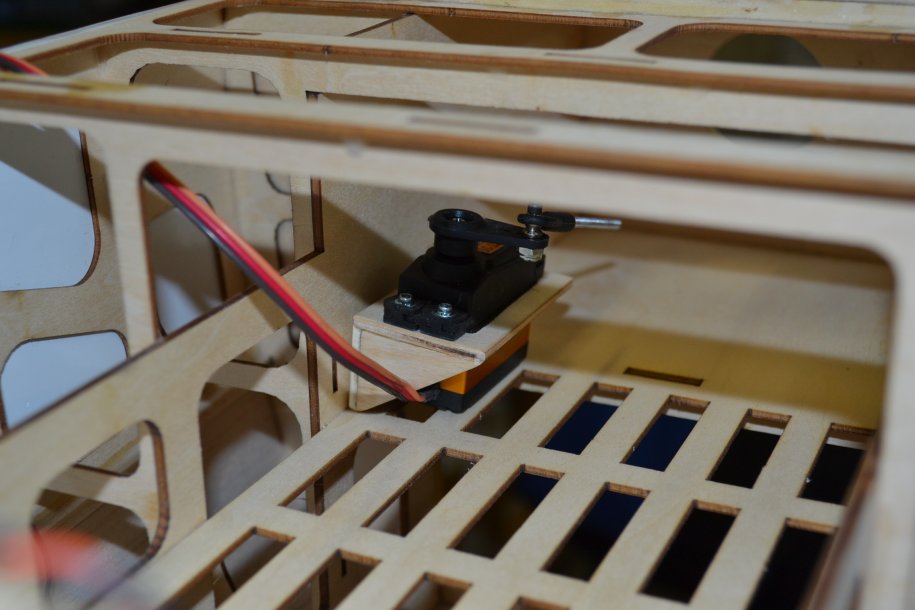

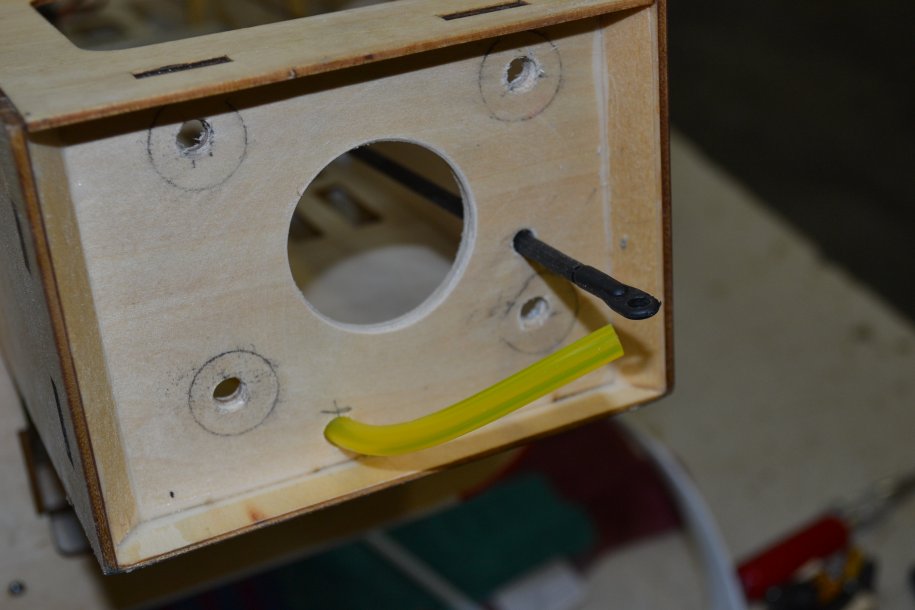

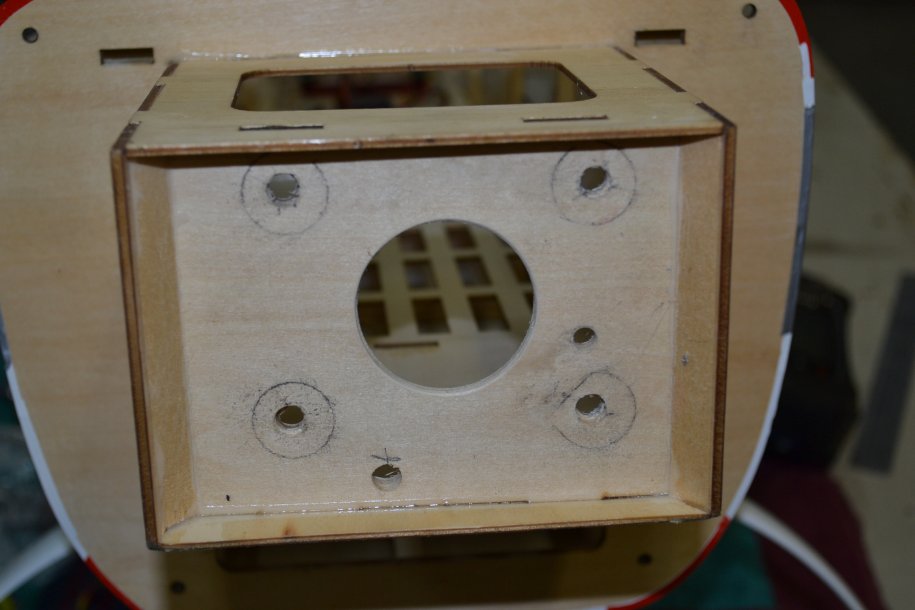

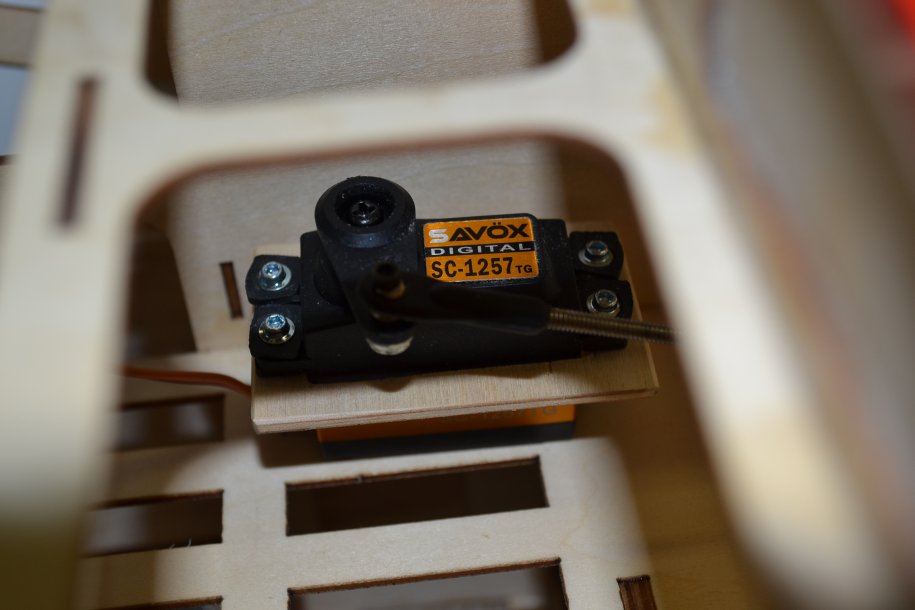

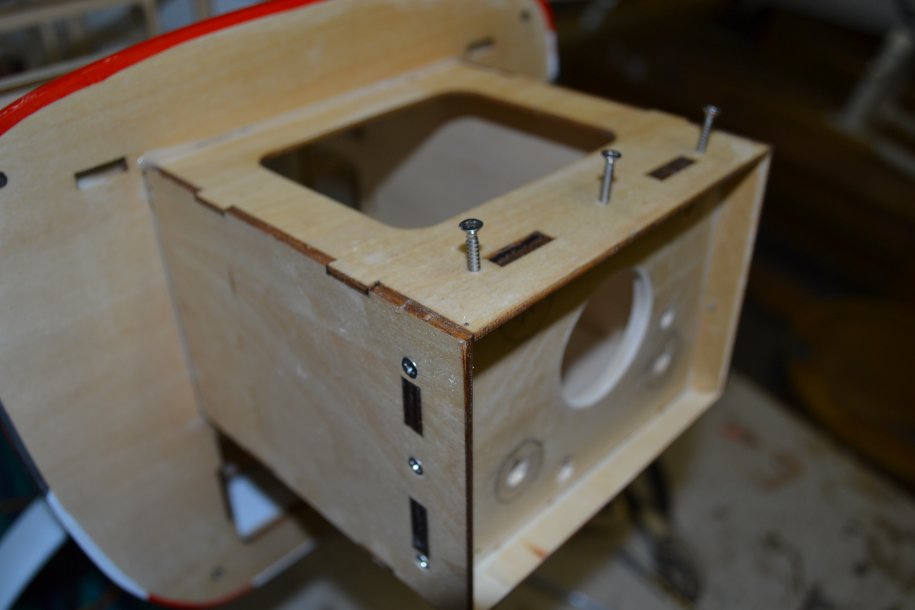

  4. Started working on mounting the Throttle Servo. I don't like mounting the servo in the engine compartment so I made up a bracket that I can use to glue it up to the inside of the motor box. Finished drilling the fire wall for the fuel line throttle linkage and the vent hole for the carb. Pinned the firewall with #4 X 3/4 flathead wood screws. Glued the screws in with CA.

    DSC_0080.JPG DSC_0081.JPG DSC_0082.JPG DSC_0083.JPG DSC_0084.JPG DSC_0085.JPG

  5. Today was one of those days. I used my ball driver for #2 screws this morning and laid it down somewhere and I still have not found it. I managed to make it all the way through the whole day...

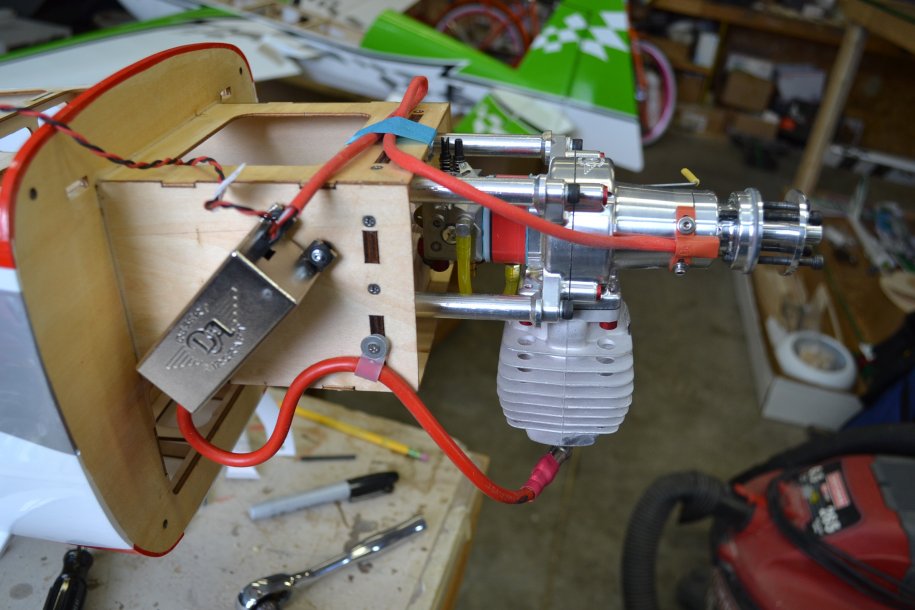

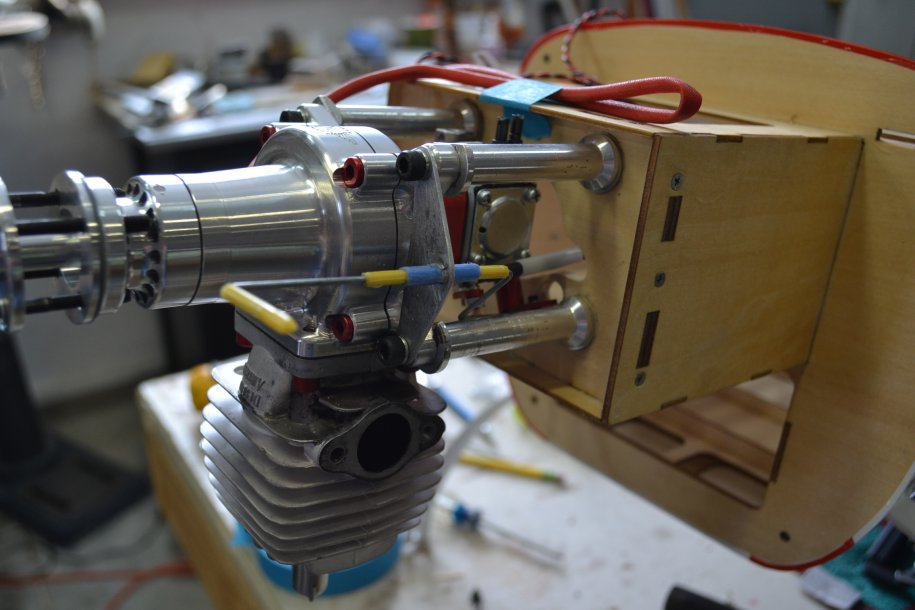

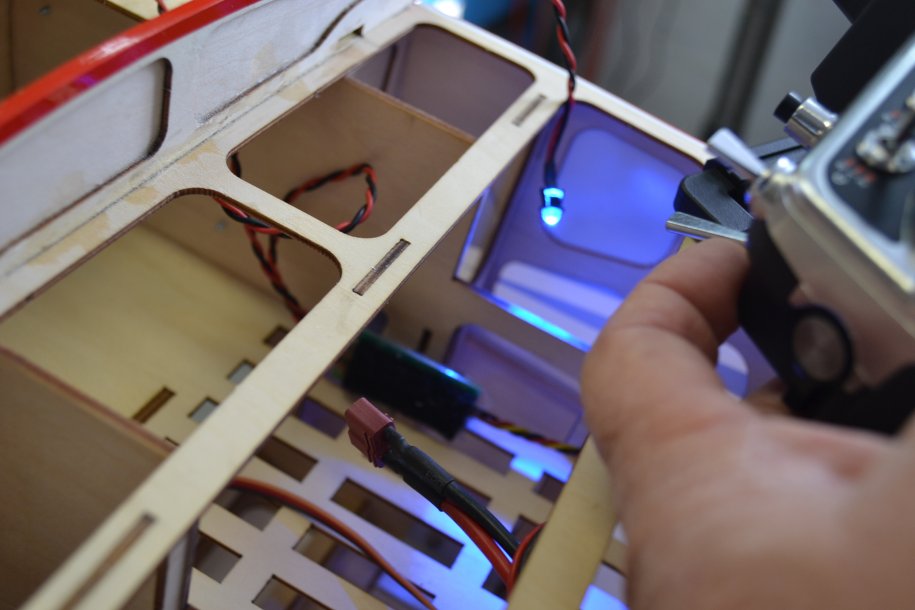

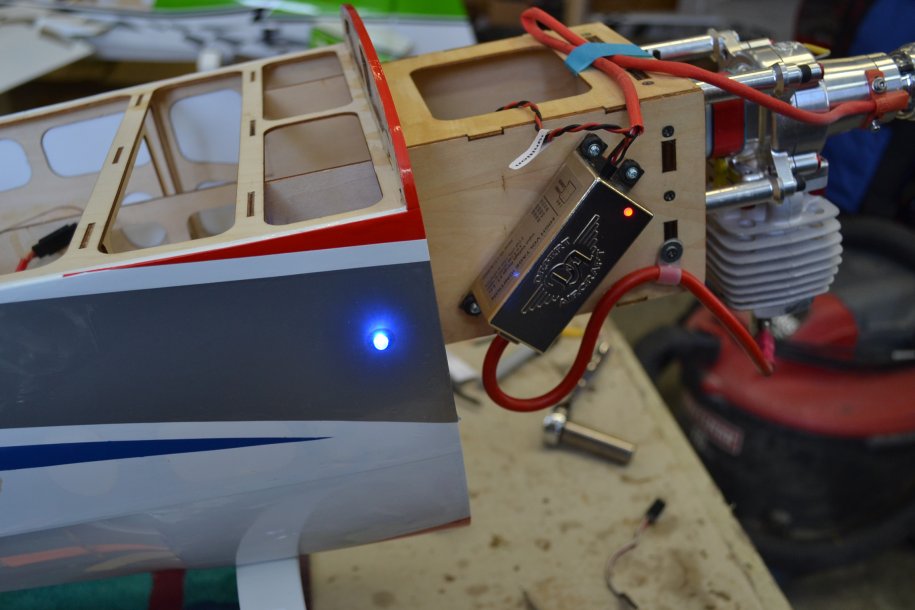

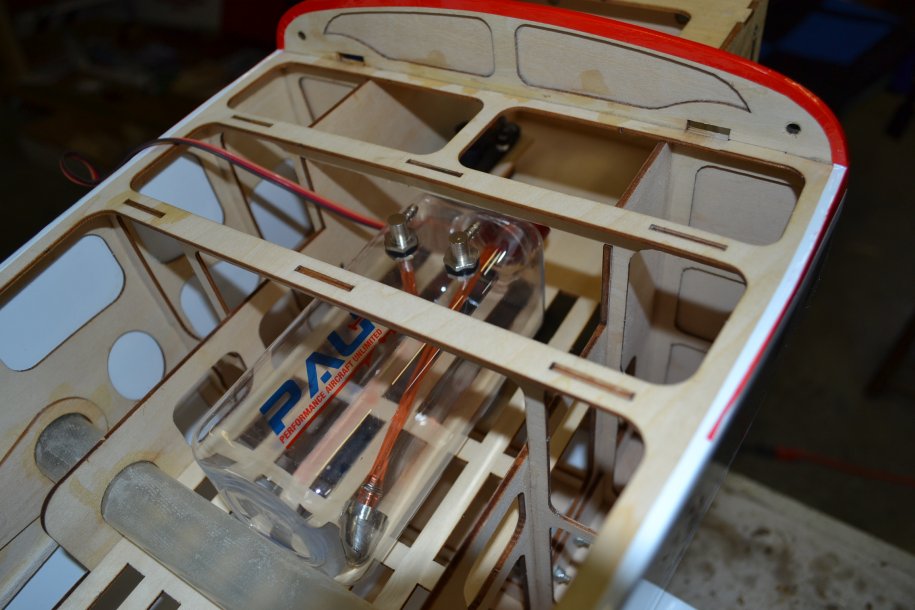

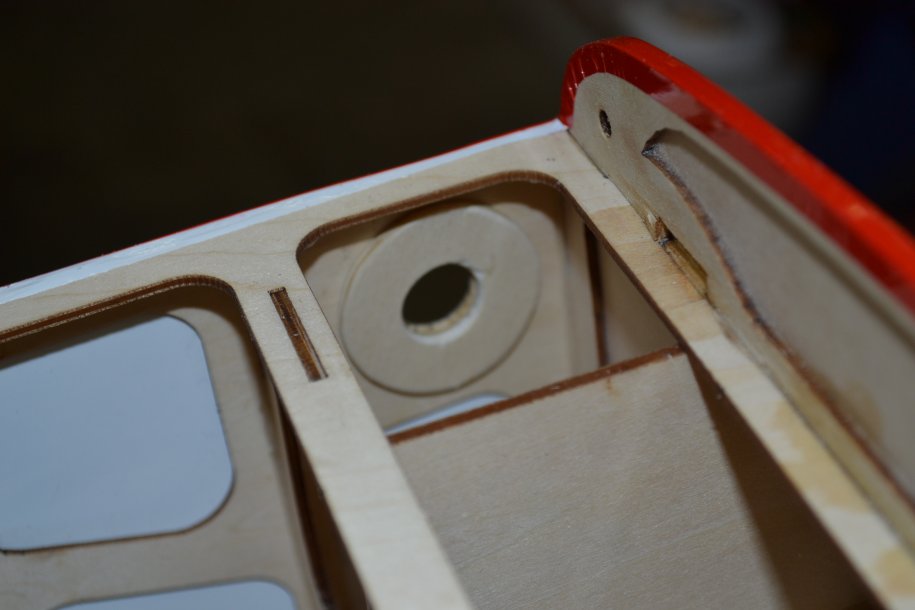

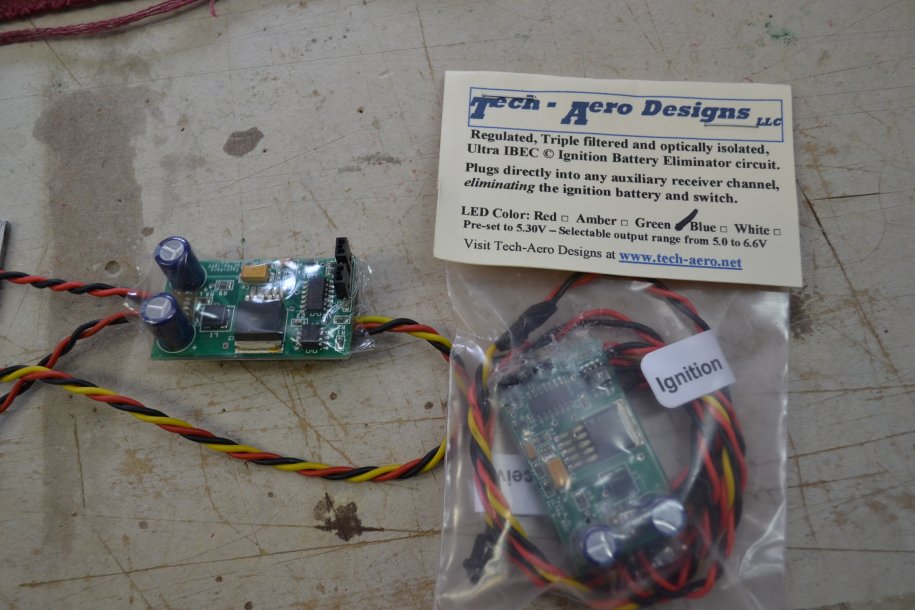

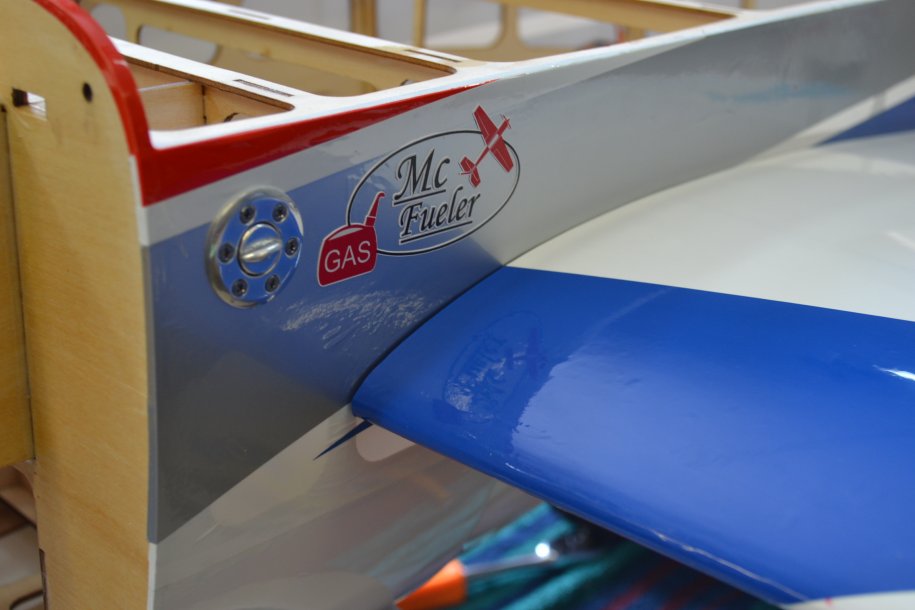

    Finished the wing extensions and set the servos for max throw. Mounted and set the throttle servo. Mounted the IBEC and the Ignition.Also mounted my favorite part. The McFueler Fuel Dot. Making progress.

    DSC_0086.JPG DSC_0087.JPG DSC_0091.JPG DSC_0092.JPG DSC_0093.JPG DSC_0094.JPG DSC_0095.JPG DSC_0096.JPG DSC_0097.JPG

    Alky6, WMcNabb and BalsaDust like this.

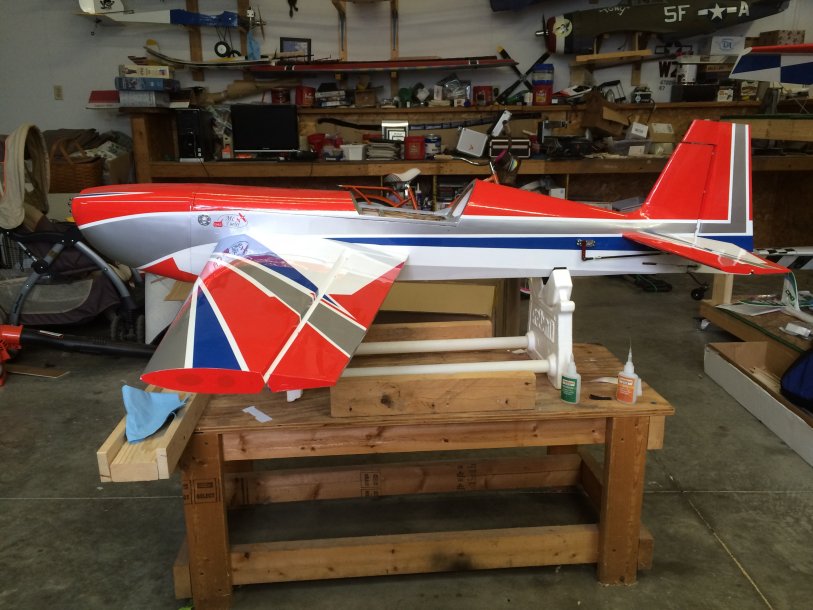

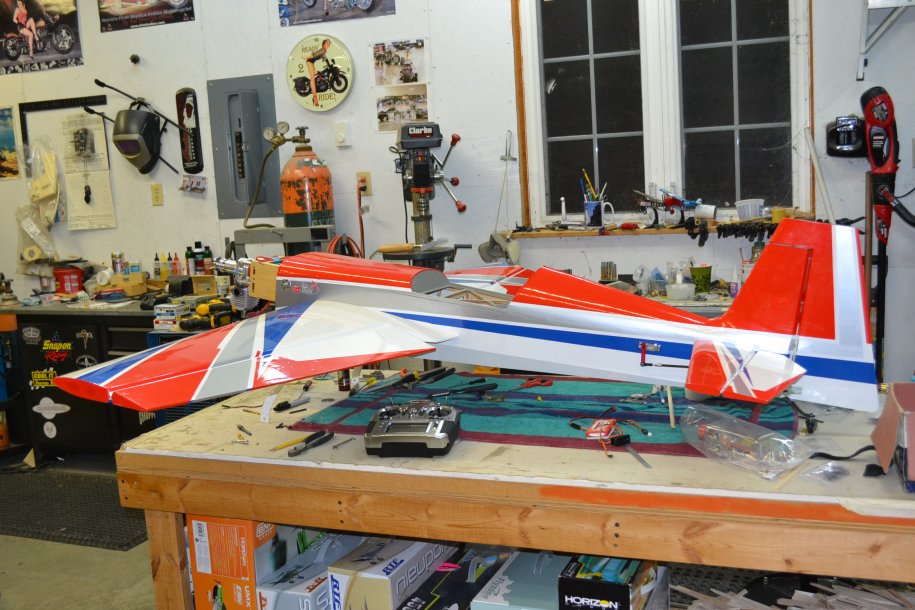

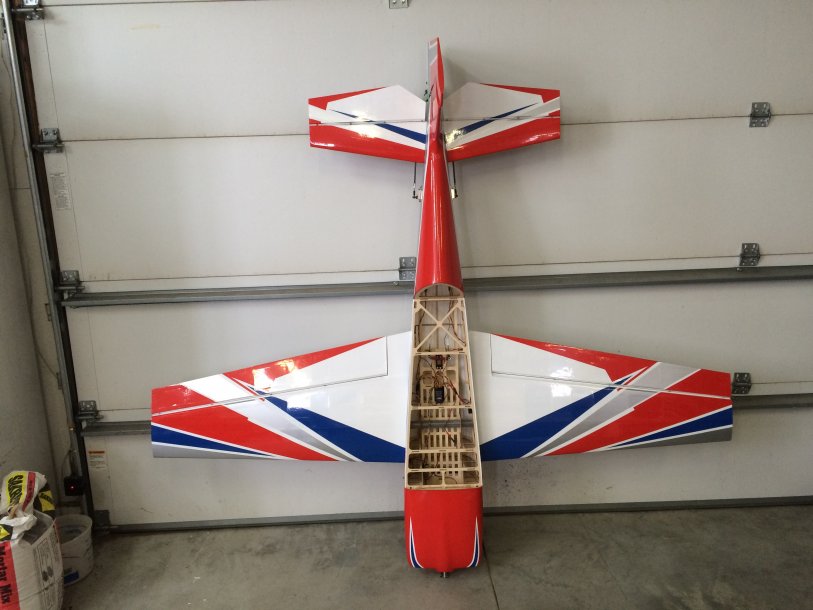

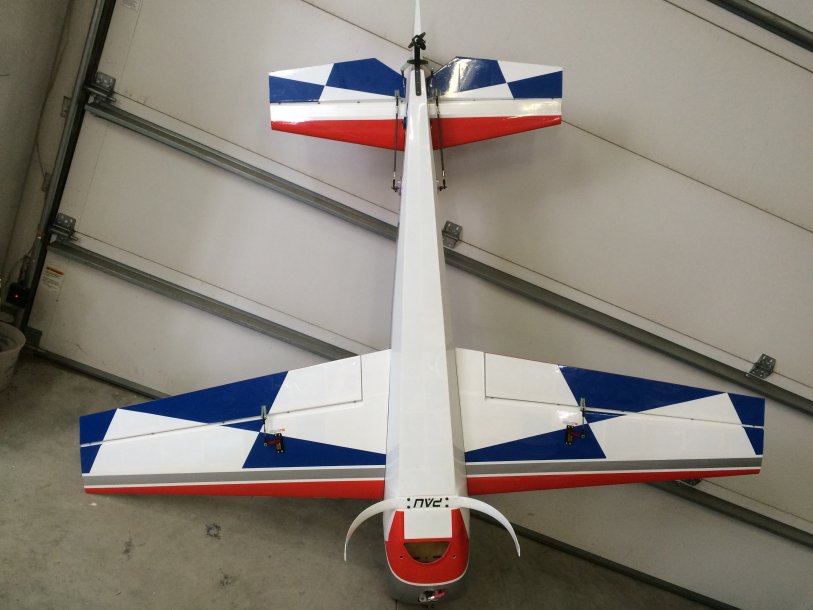

  6. Not much work on the planes the last 2 days.I did manage to order some Graphics from B&E Graphics. Also Ordered some foam pilots from Aircraft International. Should have the pilots on Friday but the Graphics wont be here for about a Week. I did put the wings on the Extra and took some pictures to send to B&E. It's always a little exiting when you see the plane together for the first time.

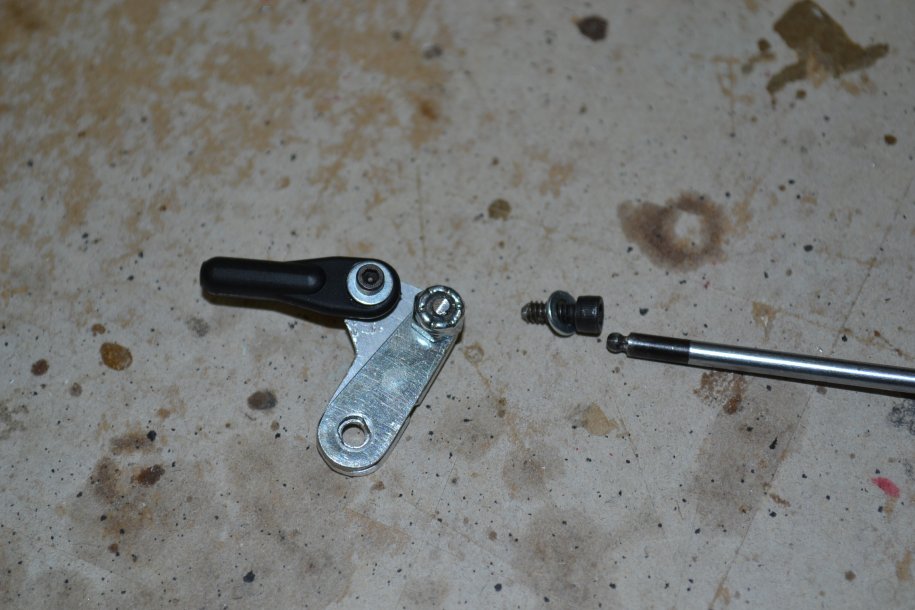

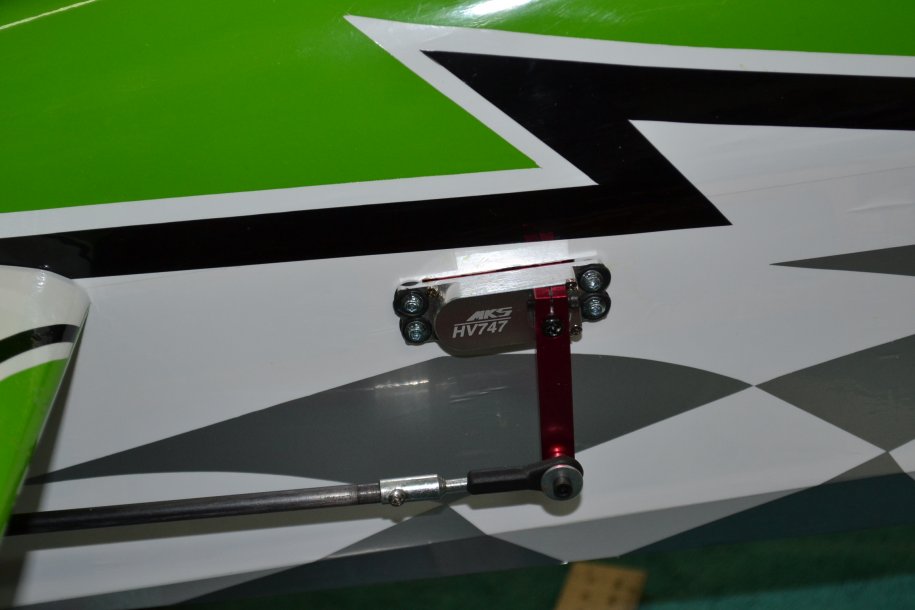

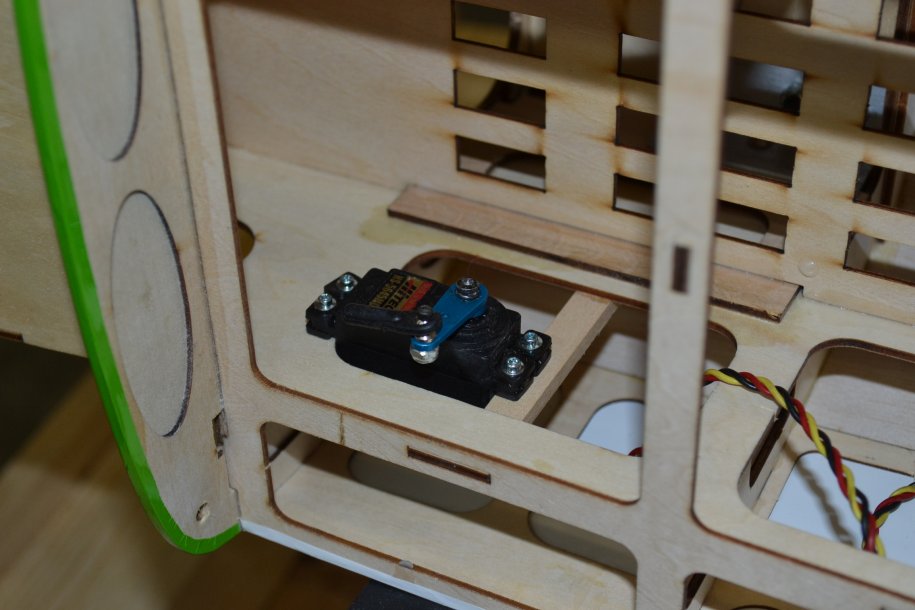

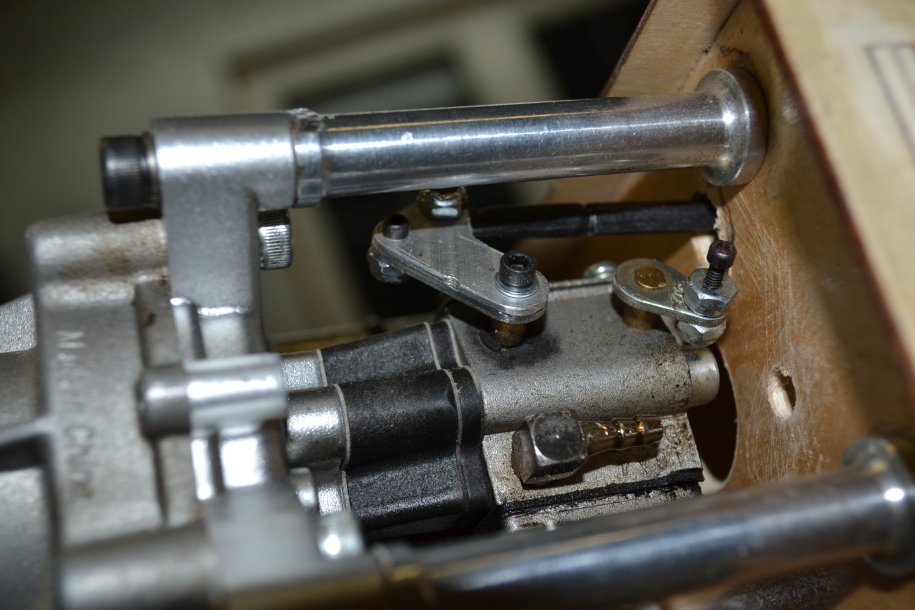

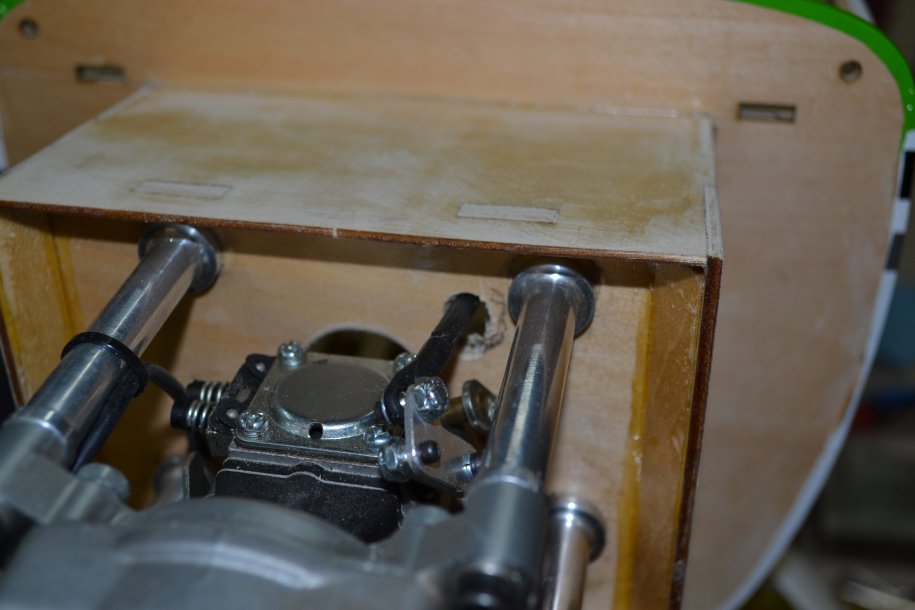

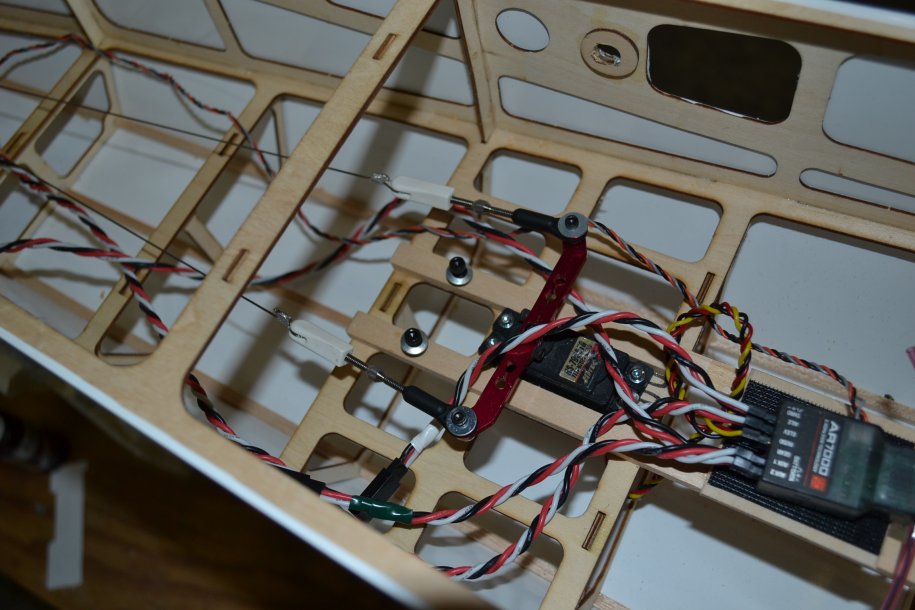

    Today was spent helping a friend work on his T/F Mustang. The rest of the evening I mounted the throttle servo in the Edge and made an offset for the servo arm so there is a better angle for the push rod. The aluminum servo arms showed up and I switched them out on the Elevator.

    IMG_1598.JPG IMG_1599.JPG IMG_1600.JPG DSC_0098.JPG DSC_0099.JPG DSC_0100.JPG DSC_0101.JPG DSC_0102.JPG

    WMcNabb and BalsaDust like this.

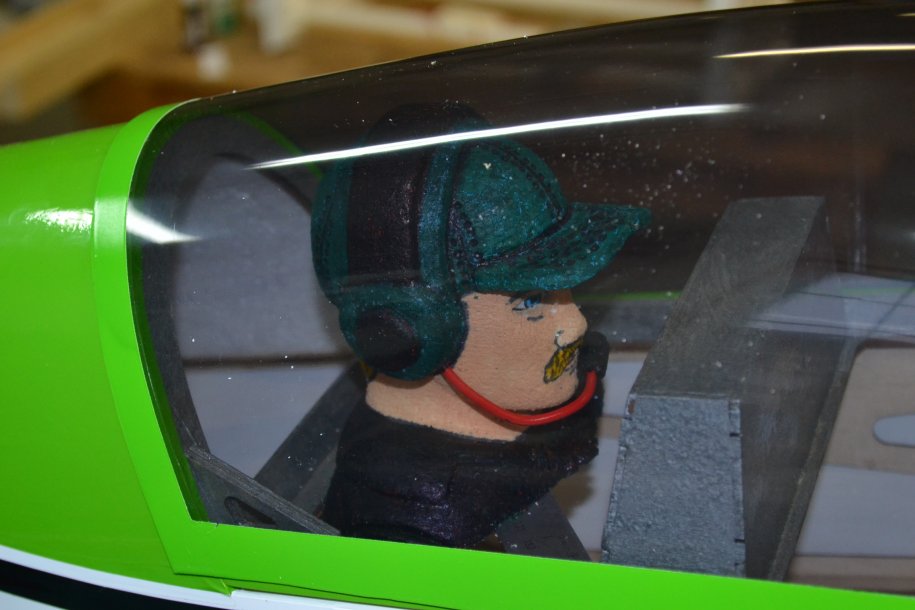

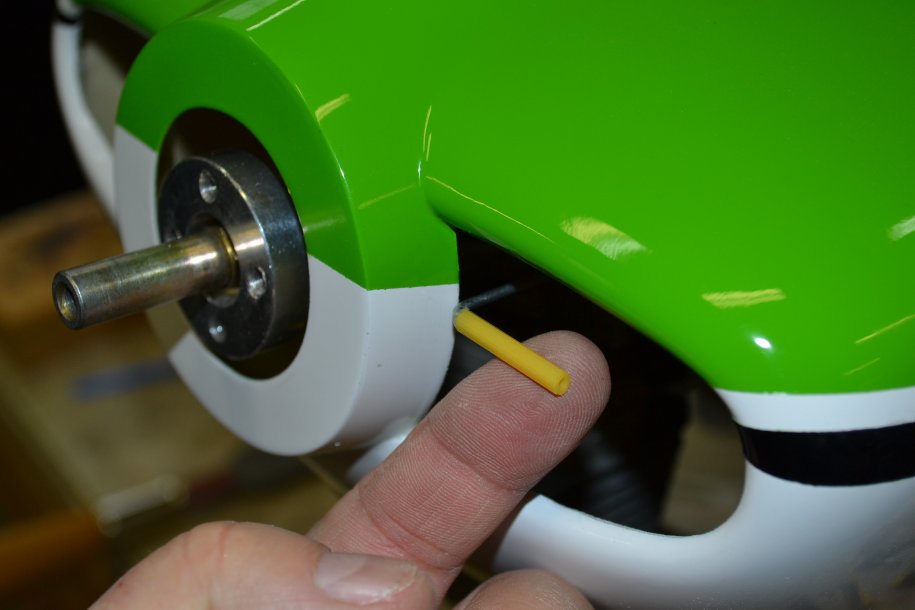

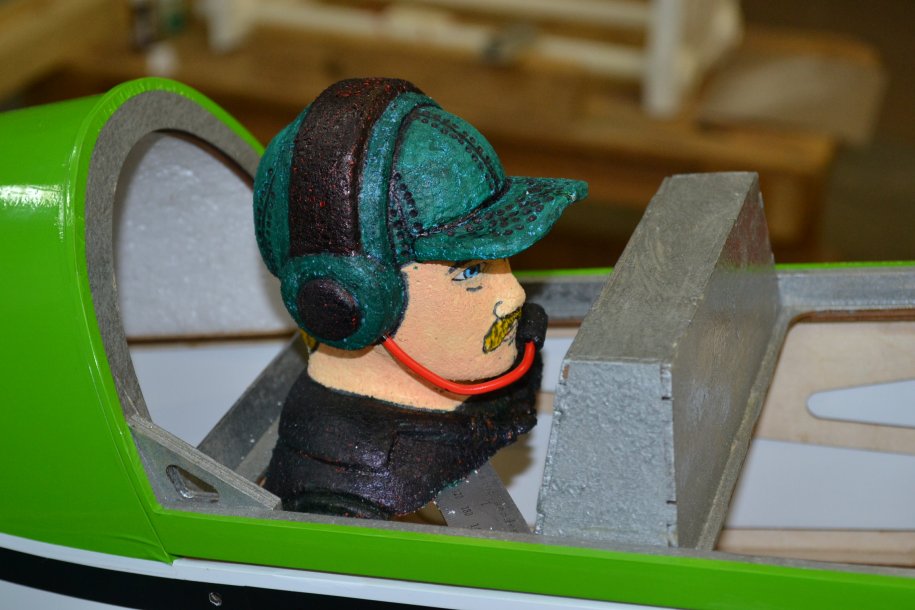

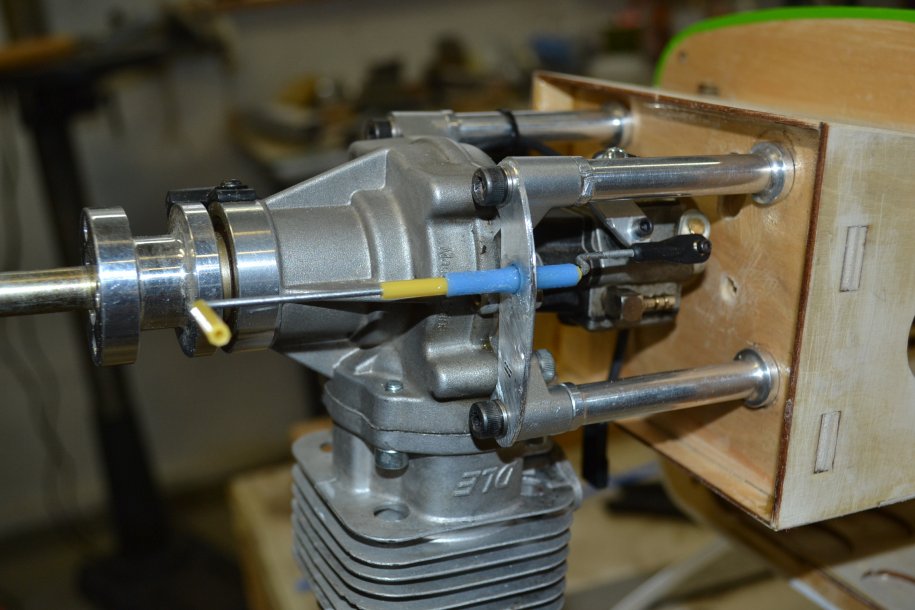

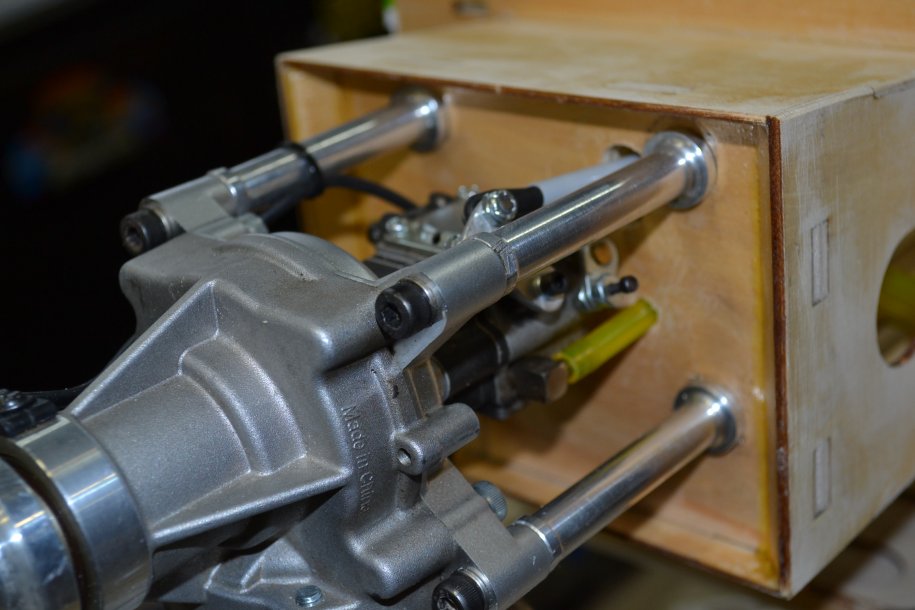

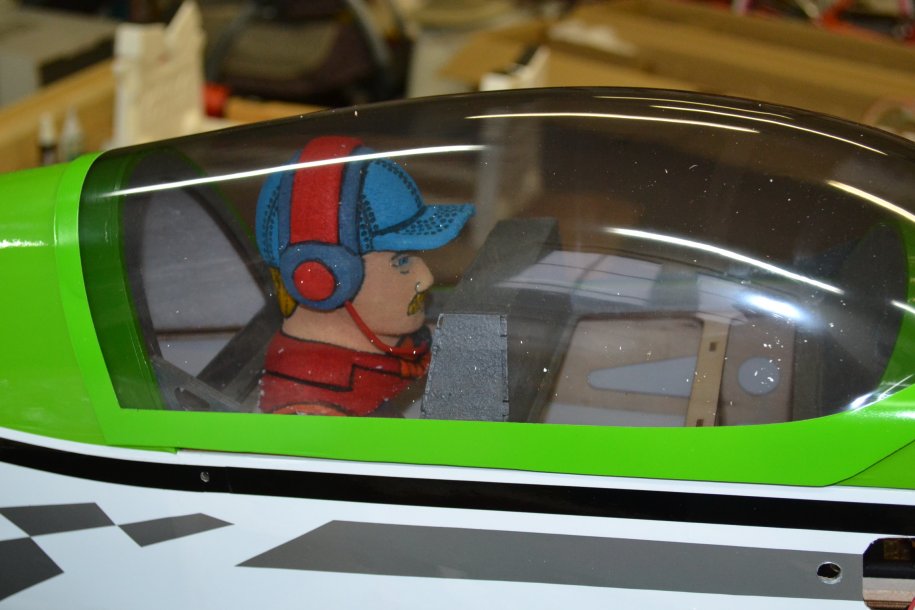

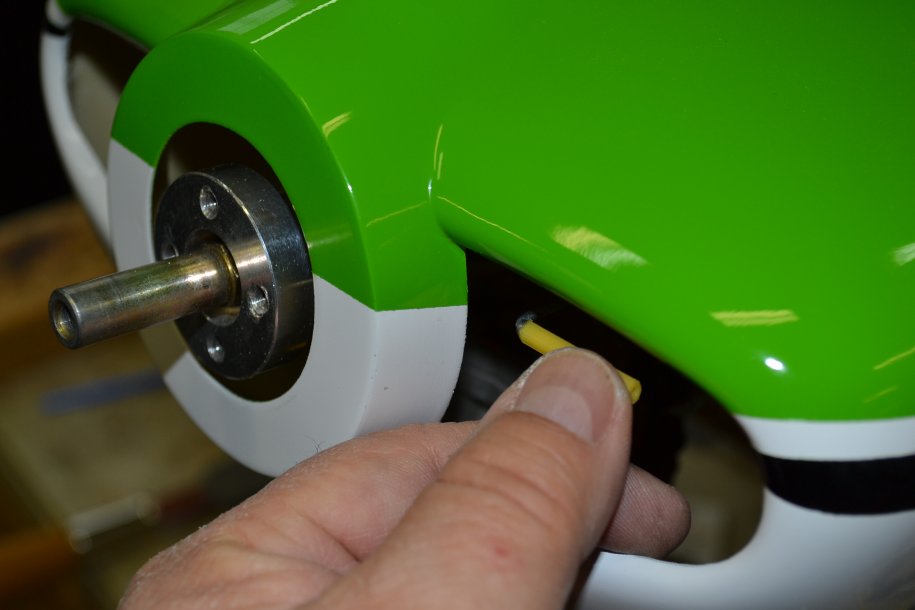

  7. I finished up fabricating under the cowl of the Edge. Throttle Pushrod and Choke rods are finished. Just as I was calling it Quits to go to the basketball game. UPS showed up with my arsenal of pilots. 2 for the 35cc planes, 1 for my Sukhoi and one for my Bigger Extra. smile emoticon Aircraft international don't sell the 25% pilots anymore. This one going into the Edge was the last one. I'm going to make a 30% pilot fit into the Extra. I guess the reason why they call it modeling and not droaning is because we sometimes have to make things fit and look good in our planes.
    Sorry Couldn't resist. I have nothing against drones. They are just not models.

    DSC_0103.JPG DSC_0104.JPG DSC_0105.JPG DSC_0106.JPG DSC_0107.JPG DSC_0108.JPG DSC_0109.JPG DSC_0110.JPG DSC_0111.JPG

    WMcNabb and Alky6 like this.
  8. Great progress and i love the foam Pilots , did you use a fibreglass rod for your throttle linkage . Then did you epoxy the thread end into the shaft ?

  9. I used some Carbon impregnated Nirod. They don't sell it anymore. Found this at a Swap Meet. I just put the casing around it to give it some stiffness. Because it's so short it works.. You can do the same with the yellow and Blue Nirod.

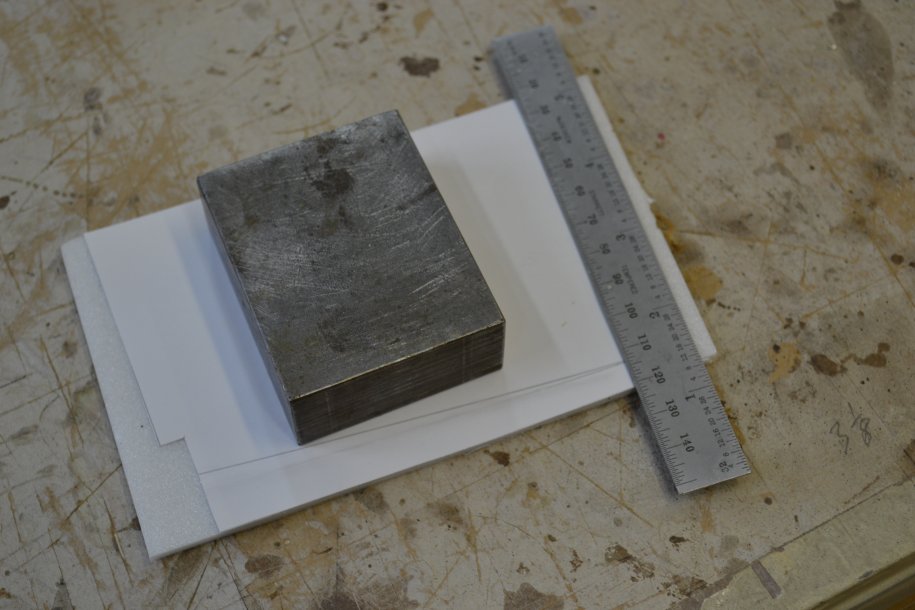

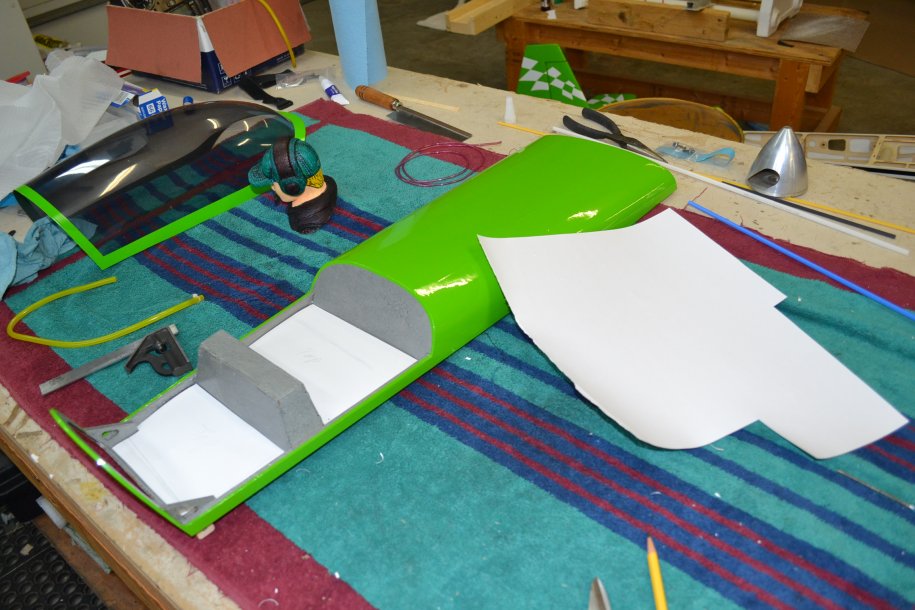

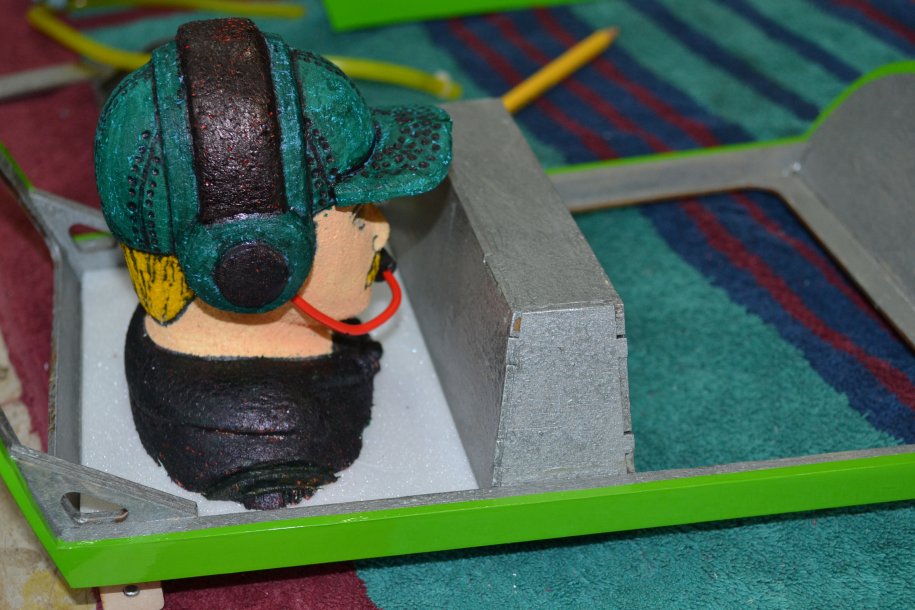

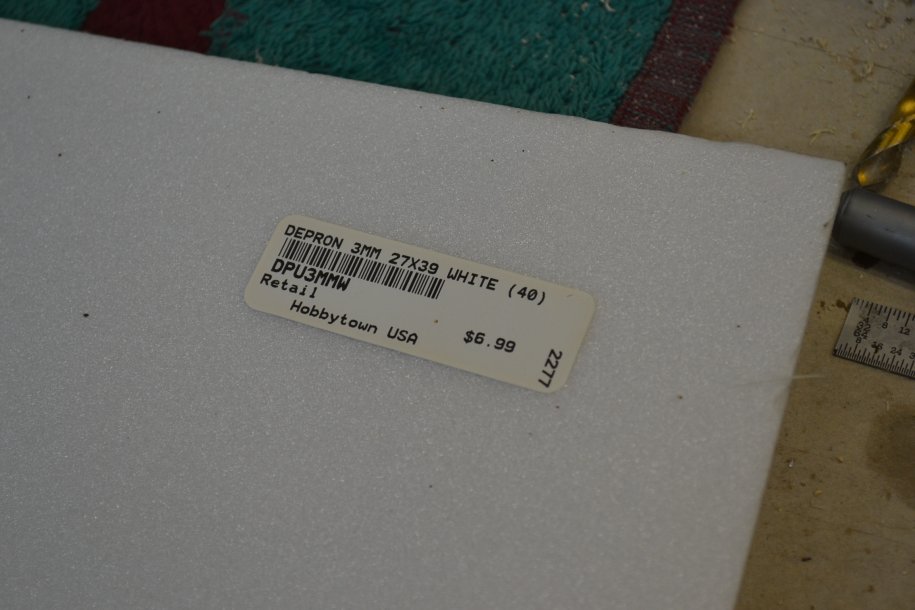

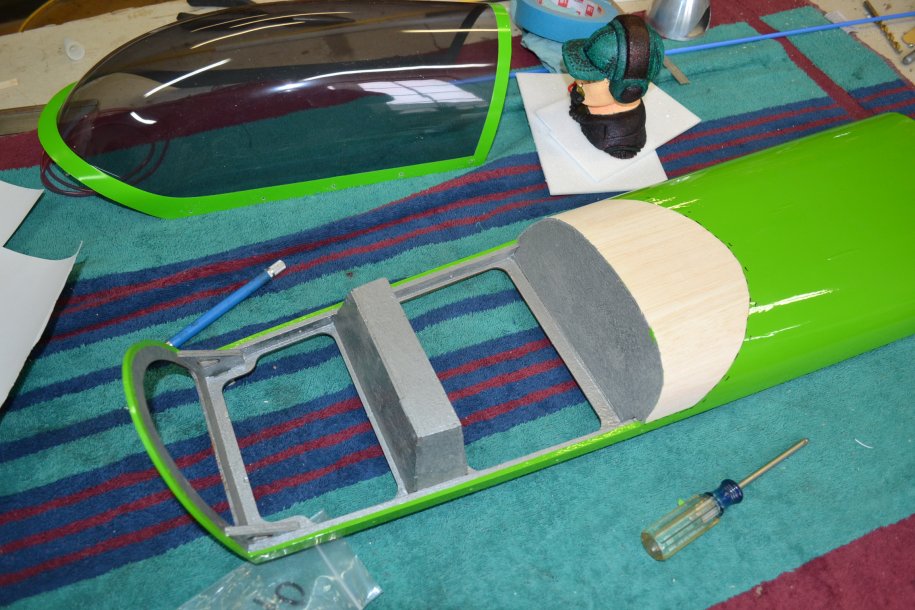

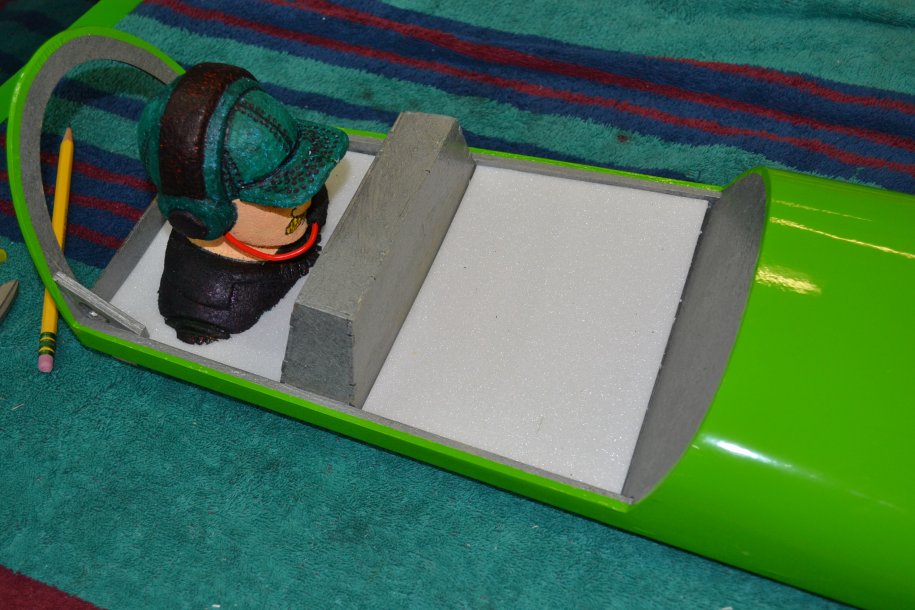

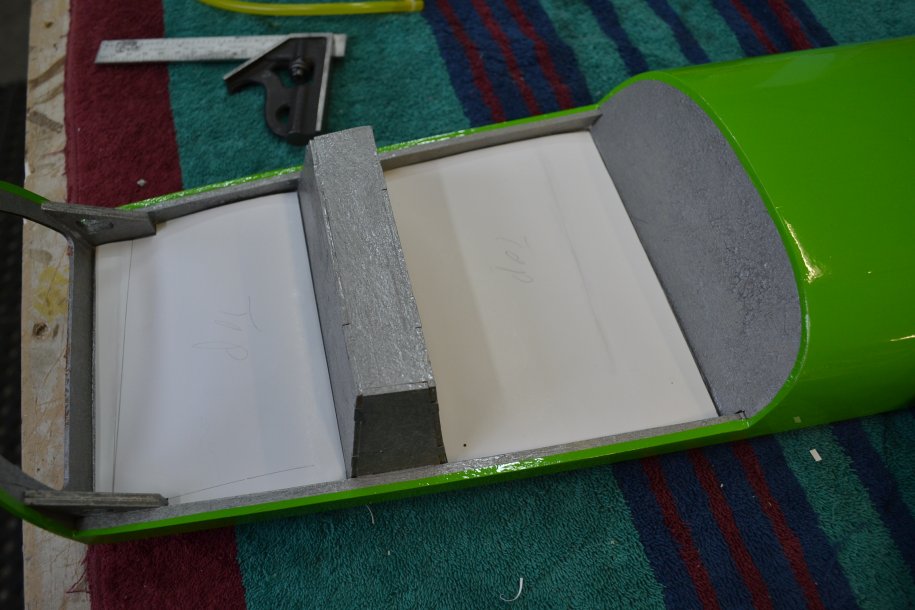

  10. Cut some paper templates from poster board. then traced them onto some 1/8 thick Depron. WARNING If you use Depron for a floor in your plane. Make sure you use Foam Safe Glue.

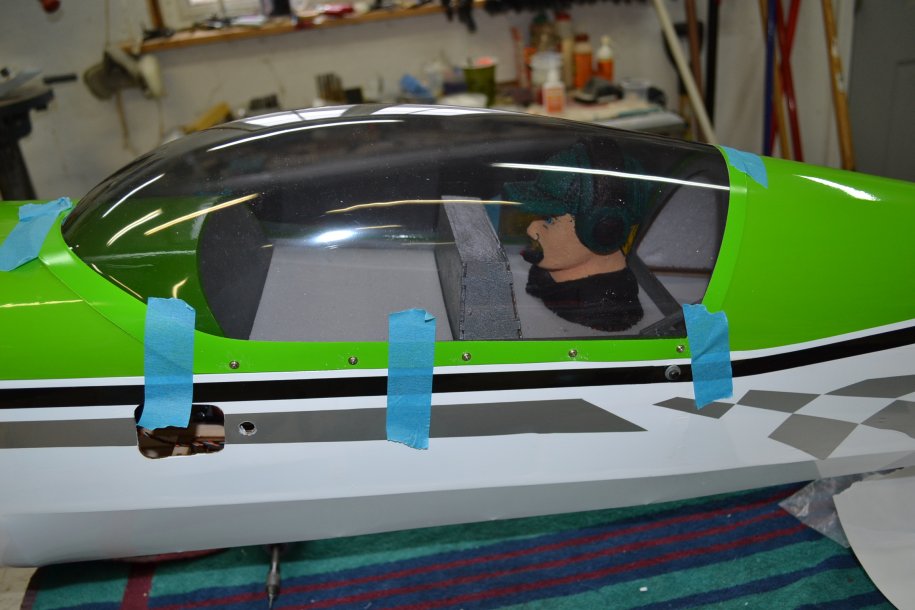

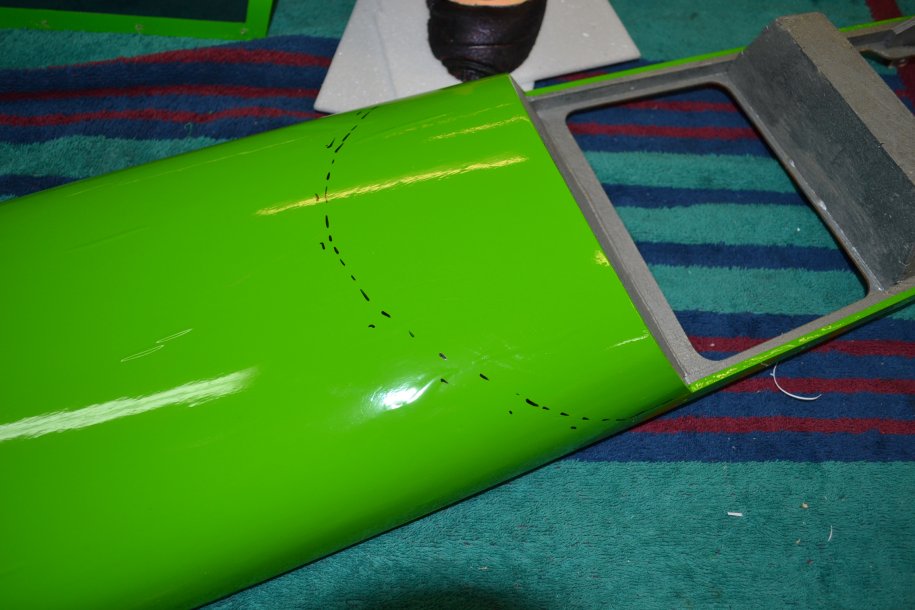

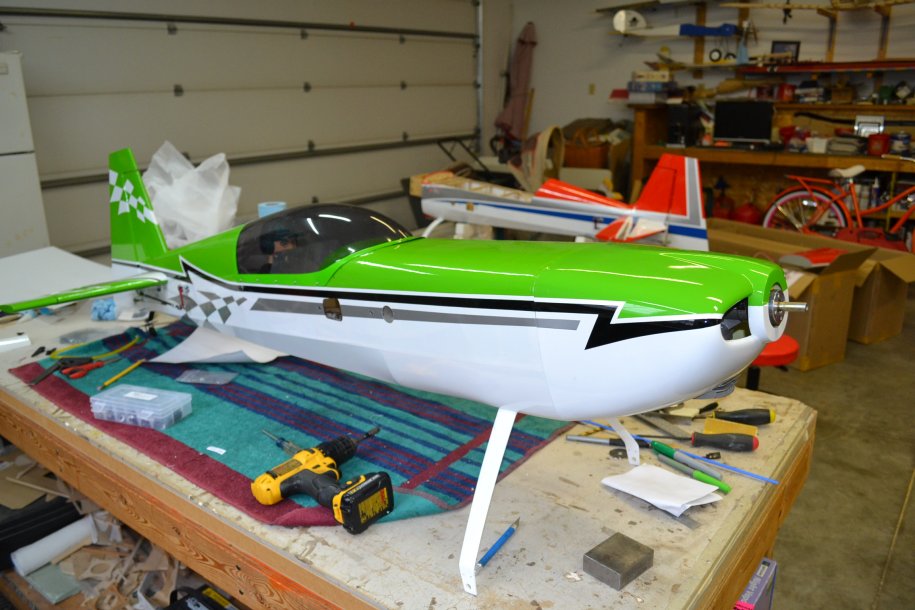

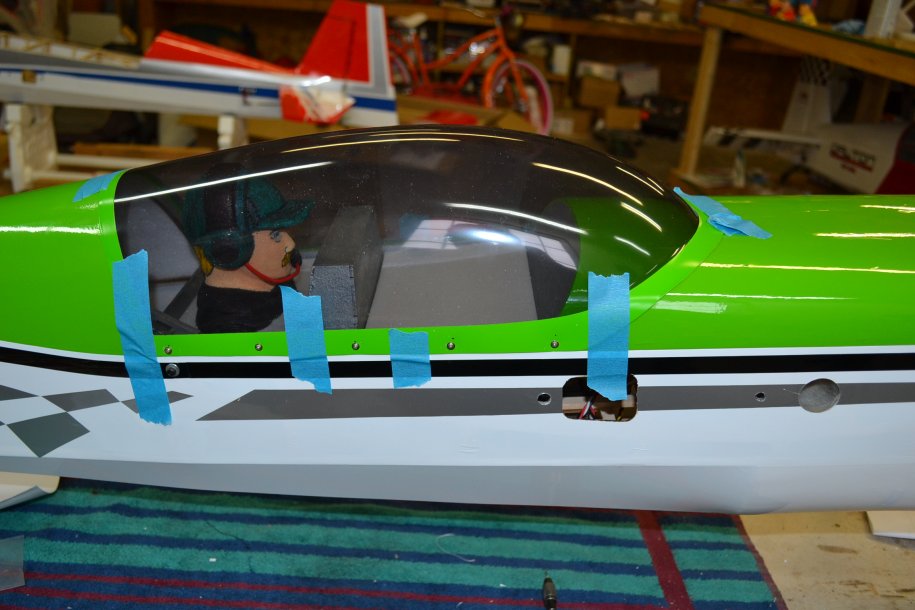

    Mocked up the canopy. Put the 10 screws in at this time. This makes the location of the canopy glass repeatable. Traced the front Edge with a marker. Then I put a line inside the first markings and cut the covering. Pealed off the covering and Cleaned off the marker.

    The picture of the inside of the plane shows you where I put 2 storage holes for holding the canopy mounting screws. I don't like looking for them so I do this on all my planes.

    More to come.

    DSC_0112.JPG DSC_0113.JPG DSC_0114.JPG DSC_0115.JPG DSC_0116.JPG DSC_0117.JPG DSC_0118.JPG DSC_0119.JPG DSC_0120.JPG DSC_0121.JPG DSC_0122.JPG DSC_0123.JPG

    BalsaDust likes this.
