The 'What did you do in your workshop tonight?' thread

[Xpress]

That's funny.....I too have rediscovered that hobby in the past week. Gonna be starting on a N scale layout very soon.
I did N and Z when I was a teenager

I wish my interest only remained with N or Z, but alas, G scale is where my mind wanders to It's kind of peculiar that google searching for hours doesn't turn up much info, whereas you can google search 'rc airplane' and turn up no less than 2 dozen results for web outlets and forums.



[Snoopy1]

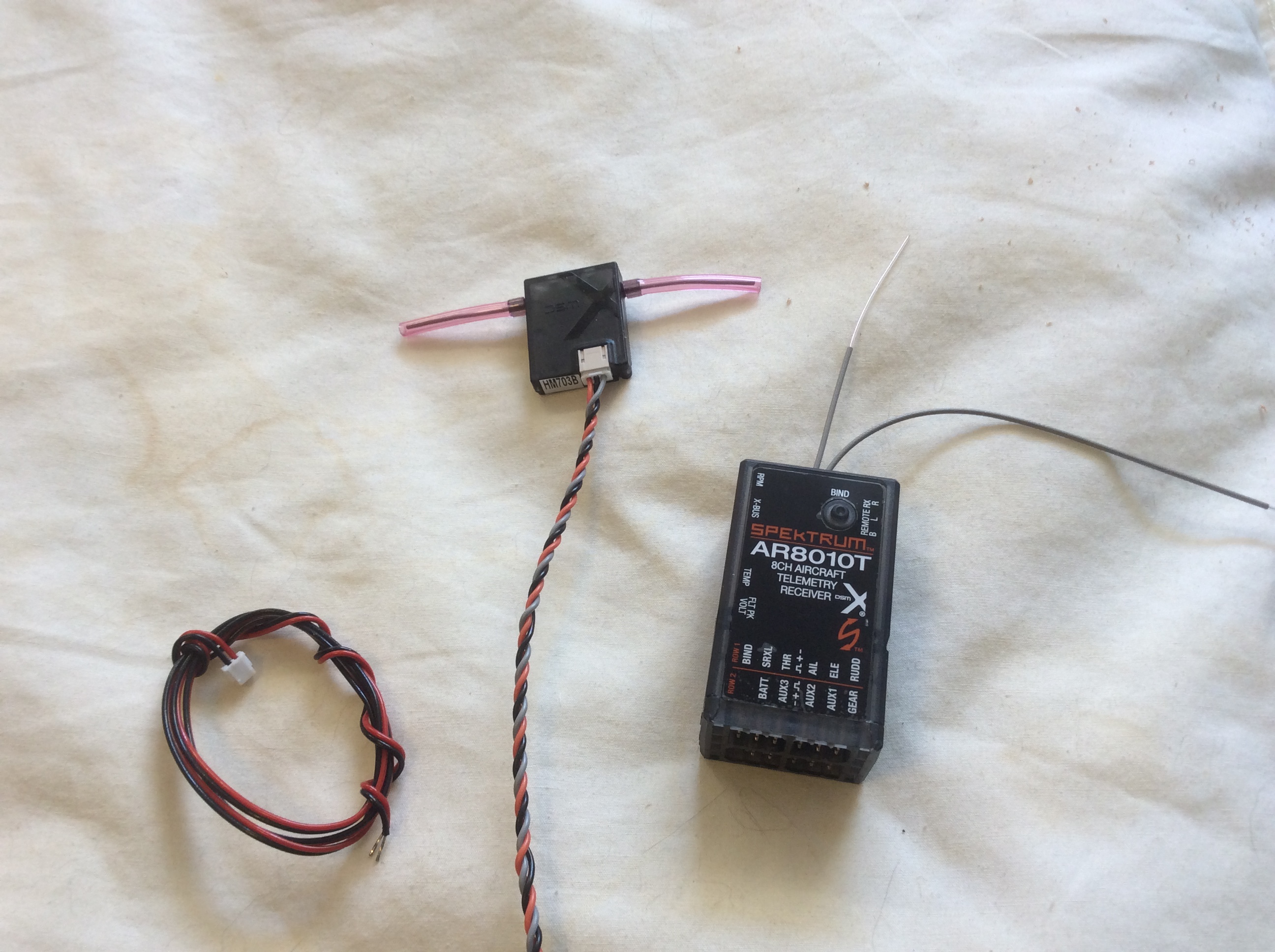

Thanks for the help for the red and black wire I know how it works now.. But I am still not up to speed on the SRXL connection The receiver has a Xbus port so what is the SRXL for look at the pictures
Sorry guys I am struggling with this. Thank for your help.



[49dimes]

Thanks for the help for the red and black wire I know how it works now.. But I am still not up to speed on the SRXL connection The receiver has a Xbus port so what is the SRXL for look at the pictures
Sorry guys I am struggling with this. Thank for your help.
View attachment 103180

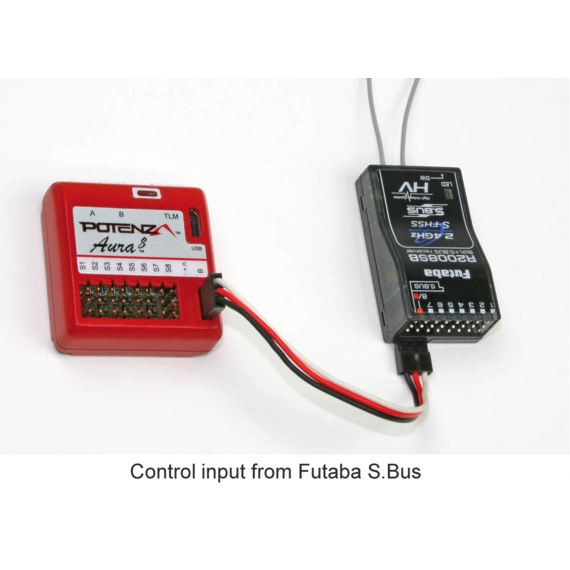

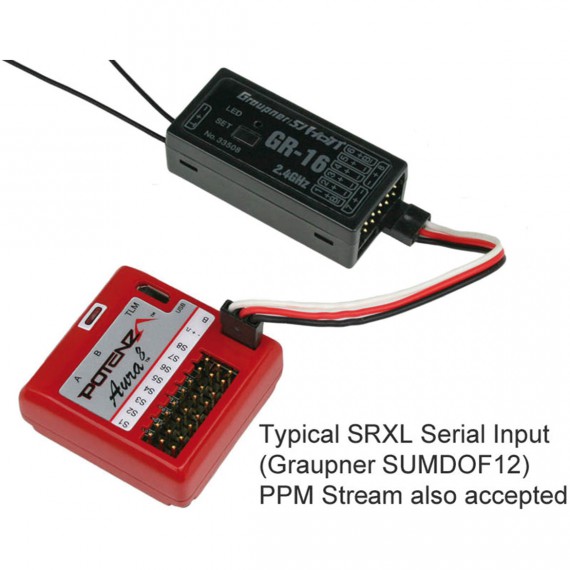

The SRXL port is an output connection for all 8 channels of that Rx. One example of use would be to connect the SRXL port of the Rx to the B port of an Aura 8 flight controller using just one double female pin connector "JST" cable. The XBUS port can do the same thing but you would need a special cable ( w/ micro JST connectors ) other than the double ended female pin connector commonly known as JST and plug it in to one of the remote Rx inputs on the Aura8.

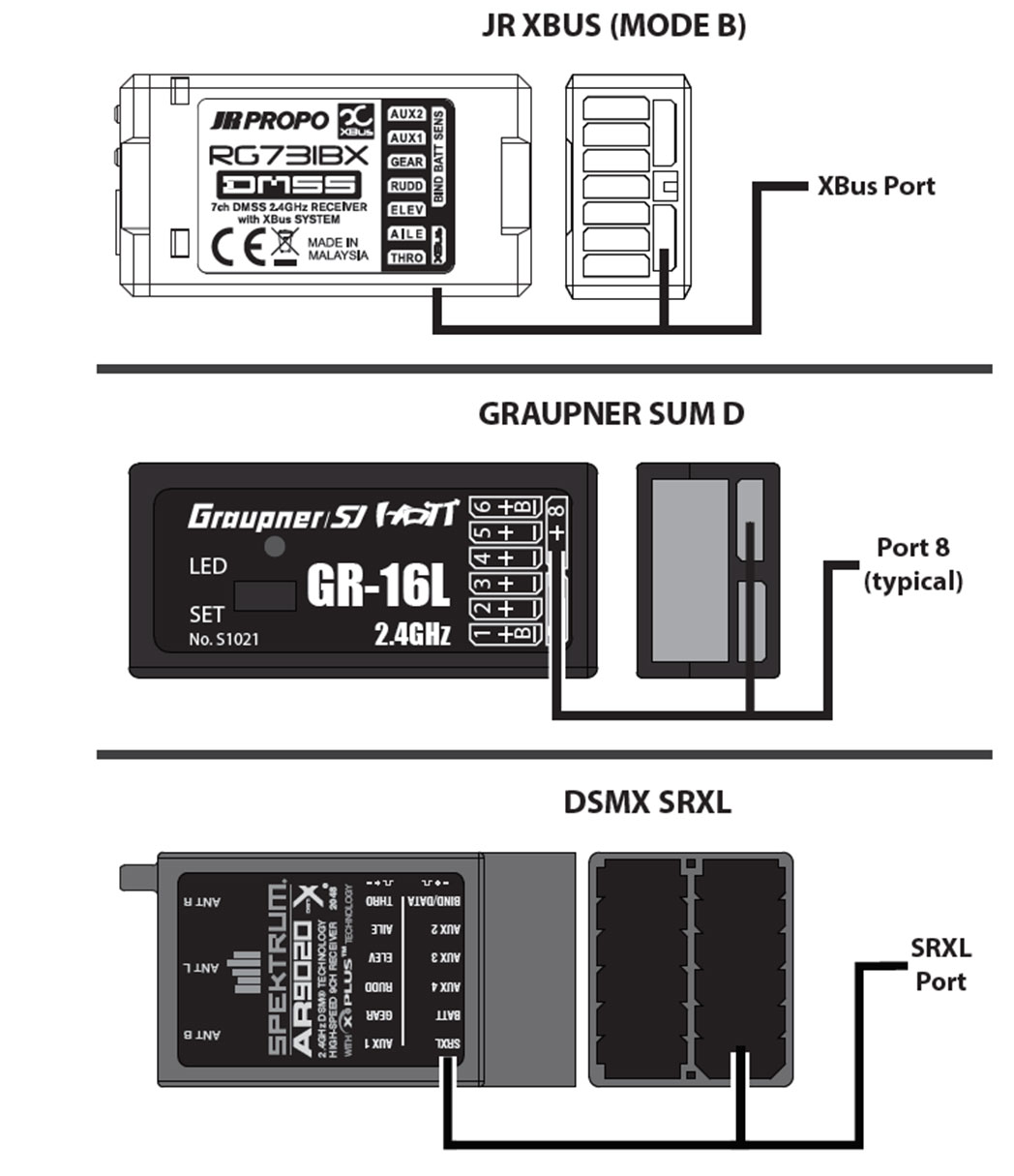

Here are some pics........Note on the JR Rx picture the XBUS port is just like the one on the Spektrum SRXL port.



[Snoopy1]

The SRXL port is an output connection for all 8 channels of that Rx. One example of use would be to connect the SRXL port of the Rx to the B port of an Aura 8 flight controller using just one double female pin connector "JST" cable. The XBUS port can do the same thing but you would need a special cable ( w/ micro JST connectors ) other than the double ended female pin connector commonly known as JST and plug it in to one of the remote Rx inputs on the Aura8.
Here are some pics........Note on the JR Rx picture the XBUS port is just like the one on the Spektrum SRXL port.

View attachment 103183 View attachment 103182 View attachment 103184

Thanks for taking the time to do that it is all starting to make sense to me now. I looked up Spectrum and manuals for that particular receiver and did not even mention that port useless bunch. Anyway thanks again.



[49dimes]

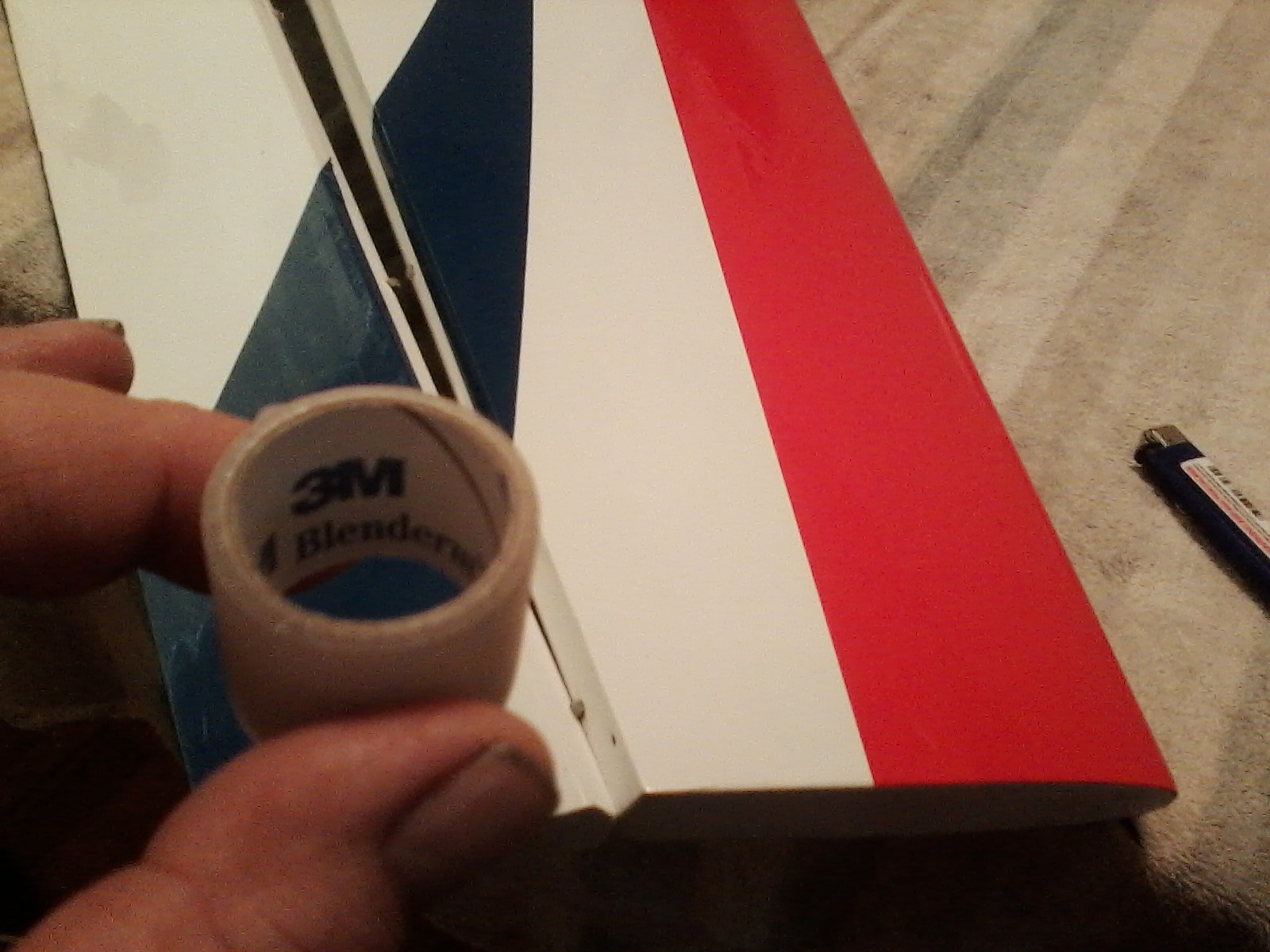

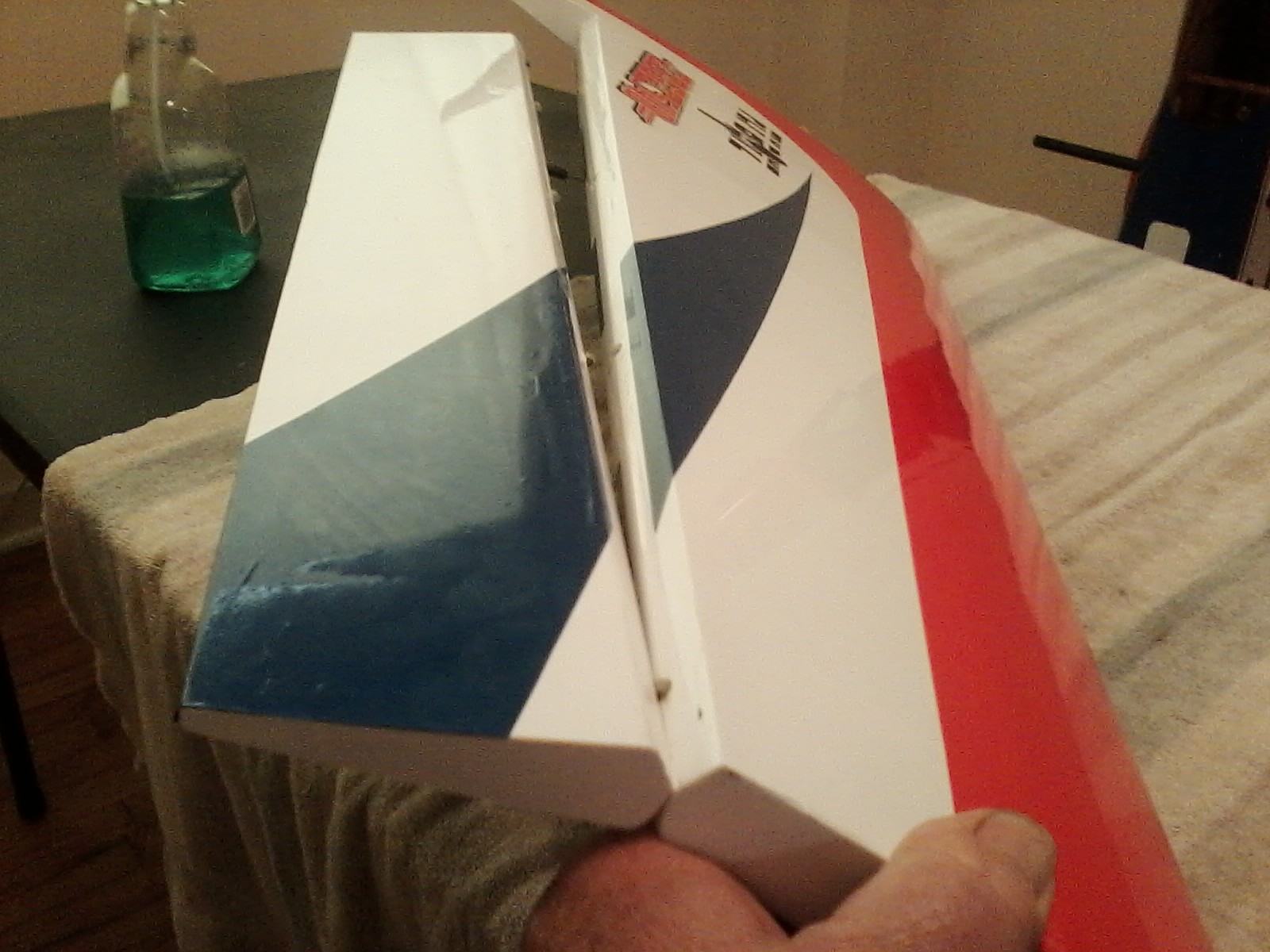

Got to working on the right wing panel of the Edge. Sure am glad I use 3M Blenderm tape to seal hinge gaps because it saved the plane from a horrible fait . 4 of 5 hinges let go



[Snoopy1]

Got to working on the right wing panel of the Edge. Sure am glad I use 3M Blenderm tape to seal hinge gaps because it saved the plane from a horrible fait . 4 of 5 hinges let go

View attachment 103186 View attachment 103187

Wow how did that happen. You did have pin hinges in the wing or was it CA hinges. That would scare me. What are you going to do. Is it a bad batch of hinges and from home.



[Snoopy1]

Ok my iron for ironing on Ultra coat just died. Need a new one is there anything new or fancy out there that I should know about. Which one is the best for the job.



[acerc]

The two that I prefer and find to be the most consistent with holding temps are the Aircraft fabric sealing iron from Aircraft spruce and the Coverite fabric iron of which I also get from AS. The AS one has nice squared corners, whereas the Coverite is rounded.
http://www.aircraftspruce.com/catalog/cspages/aviationart09-04837.php



[pawnshopmike]

The two that I prefer and find to be the most consistent with holding temps are the Aircraft fabric sealing iron from Aircraft spruce and the Coverite fabric iron of which I also get from AS. The AS one has nice squared corners, whereas the Coverite is rounded.
http://www.aircraftspruce.com/catalog/cspages/aviationart09-04837.php

That looks like a nice iron. If my Coverite ever dies I might pick up one of those.



[pawnshopmike]

Got to working on the right wing panel of the Edge. Sure am glad I use 3M Blenderm tape to seal hinge gaps because it saved the plane from a horrible fait . 4 of 5 hinges let go

View attachment 103186 View attachment 103187

NASCAR has Duct Tape, we have Blenderm.
