The 'What did you do in your workshop tonight?' thread

Discussion in 'Giant / Scale RC General Discussions' started by Xpress, Sep 13, 2014.

  1. BalsaDust

    BalsaDust Moderator

    Yes and I watch buzzards all the time now.

    AKNick likes this.
  2. BalsaDust

    BalsaDust Moderator


    Project I working on. A buddy have me his crashed 1M DLG, wings and tail parts where all fine with no damage just the fuse broken a couple of times. I drawing a new pod for it to make it a powered glider. Once it is done I will 3D print it and glue the good portion of the tail boom on it.

    TonyHallo, AKNick, -Rick- and 2 others like this.
  3. WMcNabb

    WMcNabb 150cc

    1,848
    3,655
    113
    TN, USA
    Very cool!

  4. AKNick

    AKNick 640cc Uber Pimp

    2,834
    4,725
    113
    Alaska
    Neat indeed!

  5. BalsaDust

    BalsaDust Moderator

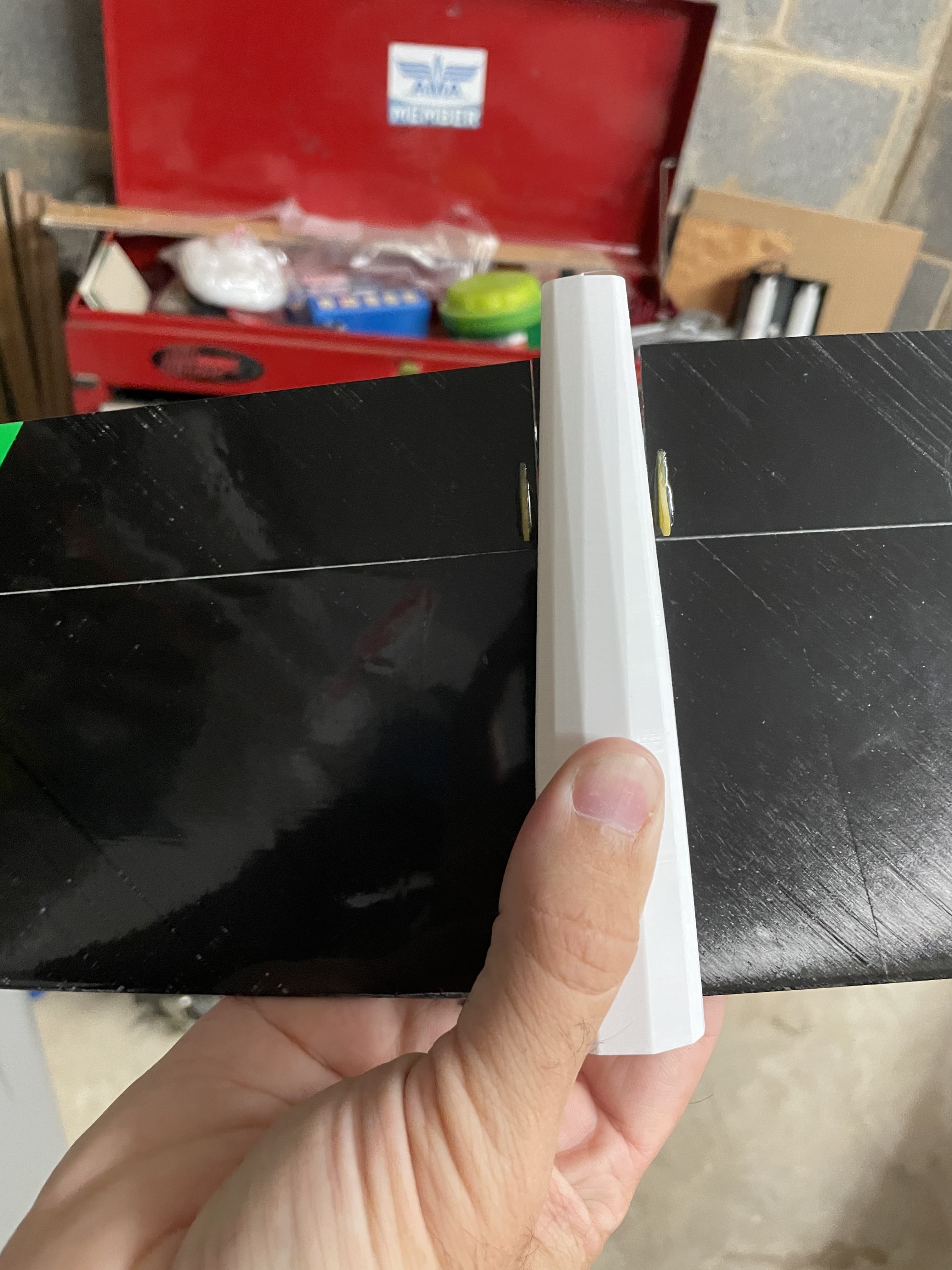

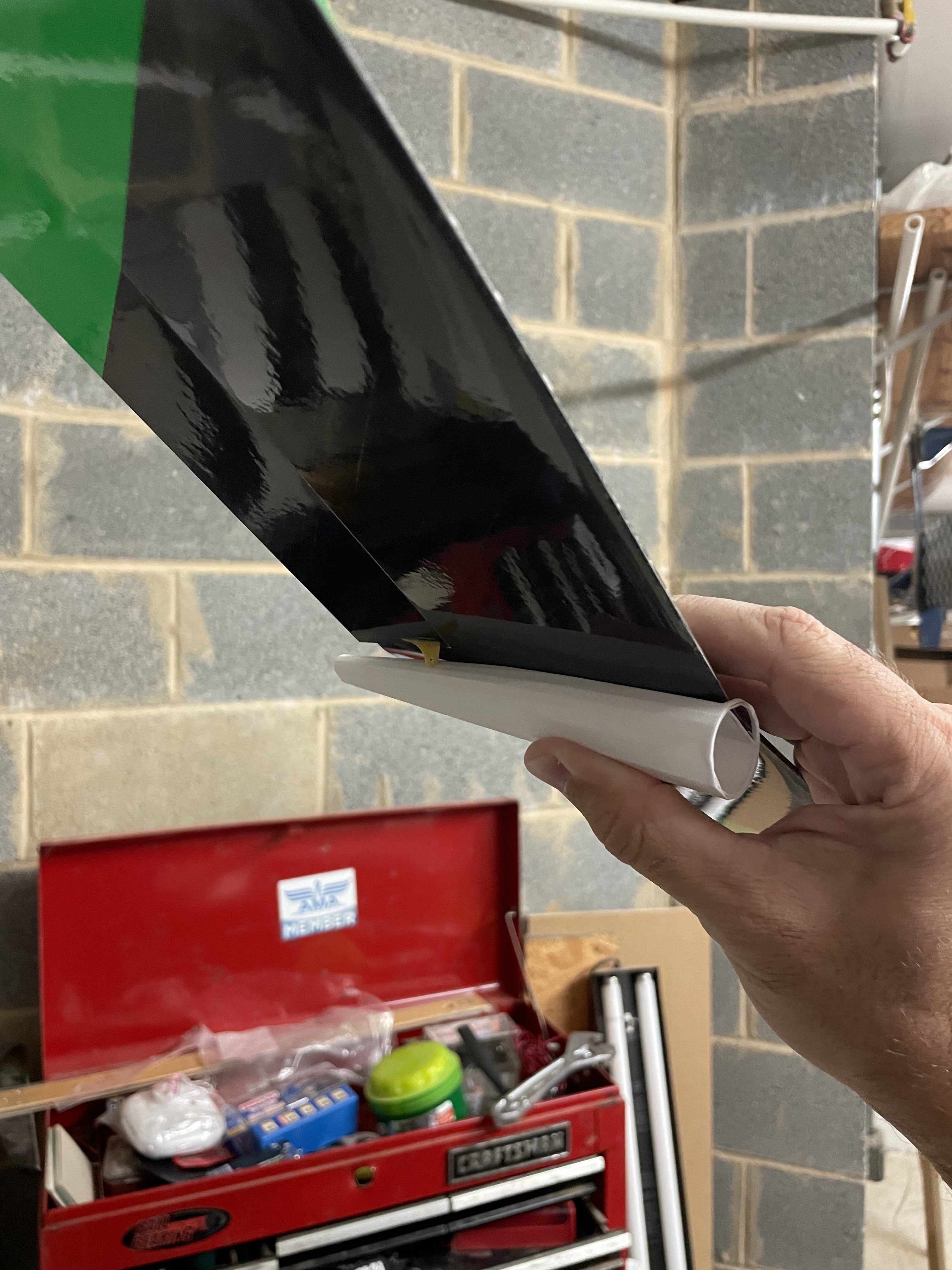

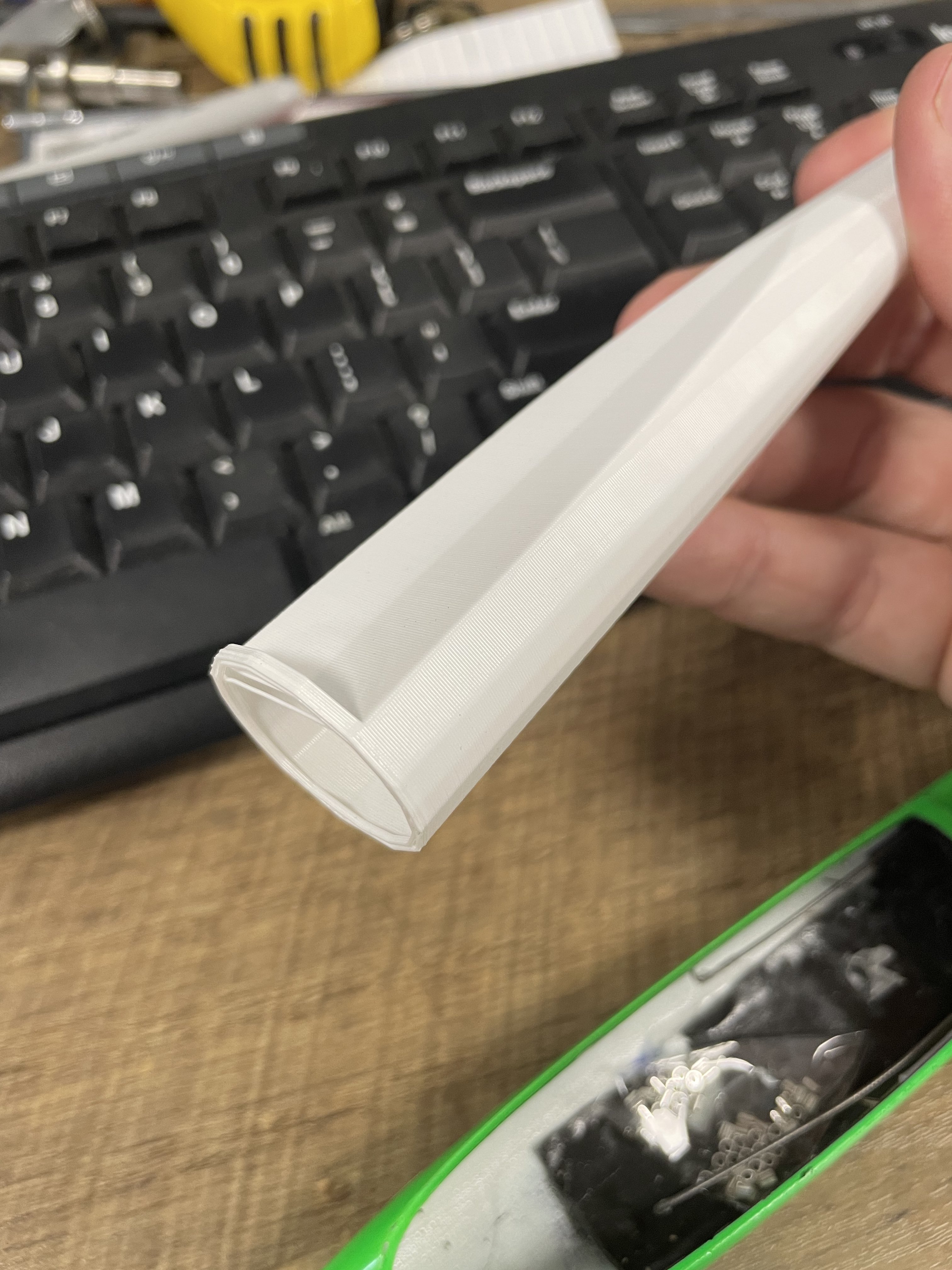

    I printed a test part of just the wing saddle to see how it fits the wing. It’s not perfect but it’s close. Now to add more features to it and print the final product. D5D36581-7AE1-4E16-9525-69781E09952D.jpeg 875494CE-7FEE-4589-B75B-EF0EF526B819.jpeg AC999963-80D9-4570-8971-CE9FF6228423.jpeg

    thurmma, Snoopy1, TonyHallo and 4 others like this.
  6. AKNick

    AKNick 640cc Uber Pimp

    2,834
    4,725
    113
    Alaska

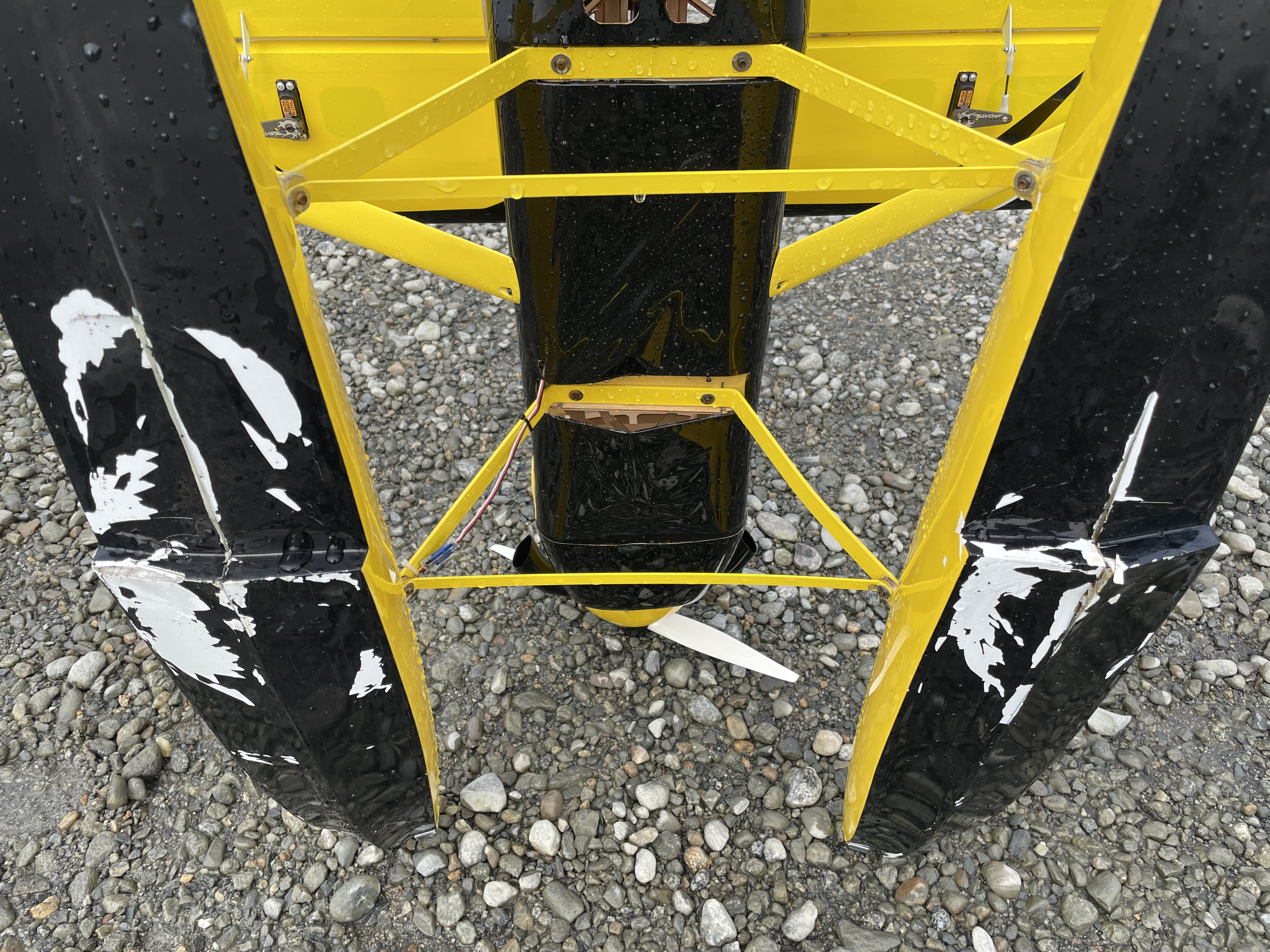

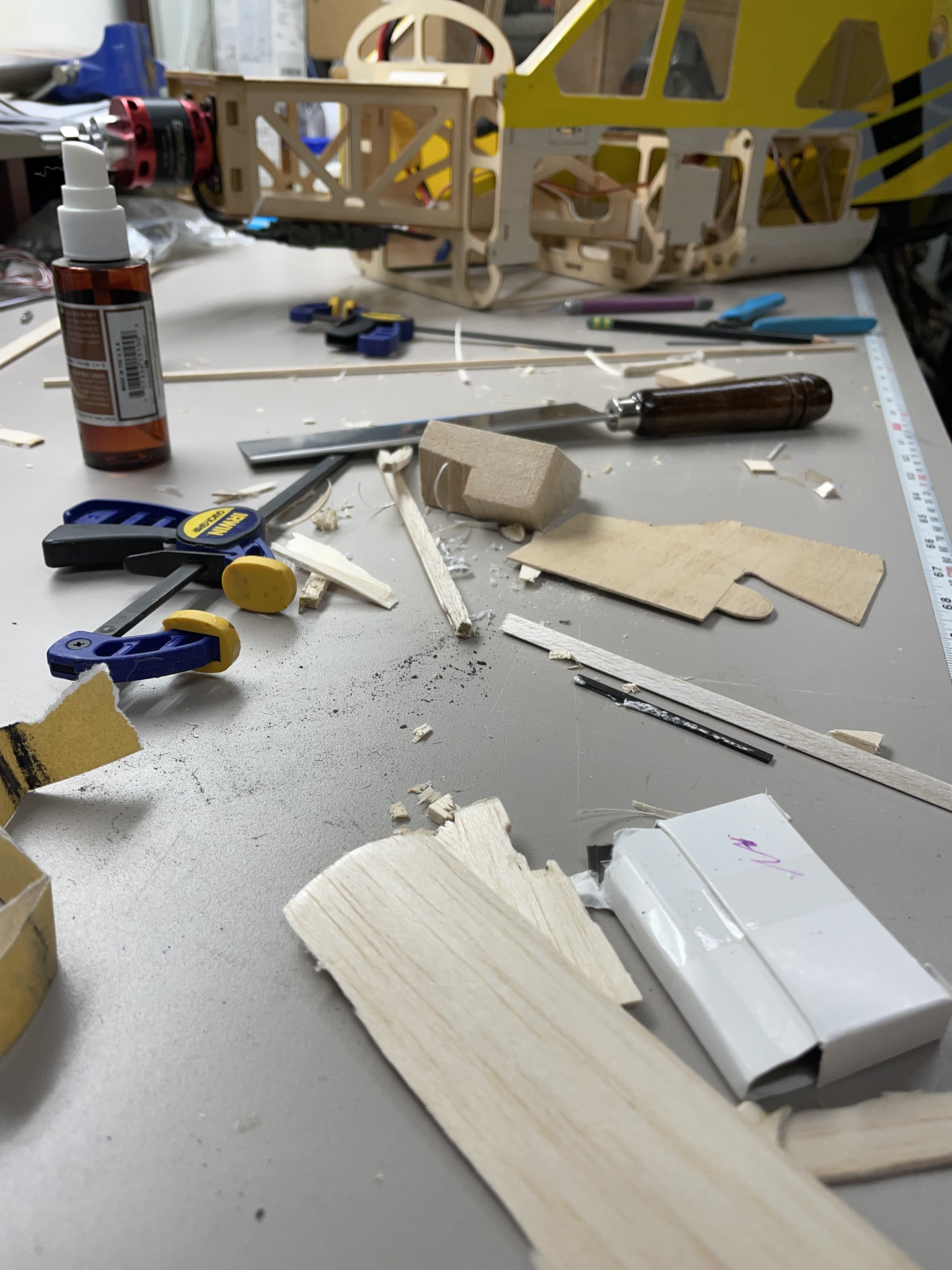

    After skipping my poor 84” TBM to the water hard, I have decided to scrap the floats and rebuild the fuselage. I’m getting there…

    WMcNabb and pawnshopmike like this.
  7. AKNick

    AKNick 640cc Uber Pimp

    2,834
    4,725
    113
    Alaska

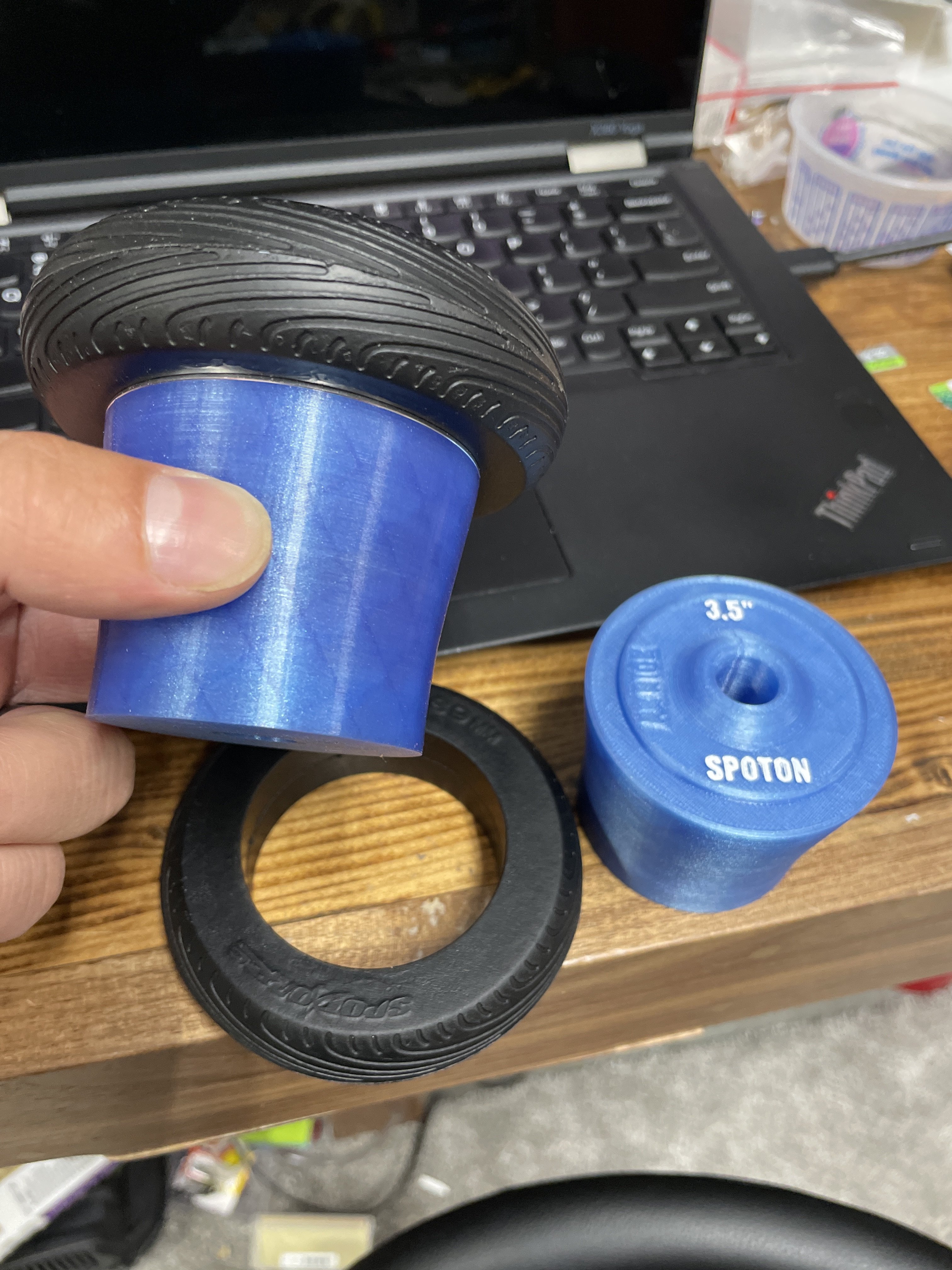

    Whipped up a tire installer for the 3.5” spot on wheel. Just uploaded it to thingiverse as well.


    thurmma, WMcNabb and pawnshopmike like this.
  8. BalsaDust

    BalsaDust Moderator

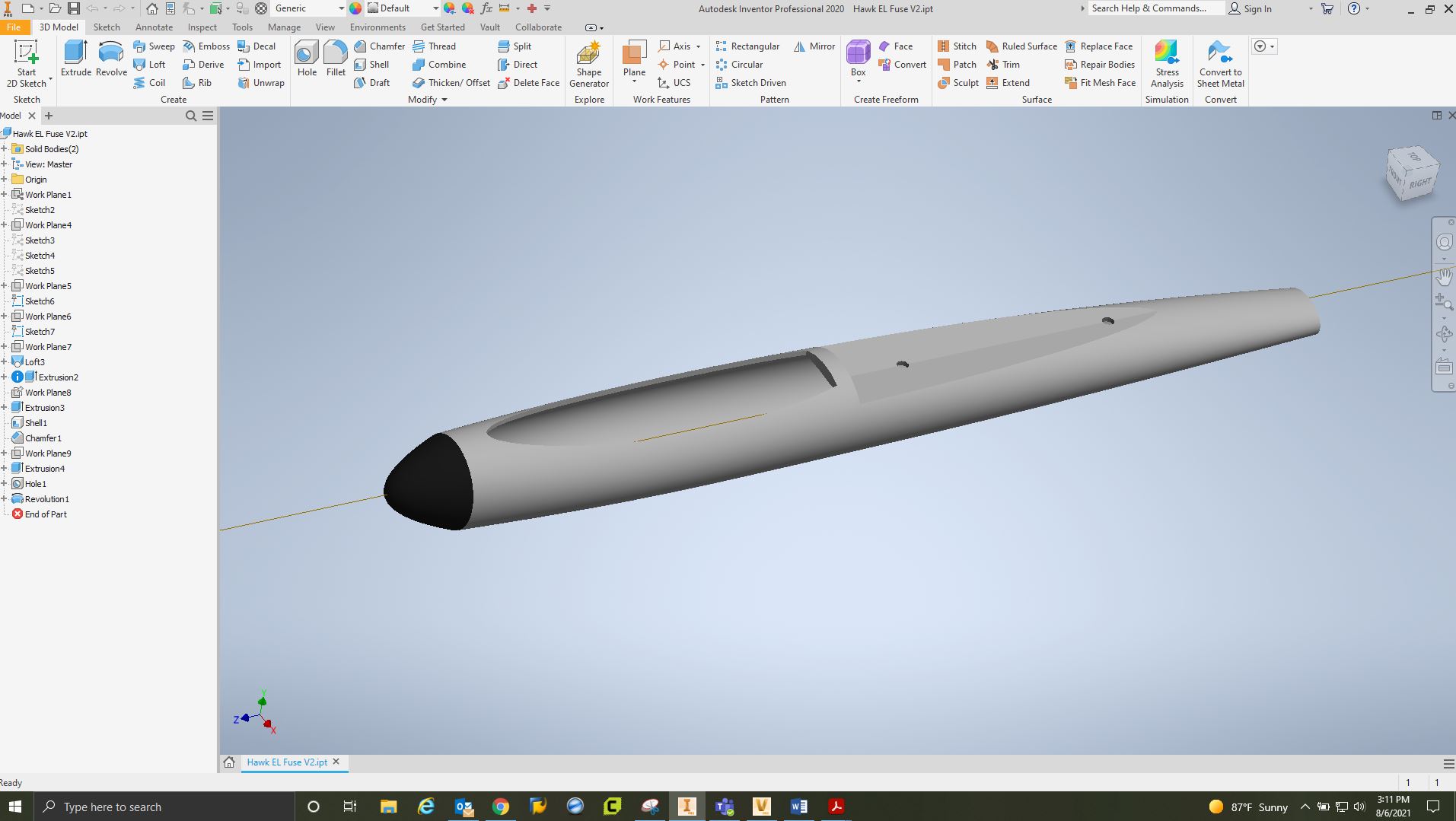

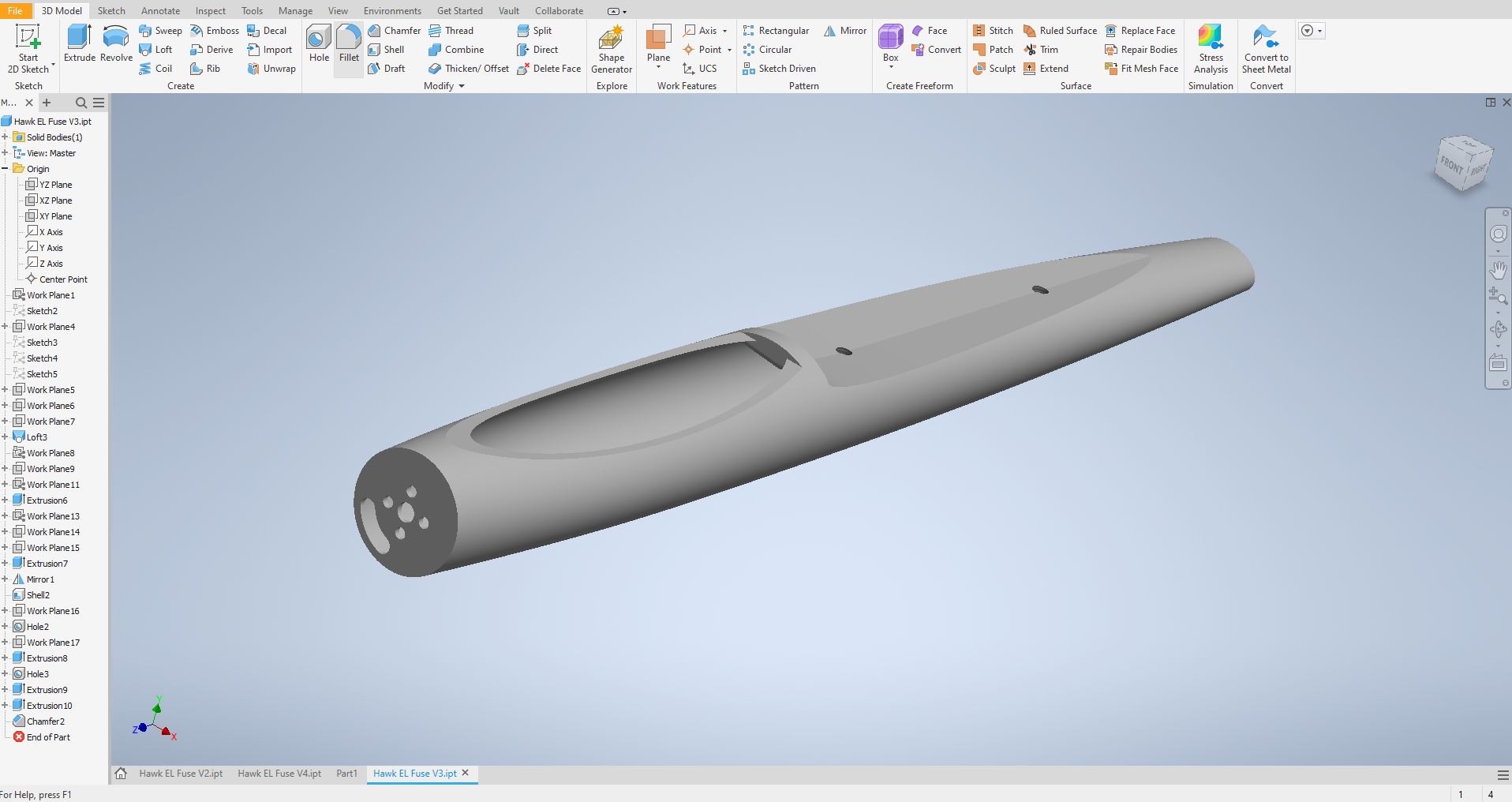

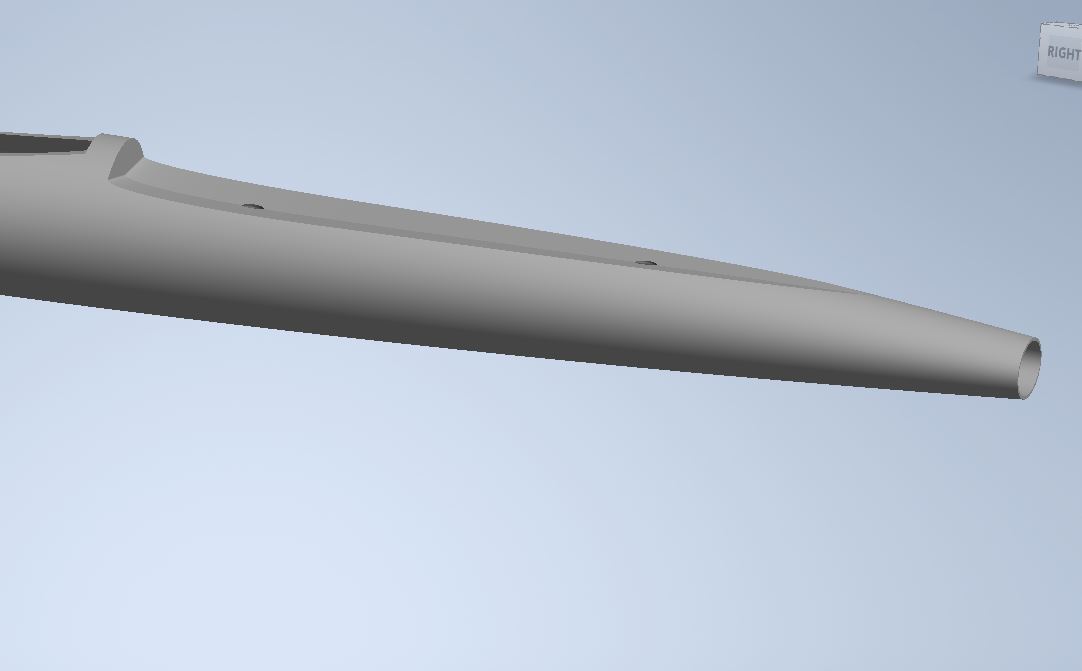

    More work done on the new pod for the DLG. I can say it was a ton of trying to figure out how to draw the wing saddle with trying to incorporate the airfoil of the wing, the wing incidence, and the dihedral. Once I know this fits I will be incorporating servo mounts as well. Figure since the entire pod is being printed that I can just print it all at once.

    Hawk Wing Saddle.JPG Hawk-2.JPG

    thurmma, pawnshopmike, AKNick and 2 others like this.
  9. AKNick

    AKNick 640cc Uber Pimp

    2,834
    4,725
    113
    Alaska
    Looks really good buddy... wait.. this isn't a DLG anymore! You've entered the F5K territory ;)
    How are you going to secure the canopy/hatch? Dont forget a little NACA duct to cool the ESC :too-cool:

  10. BalsaDust

    BalsaDust Moderator

    Yes that’s the plan for it to be an electric glider. I have found at least currently I’m not good enough with a 1M to keep it in the air long (they just blow through lift so quick). Yes thinking of doing NACA ducts on it just gotta figure out how to draw them.

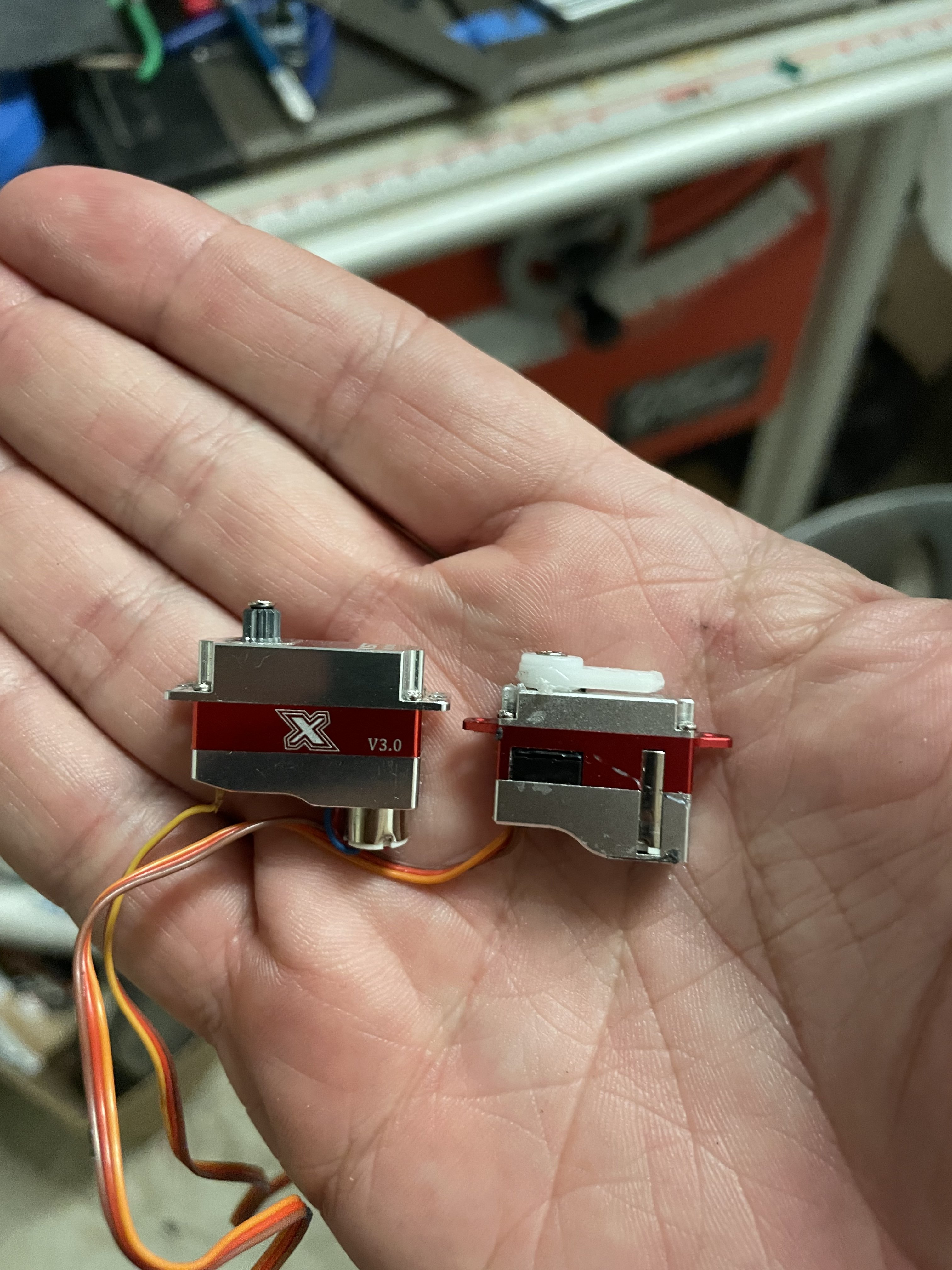

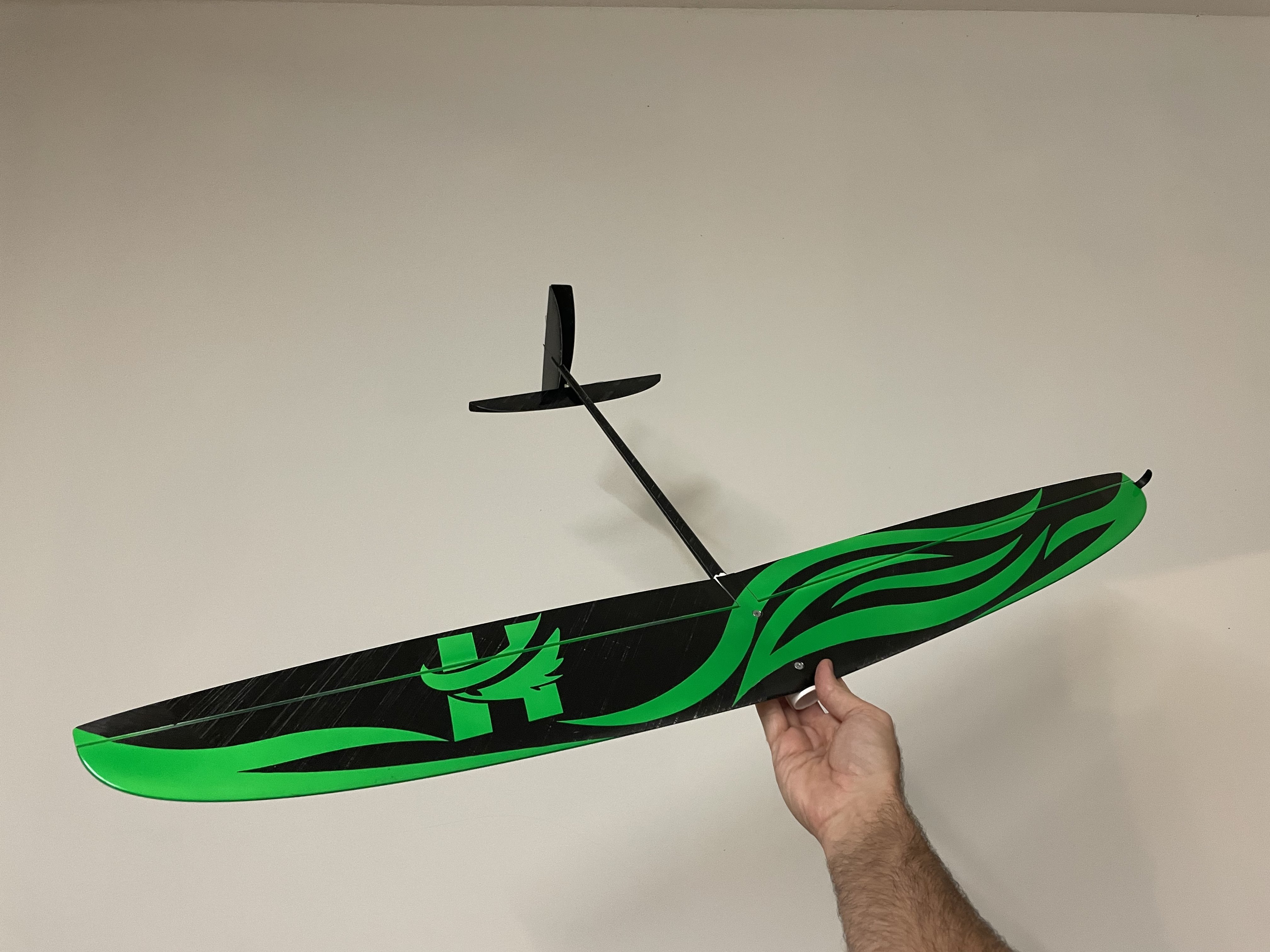

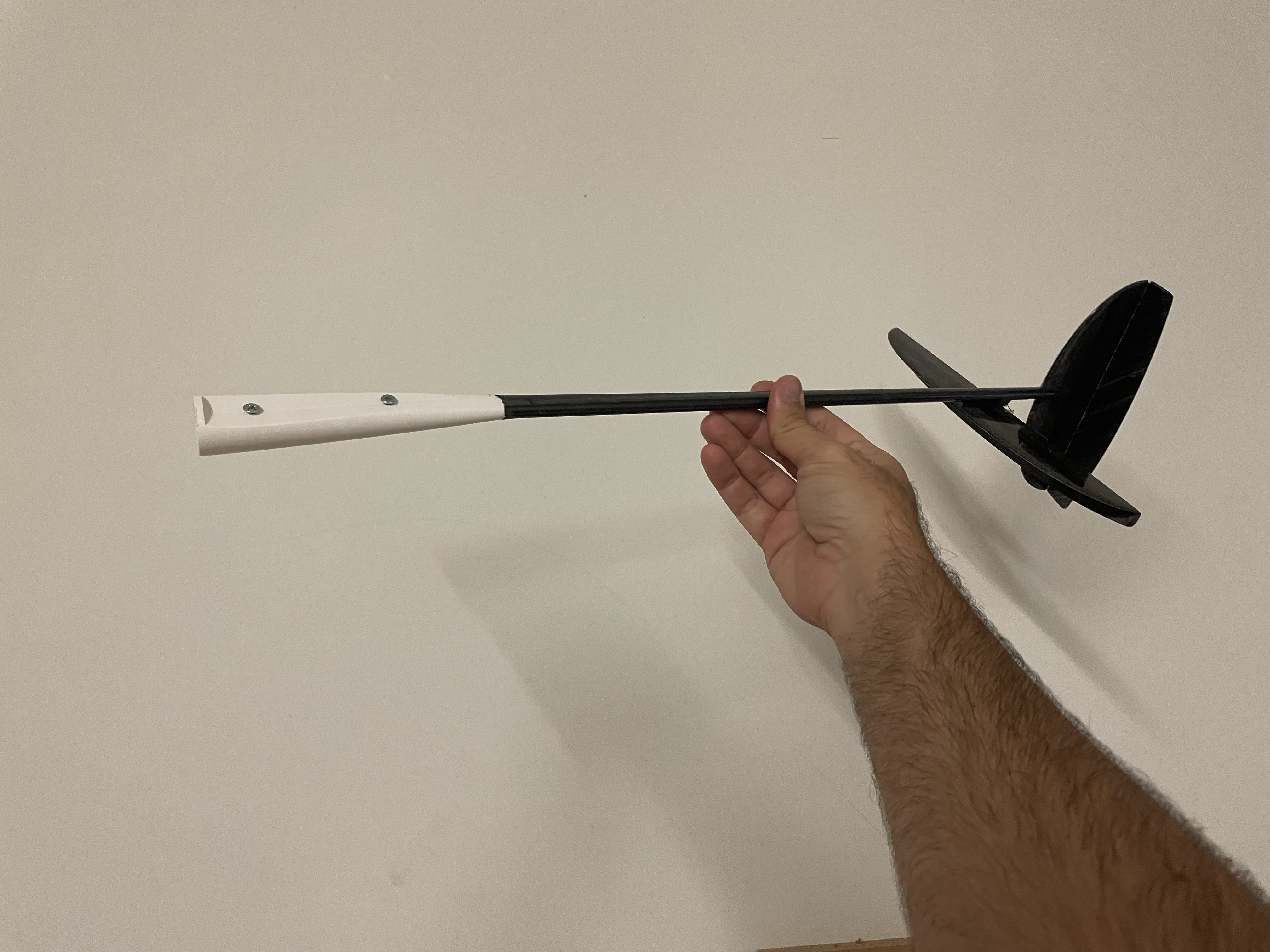

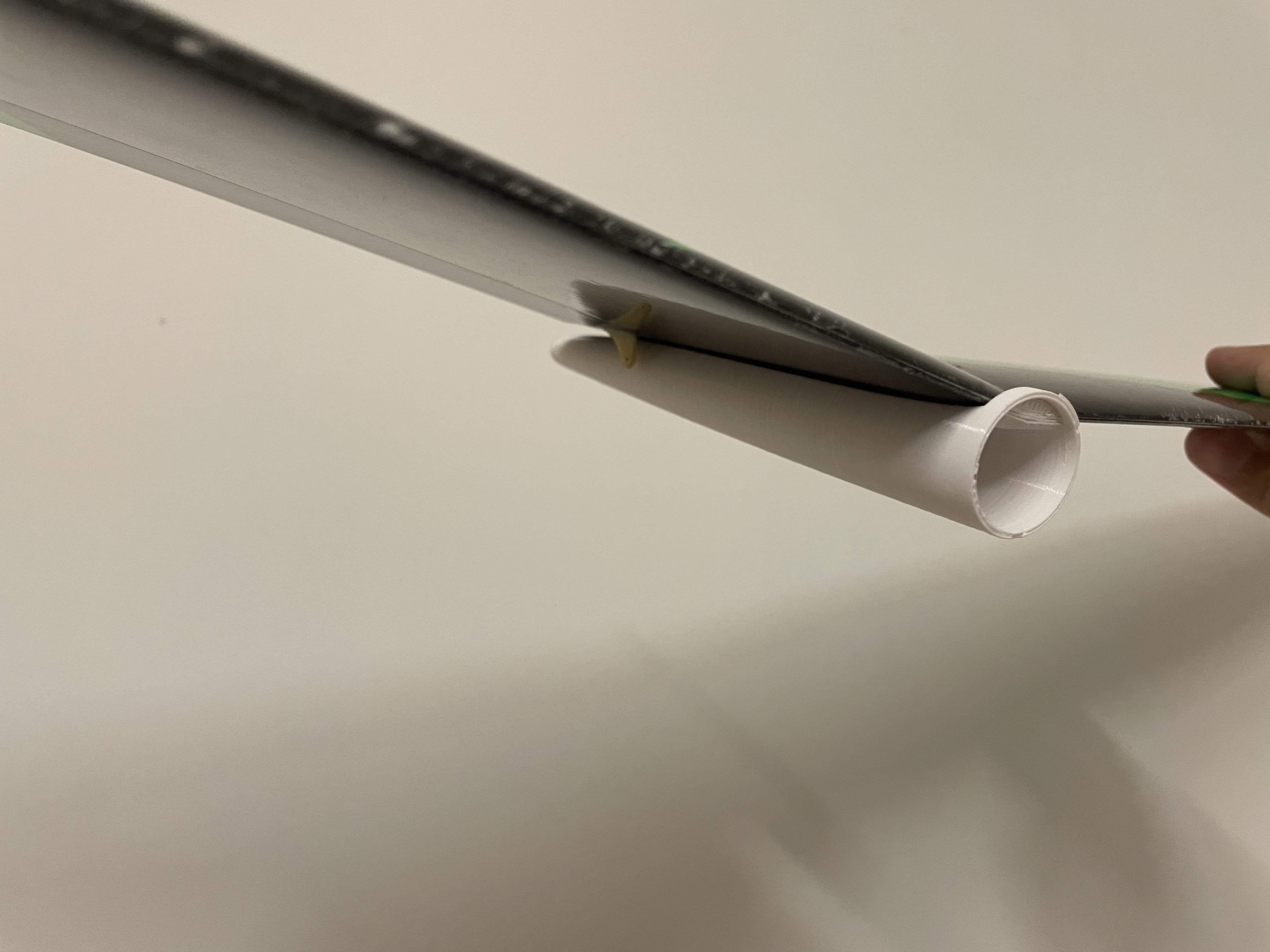

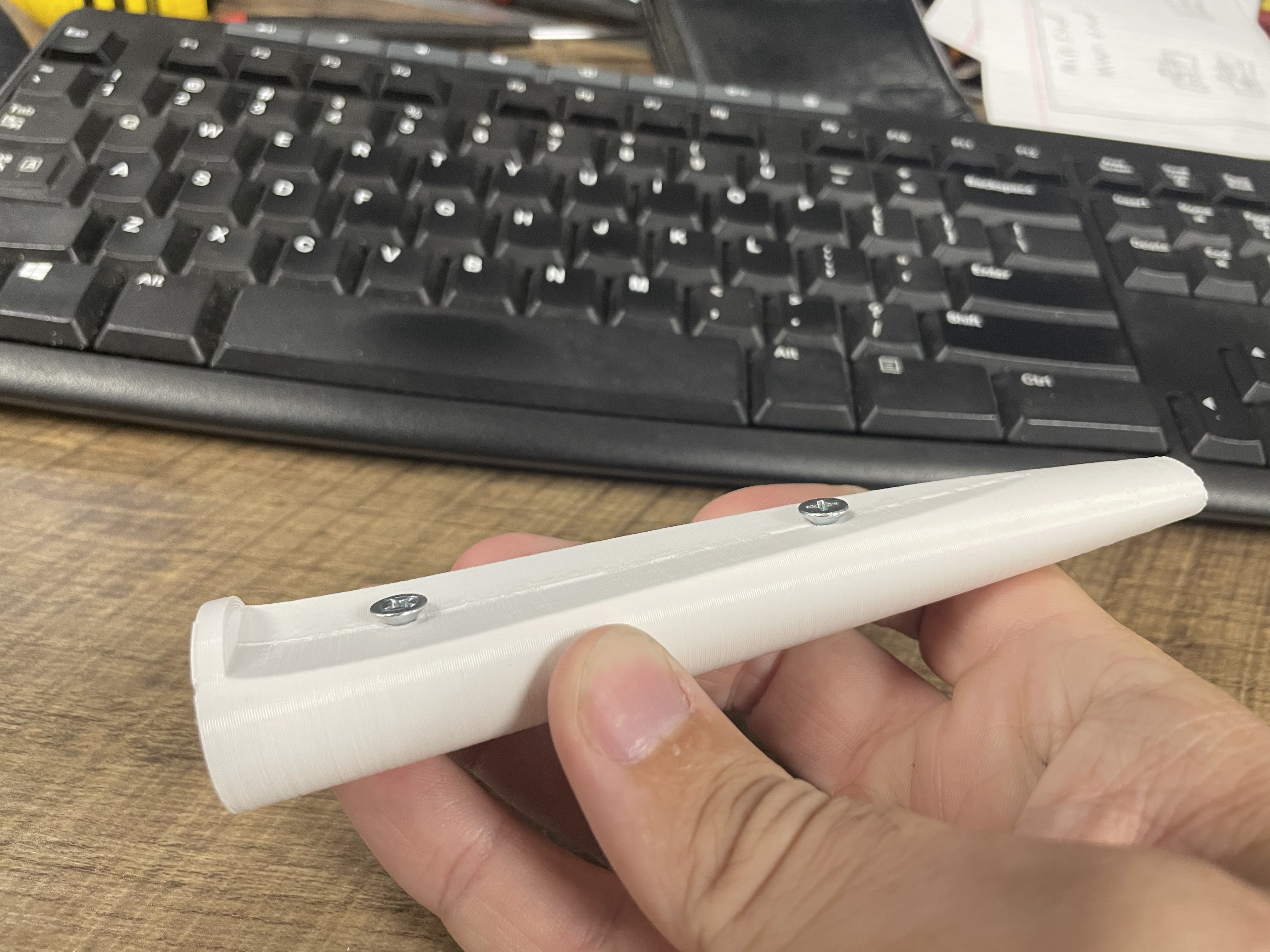

    here are some pictures of the printed test part. Needless to say I’m very happy with the fit. Also check out the size difference between a KST X08 and X06.
    426A25ED-0C8A-4D35-9EA6-BB12763D6AAA.jpeg 1E37D28D-6235-48C2-8396-DFA95659C3D3.jpeg 544832B4-C7DF-4E1C-B282-90DEED1E6F36.jpeg 22C9DE9C-651B-4EBC-A827-80D283F43CBA.jpeg F2FD5213-B5C2-4E3F-BE4D-7369CCA0E310.jpeg

    WMcNabb, AKNick and pawnshopmike like this.
