Eme 55cc gas engine

Discussion in 'Gas Engines' started by 3dmike, Jun 24, 2015.


  1. 3dmike

    3dmike 640cc Uber Pimp

    EME 55CC GAS ENGINE

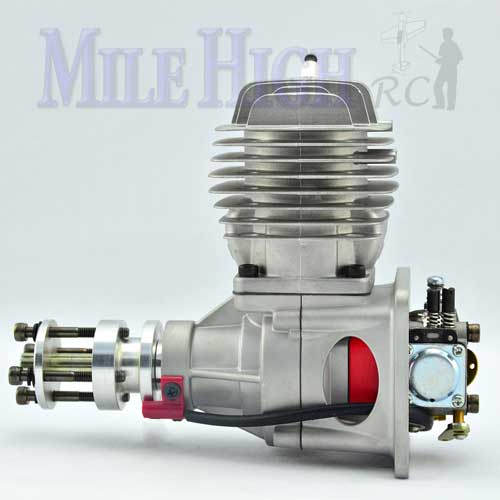

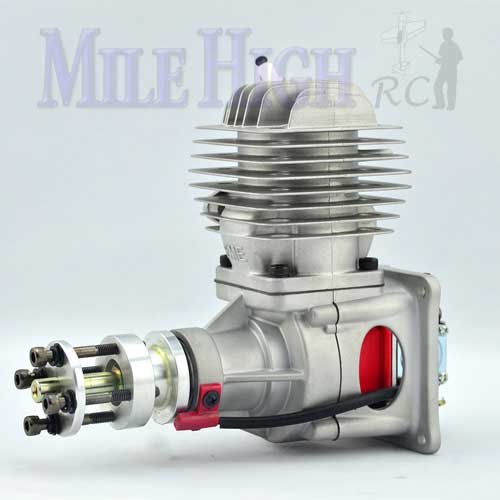

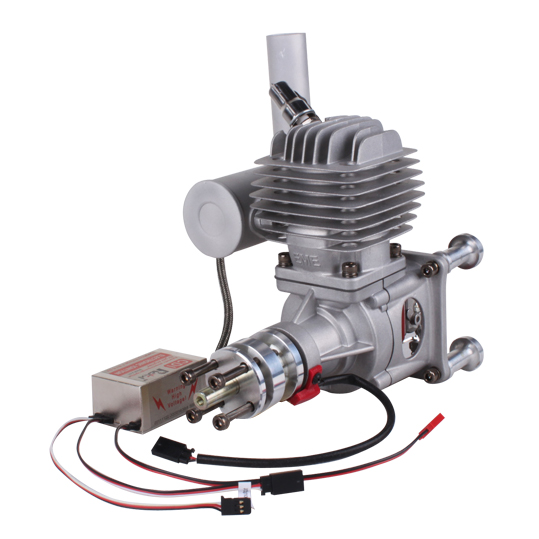

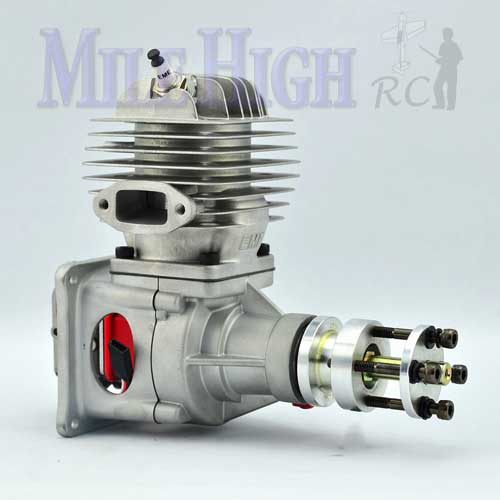

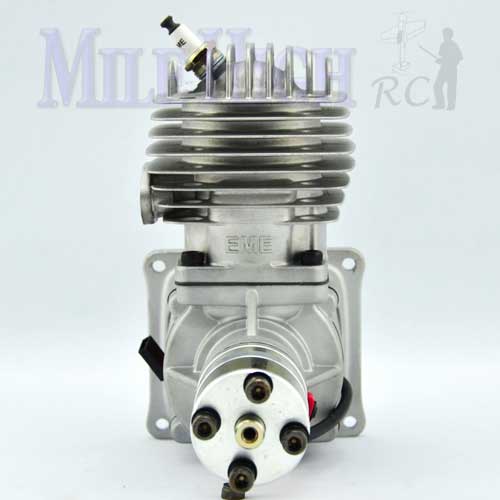

    eme55(2).jpg eme55(3).jpg eme55(4).jpg eme55(5).jpg eme55(6).jpg eme55(7).jpg EME55-2(10).jpg

    Video:
    [video=youtube;IT_qk911fq4]https://www.youtube.com/watch?v=IT_qk911fq4[/video]​

    Download the Manual - Here
    Dimension Diagram - Here

    Specifications:
    Displacement: 55.6 cc (3.392 cu in)
    Bore: 1.77 in (45 mm)
    Stroke: 1.38 X in (35 mm)
    Weight: 3.4 lb (Engine - 2.8lb, Muffler - .22lb, Ignition - .26lb)
    RPM Range: 1,350-8,500
    Output: 5.5 hp @ 7,500 rpm
    Requires: unleaded gasoline, oil, ignition battery & propeller
    Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
    Suggested Propellers: 22x8, 22x10, 23x8 & 23x10

    Technical Data:
    Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
    Compression Ratio: 7.6:1
    Gas/Oil Mix: 30:1
    Replacement Spark Plug: NGK CM6 or equivalent
    Weights (Individual): Engine: 47.6 oz (1,310 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)​
    Ignition: Rcexl​

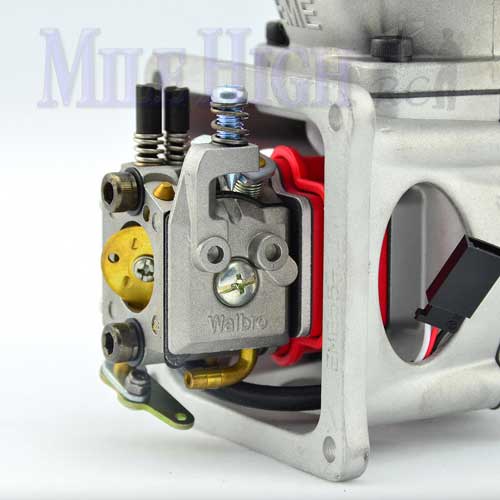

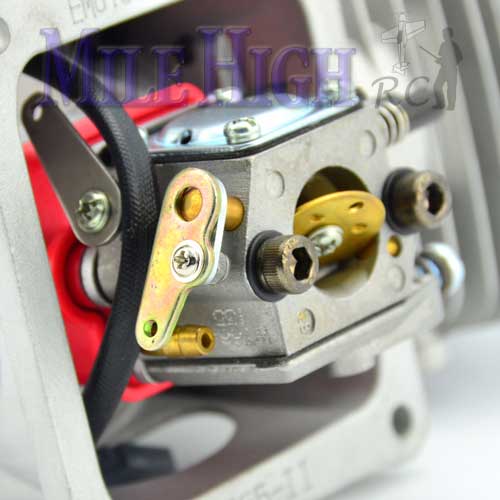

    Carb: Walbro​
