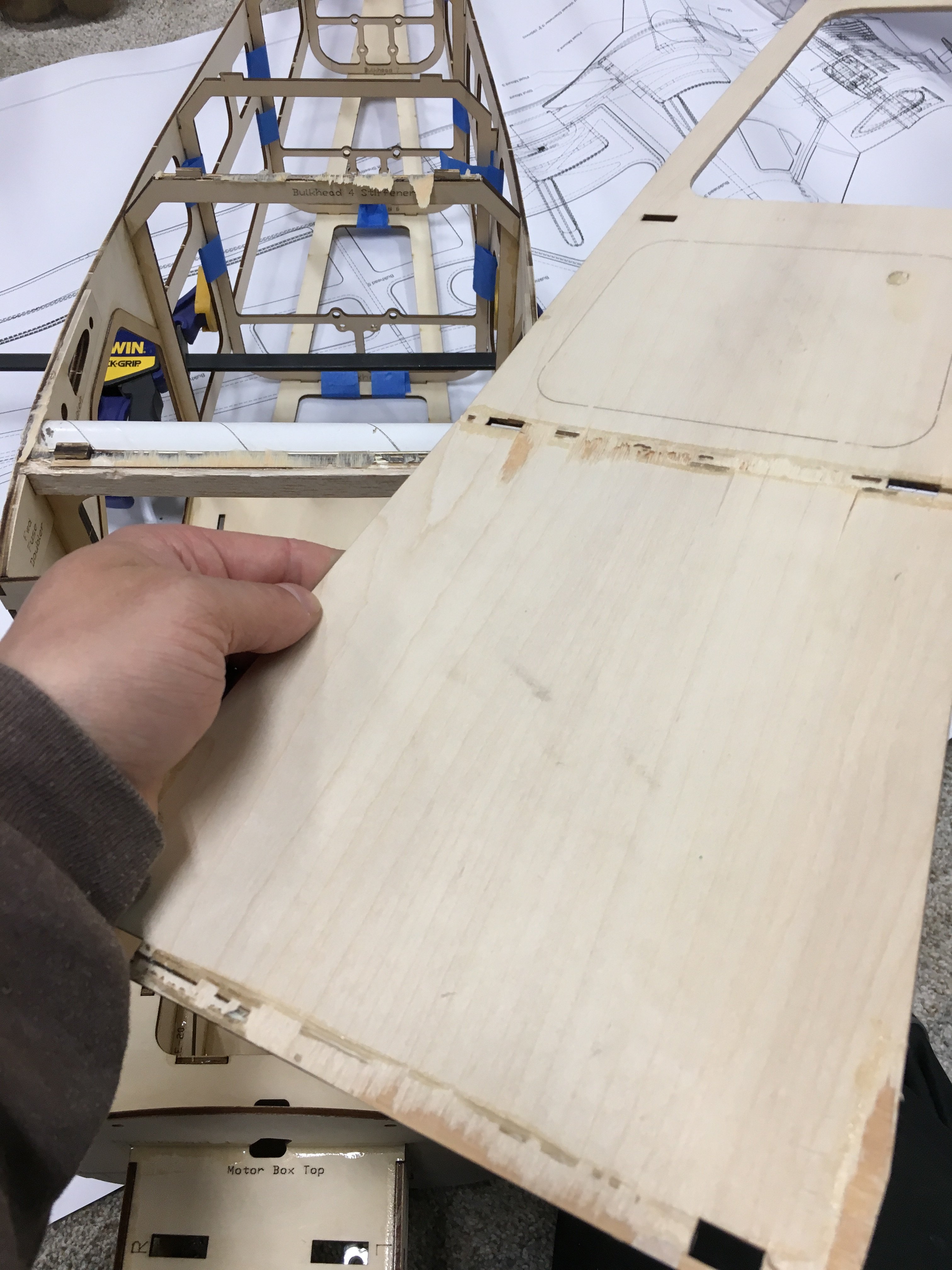

Well this was a major pain in the butt. I ended up tearing the top skin off after seeing the planes lower skin was aligned and when twisting the top skin into place it would enhance the twist. After conversing with other people who are building this model found they had similar issues. They all wished they fitted the sheets and bulkheads before any glue was added. The manual misleads you a bit by glueing the sheets in place but make no mistake dry fit every bulkhead in place and keep the horiz stab alighted with the wing tube the whole time.

Before

Checking over the plans

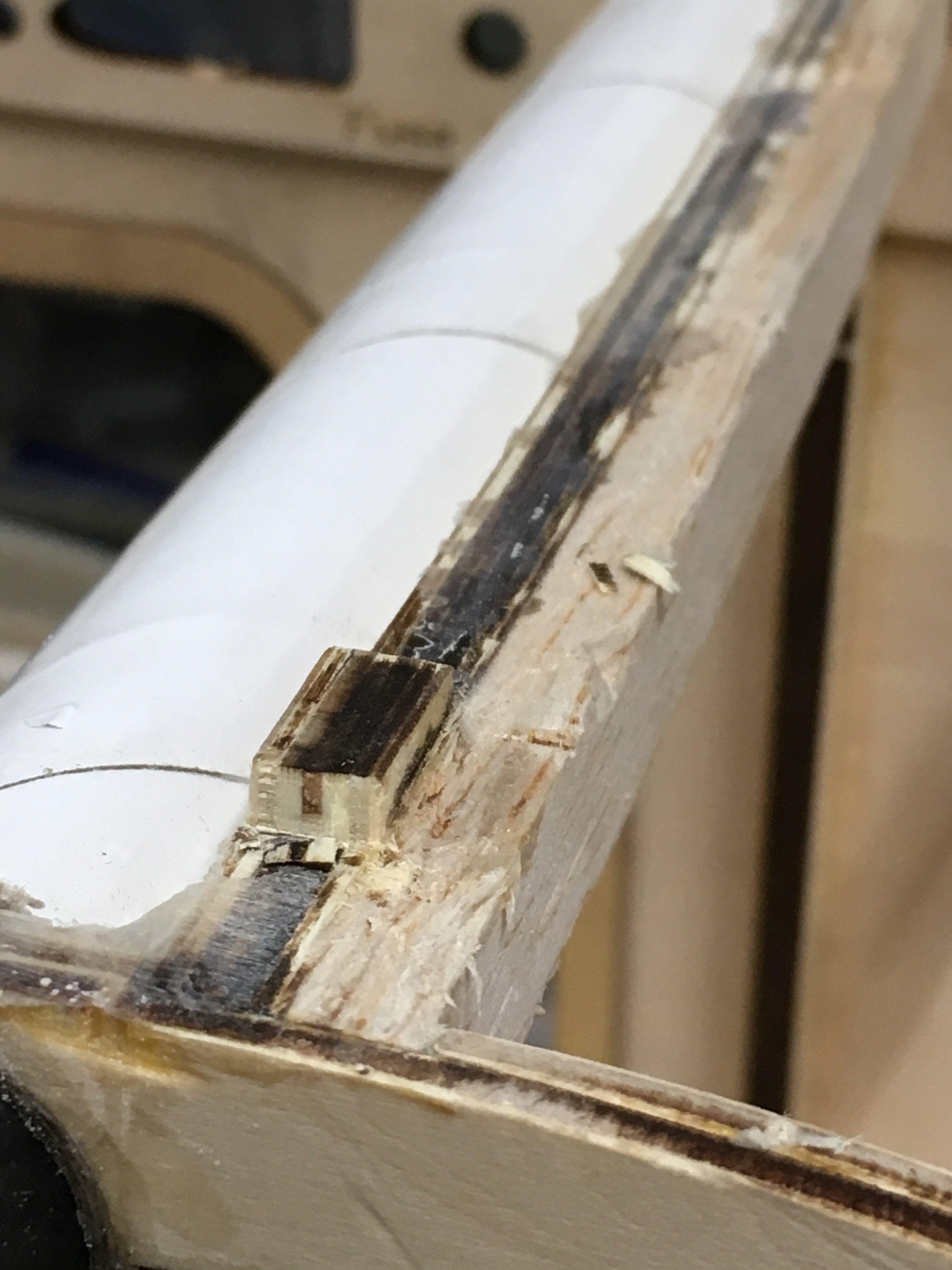

Ripping the skin off


What was once beautiful is now ugly

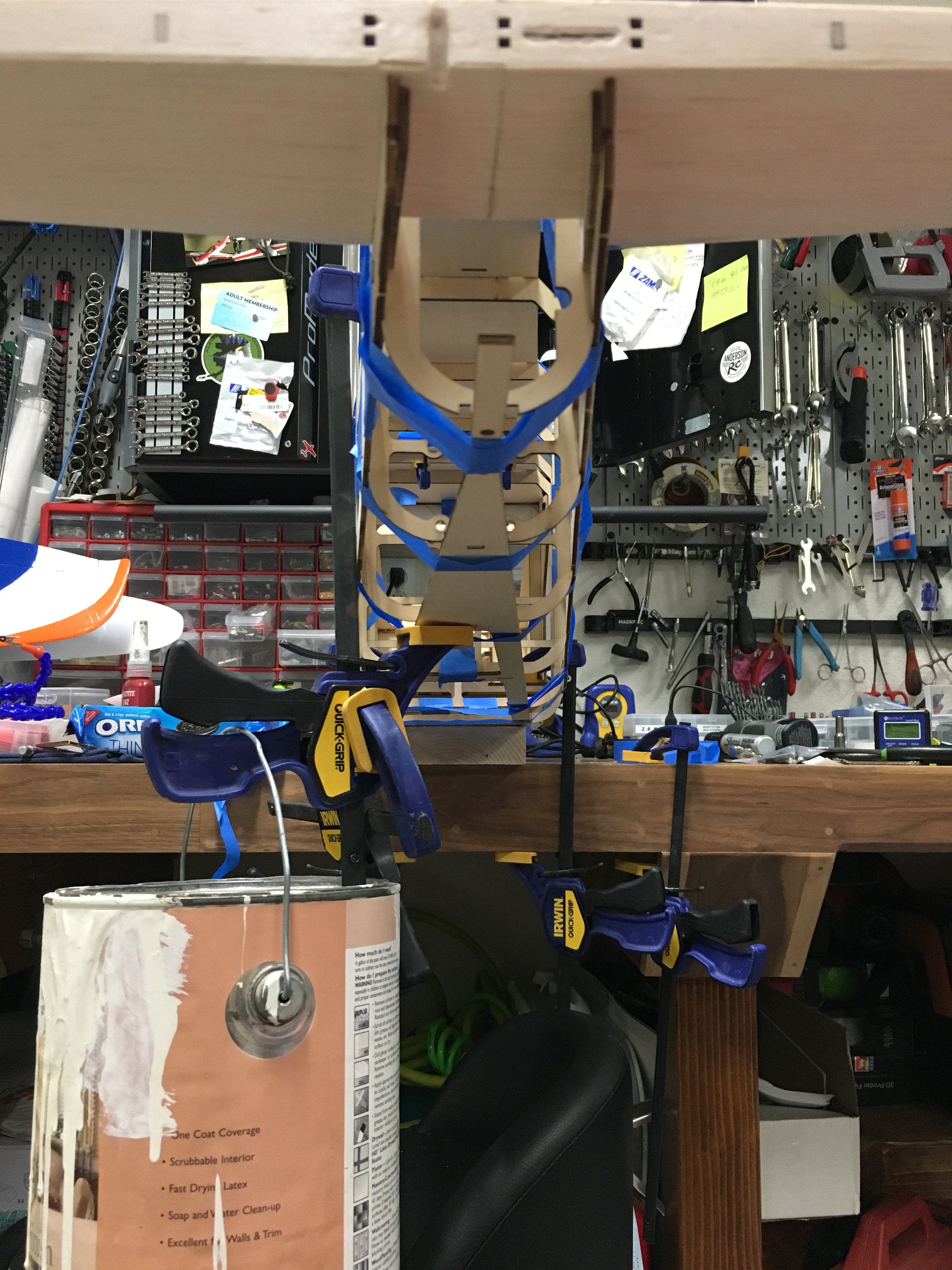

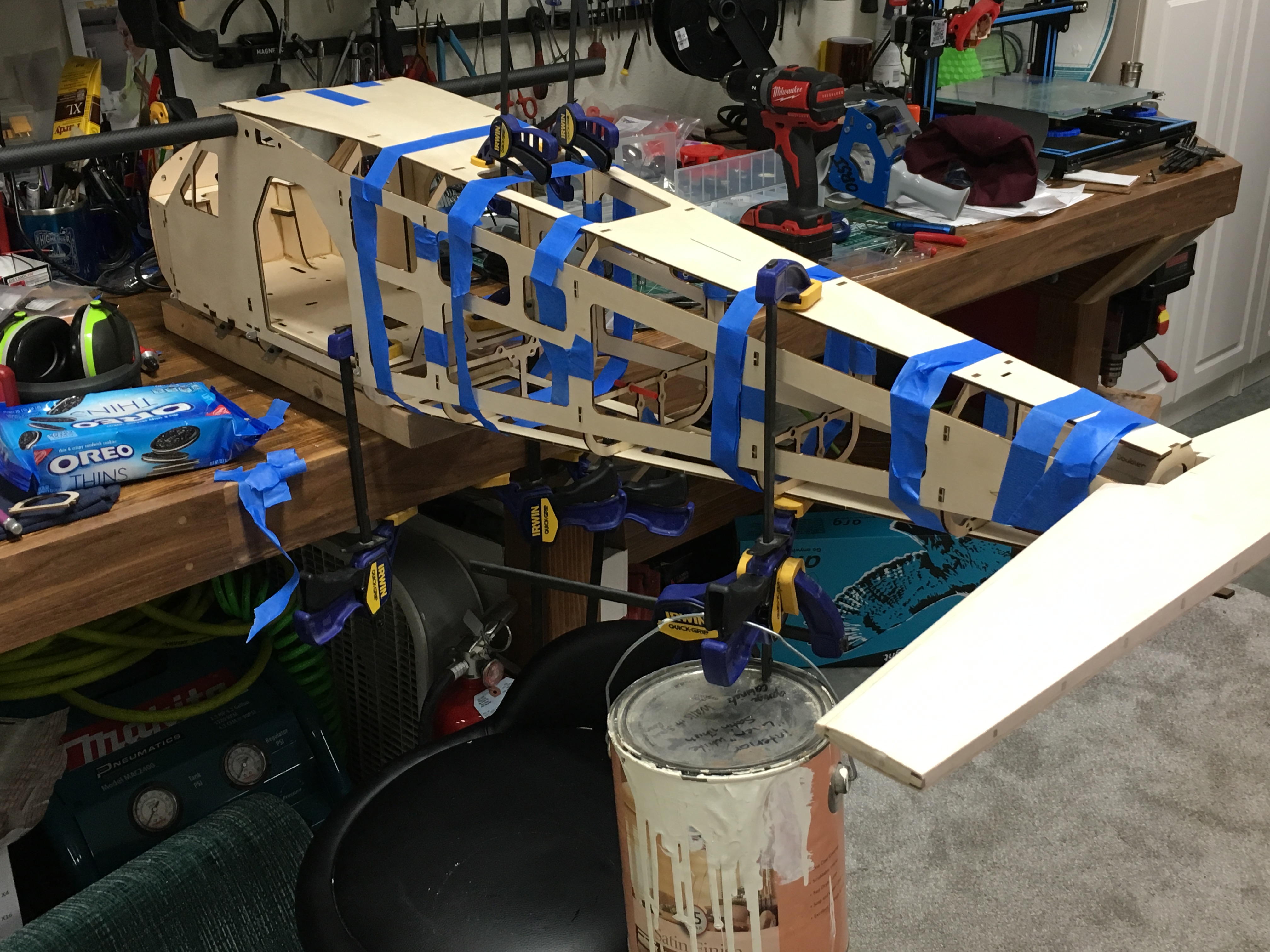

Don’t mind my method the madness, but the paint can provide the flex I needed to glue everything in place. Don’t worry it’s basically empty

You can see how I hade to adjust the slots to fit the top skin without placing.

CD57D4BE-EF13-4E38-A375-A3B27123E642.jpeg 7AD7FB78-0487-4DCD-9453-EACFDF7D2E2F.jpeg

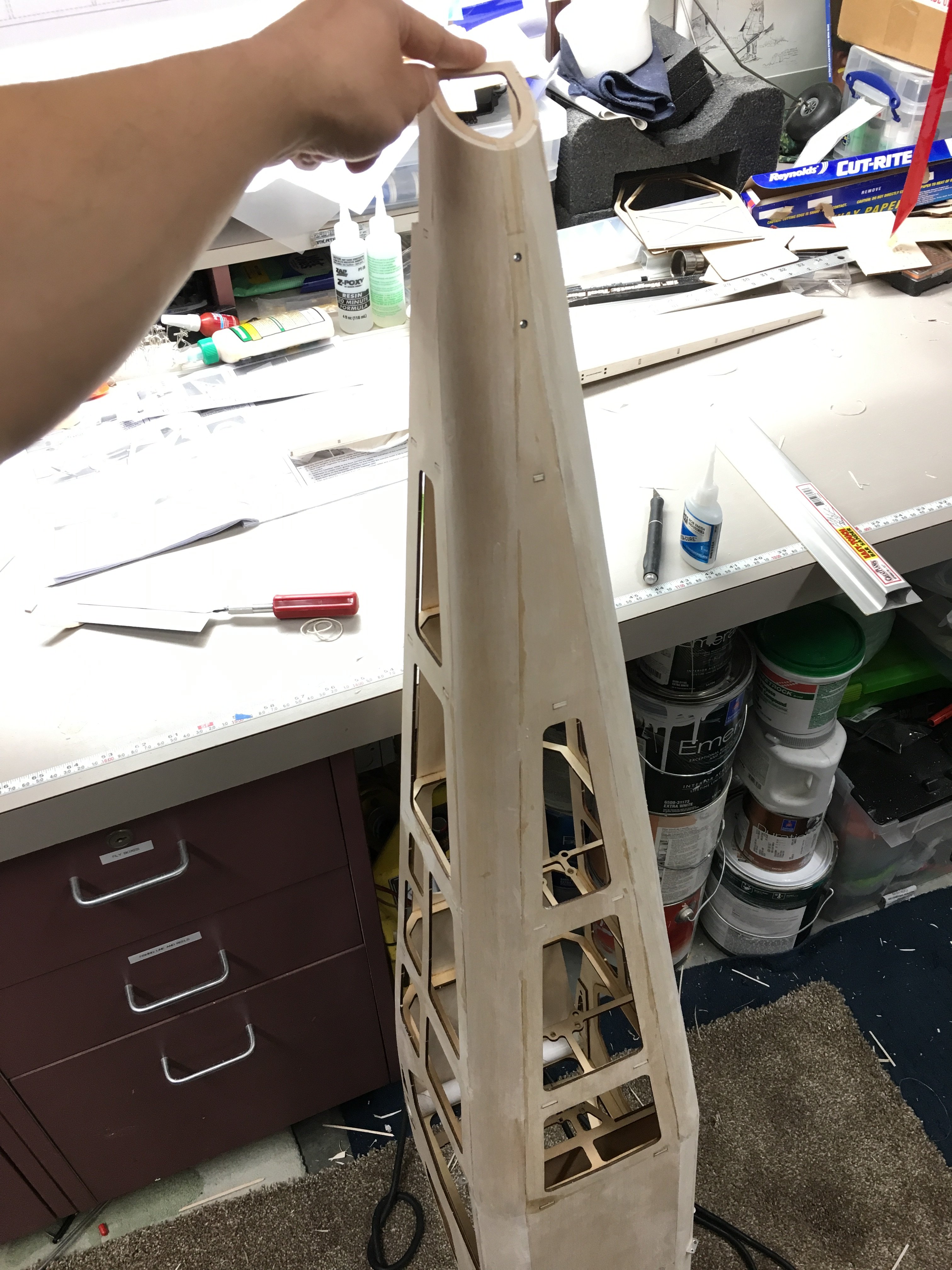

Glued in place.

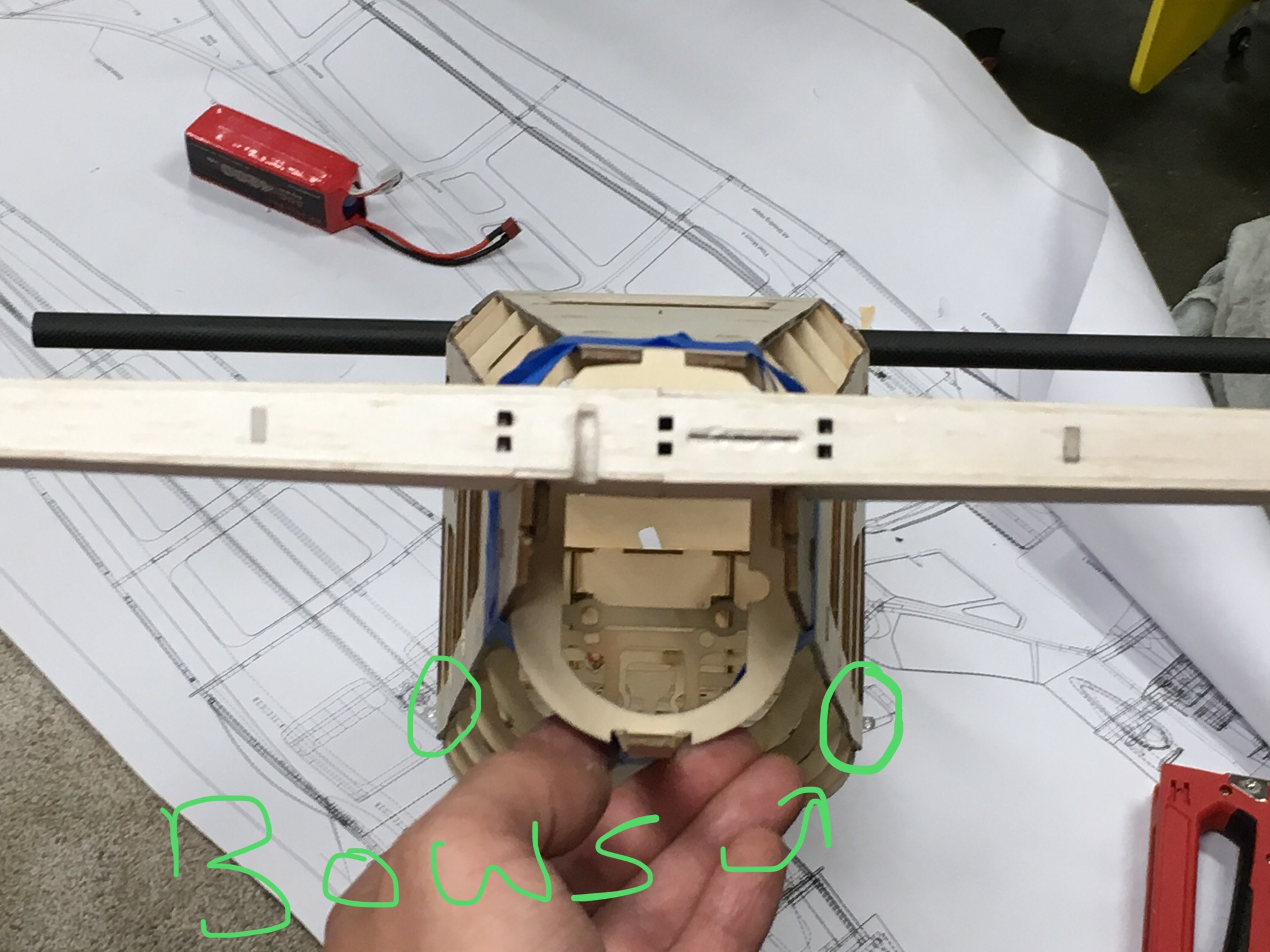

It took me a couple days to figure it out. Still not perfect with the bows, but I can work with that.


Snoopy1

640cc Uber Pimp
Well done as long as the flying surfaces are true and square it will fly great. The bow in the sides is nothing adds character.


AKNick

640cc Uber Pimp
Well done as long as the flying surfaces are true and square it will fly great. The bow in the sides is nothing adds character.

My thoughts exactly. Tail and wings need to be perfect.
Thanks guys, I’m hoping everything else should be smooth sailings from here


AKNick

640cc Uber Pimp

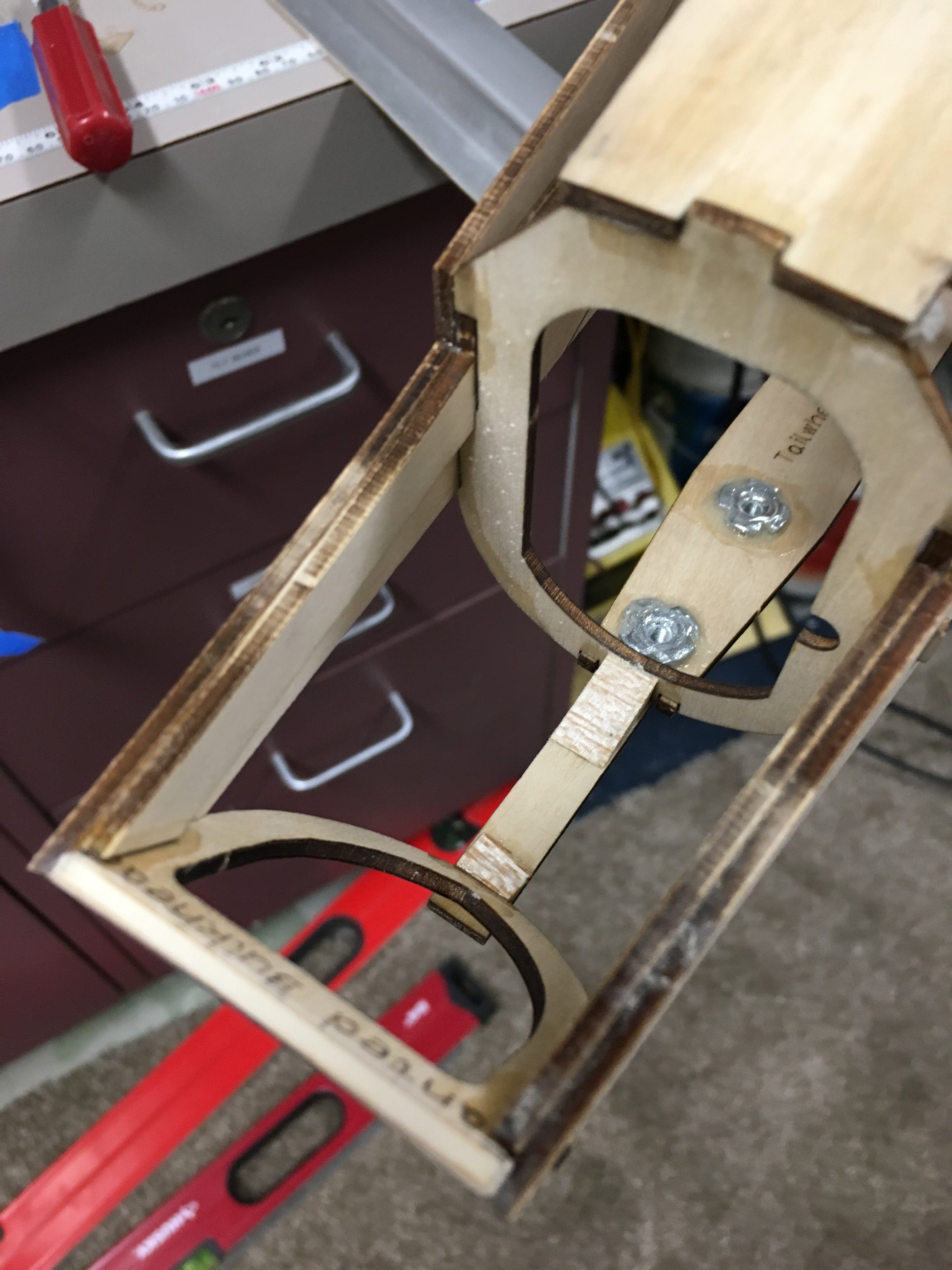

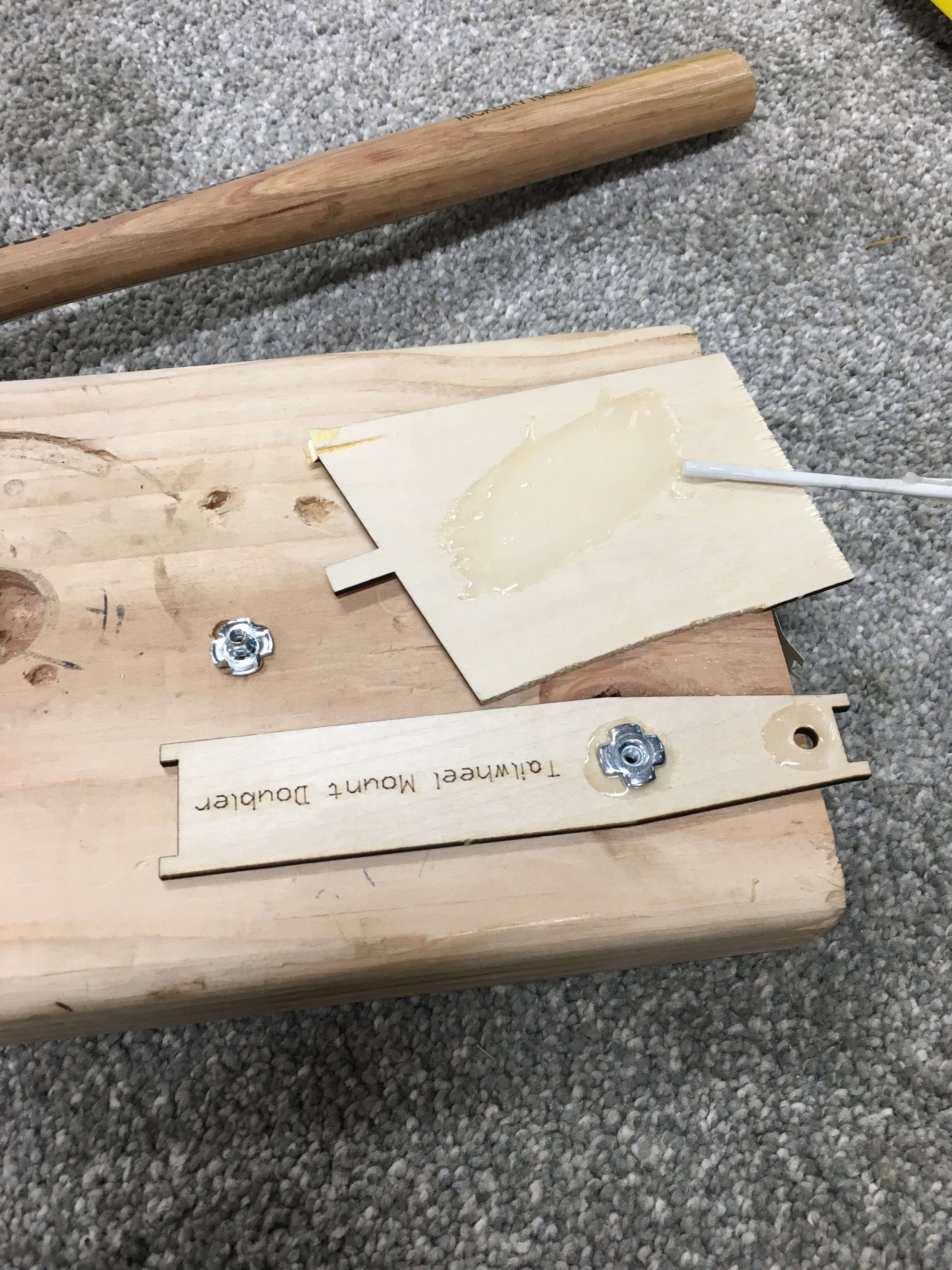

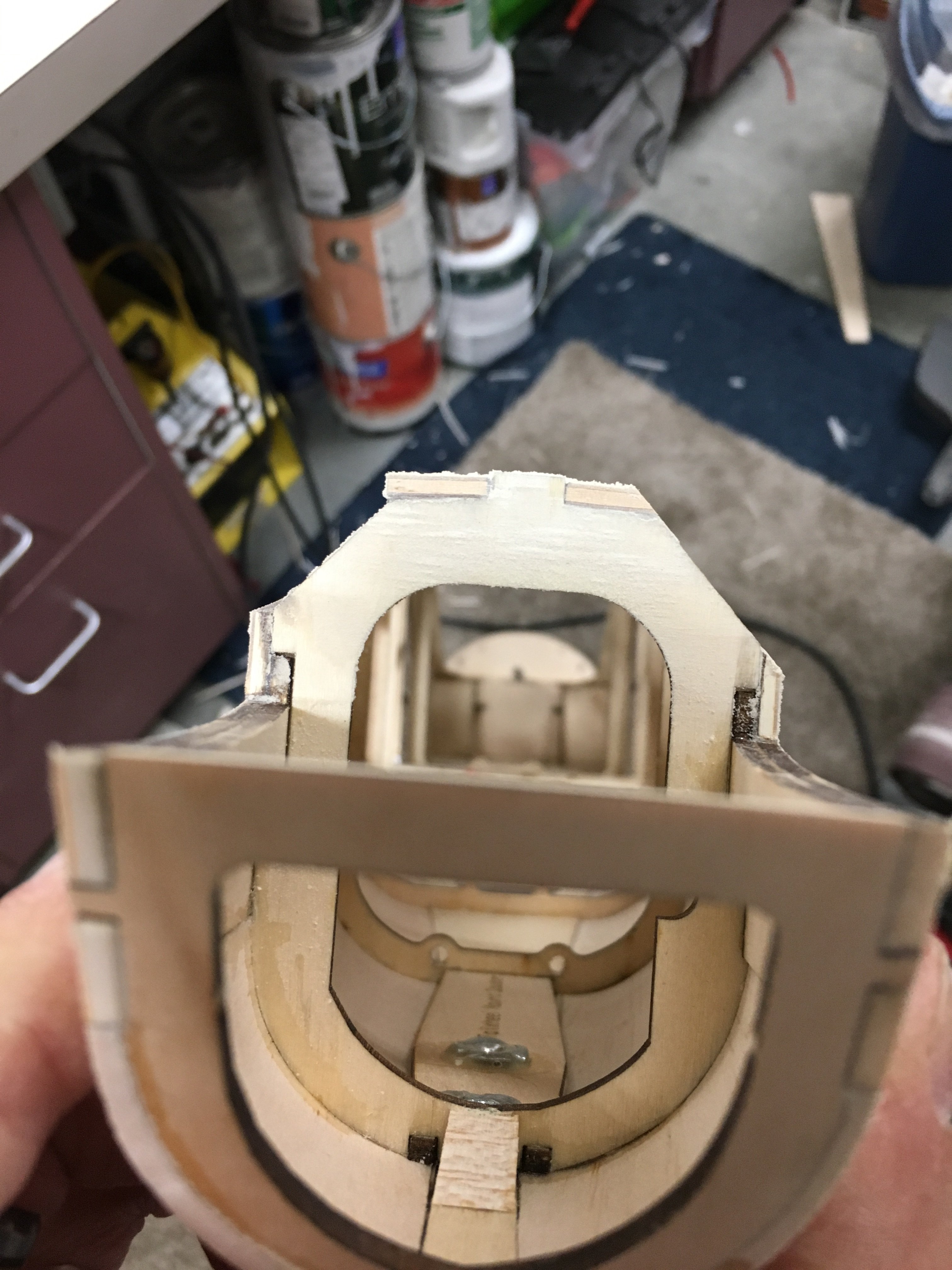

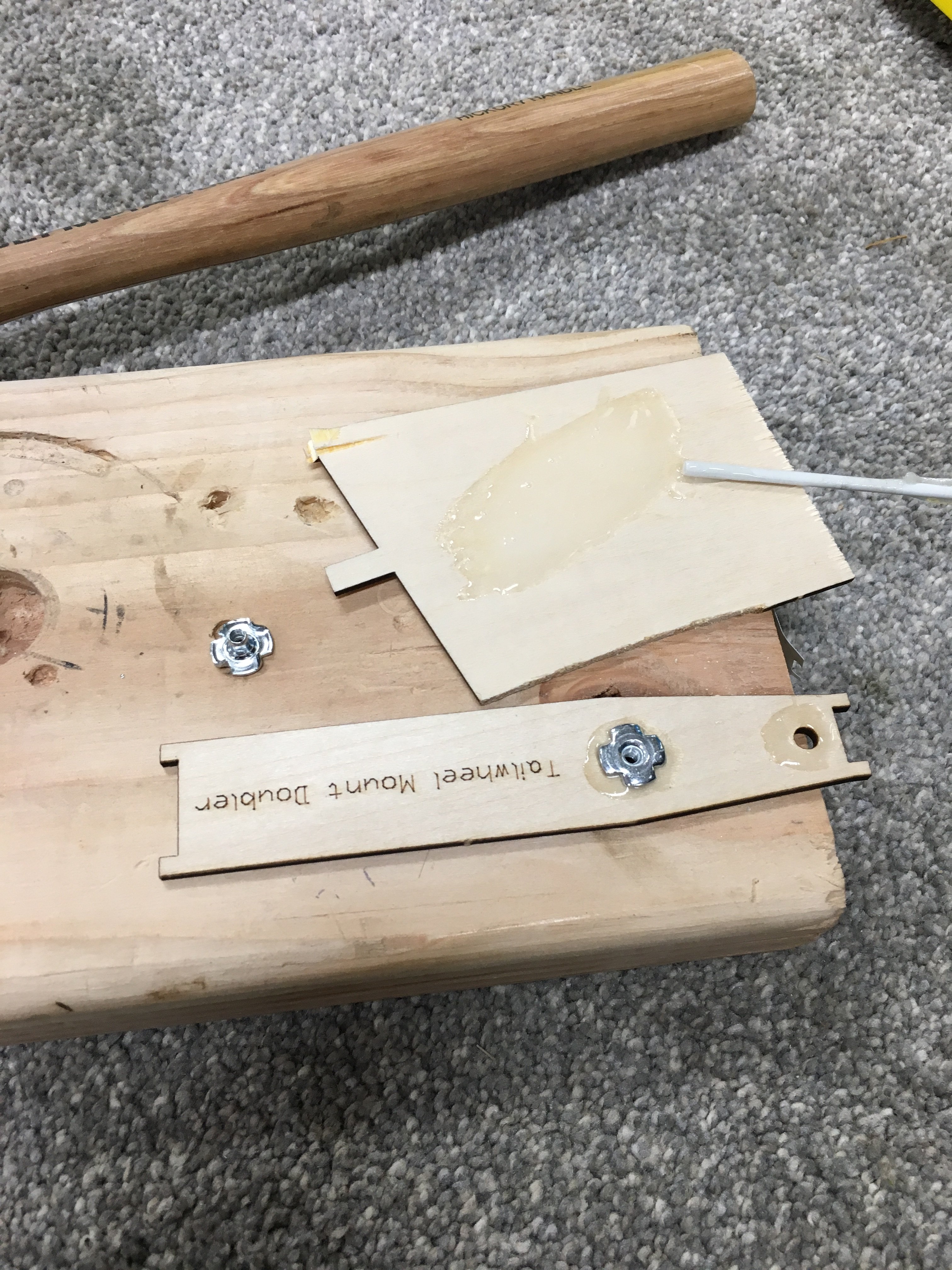

installed blind nuts for the tailwheel mounting bracket. Fit like a glove. Made sure they didn’t bottom out by tapping them into a slightly larger hole below the board it’s on. They nestle into the lower fuse frame and everything just fell into place beautifully.

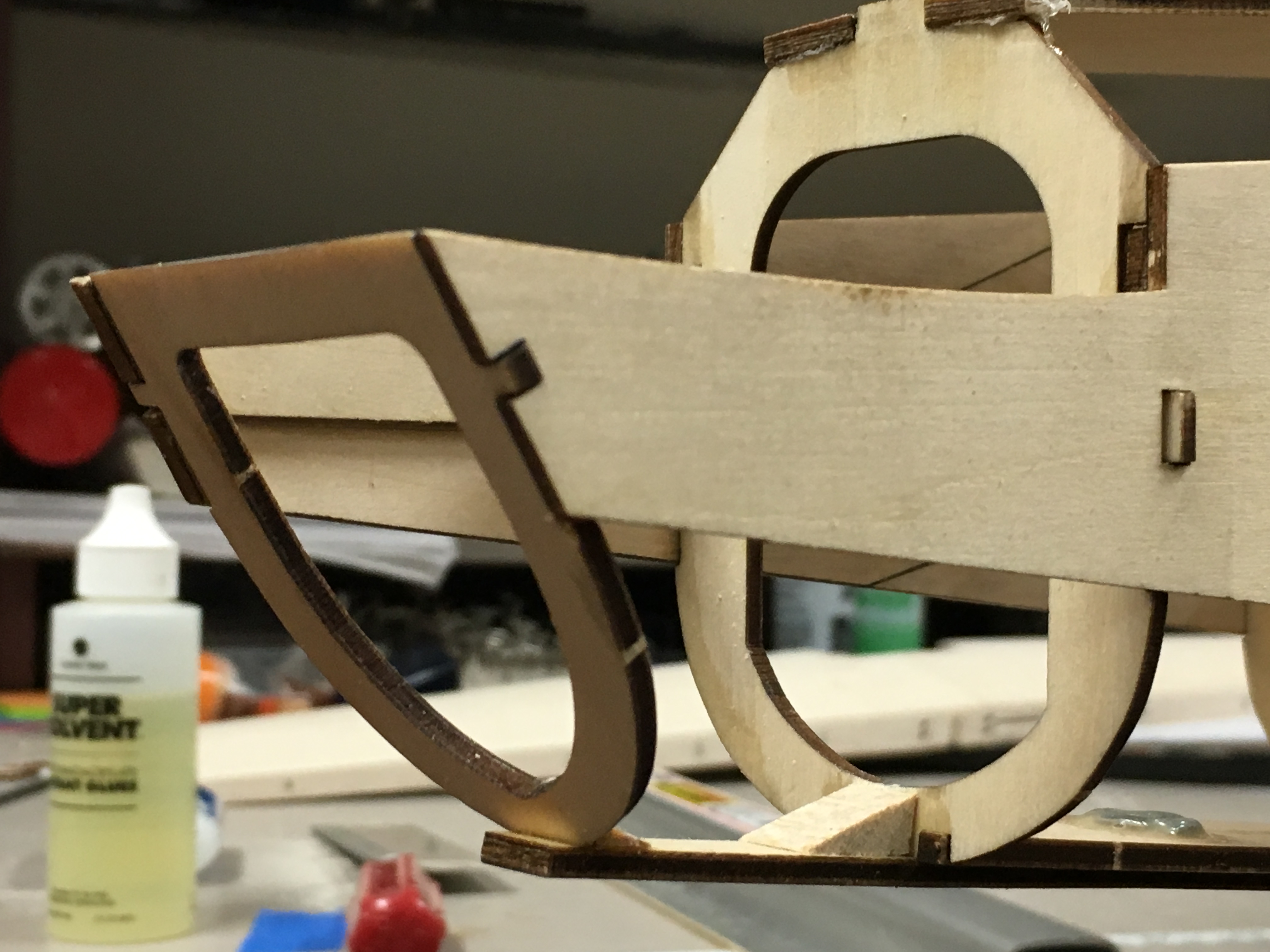

I wetted the sides to allow for a slight radius contour of the bulkhead. Otherwise you’ll surely break the light ply bulkhead.

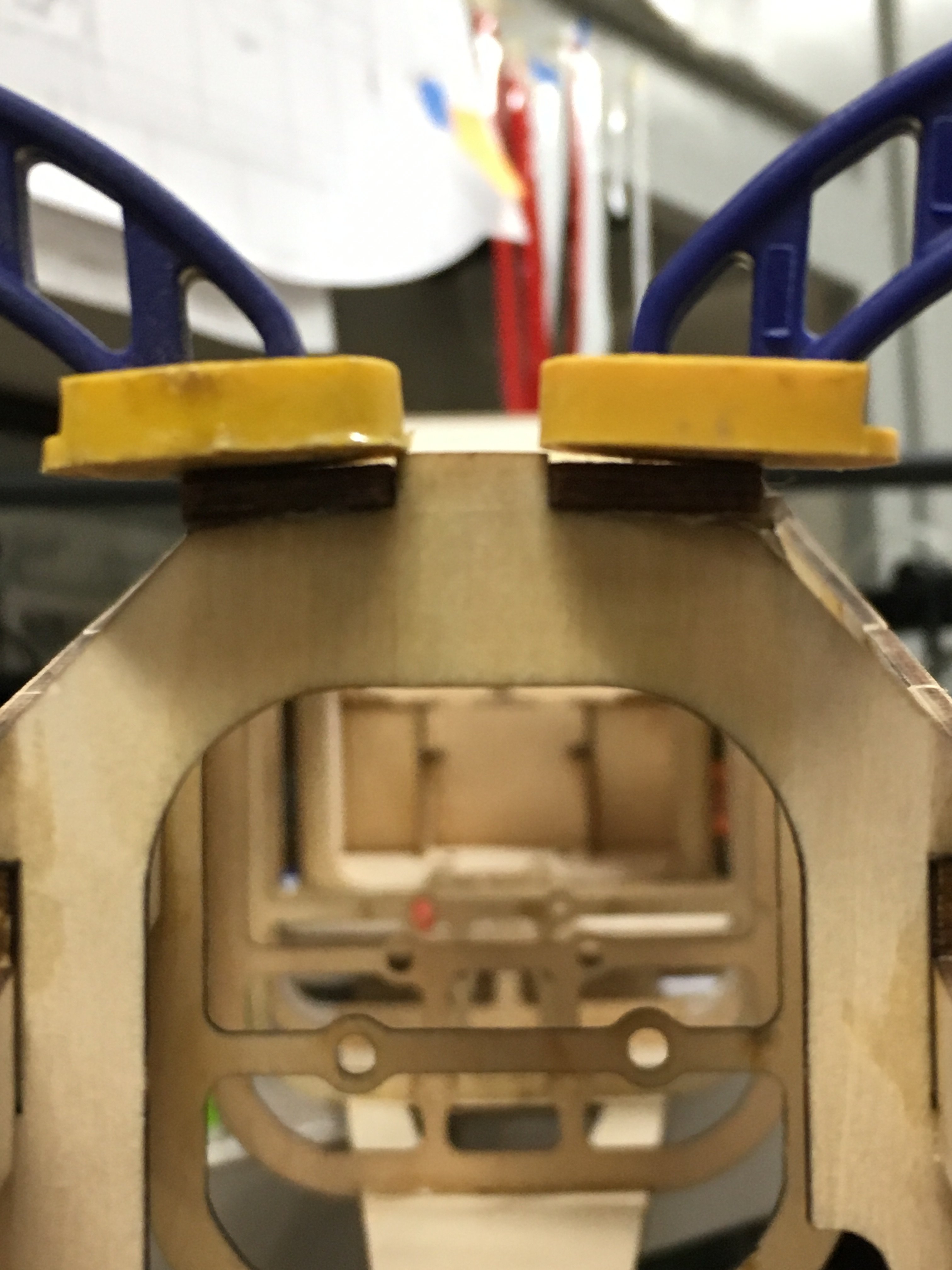

Very light clamping pressure.

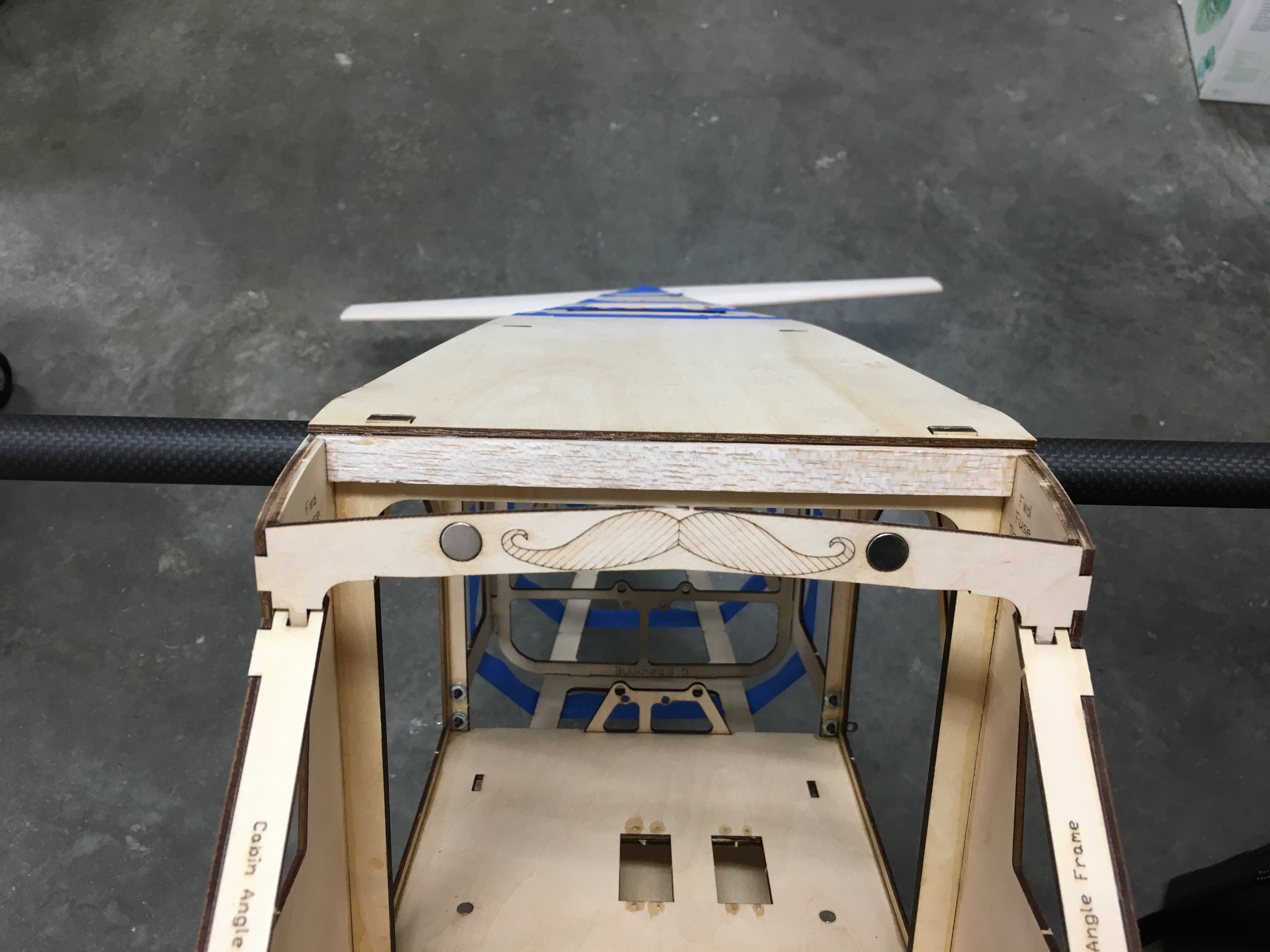

Added the canned bulkhead after a little trimming. And added a few personal touches with some gussetts

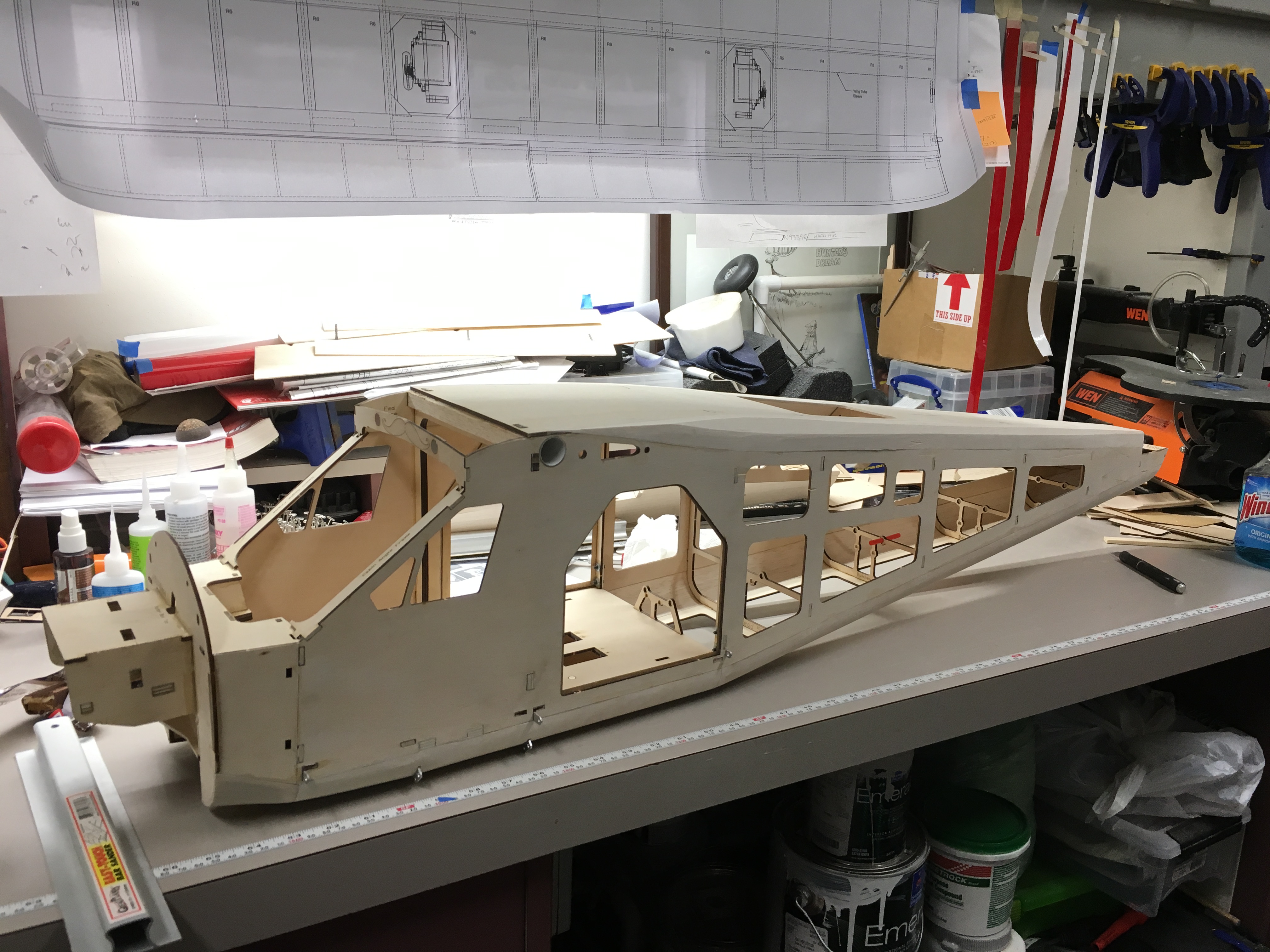

Now this means the skeleton frame is completed! Few!!!


AKNick

640cc Uber Pimp

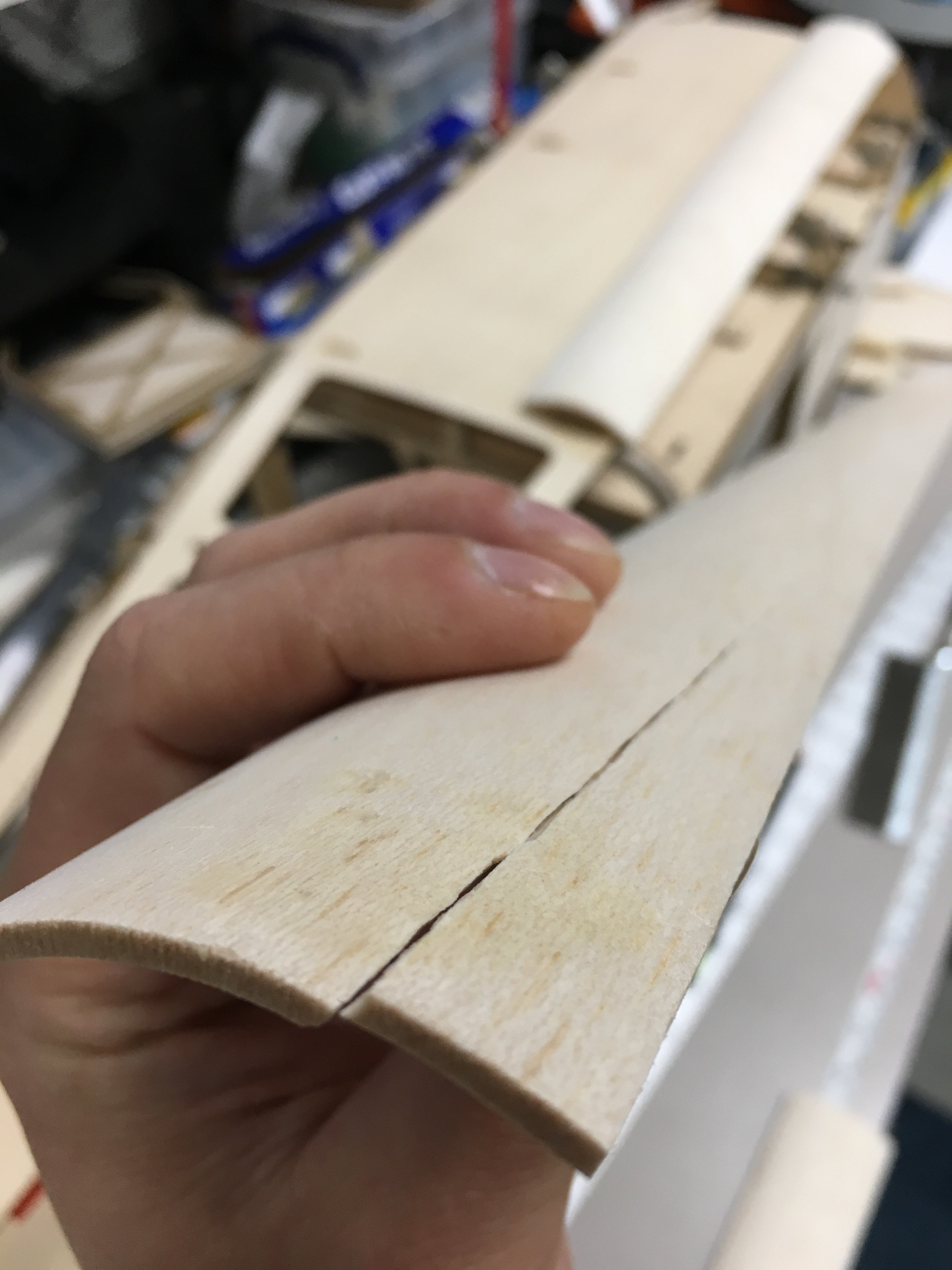

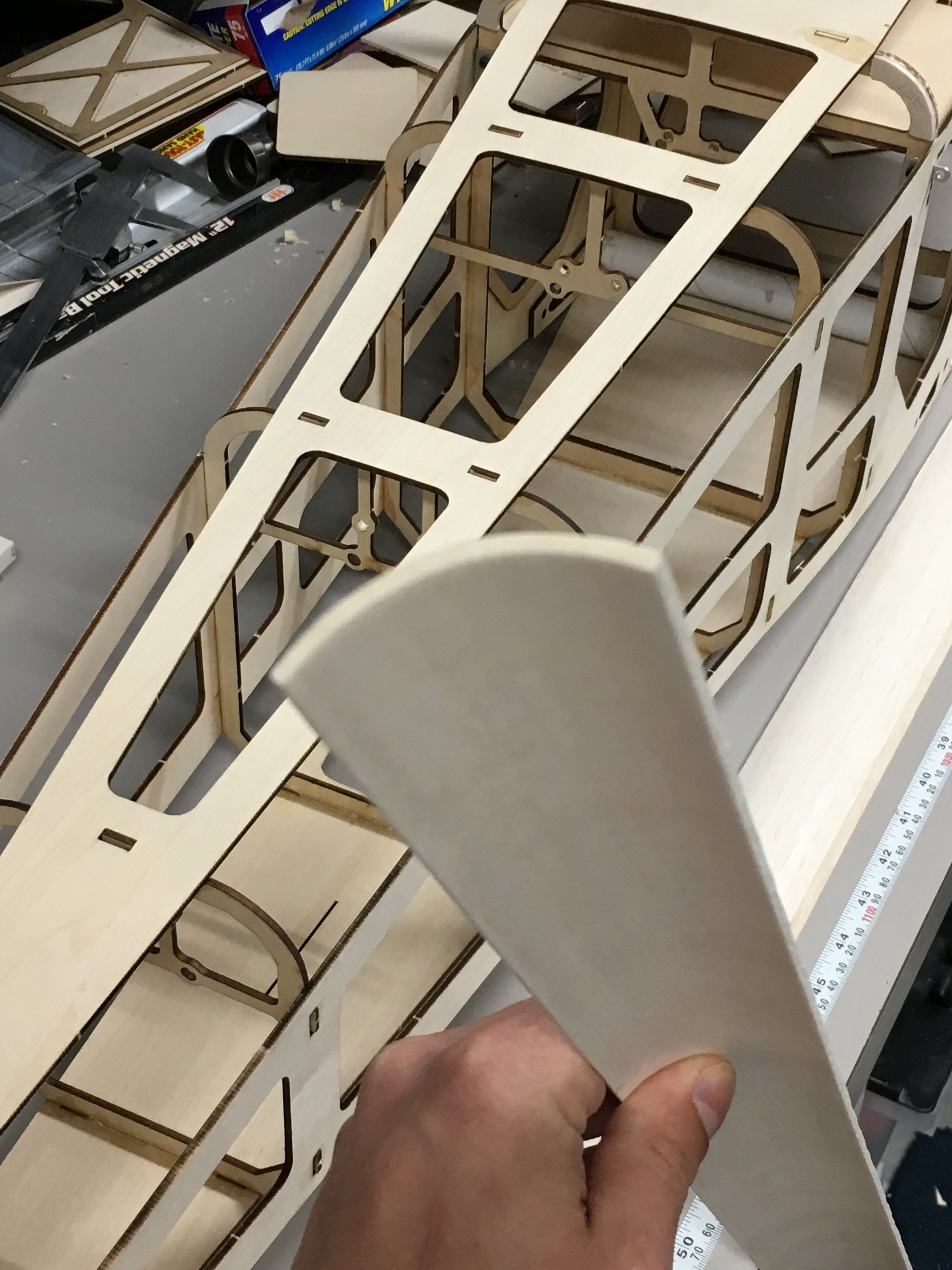

It was thoughtful and I though down right cool for them to supply you with preformed sheet ply to go around the belly corners.... well mostly... all of mine were cracked. Could have been from shipping I’m sure. Not a big deal, a little bit of CA and it was fixed.
F2B817FB-D280-4F35-96C0-5E6D296C6D47.jpeg 3D990152-4439-480D-A605-0F8119BA053E.jpeg 24F23BF7-462F-4BF3-B3C2-45A37D4036BD.jpeg

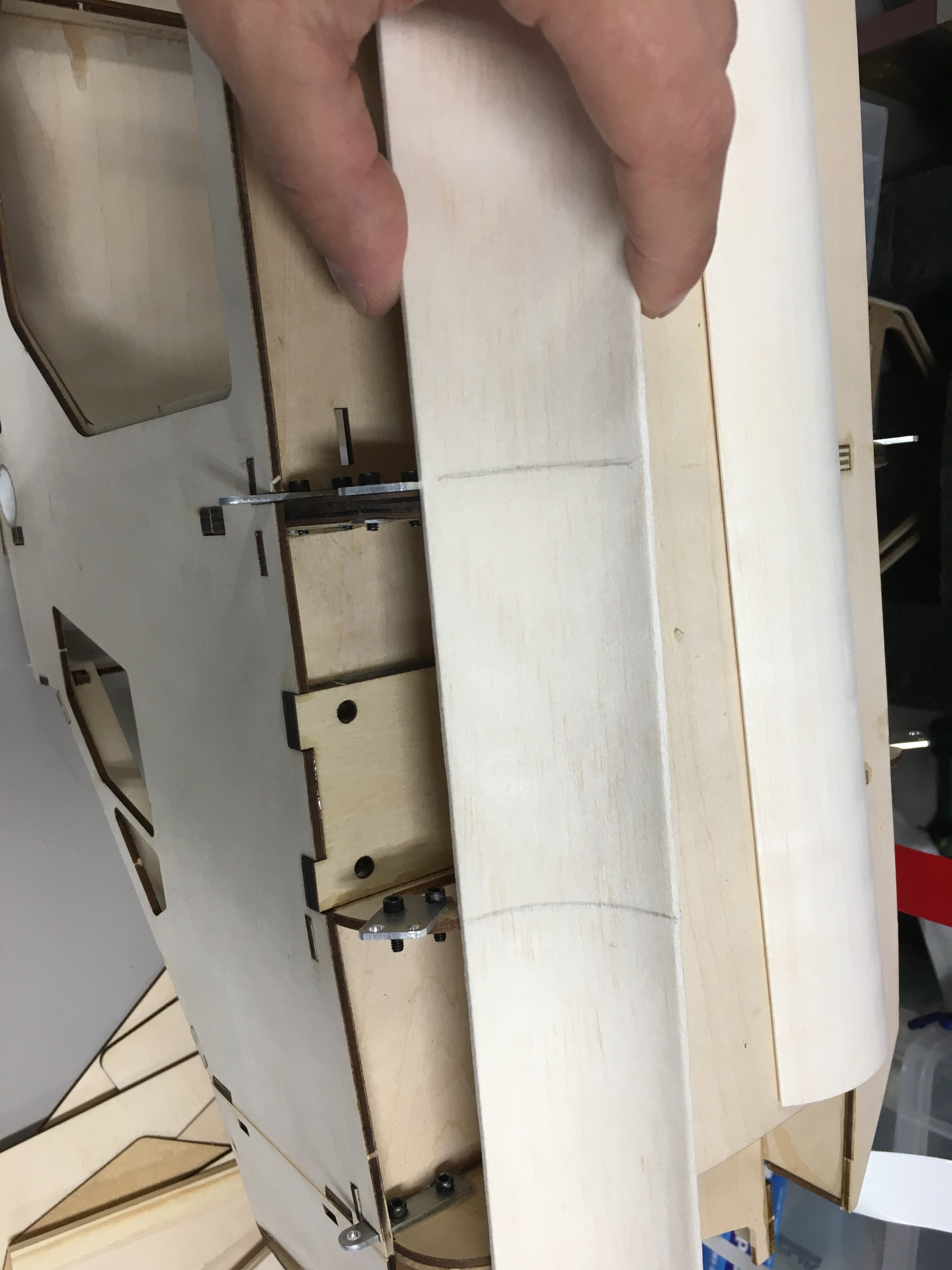

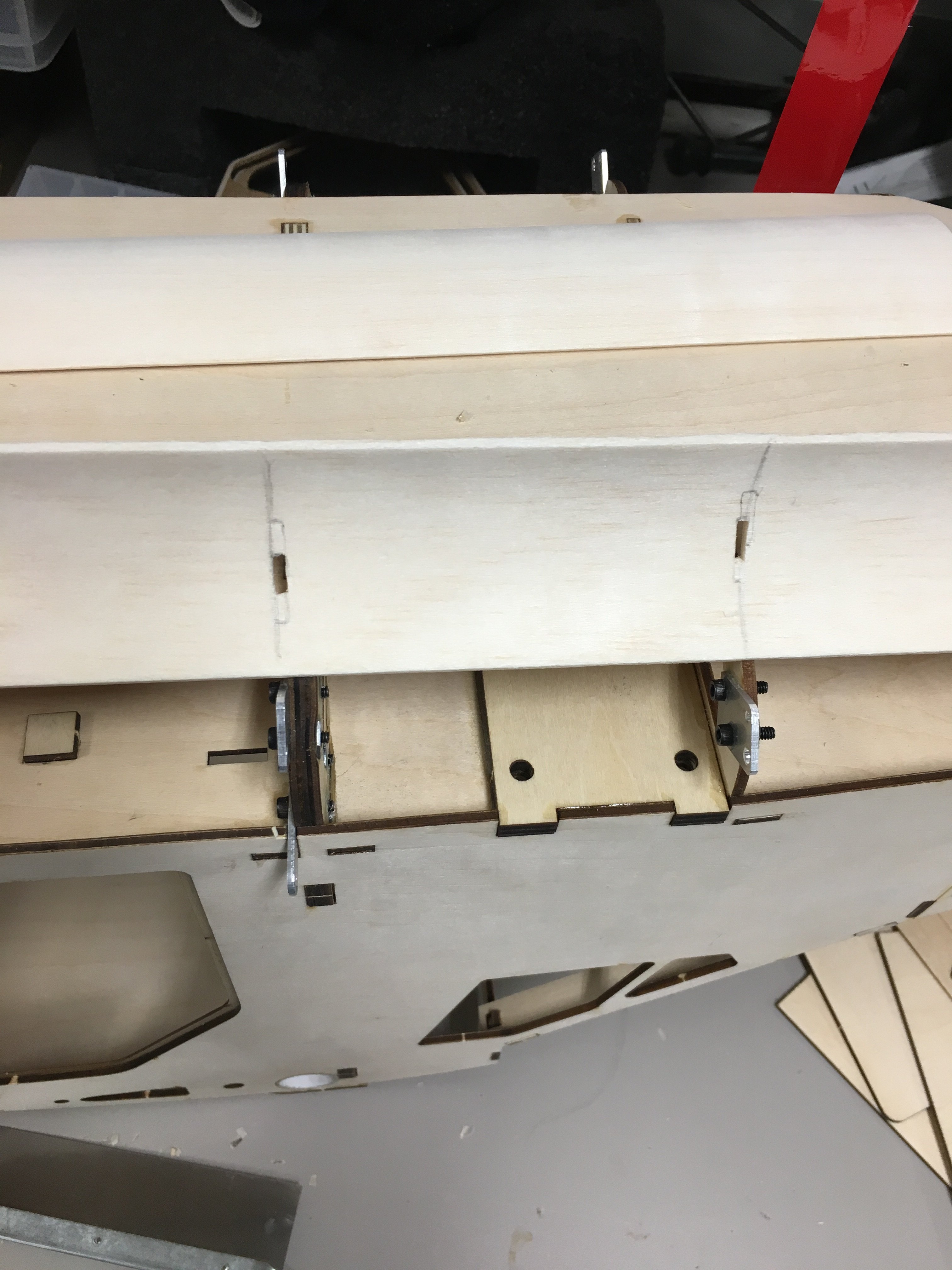

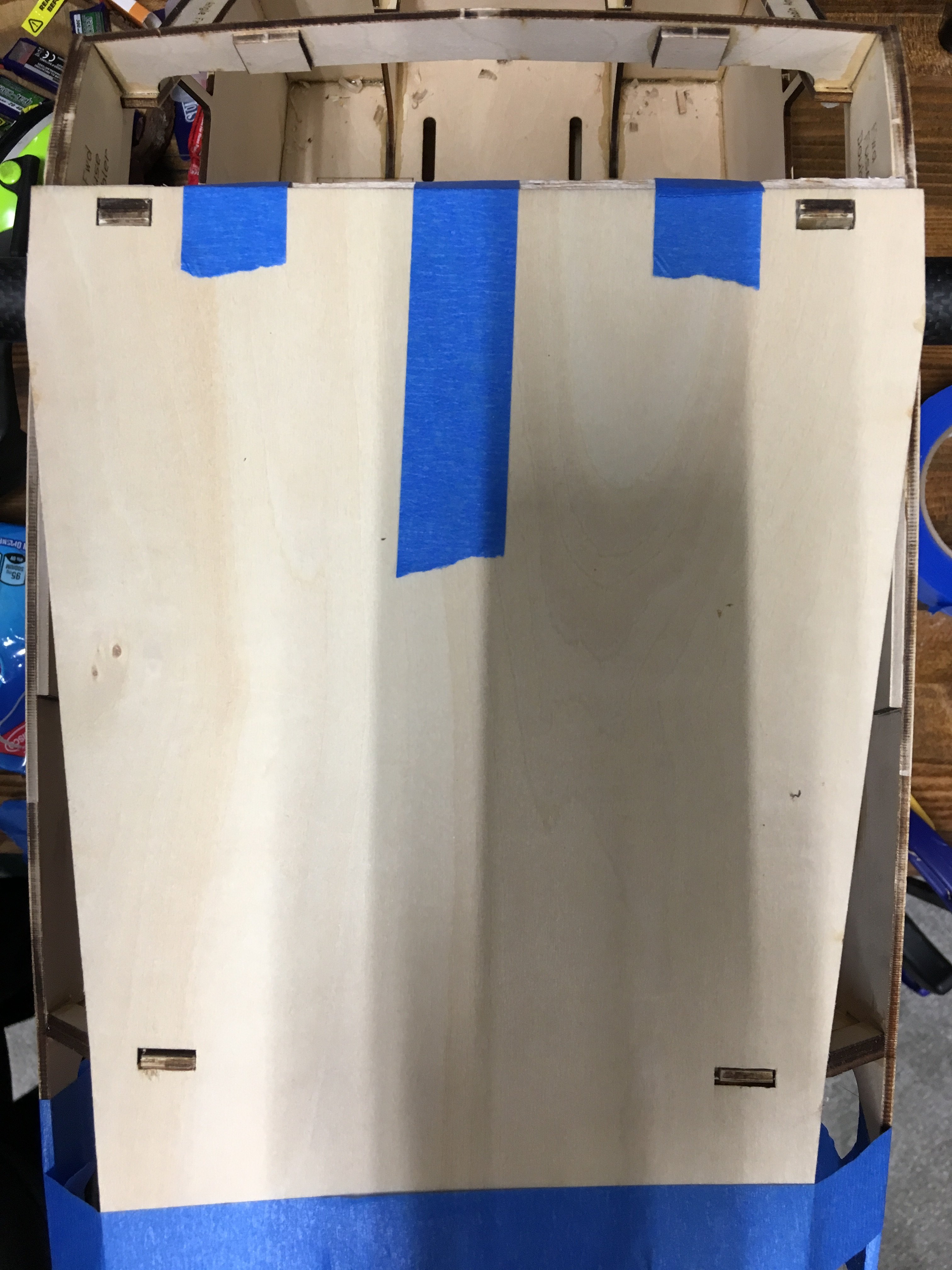

The manual has you measure and get an idea of where the fittings pop out. I was primitive and laid the sheet up against the mating side, rolled it onto the fittings, pressed them in place, cut out the imprints starting small and opening them out to fit in place. It’s not perfect but it worked for me.
5D632A11-9B7B-4AFE-844E-5F26FB7A8F6E.jpeg E0FA87C1-50A8-464B-921D-EB598E59952B.jpeg A66DC093-B620-4F5A-B8D9-823E033866BB.jpeg 7FBEC727-73FA-415A-88DC-ECA6FFB20BF7.jpeg F990D4A8-CDA3-4BD0-801C-52B3D068CCBD.jpeg

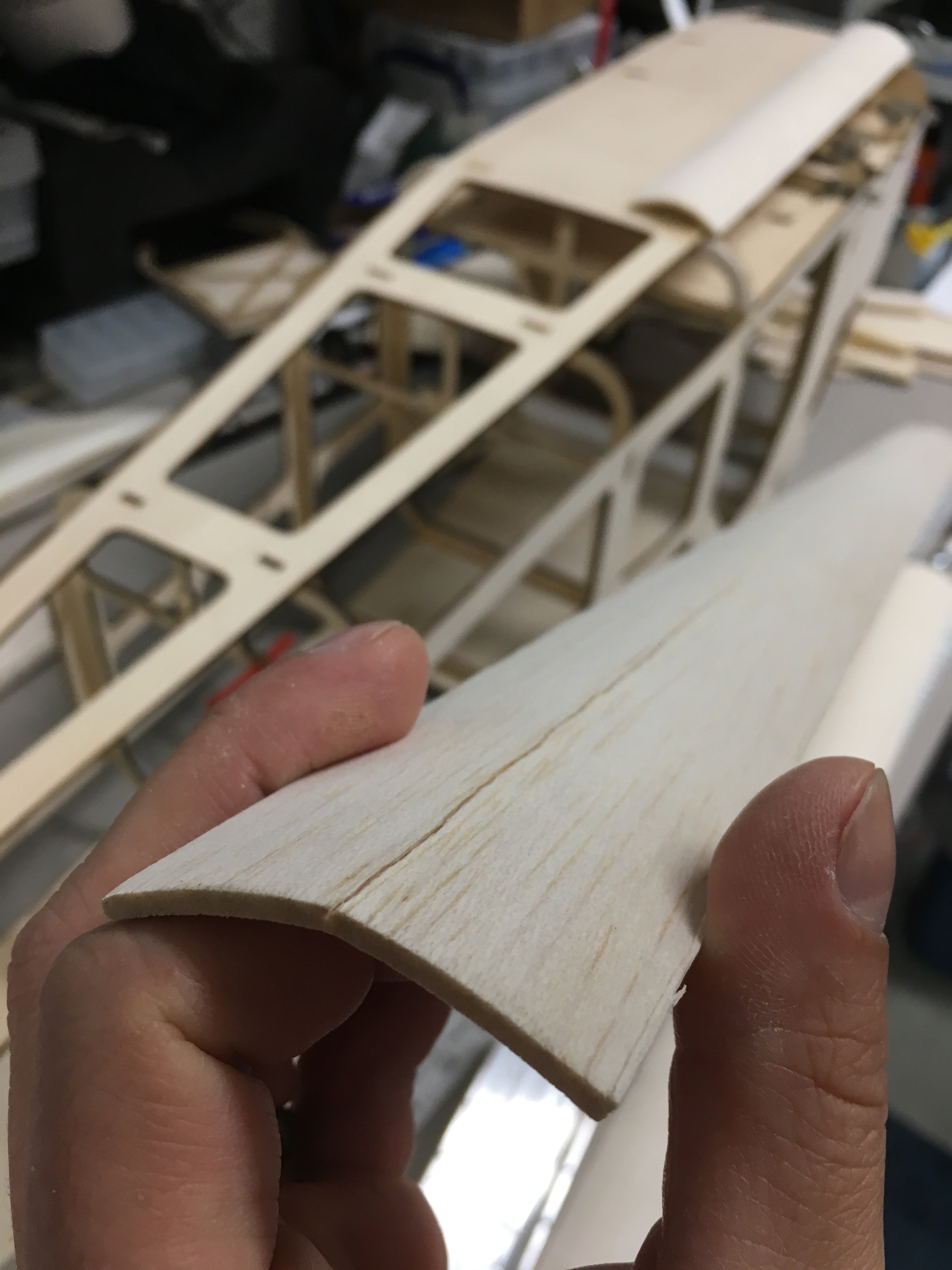

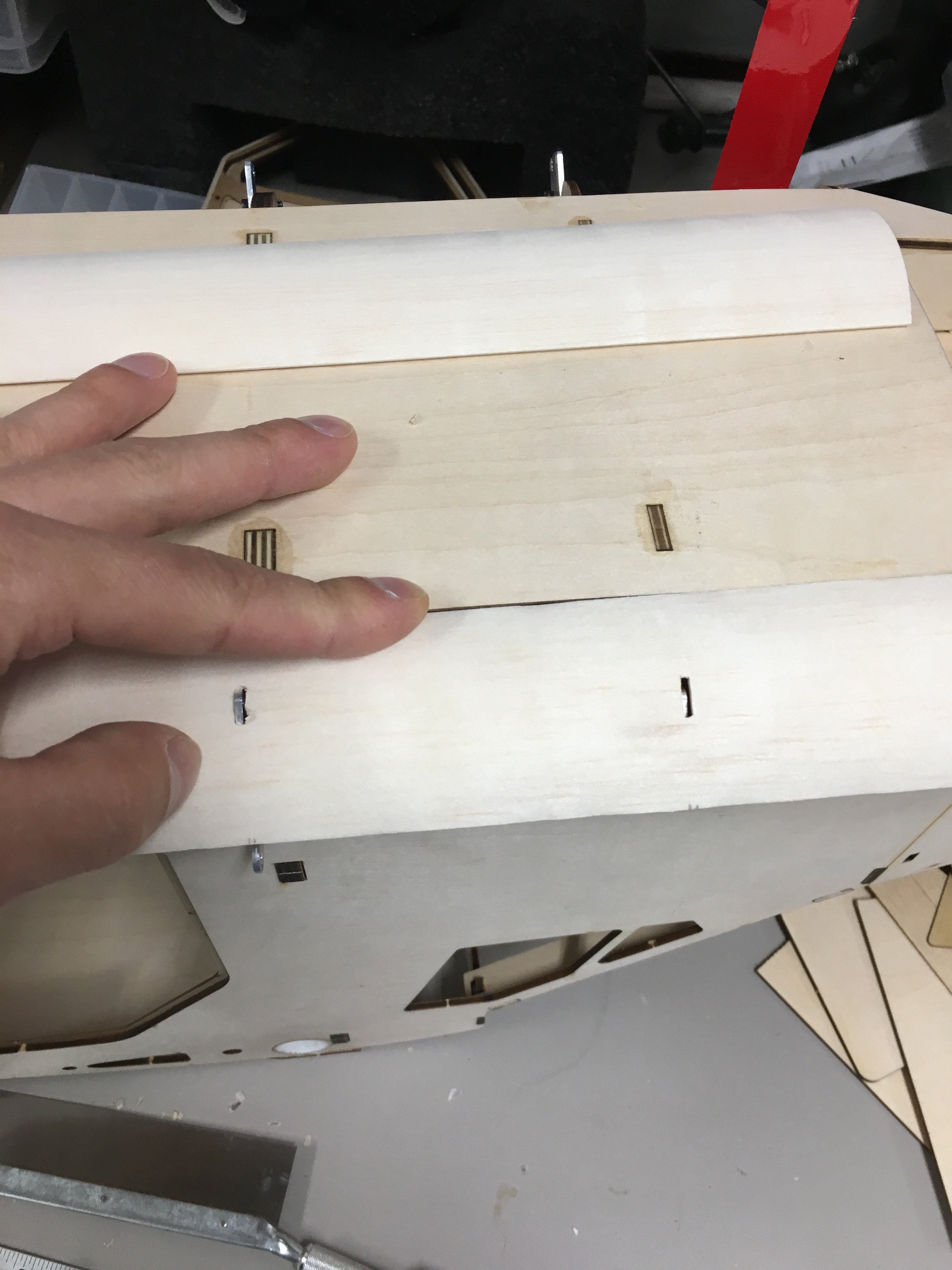

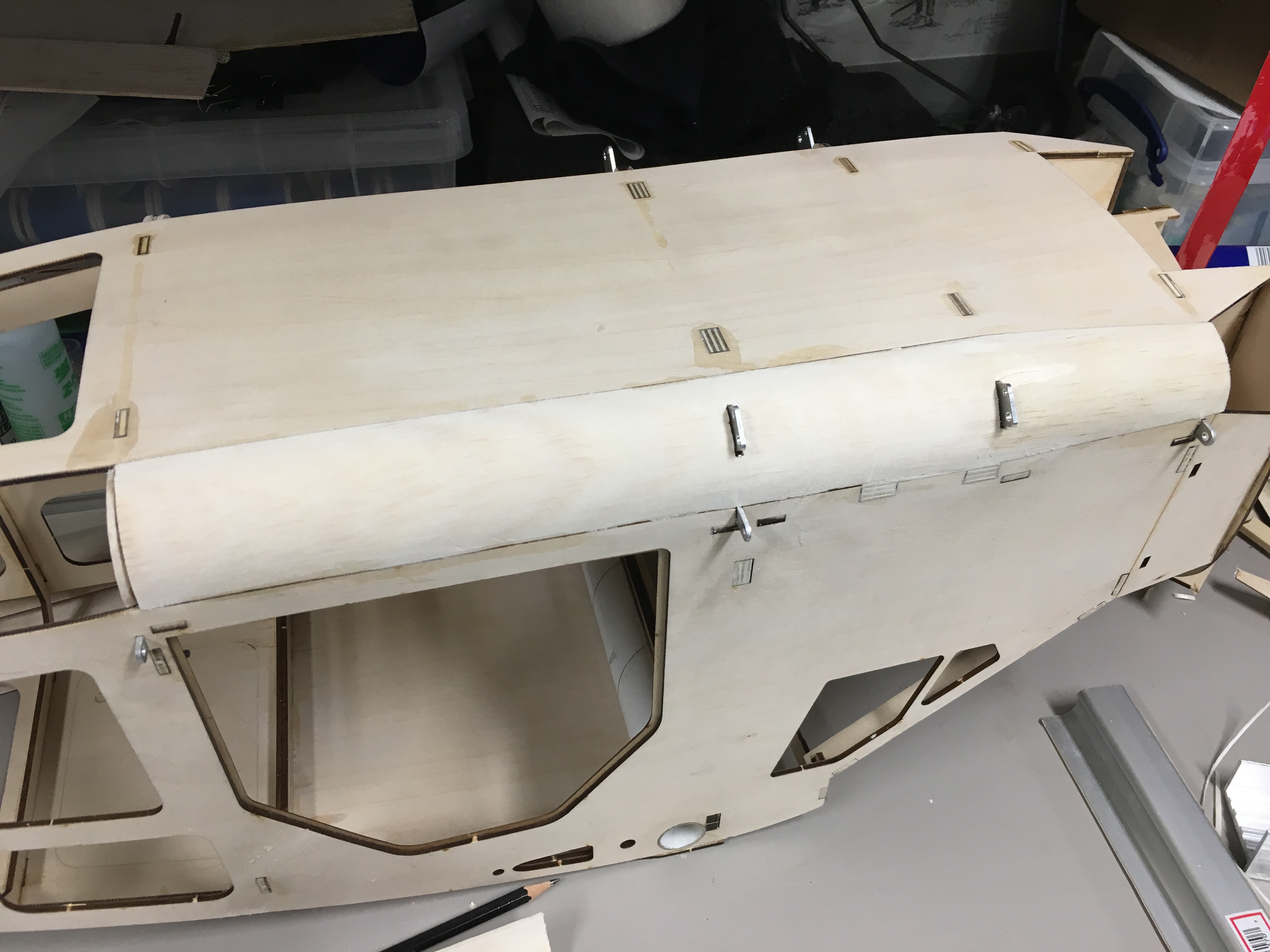

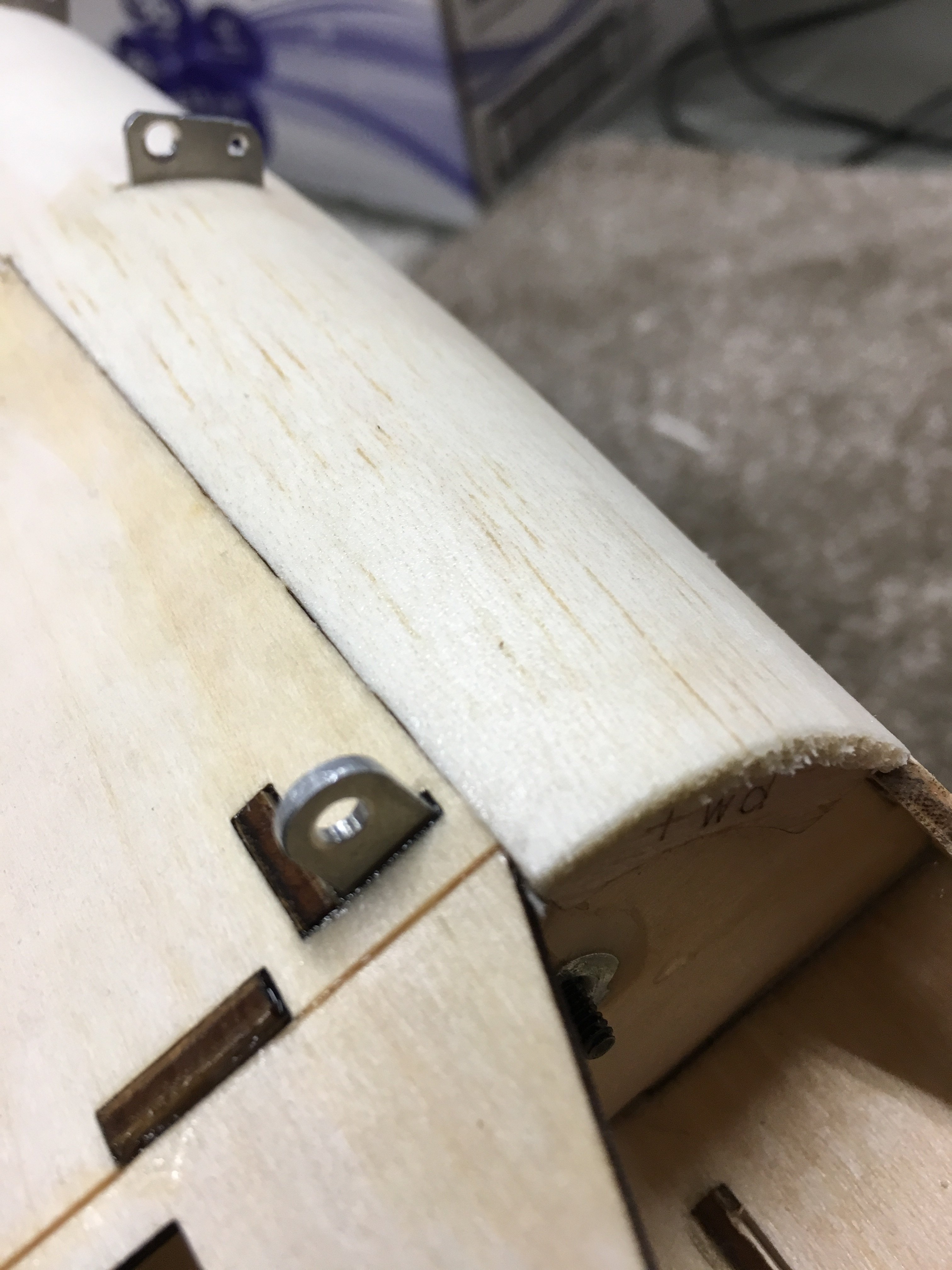

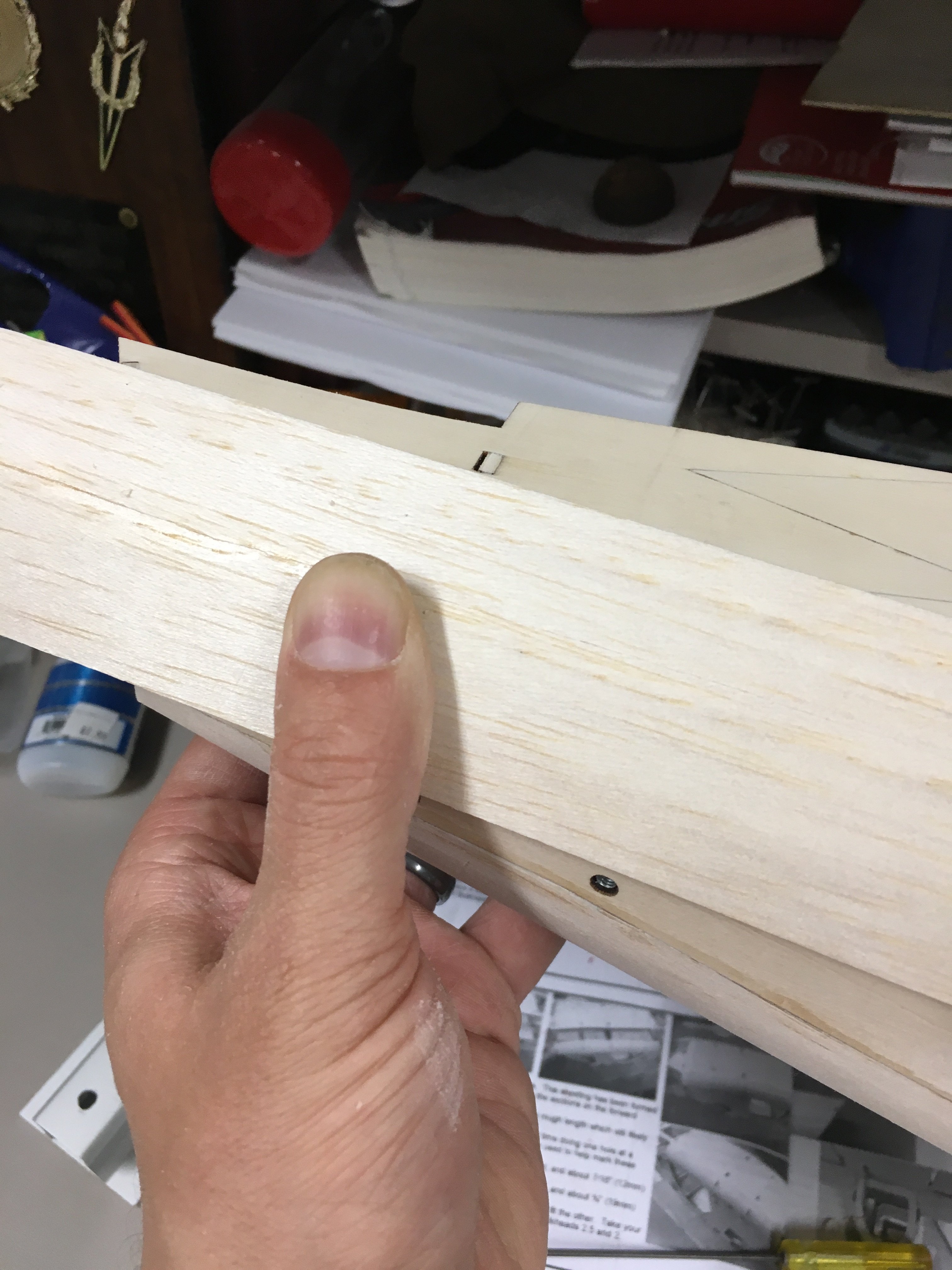

I glued everything down except the upper forward side and end. Here I soaked the balsa to allow it to bend with the radius without cracking. I was looking at the manual and even noticed a crack from the fitting to the radius. Mine started to on the first sheet, but was able to not make it crack too far and then proceeded to wet it.
41B2E947-3BAD-4D0B-BDEC-300002017C48.jpeg 3B0E47DC-38F9-42F8-A9E9-A97BD5075923.jpeg FF1A2FD1-A5B4-4AFD-BF8E-5EB805ECEDC2.jpeg

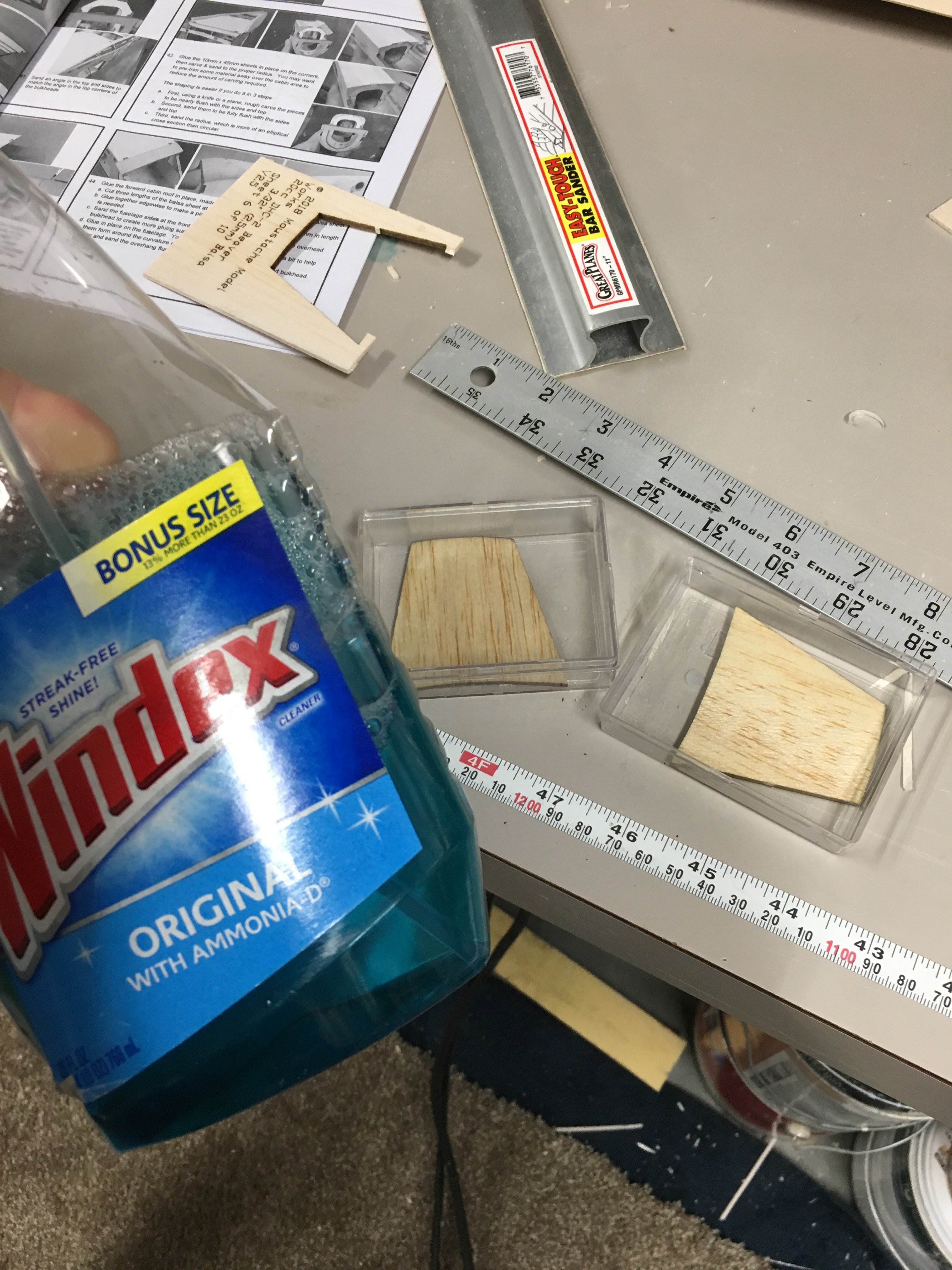

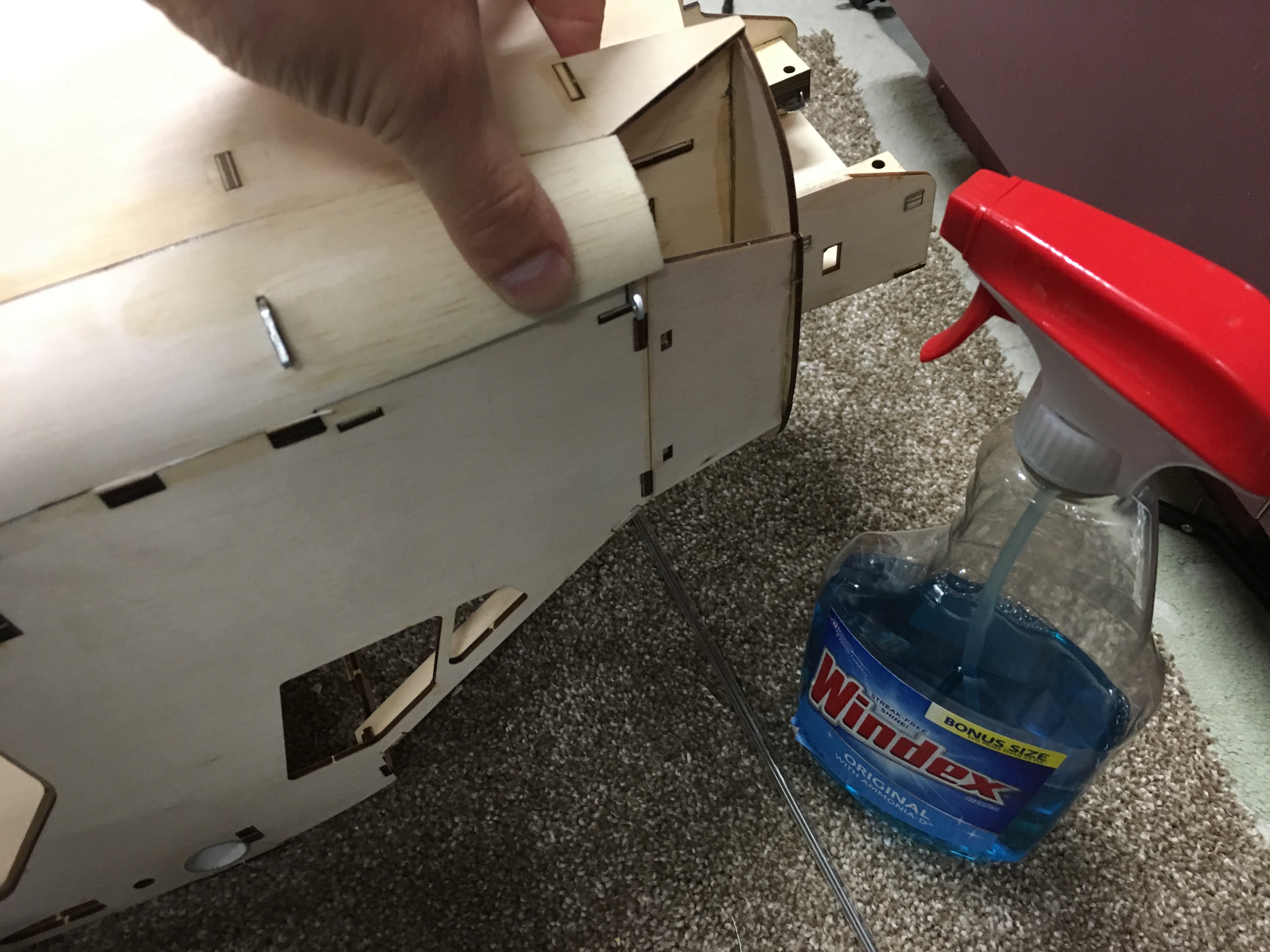

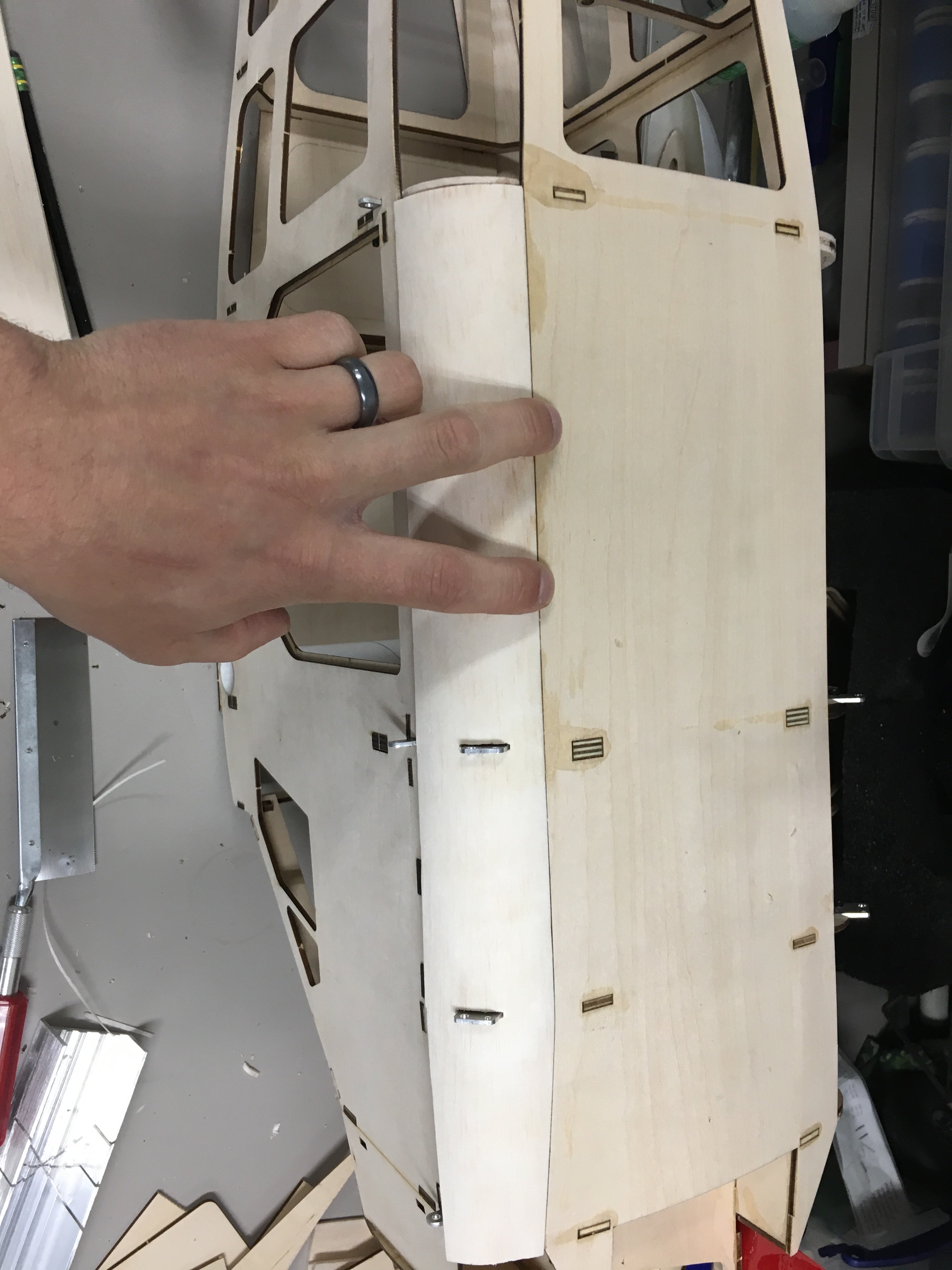

For the forward cheeks I soaked them in windex (with ammonia in it) and they were able to bend like a wet noodle.
Fun fact, CA will cure to the wood in a wet environment no problem.

Worked great for me.


AKNick

640cc Uber Pimp
Fitted and glued in the lower aft corner skins. They fit pretty nice, I had to wet one to get it to make the bend without cracking.

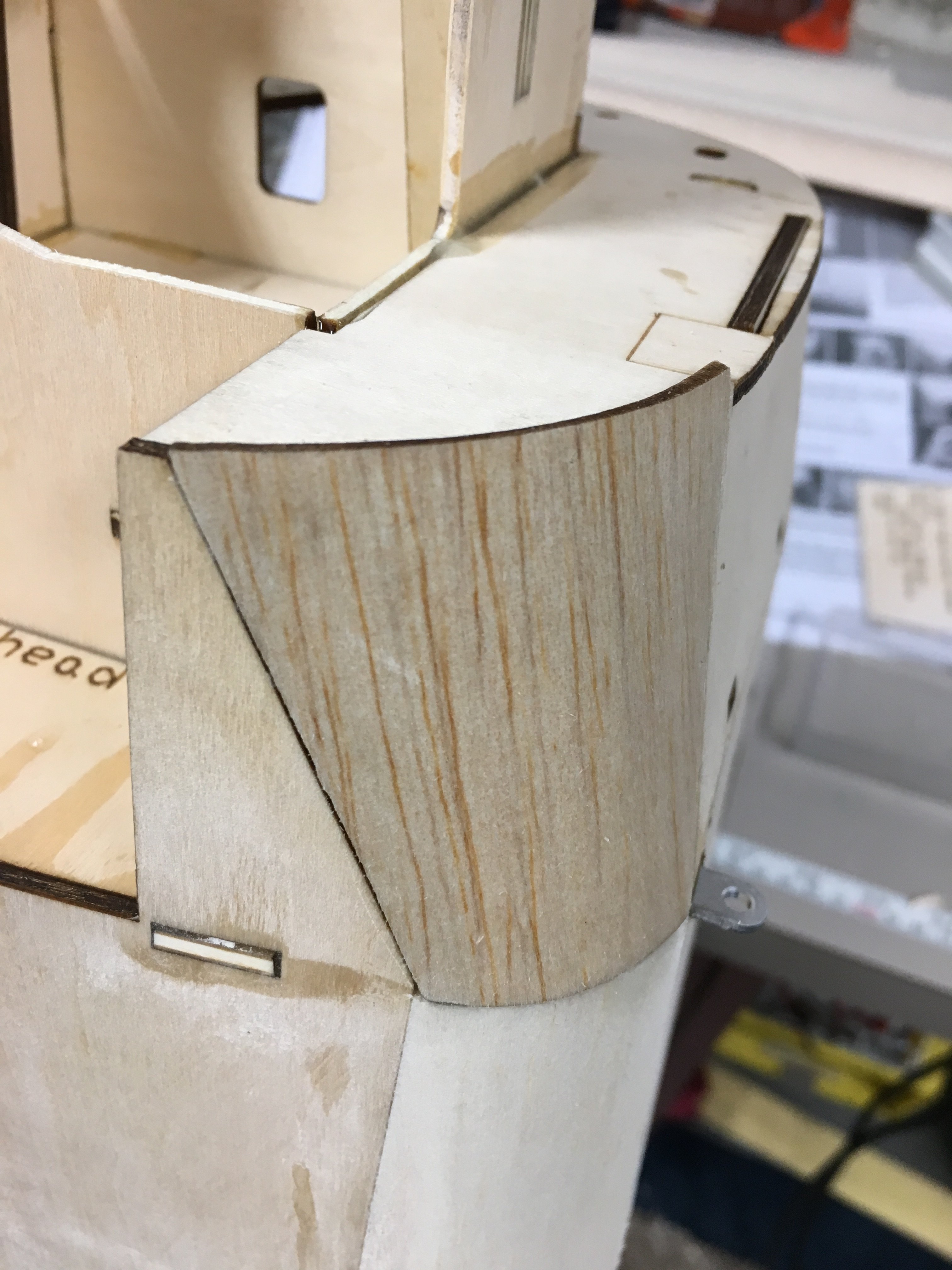

The fuselage top corners is part of a balsa tree. You start by sanding the plywood sides to match the bulkhead bevel. Took a while. I need some heavier grit sandpaper to make that job enjoyable... only had 220 to sand ply...

Once that looks good just added some medium CA as quickly as I could and pressed it all in place.

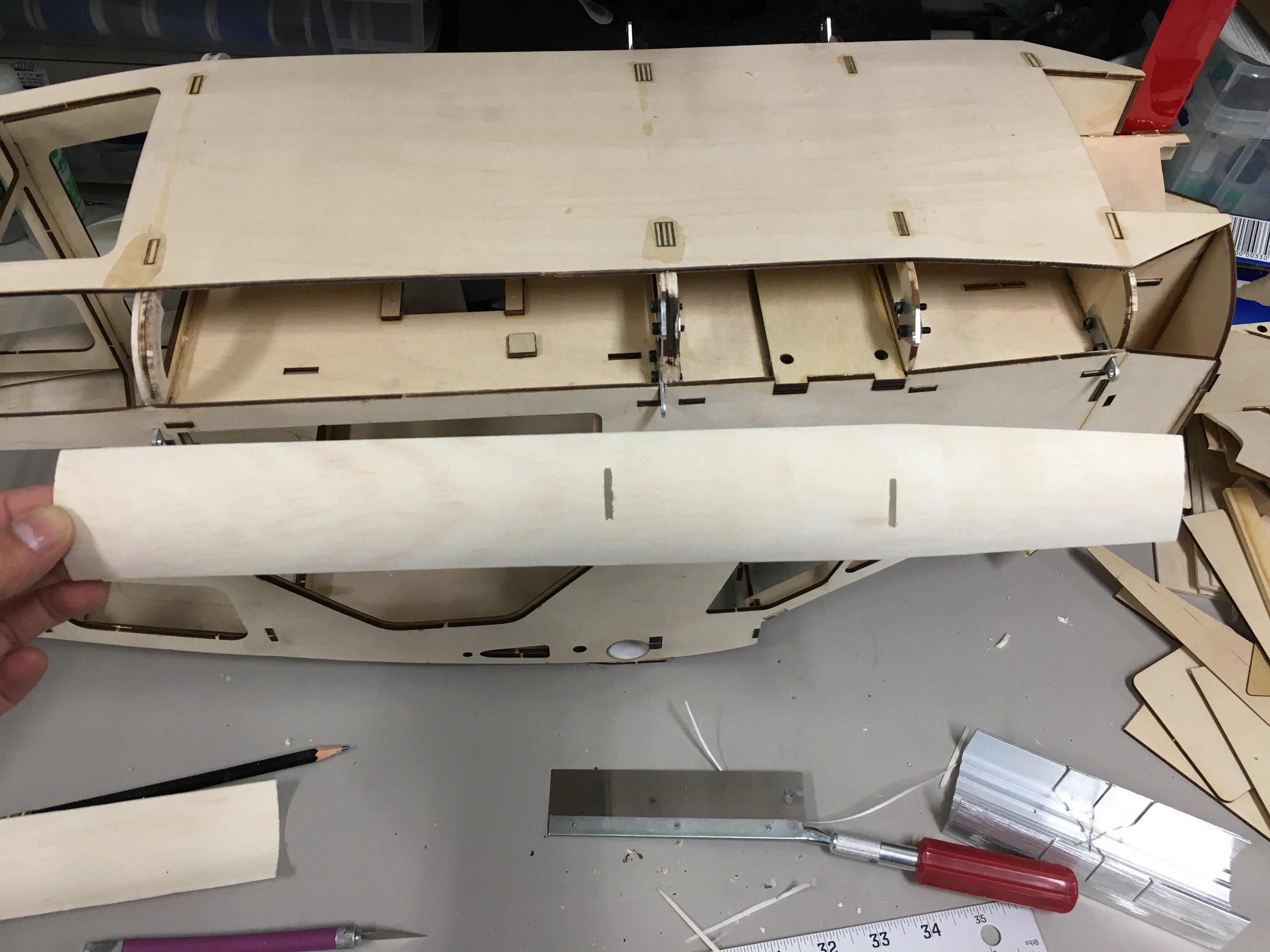

Pressing the sheet to make an indent on the back side to mark and trim to fit

Trimming

Lining up the seams

More trimming

Bottoms up! I’m mean done!

Top right corner beveled to match the bulkhead91593CED-39FB-4E97-9689-28FB7D6AF9B8.jpeg

Balsa tree in place

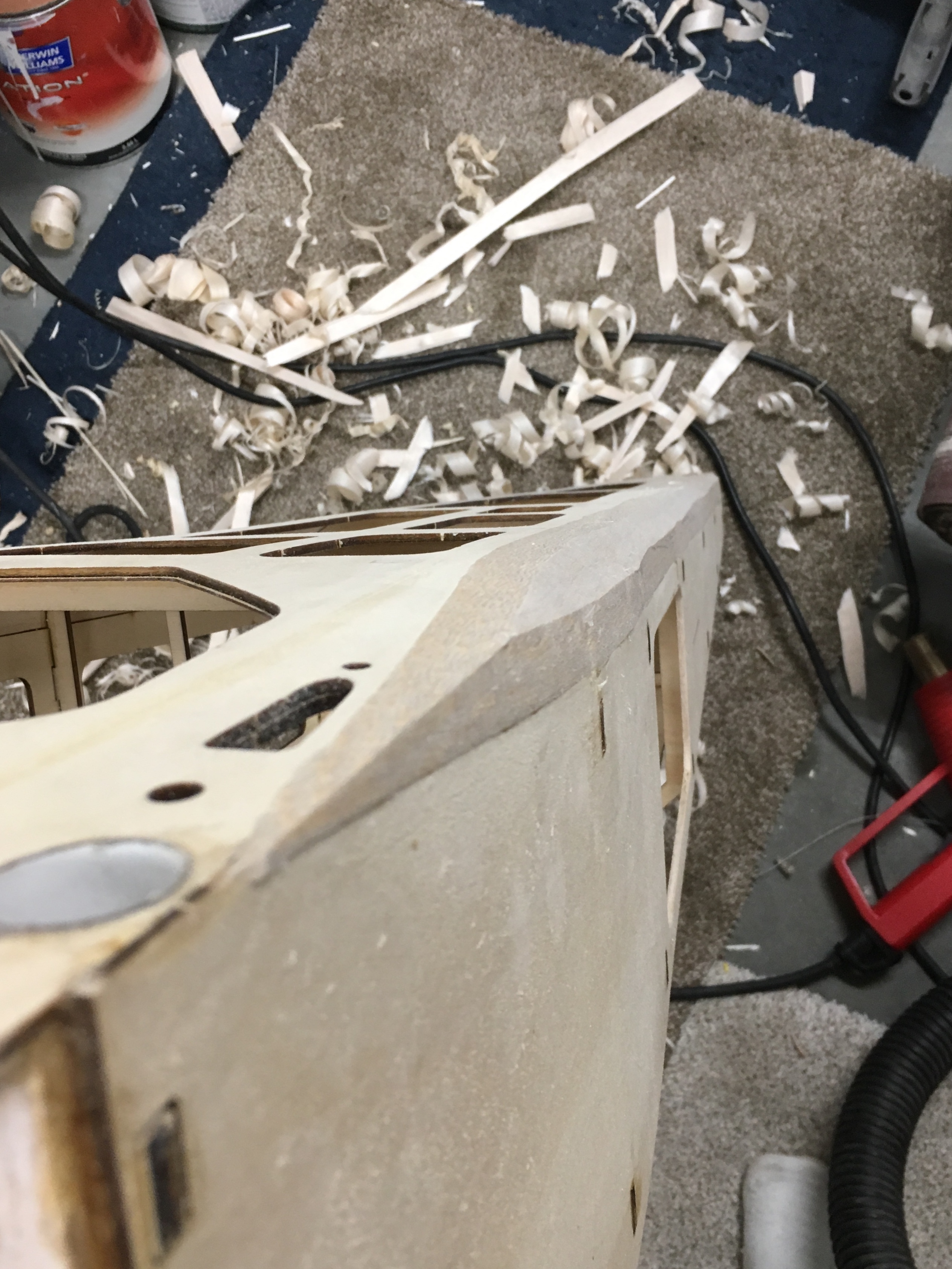

Most of the balsa carved off the tree I just glued

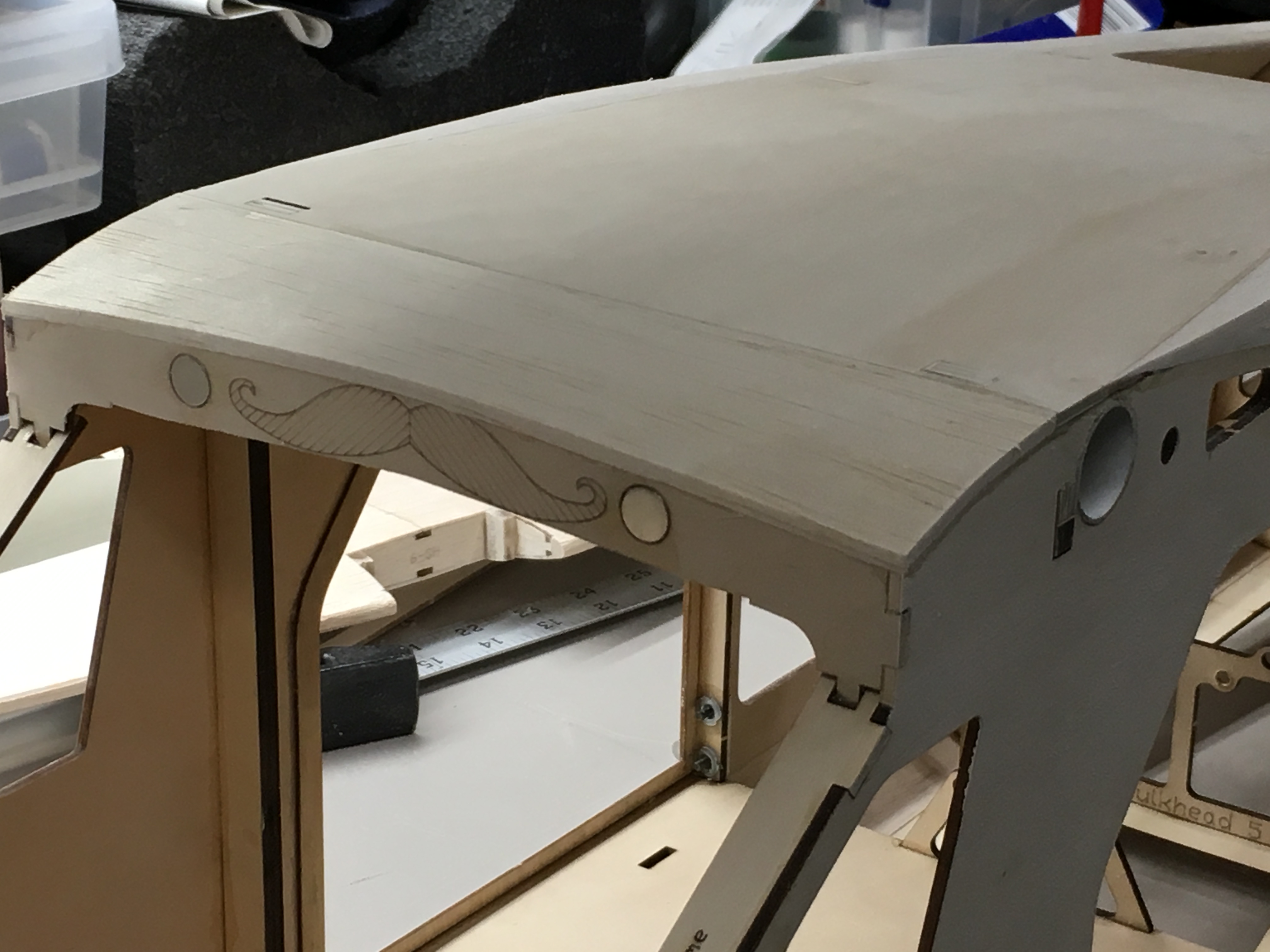

Ready for shaping the top corners, looking mighty fine at this point.


AKNick

640cc Uber Pimp

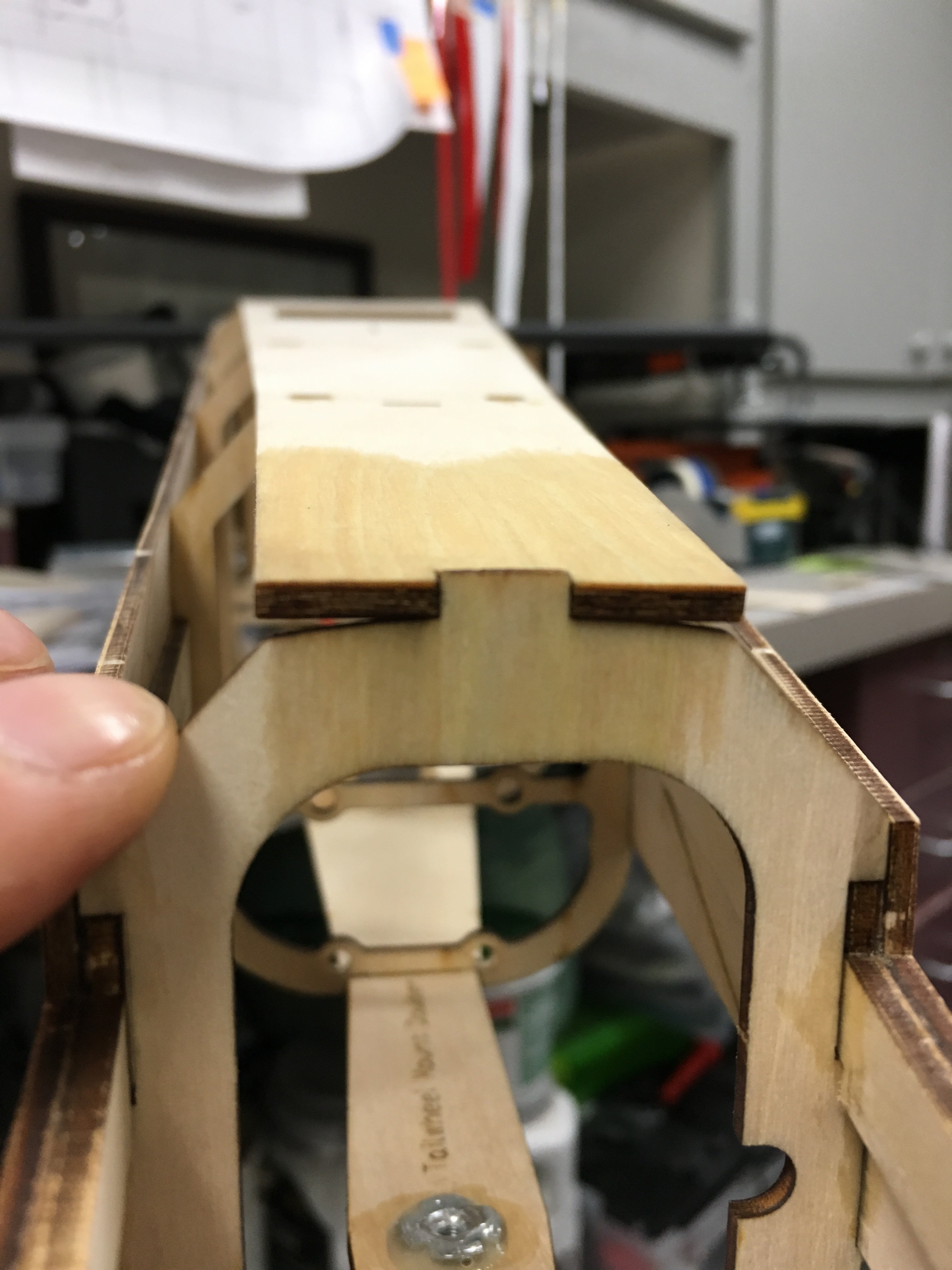

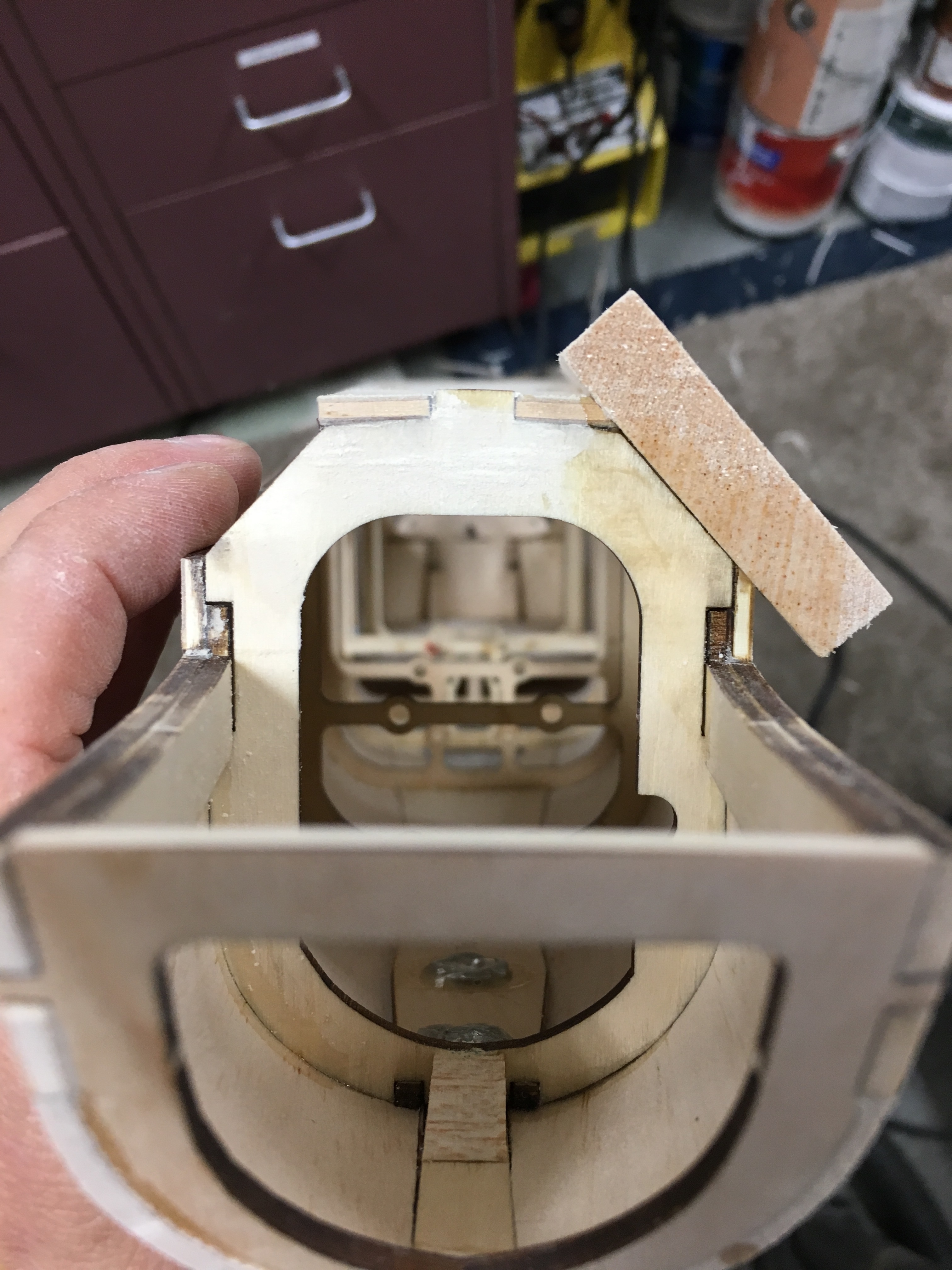

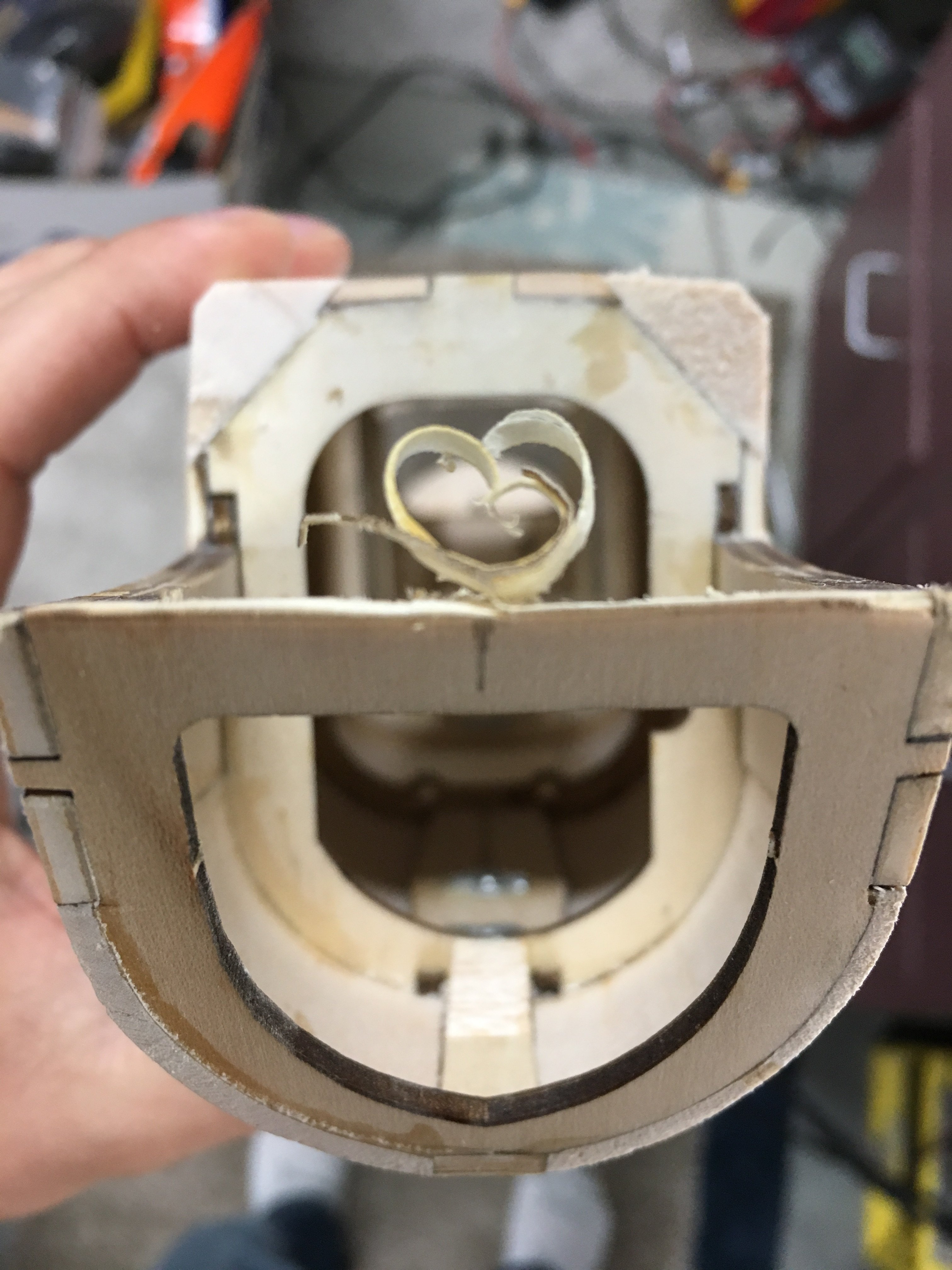

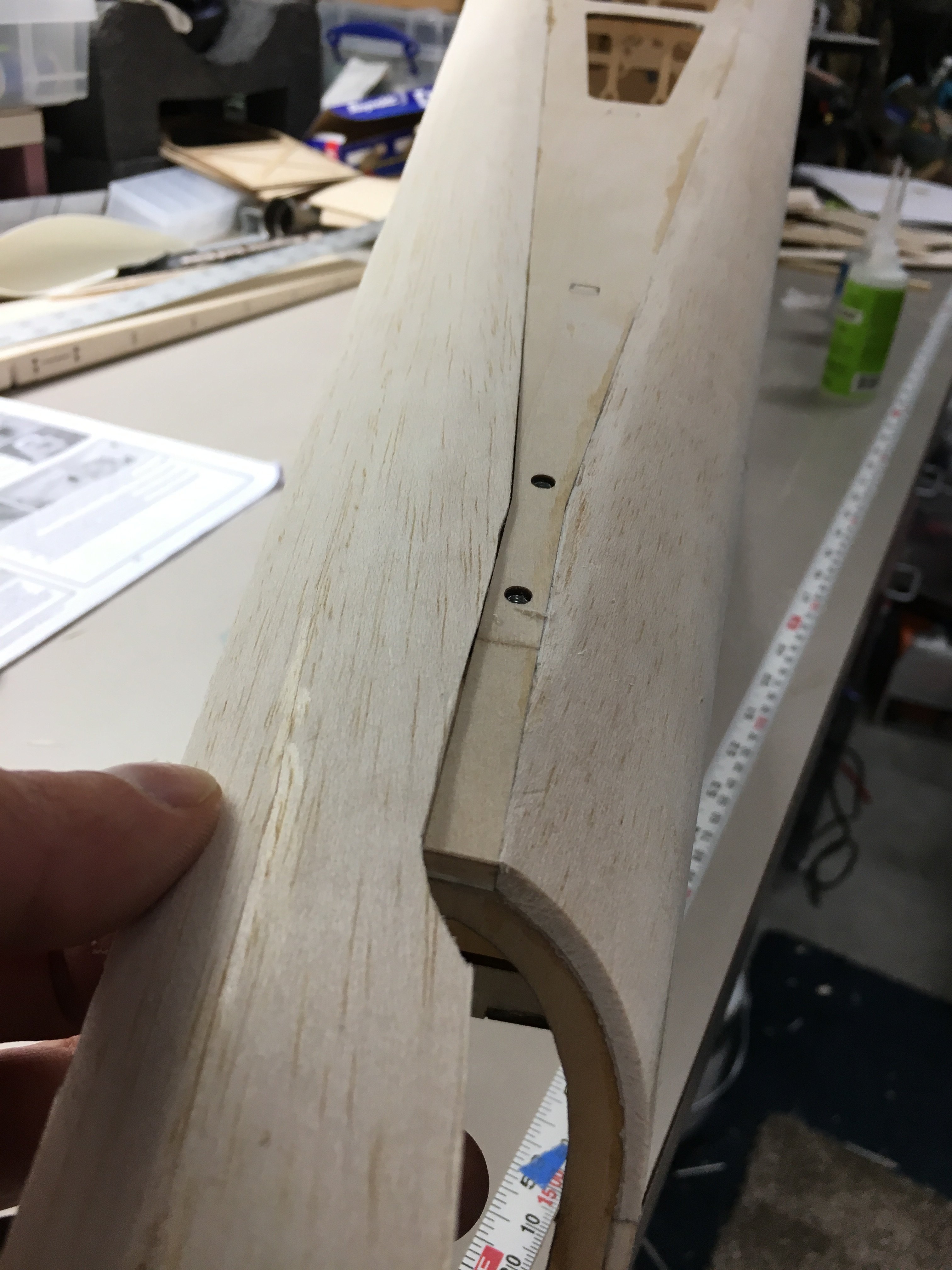

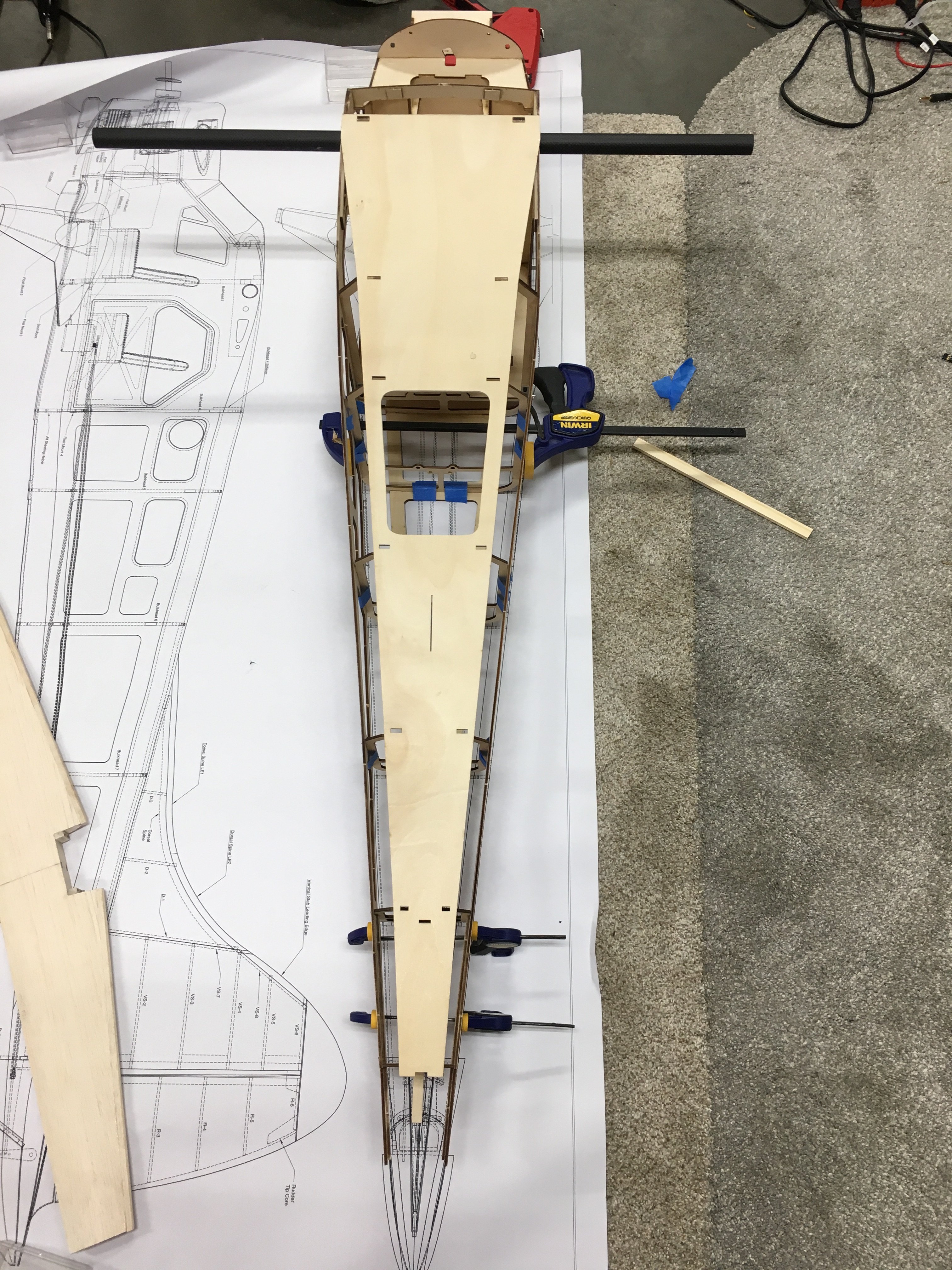

Manual has you bevel the horizontal mount plate to match the airfoil.

Awe look a heart
03087BA0-7C4B-47FD-BF7E-83D61728D08B.jpeg 99A393F3-DDAA-470C-93D4-85ACF05C8C3E.jpeg

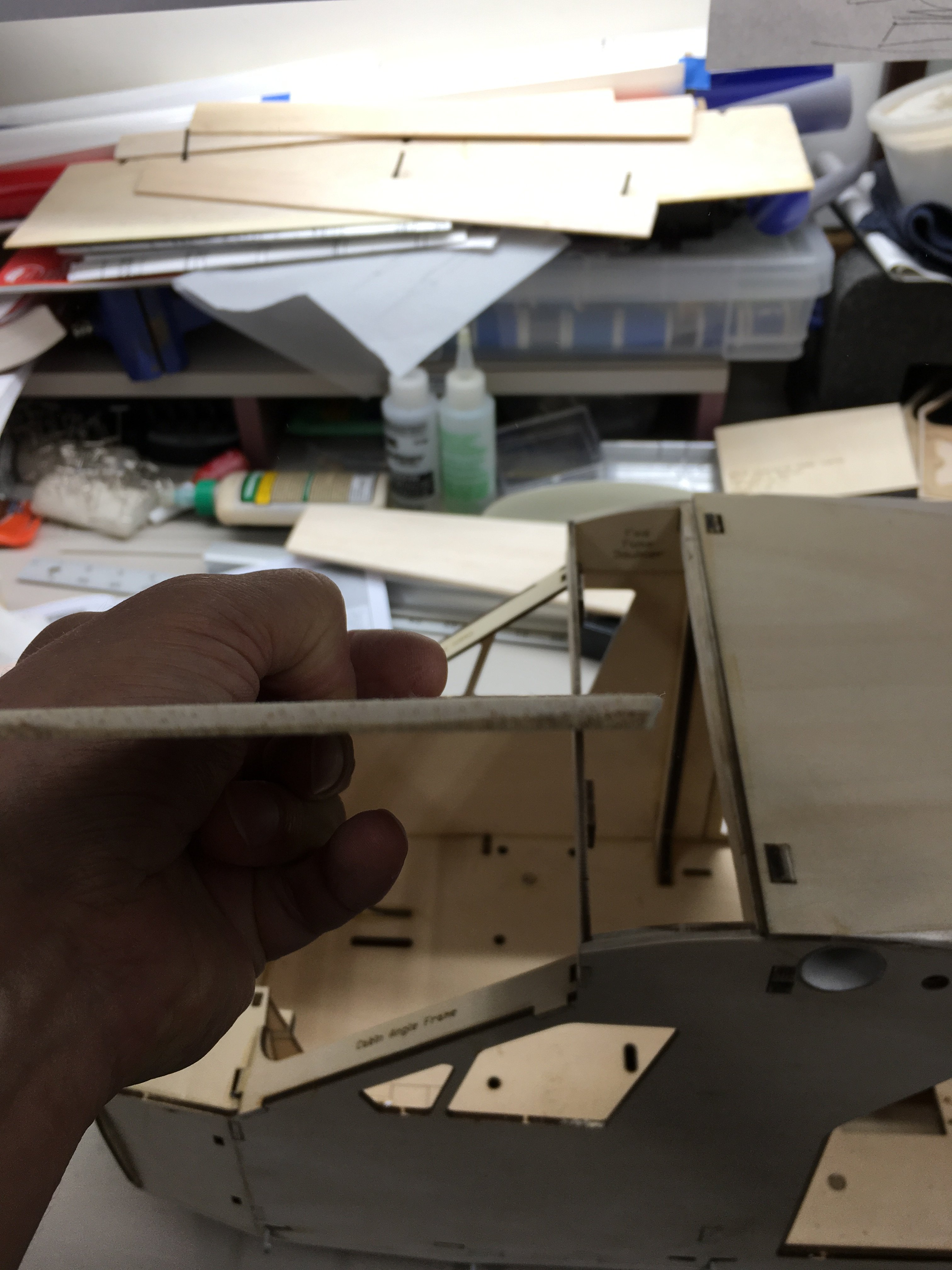

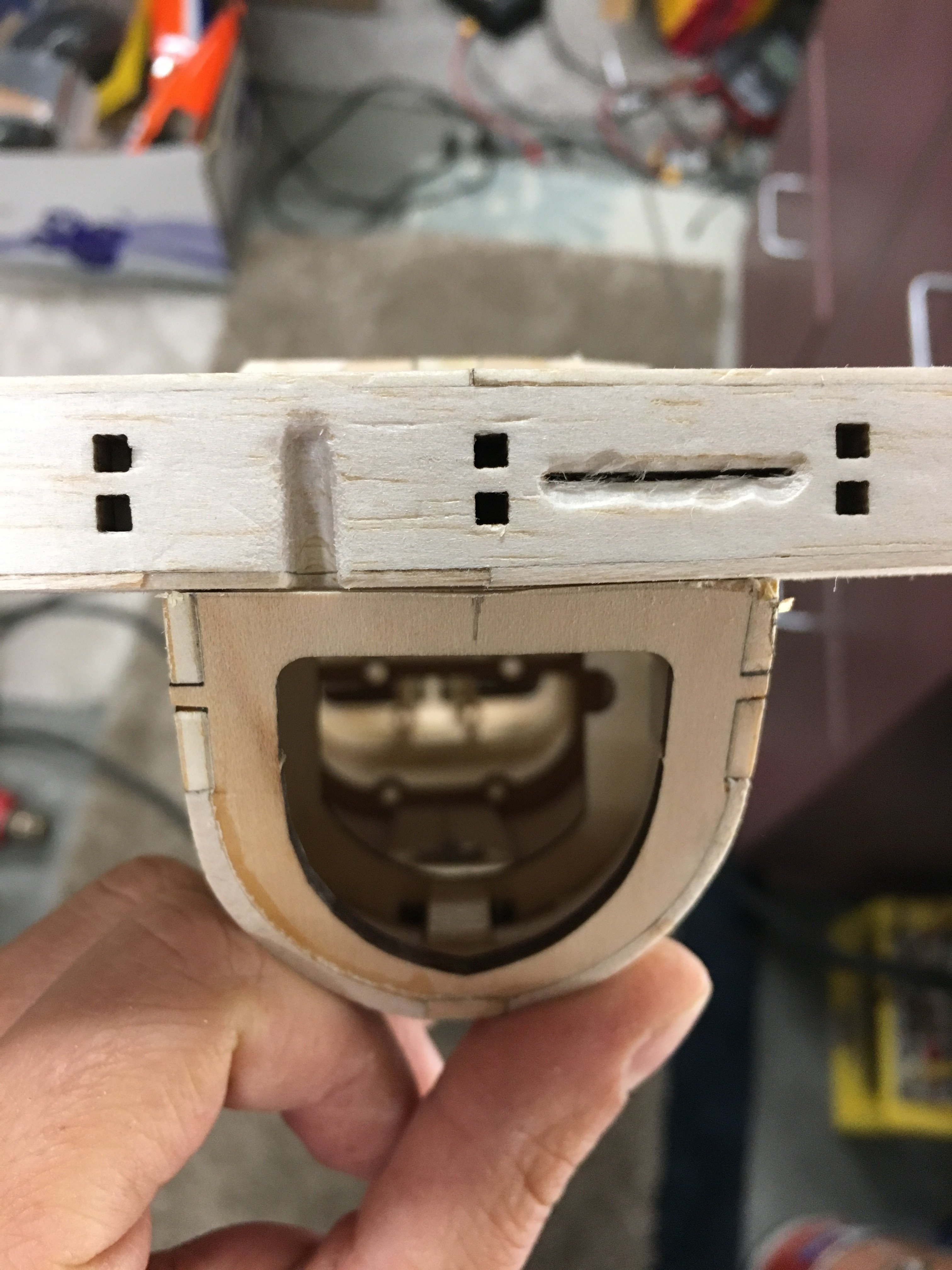

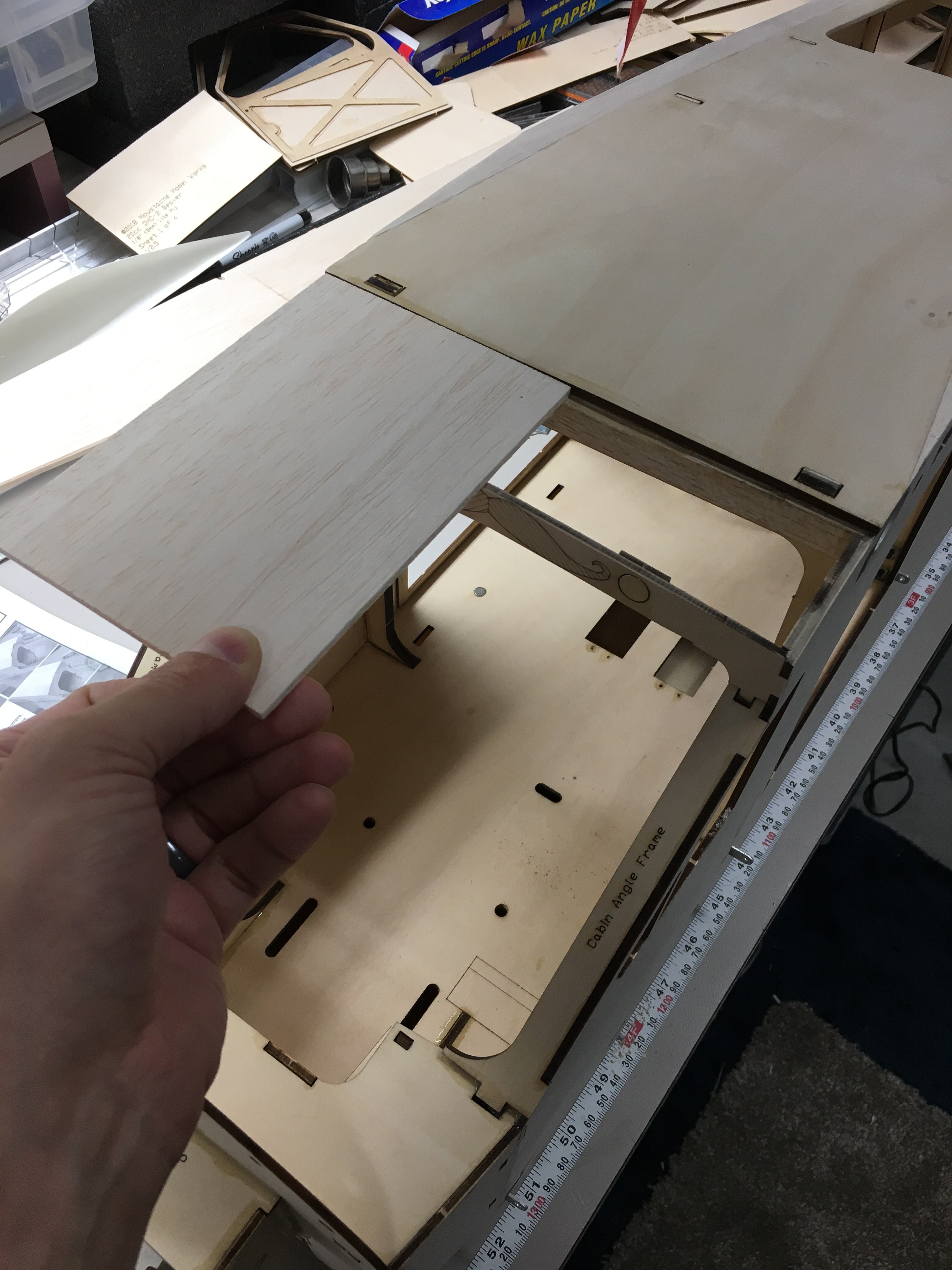

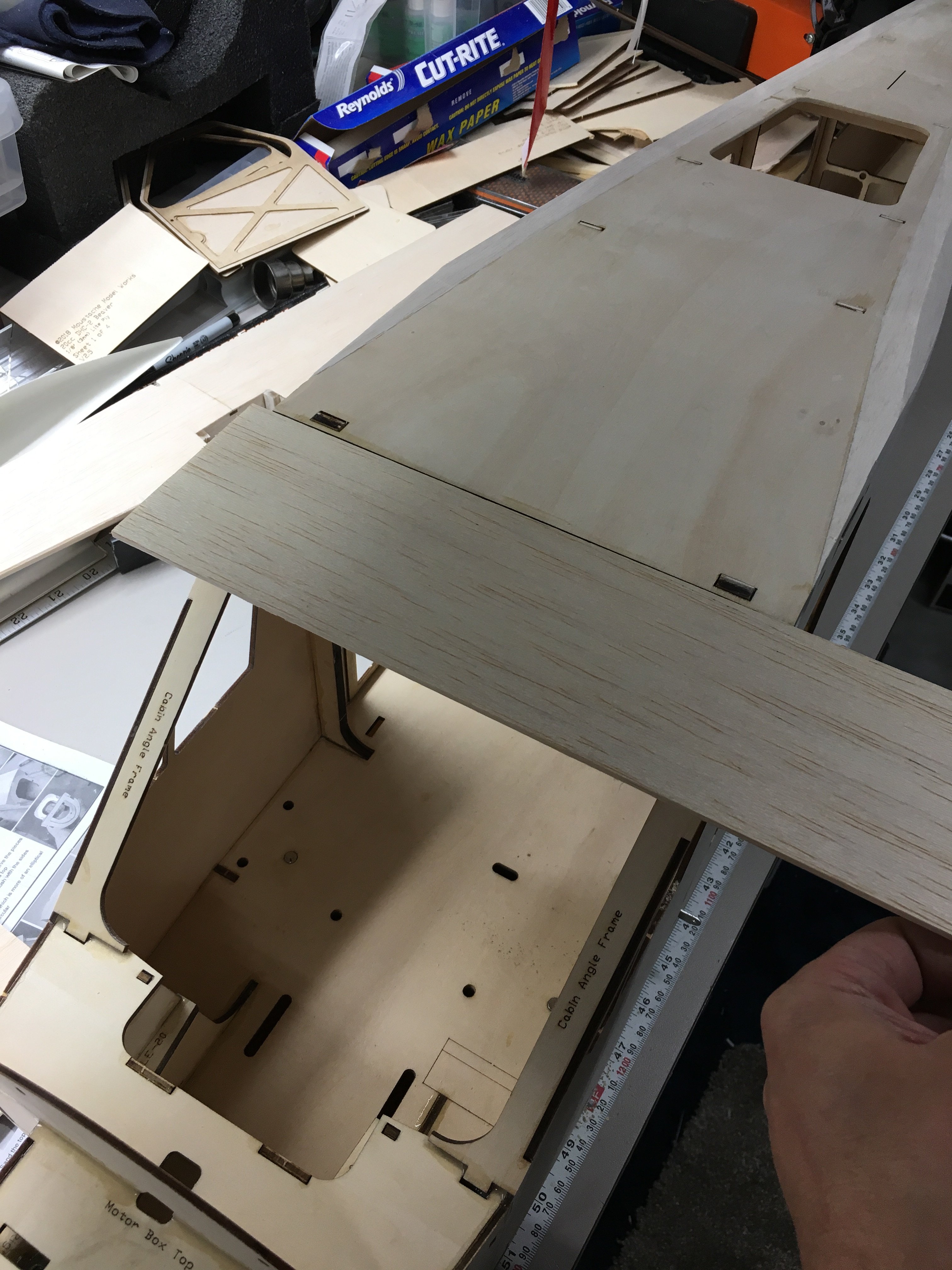

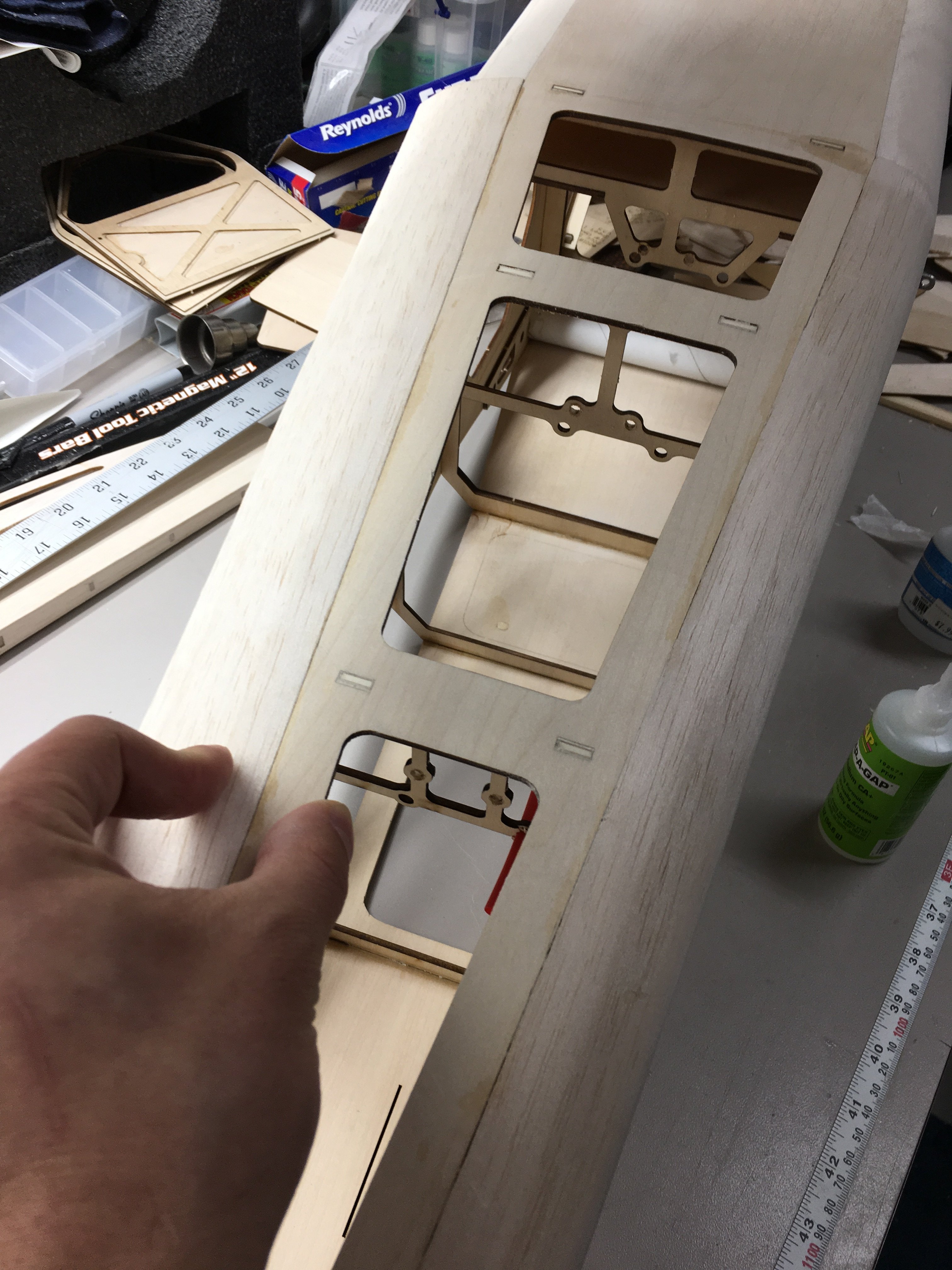

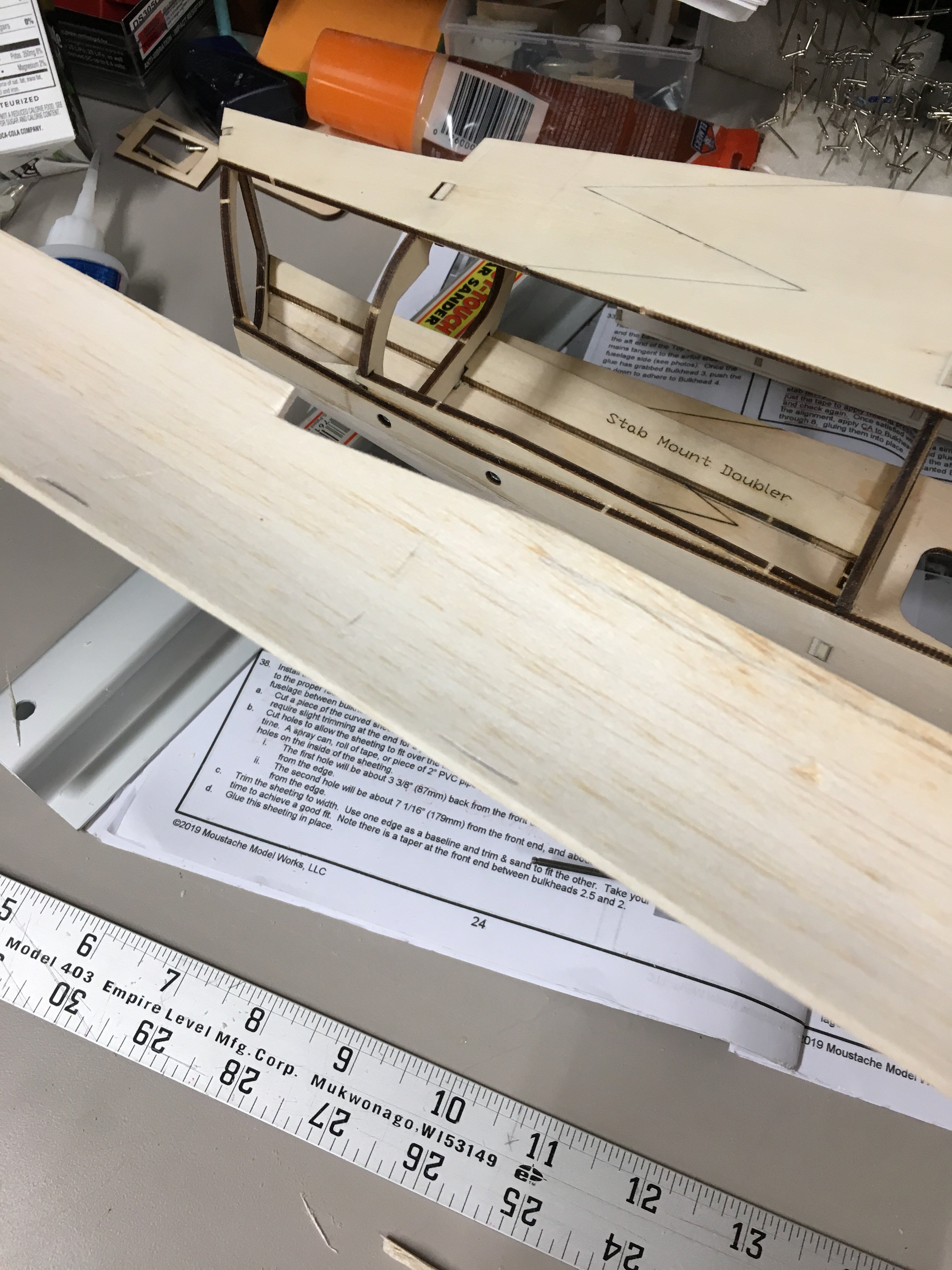

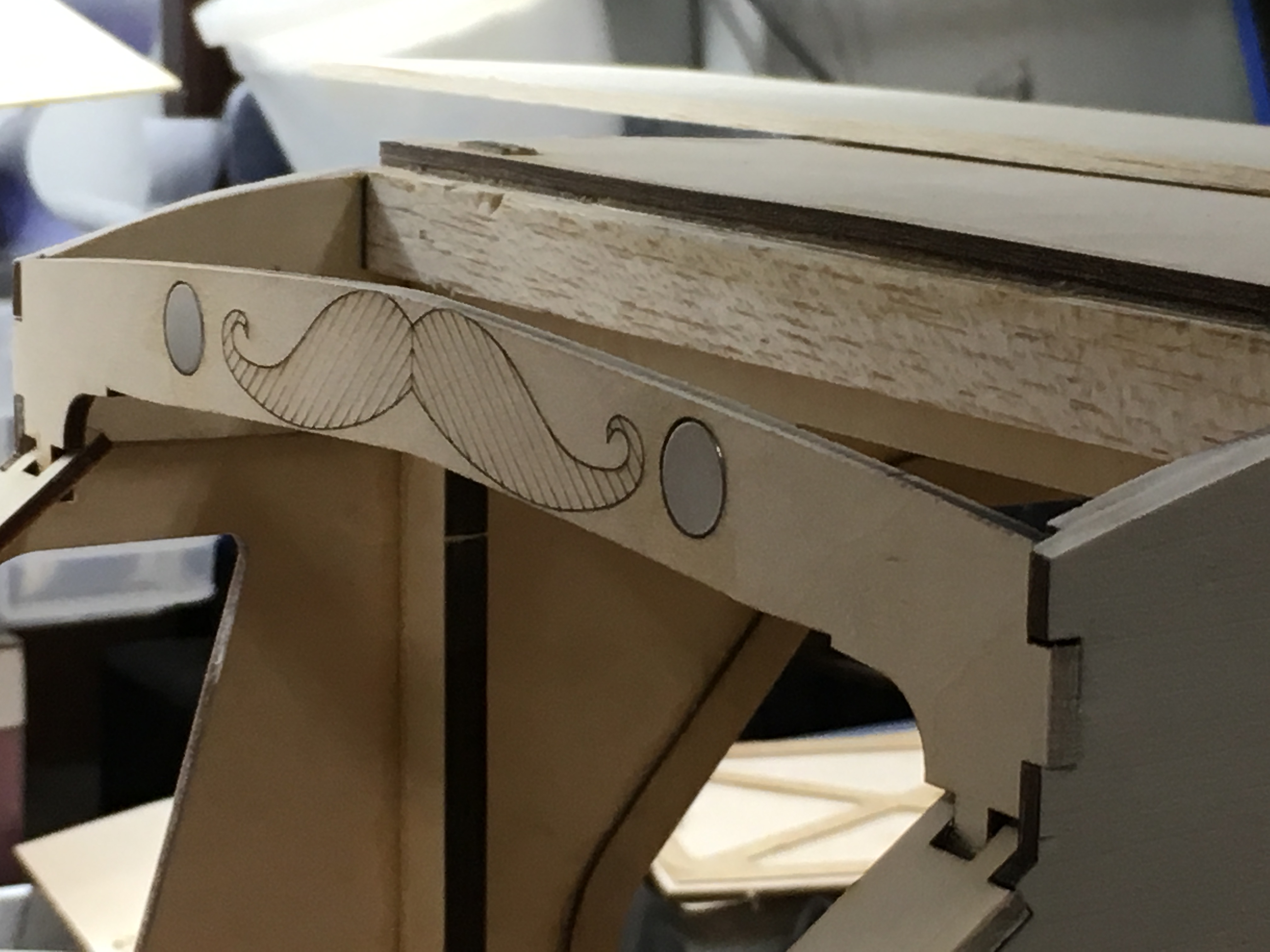

I’m guessing the manual wants you to use scrap balsa grain forward. But I decided to use a single sheet from my stock and to parallel to the tube.

C679B5FB-654B-4C49-8692-81E505CA0F58.jpeg 1525CD08-3EBF-4B88-A1F5-36C9FE0466C6.jpeg 5F3C3A36-10CB-46F6-97DE-C15D5C25D1A7.jpeg

Slight bevel

Boom

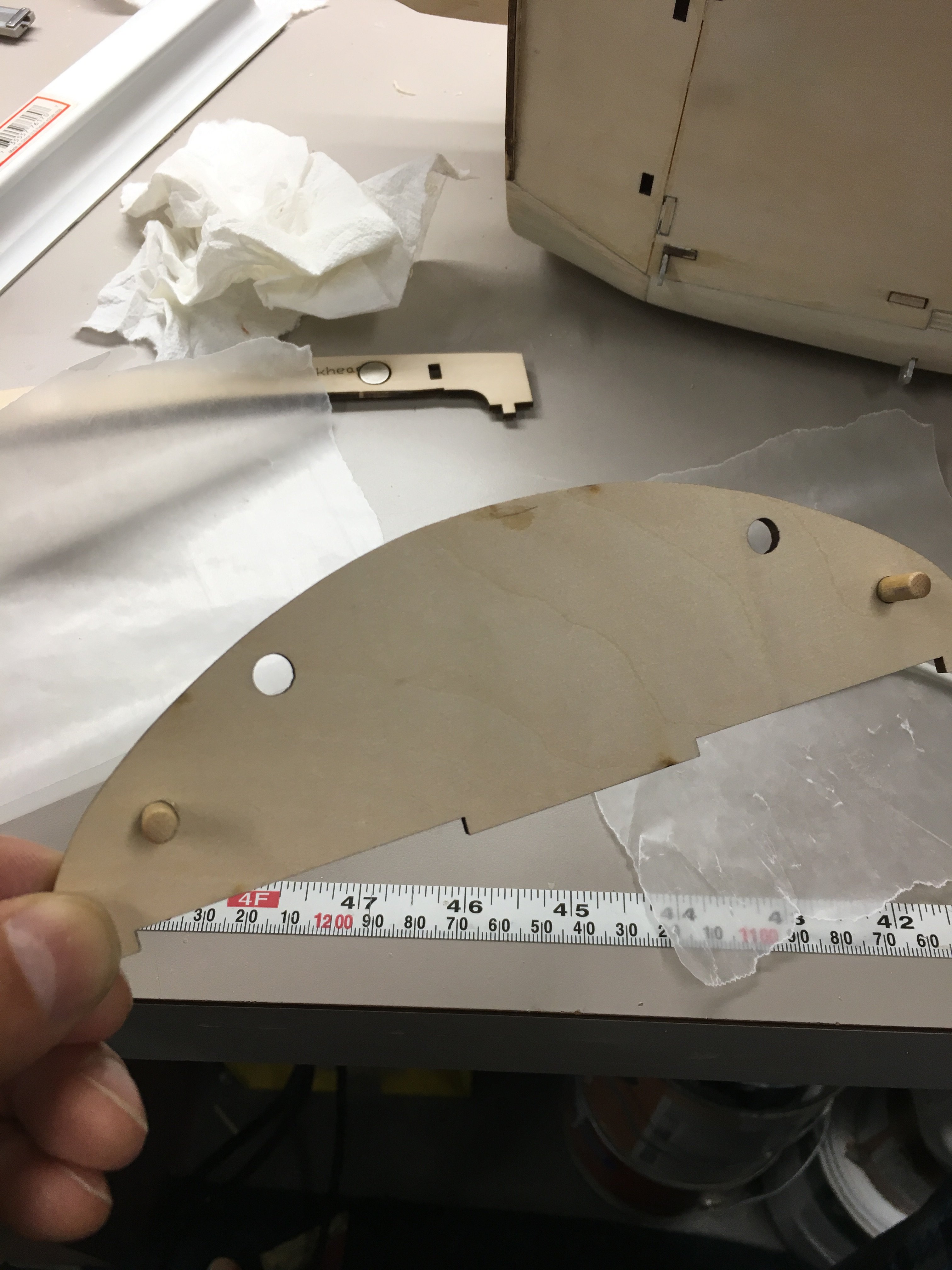

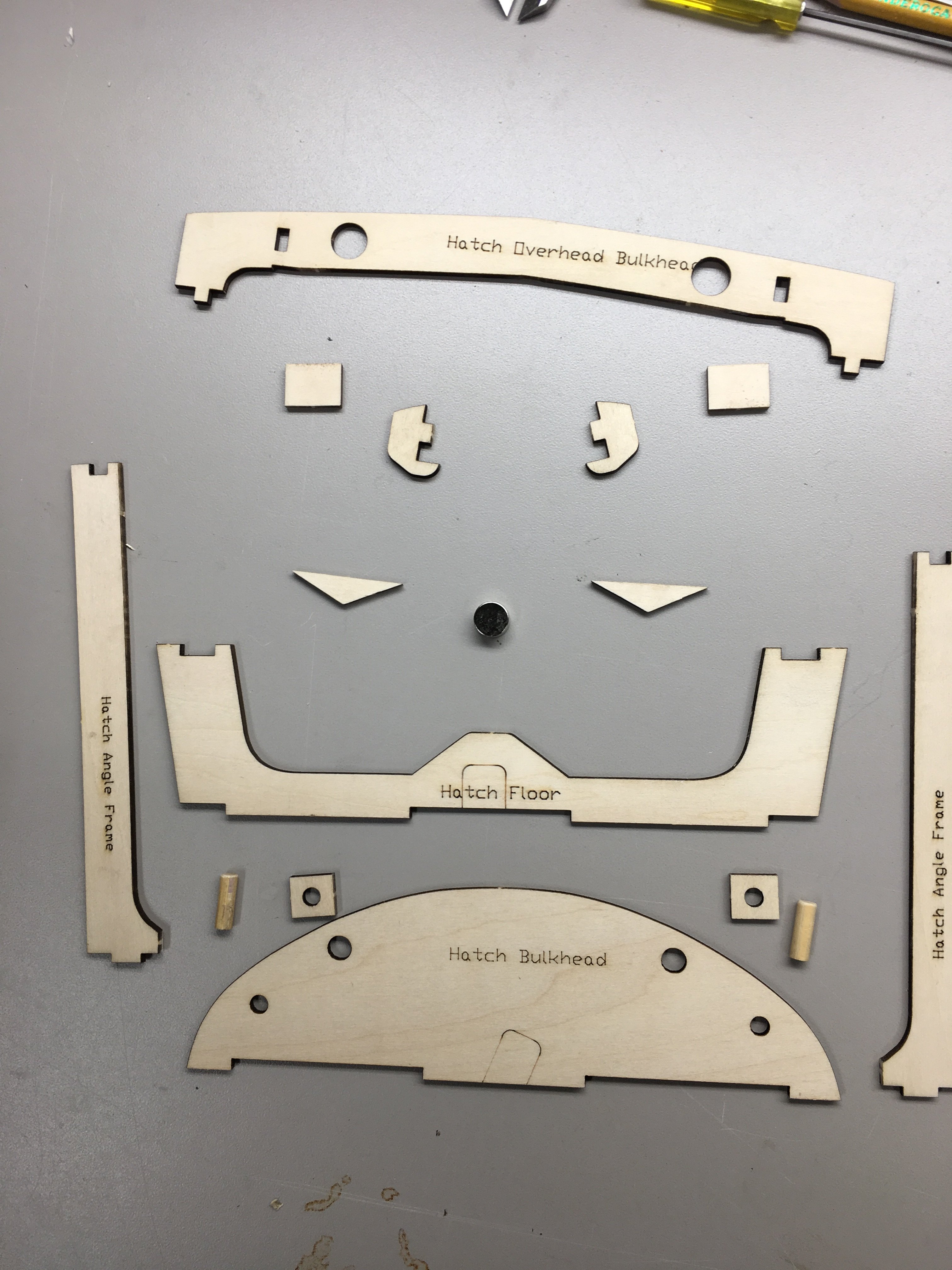

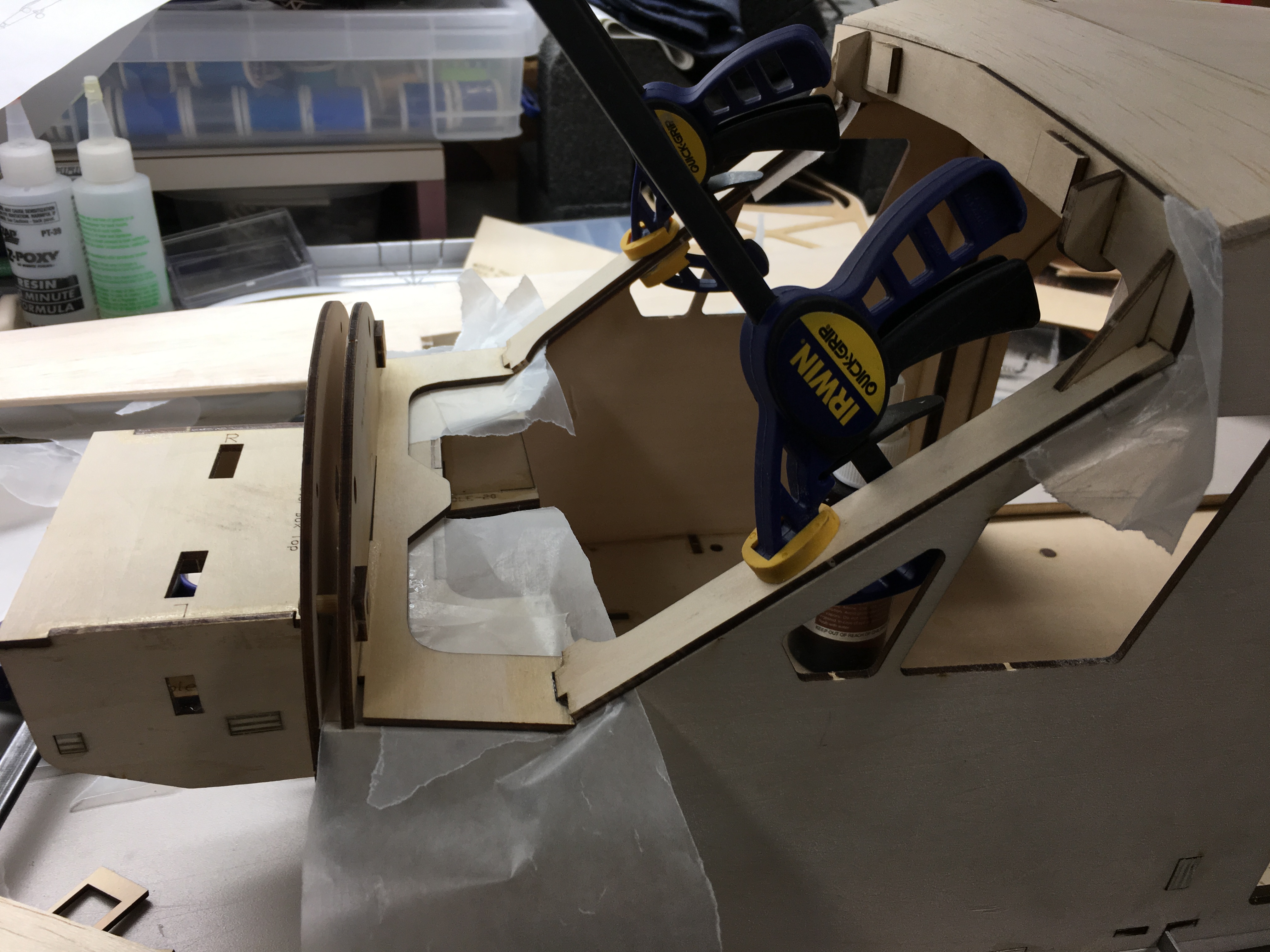

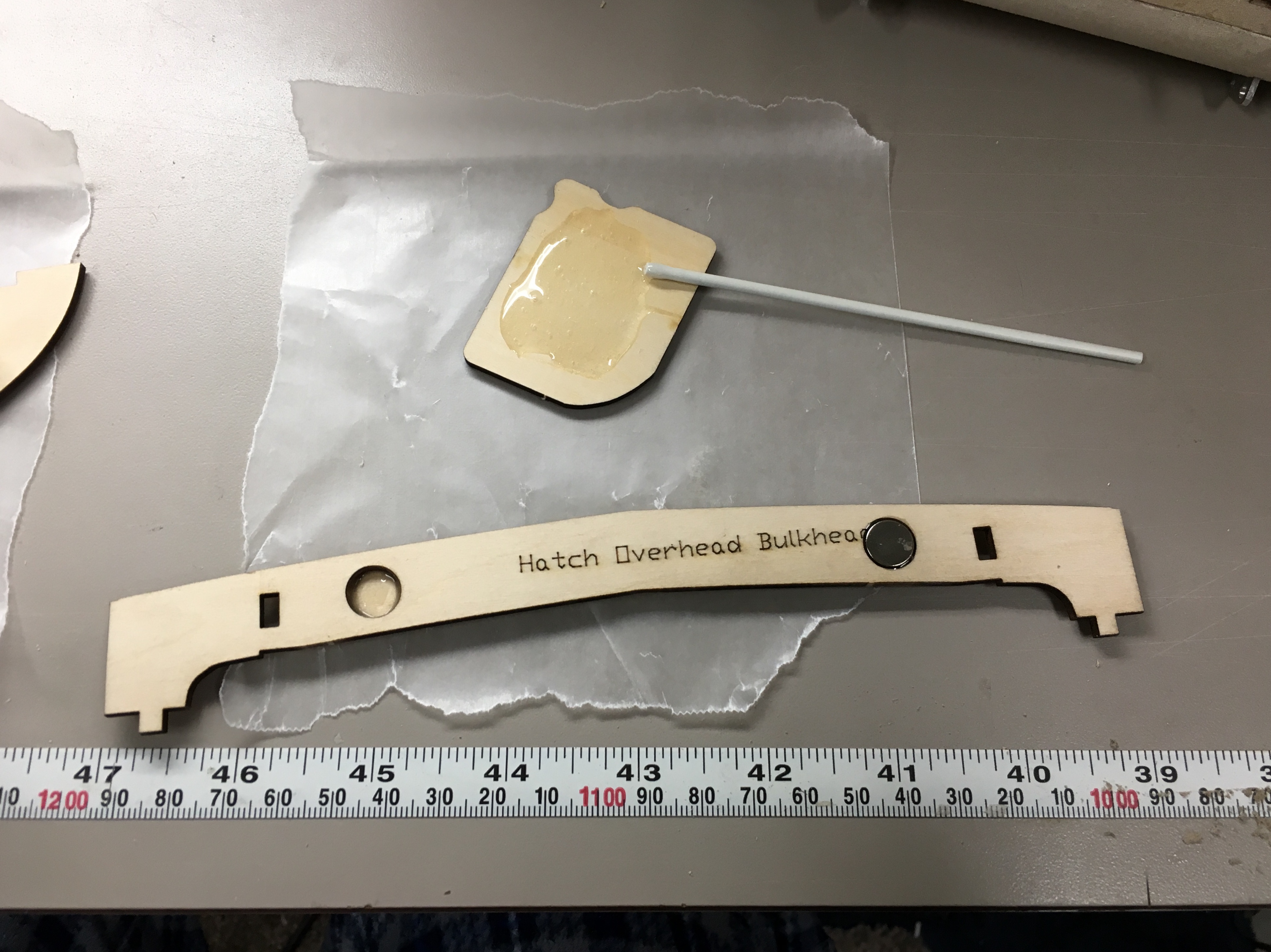

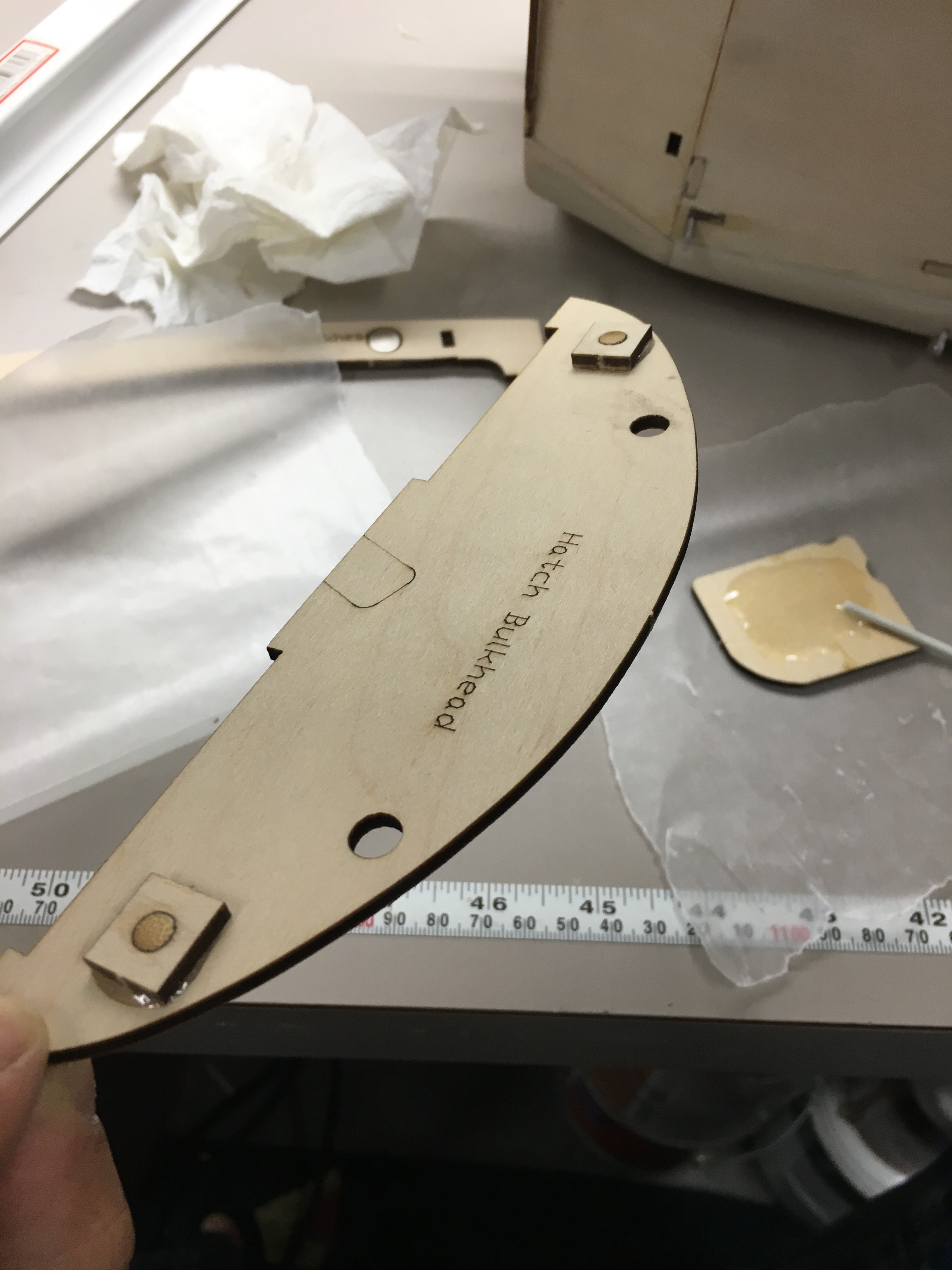

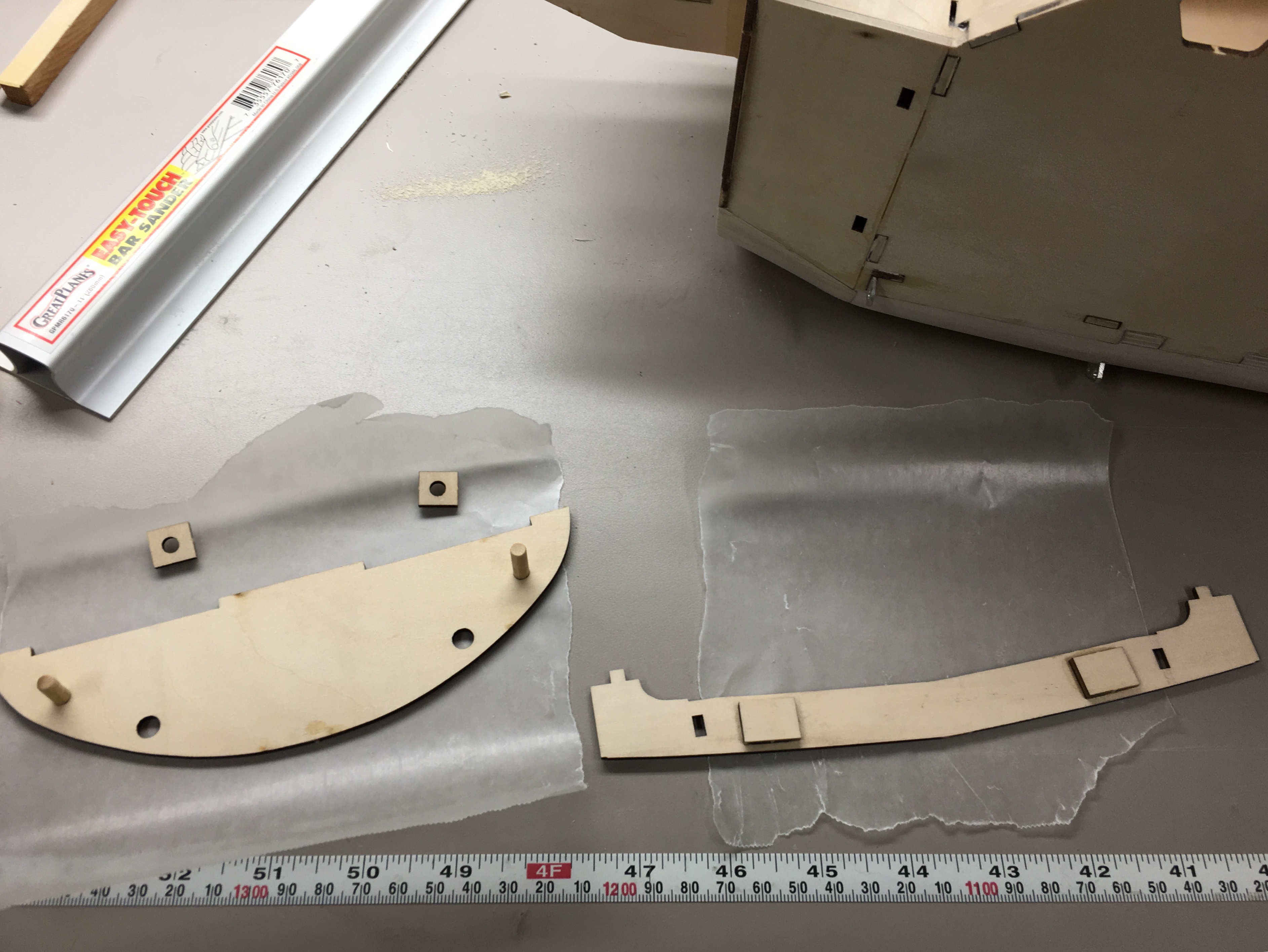

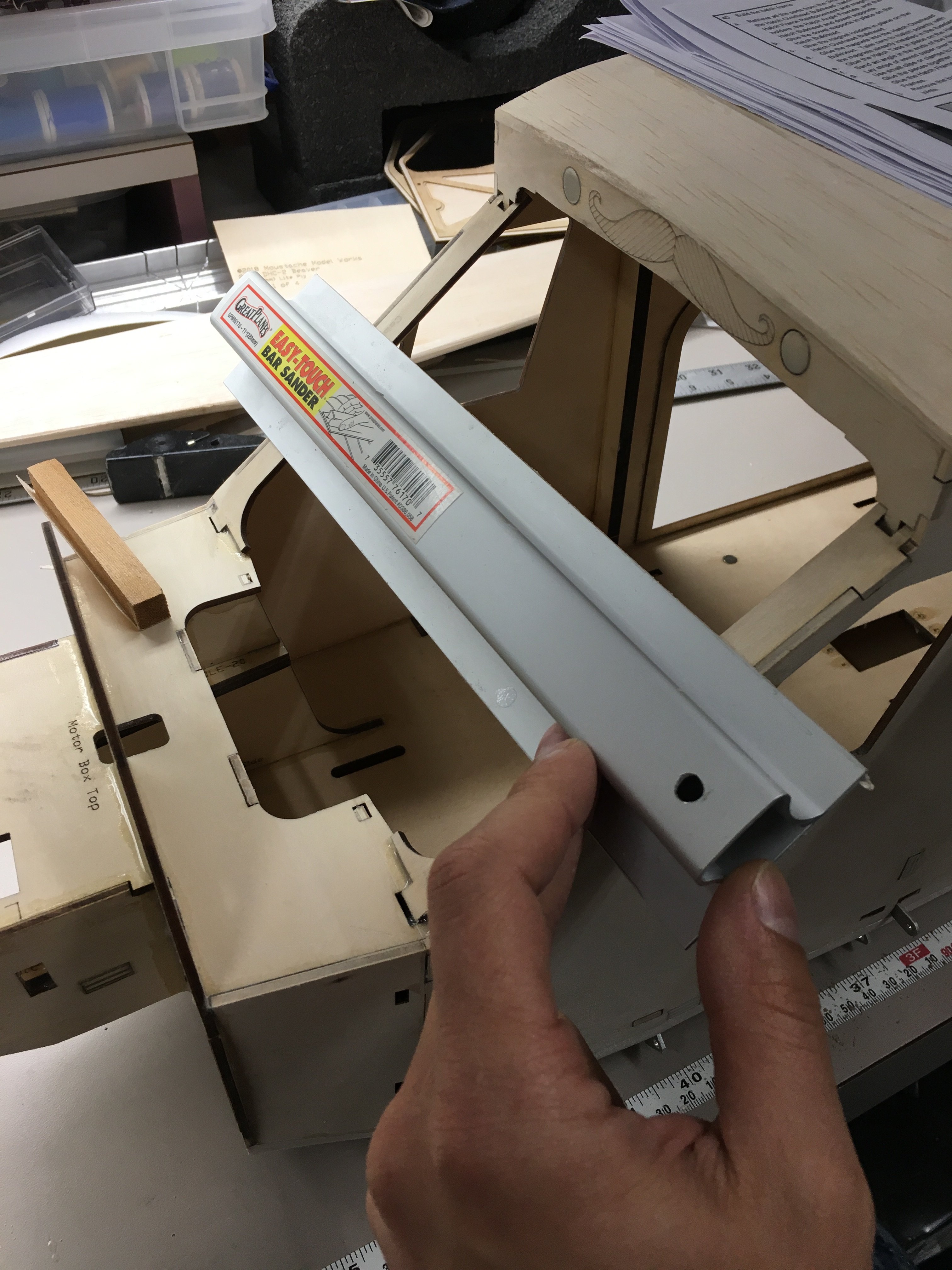

Canopy/hatch assembly
BD830187-FF8C-4AFC-8F58-A9CBA5A720E0.jpeg 14681384-6BD0-45AB-AB69-05BDF5E1C1AB.jpeg 57CEF145-DF3C-4BB0-8C49-697E9A1E05E0.jpeg F216D5E8-393C-46DC-8E45-F7A9EE3C6441.jpeg E35B62C3-EC4C-460A-9769-DEAF11E284FA.jpeg 410504BA-AD0D-488C-AC88-D927E2D73DFE.jpeg A51E899F-F0C7-48C6-A95F-719C72A267E8.jpeg
