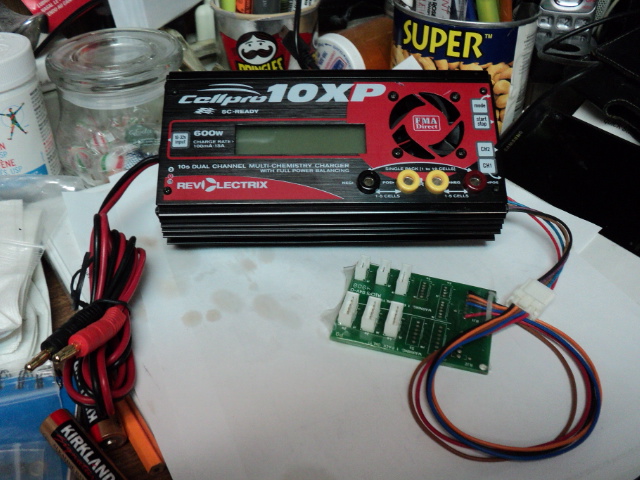

For Sale Revolectrix Cellpro 10XP 600 watt 15 amp charger

Discussion in 'Batteries, Chargers, etc.' started by Dennis9412, May 7, 2019.

  1. Charger is in like new condition, has been very lightly used.

    It can charge up to 10S at 15 amps.

    Will include printed manual. Have too many chargers, this one has to go.

    $120.00 US Shipped.



    Attached Files:

  2. Bartman

    Bartman Defender of the Noob!

    Does it plug into a wall outlet or does it need a power supply?
  3. Pretty sure you need a power supply for this one.
    dhal22 likes this.
  4. dhal22

    dhal22 GSN Sponsor Tier 1

    It will. I ordered my Cellpro 6 and their big power supply at the same time.
    pawnshopmike likes this.
  5. Yes, It will require a power supply, and the bigger the better. My power supply is 24 volts and it ran it just fine. Charger will take anything from 10-32 volts input.



  6. -The charger comes equipped with Cellpro brand (JST PA series times two, 6 position) balance connectors which enable the charger to monitor and independently charge each cell to its optimum level (balance charge operation).

    -There is a 2 channel 6S adapter,

    - There are also 2 4s adapter boards for balance charging up to 4S. These 2 adapters carry connections to all the major brand balance leads.

    - There is a 6 wire to 5 wire adapter to allow use of the 2S balance boards.

    - I also had it hooked up to a 4 port MPA board for parrallel charging 4 packs, but I will be keeping that as I can use it with my other chargers.

    -I will however include the 2 channel MPA-to-Cellpro 10XP Charger Interconnect Cable as its only used with the 10XP.

    -And finally, I will include the Charge Control Software (CCS) adapter. You download a free Microsoft Windows application from the Revolectrix website. This is compatible with Win7 and above. The CCS unleashes the full potential of Cellpro 10XP charger. The GUI is simple to use and allows access to basic charge parameters and chemistries for 10 user presets that can be stored in the charger. Graph charge and internal resistance data, adjust all charger options, update firmware easily and reliably, and much, much more...
