Scale Building a BUlldog II

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by acerc, Feb 17, 2017 at 2:30 PM.


  1. acerc

    acerc 100cc

    Joined:
    Apr 25, 2015
    Messages:
    919
    Likes Received:
    654
    Location:
    Center Hill, florida
    For those whom know me know I love biplanes, especially the Pitts. Since the completion of the "Eagle" I have been looking for an airframe to do a Bulldog II from. I bought a Challenger II and am almost done with the build, but early in realized there would be to much modification for a true scale Bulldog. There are a few other kit airframe's out there but not designed around the Bulldog so a lot of modifying would be needed. I don't want a $1500+ kit just to cut it all up, which would be necessary for true scale. Well a short while ago I fell into a conversation with Andreas of Blazing Wing's. He said he would be willing to make any modifications to one of his Challenger kits that I wanted. So I sent him some specifics of what I would like, changes in the wings sweep, changes in the tail feathers and the such as well as desired size.
    A few emails, a phone conversation or so later, here I sit looking at getting a kit custom cut to my specifications for me to build the Bulldog II with. It may be a few months before we hash out all the specific changes to the Challenger but I am getting very excited.
    This will be, for me, a tribute to one of the best aerobatic pilot's to have ever been.
    Mr. Jim LeRoy


    Attached Files:

    Last edited: Feb 17, 2017 at 2:43 PM
  2. Wacobipe

    Wacobipe 100cc

    Joined:
    Aug 26, 2014
    Messages:
    503
    Likes Received:
    397
    Location:
    Asheville, NC
    I'll be watching!!!!!!!!!!!

  3. Blazing Wings

    Blazing Wings 30cc

    Joined:
    Friday
    Messages:
    19
    Likes Received:
    5
    Location:
    San Antonio, Texas

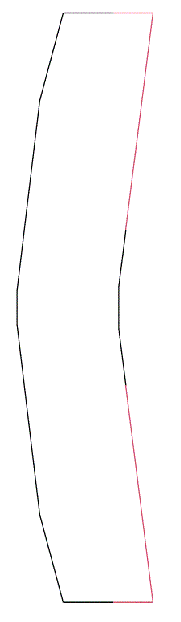

    Perimeter of the wing. Confirming shape and next figuring out where and how many ribs are required, and how ailerons will be hinged. I will talk to customer to get more details on this before starting drawing the top wing ribs.


    Attached Files:

  4. acerc

    acerc 100cc

    Joined:
    Apr 25, 2015
    Messages:
    919
    Likes Received:
    654
    Location:
    Center Hill, florida
    That matches the outline drawing exactly. The full scale had a lot more ribs than a normal Pitts, I just sent you a drawing showing the number and placement. I will do the aileron hinging, I use G10 and cut the hinges for a scale rotation point.
    Looking forward to seeing it with ribs drawn in.

  5. Blazing Wings

    Blazing Wings 30cc

    Joined:
    Friday
    Messages:
    19
    Likes Received:
    5
    Location:
    San Antonio, Texas
    Ok, I will work on it and have the ribs done by next week. You can let me know if anything else needs to be done, before moving onto bottom wings.

  6. acerc

    acerc 100cc

    Joined:
    Apr 25, 2015
    Messages:
    919
    Likes Received:
    654
    Location:
    Center Hill, florida
    Sounds good. On the top wings, don't worry about drawing a strut or cabane mount. I will be doing a scale bolt through wing to the struts, a scale cabane and cover, so I will fabricate those mounts to fit during construction.

  7. Blazing Wings

    Blazing Wings 30cc

    Joined:
    Friday
    Messages:
    19
    Likes Received:
    5
    Location:
    San Antonio, Texas
    Ok, I think I have enough info to know what you are looking for. Give me a few days to draw it up and I will post it here. I will design the ailerons to scale as per your request. The hinge mount G10 you said you will do, so I wont add that into the drawing.

    acerc and Alky6 like this.
  8. acerc

    acerc 100cc

    Joined:
    Apr 25, 2015
    Messages:
    919
    Likes Received:
    654
    Location:
    Center Hill, florida
    A little thinking ahead here. With the size of the ailerons two servos each seem a must, one servo per elevator half, and possibly two on rudder. I know most if not all of the on board electronics needed and I know I want to utilize Forgues Research fiber-optic servo links. I'm not quite sure as to the engine, maybe a Valach 170 or 210 for a 4 stroke, something around a 170 for a 2 stroke. Any thought's on the 2 stroke is welcome, I am thinking probably fifty plus pounds finish weight.

    WMcNabb and Alky6 like this.
  9. Alky6

    Alky6 100cc

    Joined:
    Aug 26, 2014
    Messages:
    868
    Likes Received:
    685
    Location:
    Dixon, CA
    Awesome!! Looking forward to this build!!!

    Wacobipe and acerc like this.
  10. WMcNabb

    WMcNabb GSN Sponsor Tier 1

    Joined:
    Aug 31, 2014
    Messages:
    753
    Likes Received:
    1,012
    Location:
    TN, USA
    Can't wait to watch this one go together!

    Wacobipe likes this.
