Specifications:
Wing span: 73"
Wing area: 1020 sq. in.
All up flying weight: 10.5-12 lbs. depending on build style
Length: 66"
Engine: (Any 30-36cc engine) Recommended: DLE 30, DLE 35, PTE 36
Radio: 6 channel recommended (4ch possible)
Recommended Spinner Size: 3"
Recommended CG: 5 7/8" from the Leading Edge at the ROOT (at the rear of the wing tube)
Recommended Prop Size:
18x8/10, 20x10 for sport
18x619x6/8, 20x6/8 for 3d
Recommended Throws: adjust to liking as you fly
Low Rates Settings | High Rate Settings
Rudder: 30 degrees, 20% expo | 50 degrees, 35% expo
Ailerons: 25 degrees, 25% expo | 40 degrees, 40% expo
Elevator: 20 degrees, 20% expo | 45 degrees, 40% expo
Features:
30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes
Removable stab
Ringed cowl
Adjustable push rods
Canister ready
Shipping Flat Rate $45.99 in the lower 48 states.
We DO ship our planes internationally!
Approximate International Shipping Costs (USD) for 30cc Planes:
[video=youtube;99lPBnv3dYY]https://www.youtube.com/watch?v=99lPBnv3dYY&feature=youtu.be[/video]

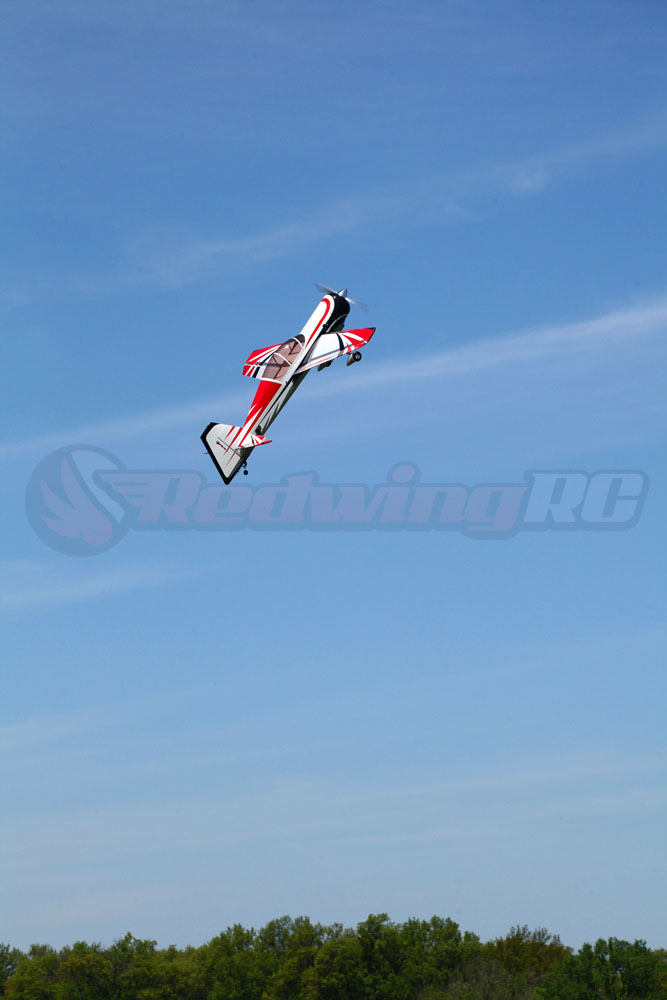

Watch Joe Smith fly the new 30cc Yak 54!!!

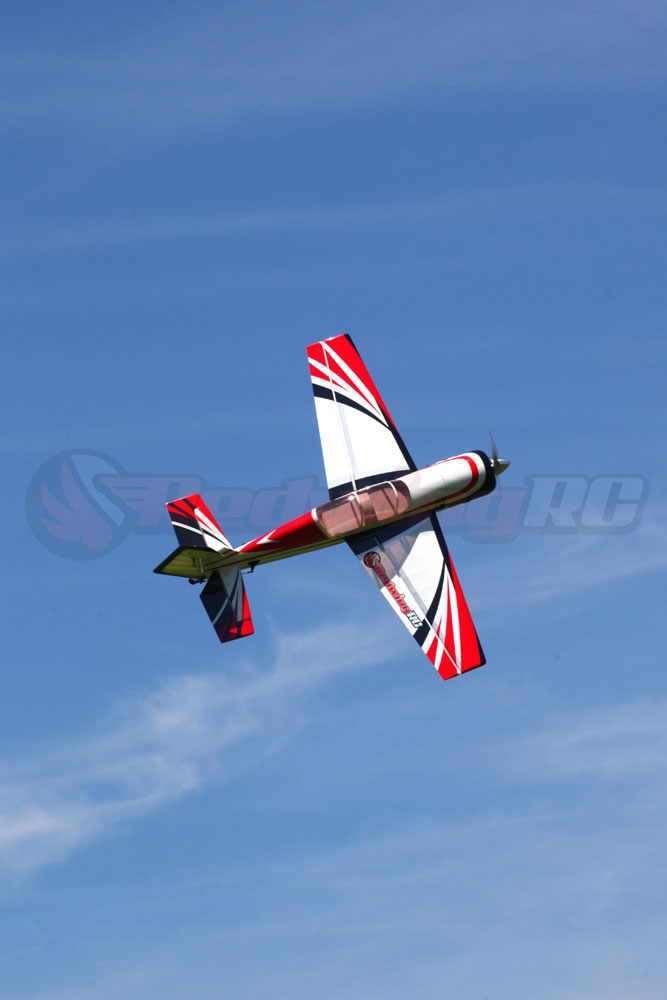

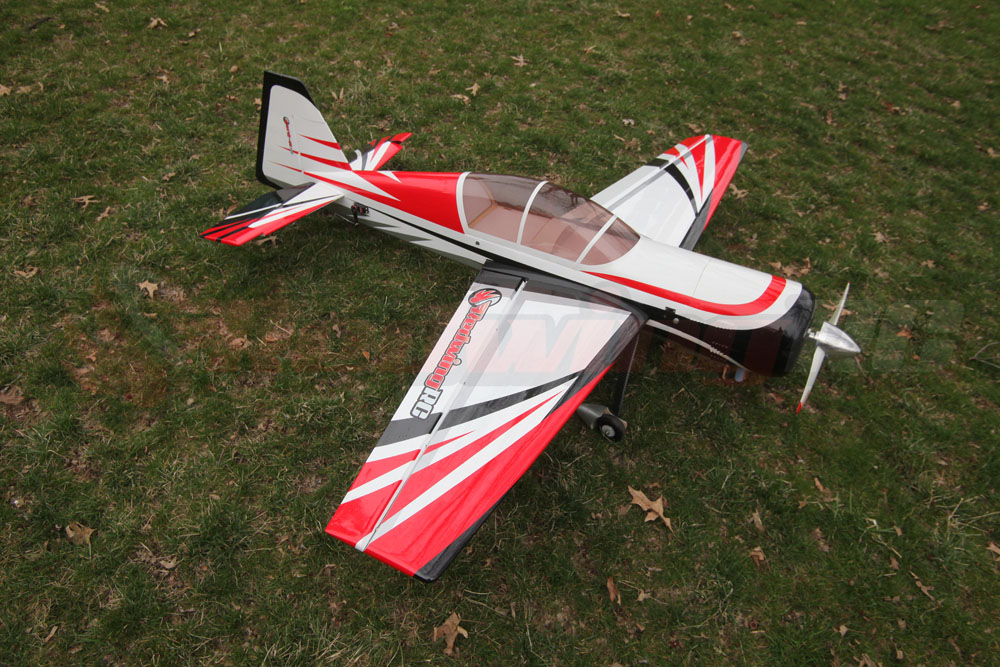

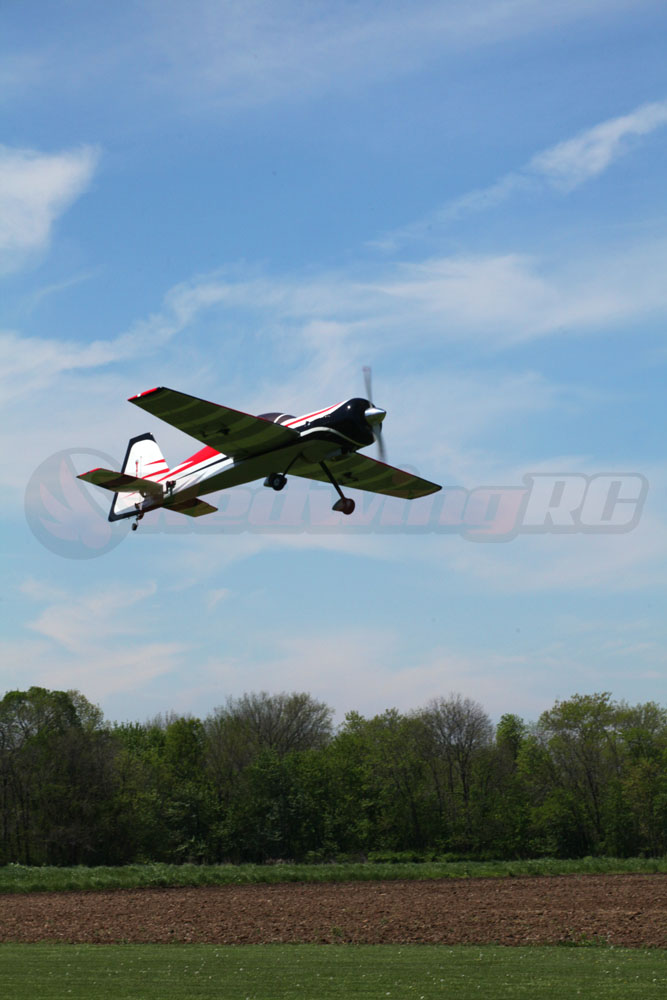

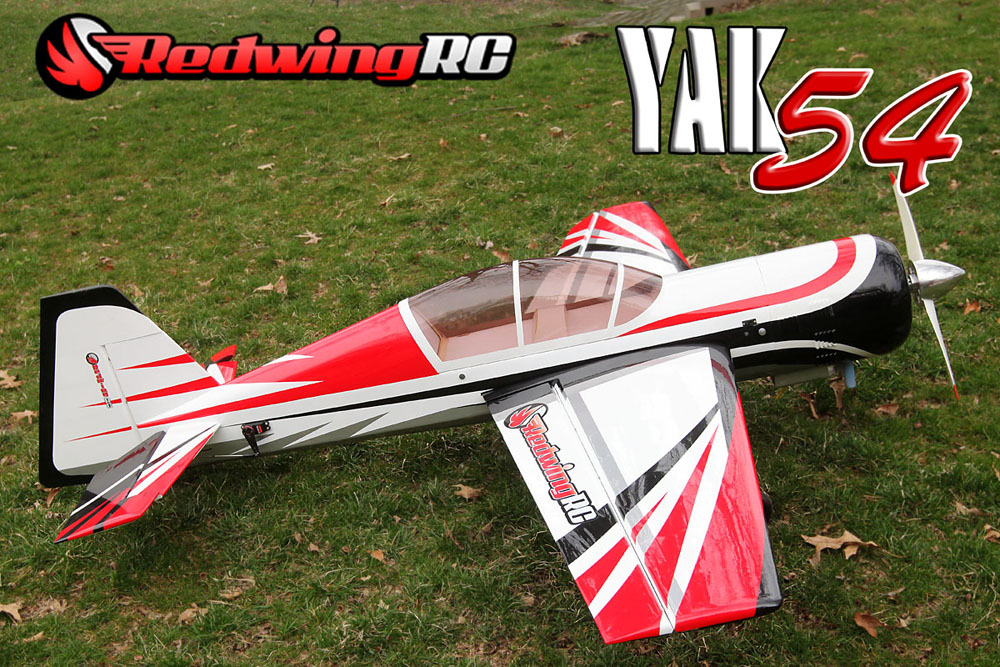

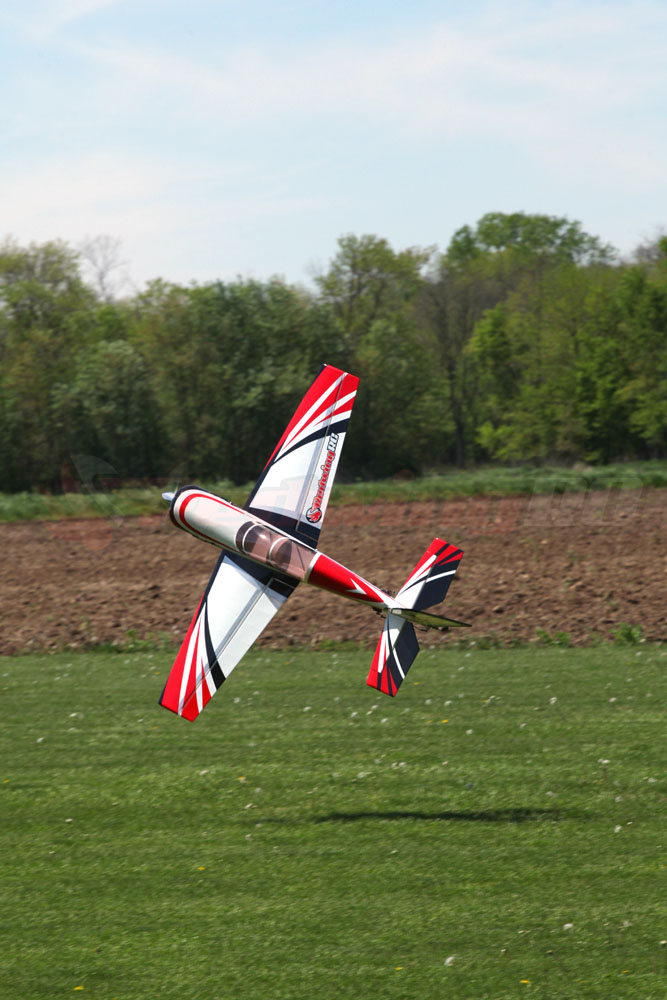

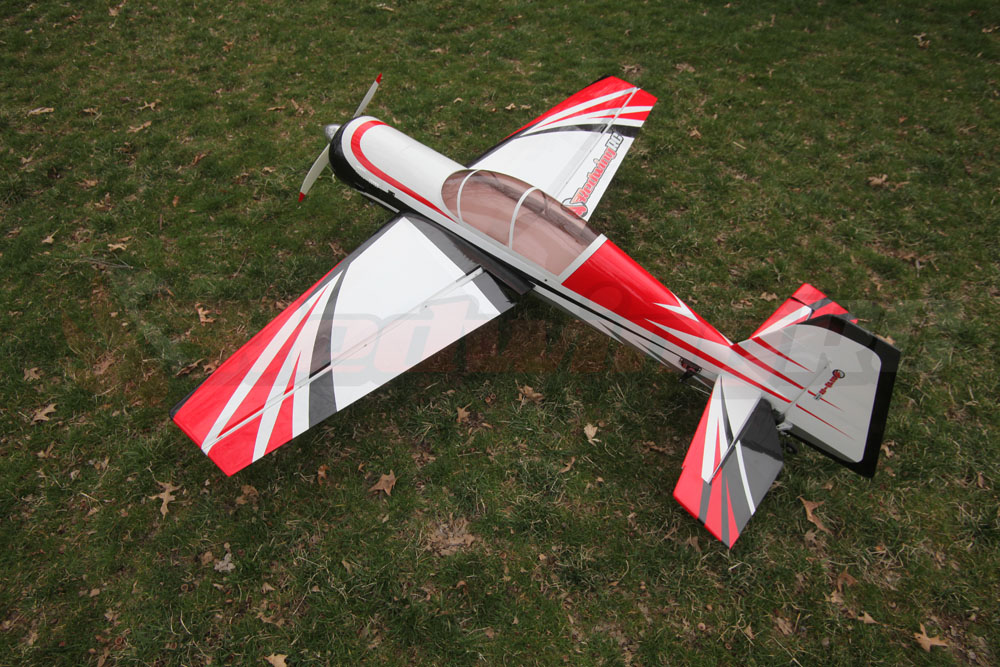

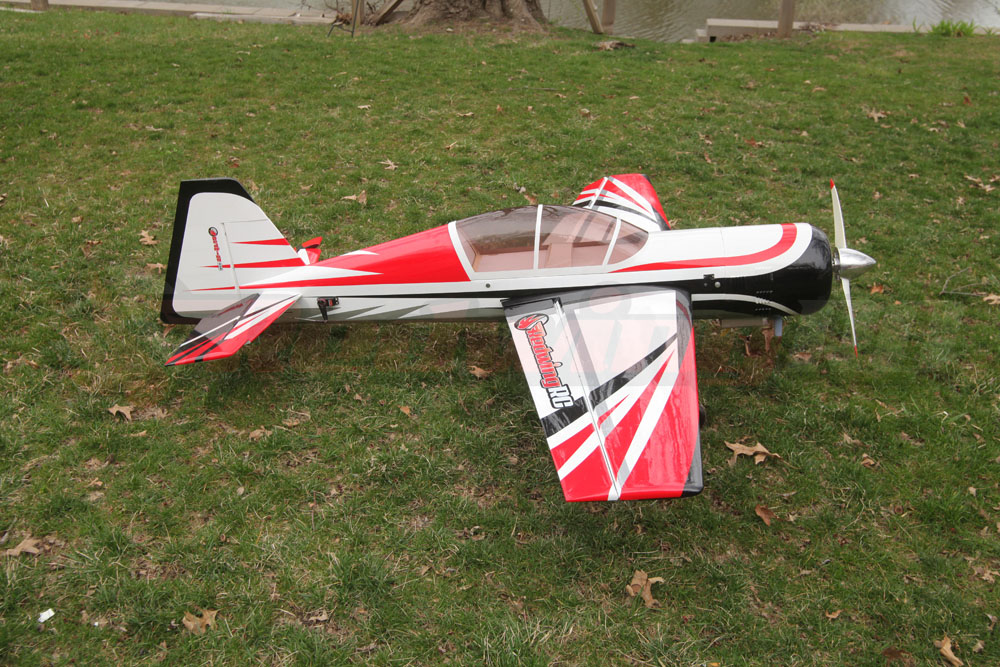

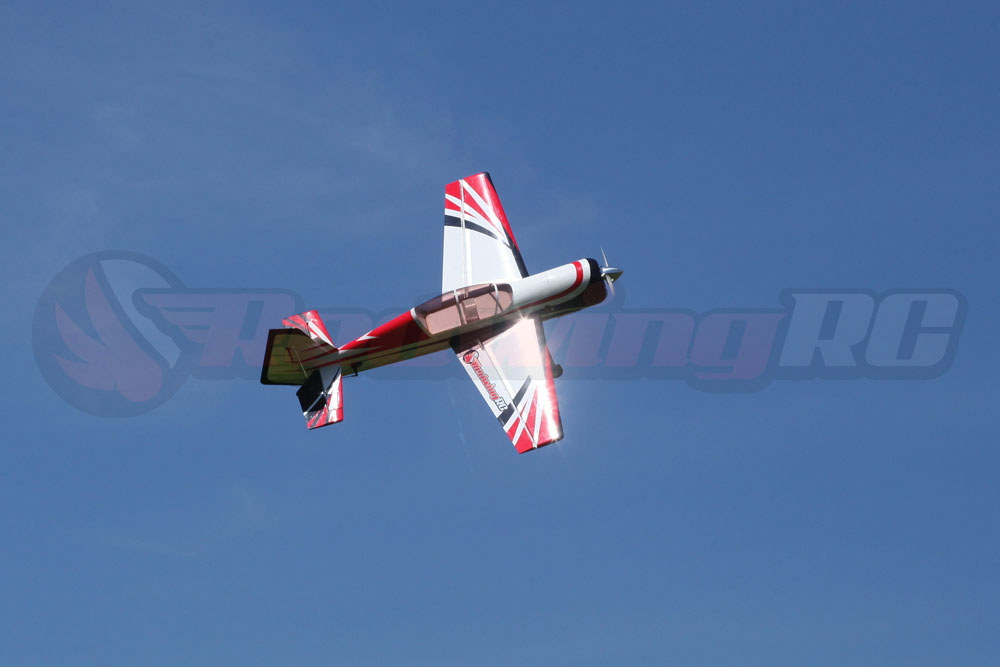

Additional Pics:
