Hitec's all new FunCub XL!!!

Discussion in 'Other Manufacturers' started by 3dmike, Apr 12, 2016.


  1. 3dmike

    3dmike 640cc Uber Pimp


    Here's a cool new plane introduced by Hitec and shown off at Toledo a couple weeks ago. Below is some video as well. Looks like a fun cool new plane for sure!


    Link: http://www.weekenderwarehouse.com/funcub-xl-receiver-ready/

    Video:

    [video=youtube;3dU0yx5HfIY]https://www.youtube.com/watch?v=3dU0yx5HfIY[/video]
    [video=youtube;ir1mhE-YjAg]https://www.youtube.com/watch?v=ir1mhE-YjAg#t=13[/video]

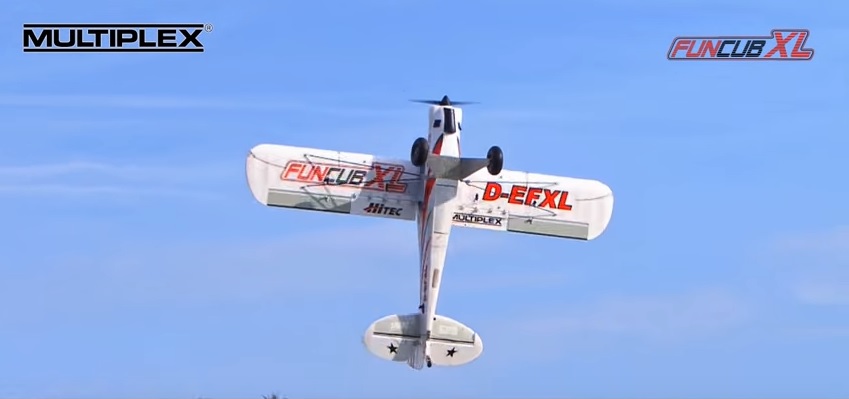

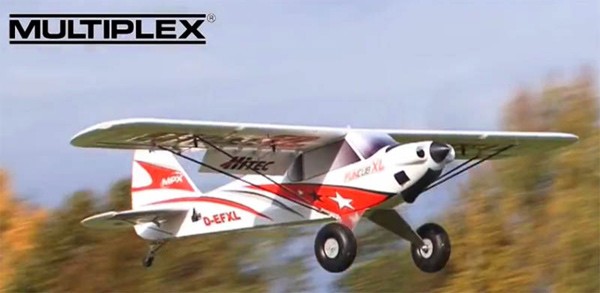

    Some Pics:



    Description:
    The FunCub XL RR version comes completely assembled and factory painted with applied decals. Featuring a high-performance, powerful brushless motor, remarkably reliable speed control and Hitec’s renowned HS-225BB servos, this receiver ready model comes out of the box 95% complete, allowing for instantaneous FUNtastic flight!


    Specifications RR:
    Wingspan: 67 in. (1700 mm)
    Length: 47.25 in. (1200 mm)
    Weight 6 lbs. 5 oz. (2850 g)
    Channels: 5-10 required RC Functions: Rudder, Elevator, Ailerons, Flaps, Motor, Optional Tow Hook, Optional Chute, Landing Lights
    Flight Time 8 - 12 min. (6S ~ 3300 mAh Battery

    Features:
    Full-on Aerobatic Performance
    Low Minimum Airspeed
    Easy Handling
    Two Part Wing for Easy Transport
    Offset Landing Flaps for Steep Descents and Short Takeoffs
    Off-road Performance with Huge, Soft Wheels
    High-strength Fuselage with “M-Frame Technology”
    Strong and Lightweight Carbon Fiber Wing Tubes
    Suitable for Aero towing 2.5M Gliders (i.e. Multiplex Heron size)

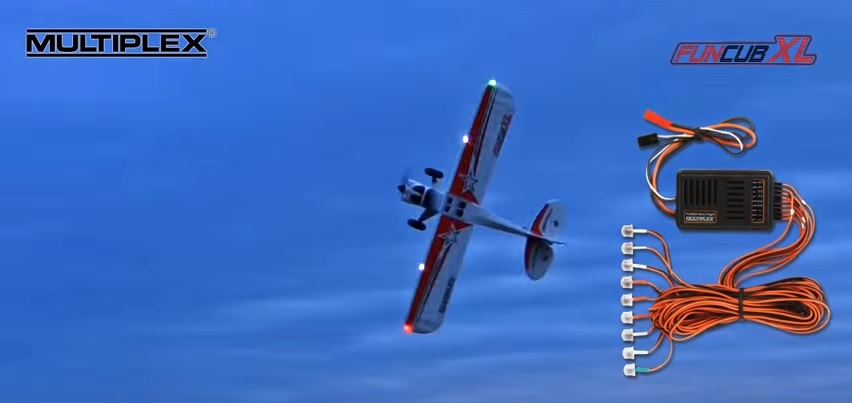

    Optional Float Set, Lights and Parachutist

    Included with RR (95% Complete):
    ELAPOR® and Wood Airframe
    Brushless Permax BL-O 4235-0480 Motor
    MULTIcont BL-60 ESC Controller
    Propeller 15 x 8
    Six Hitec HS-225BB servos
    Self-adhesive Decals

    Required to Complete:

    5 - 10 Channel Radio Control System
    6S 3200 mAh LiPO Power Battery

  2. [MENTION=3822]Xpress[/MENTION] says its a blast to fly! He has flown it and sounds pretty cool as well!!

  3. Xpress

    Xpress GSN Sponsor Tier 1

    Yes it is TONS of fun! A very awesome mild 3D airplane, not to mention it's a big cub with HUGE flaps. The flaps almost stop the thing mid-air.

  4. MaydayJoey

    MaydayJoey New to GSN!

    1
    0
    1
    I actually ordered mine a couple of hours ago, I'm pretty excited. I love my Fun Cub and this puts it on crack so I'm in!

    There aren't a really too many end user videos on flying this with gusto, but the Multiplex video sold me on it.

    I purchased the kit and look forward to getting it together in all of its 6s glory.
    I have a everything I need already except the motor which I haven't decided on yet.

    my only issue is that it doesn't seem to come with the LEDs and you can only buy the package with LEDs and controller which is about $60 + shipping from the UK to US. That's a little much, I really hope I'll be able to just pick up JUST the LEDs eventually.

  5. 3dmike

    3dmike 640cc Uber Pimp

    SAWEET I would love to fly one personally. Hopefully soon.


  6. Xpress

    Xpress GSN Sponsor Tier 1

    The POWER-MULTilight kit contains LED's that all use different voltages, so you can't actually just wire the LED's all together, you'll wind up frying some of the LED's and not illuminating others properly. The controller gives the proper voltages to each LED and gives it the scale appearance everybody wants. Rumor has it we'll be importing POWER-MULTilight kit sometime soon so you should see it soon :)

  7. AKNick

    AKNick 150cc

    1,136
    1,373
    113
    Alaska
    So on my original fun cub I made my own circuit board with LEDs, alternating landing lights, nav, flashing strobes, fading beacon... It's almost identical to what this one has other than the beacon is on the belly rather than the tail. I almost feel cheated, because I made a custom design that none else had and it was copied... Or maybe it's just scale and that's how it's supposed to look. And they did a great job At any rate, maybe I'll make a thread on how to make your own. It wouldn't exactly be cost effective though, just cool! It would probably be brighter too. My plane is on you tube, I'll try and post a link


    Sent from my iPhone using Tapatalk

  8. AKNick

    AKNick 150cc

    1,136
    1,373
    113
    Alaska
    [video=youtube_share;tL-xBQiPOY8]http://youtu.be/tL-xBQiPOY8[/video]


    Sent from my iPhone using Tapatalk

    Last edited by a moderator: Apr 13, 2016
  9. Nice job [MENTION=3929]AKNick[/MENTION]!! I would like to see the circuit you built for that.... Do you have a schematic?

  10. AKNick

    AKNick 150cc

    1,136
    1,373
    113
    Alaska
    I do


    Sent from my iPhone using Tapatalk
