Custom Trailer with Slides

Len

30cc
This is the third trailer I have built, each one gets a littler bigger and a lot better.

Since being in the hobby for over 38 years and finally determining large Scale Sailplanes are the most enjoyable segment for me, along with the tow planes associated with getting them to altitude, I've designed a trailer specifically for that purpose.

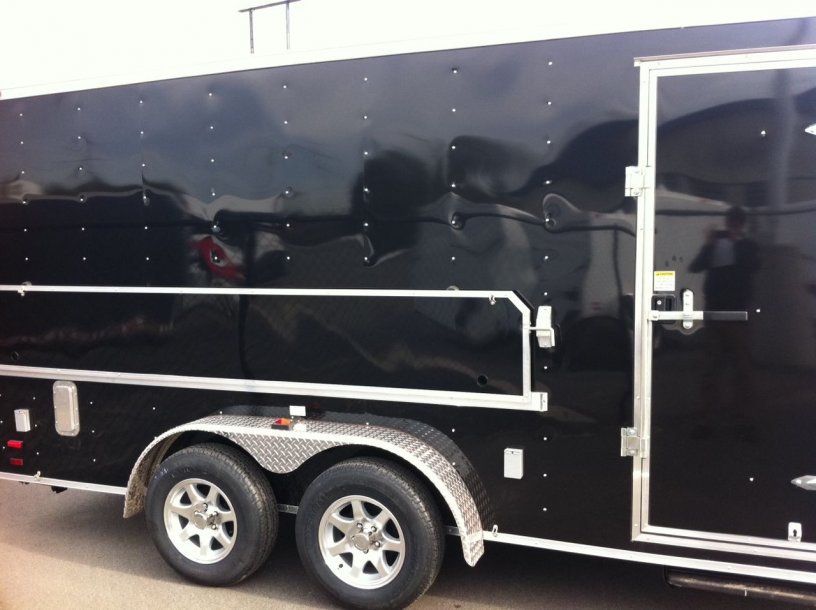

I had the trailer box built to my specs, which consisted of the side door in the right place, the front V compartments the right size, a cooler compartments on the opposite side, exterior outlets, 12v and 120v

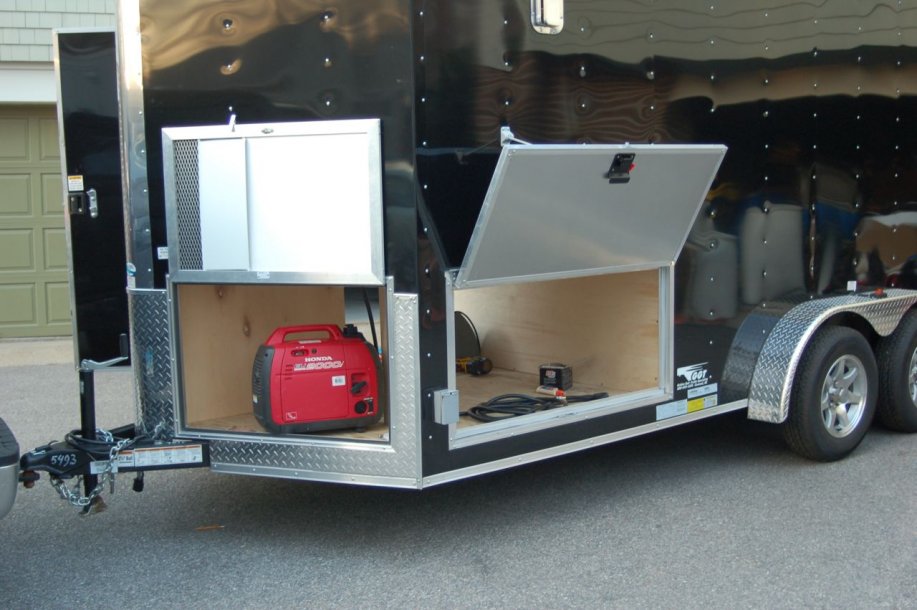

Generator compartment with inverter and lighting, both 120v and 12v
Insulation on walls and ceiling ( to keep it cool in the summer )

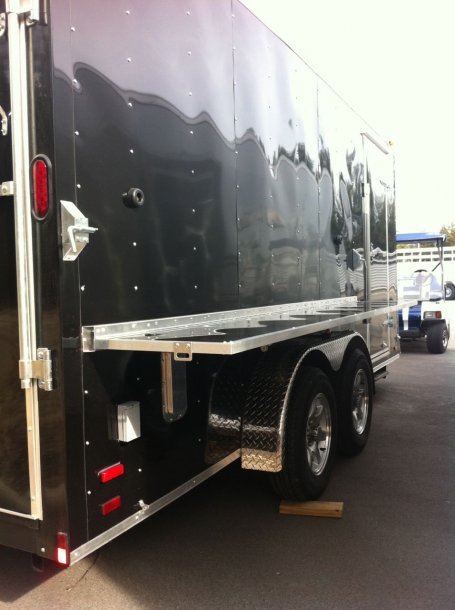

and best of all, a drop down shelf on the outside.

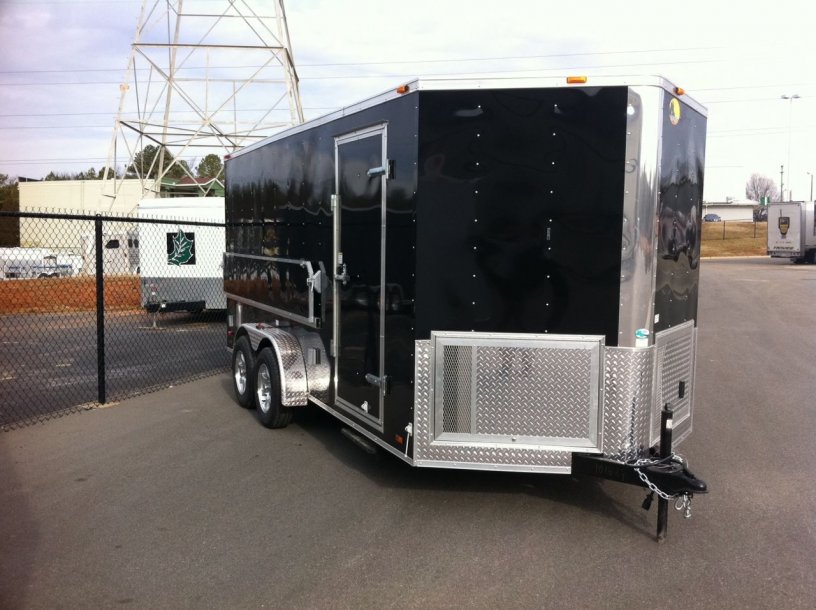

I drove down to NC to get the trailer. ( I live in CT ) When I turned into the lot, I was shocked to see how big it was. Oh well, I own it now.



Once back home with it, I started the construction right away. I had been planning this for a while and knew what I was going to do.
Because the planes I fly are big, I needed and easy way to get them in and out of the trailer without hurting my back, which is a bit sensitive. I also wanted to be sure the planes would not get damaged from hangar rash moving them in and out.
There are typically two tow planes, ( 150cc and 120 cc ) on board the trailer and 7 - 11 large sailplanes at any given time. Also, we carry a full line of spare parts, bolts, nuts, prop, etc. We usually can solve any issue that pops up on an aerotow weekend.
To do all this, the trailer had to be layed out for easy of use and efficiency.

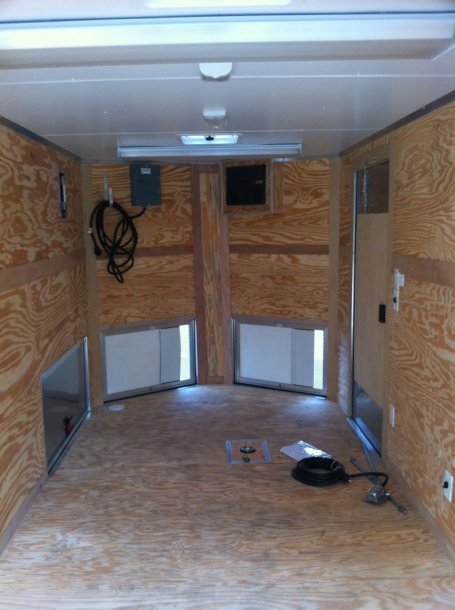

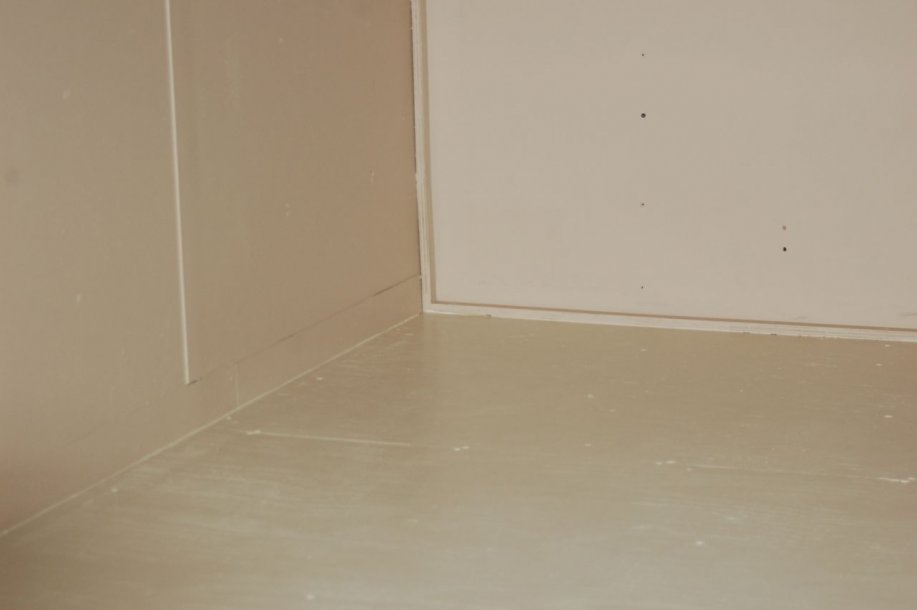

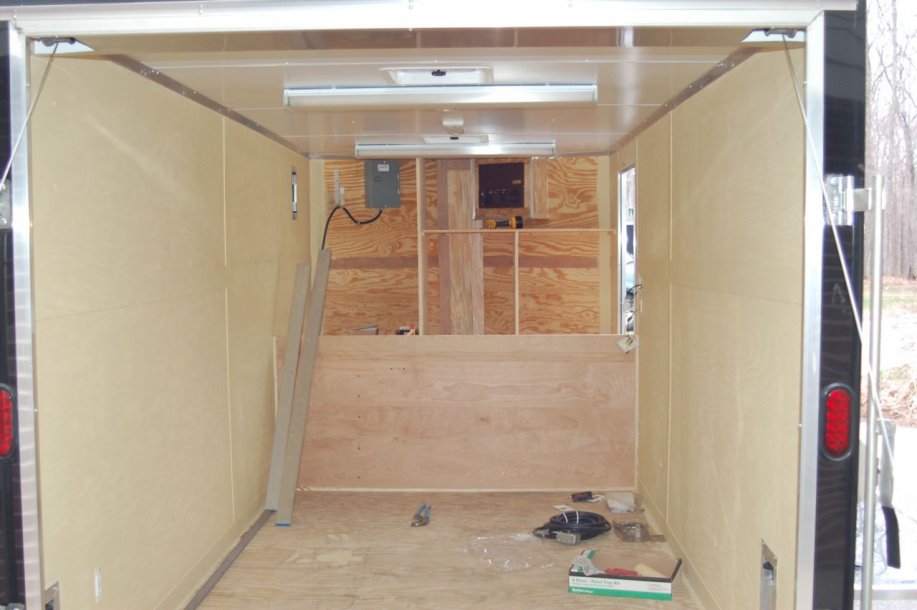

Starting with painting the entire interior.

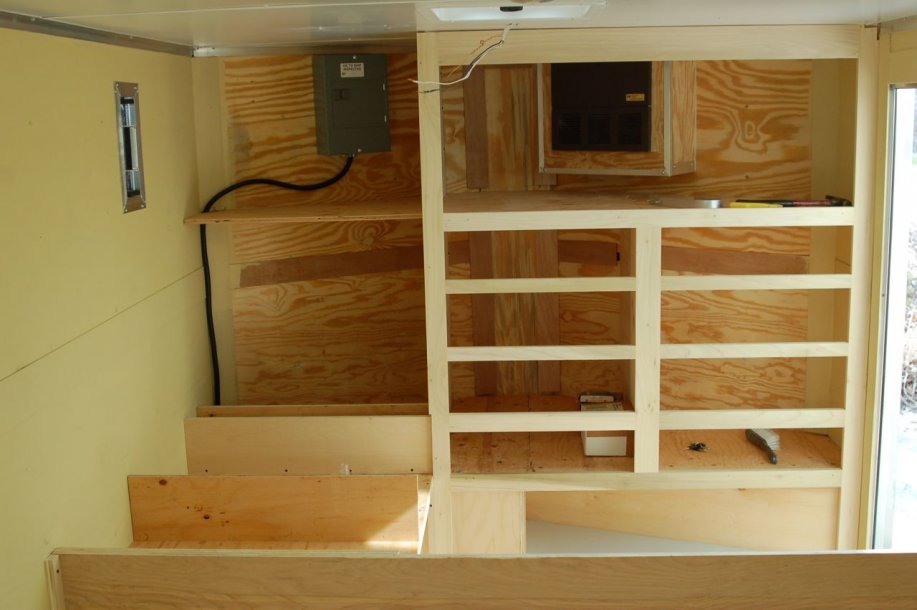

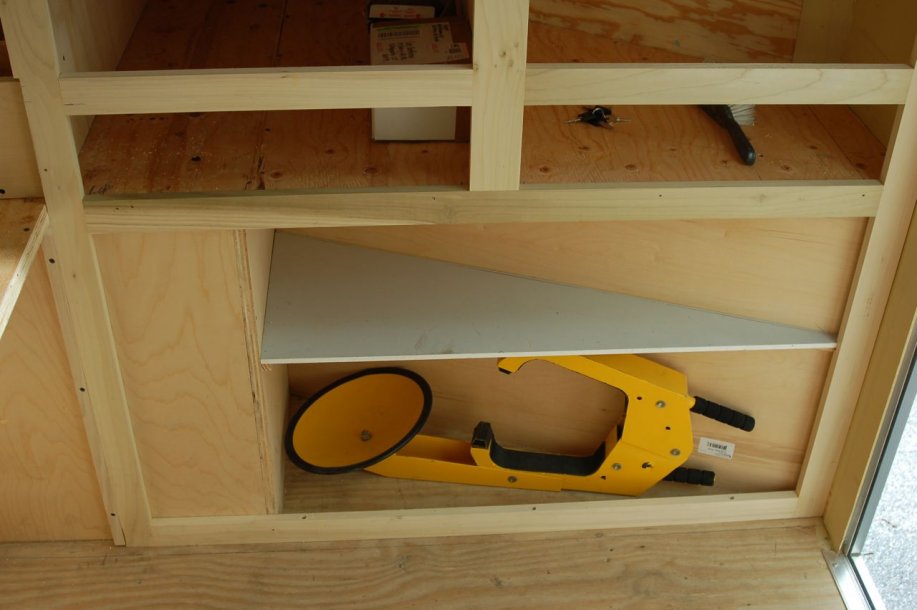

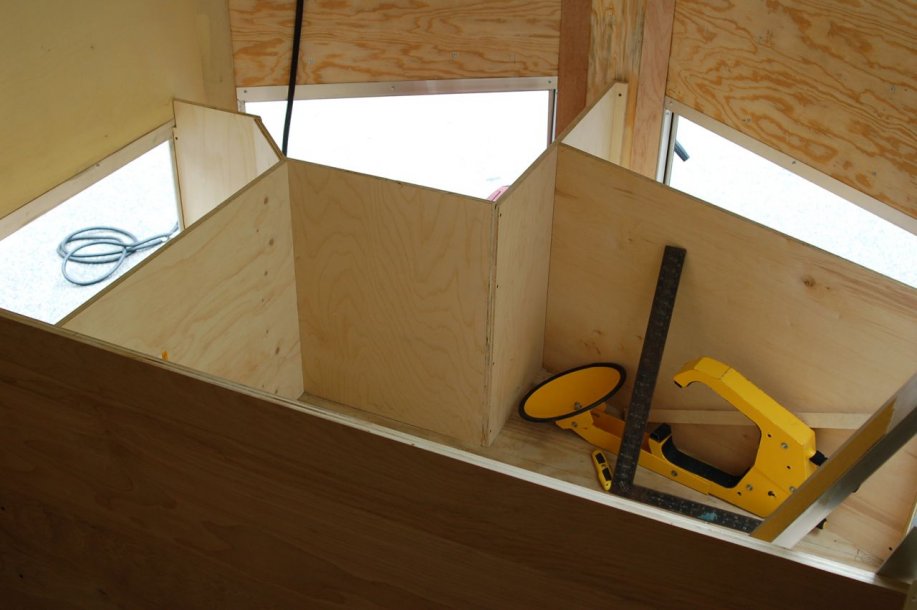

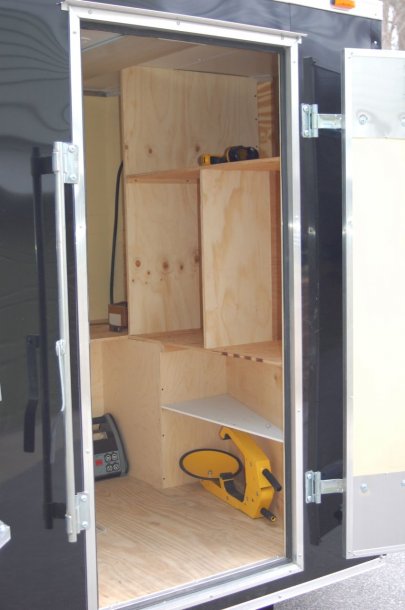

Then onto cabinet making.

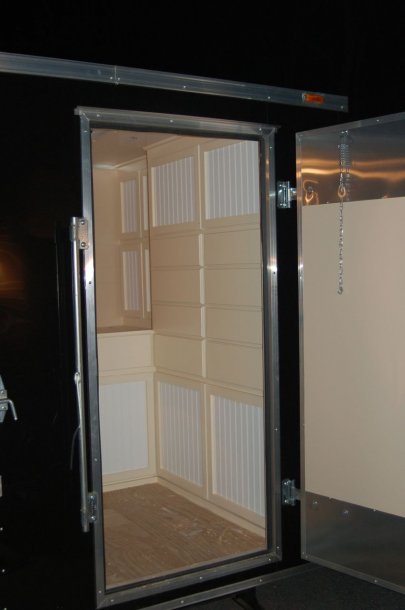

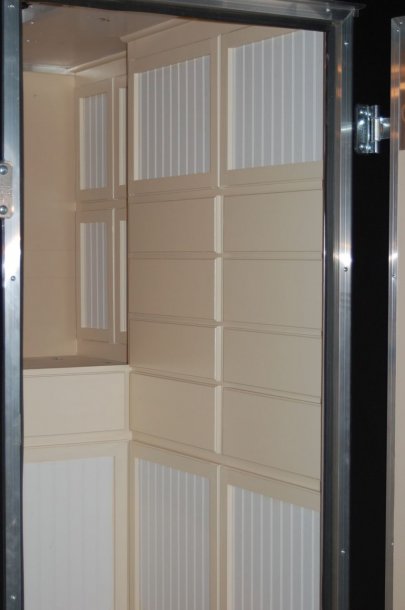

The cabinets are a combination drawers and doors. The compartments are used to double as walls for he front generator bay and misc bay.

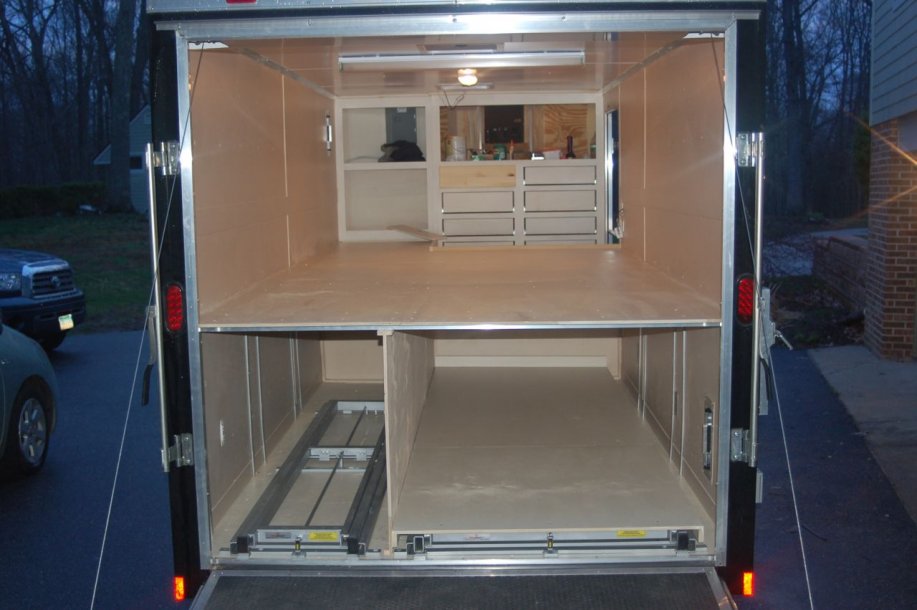

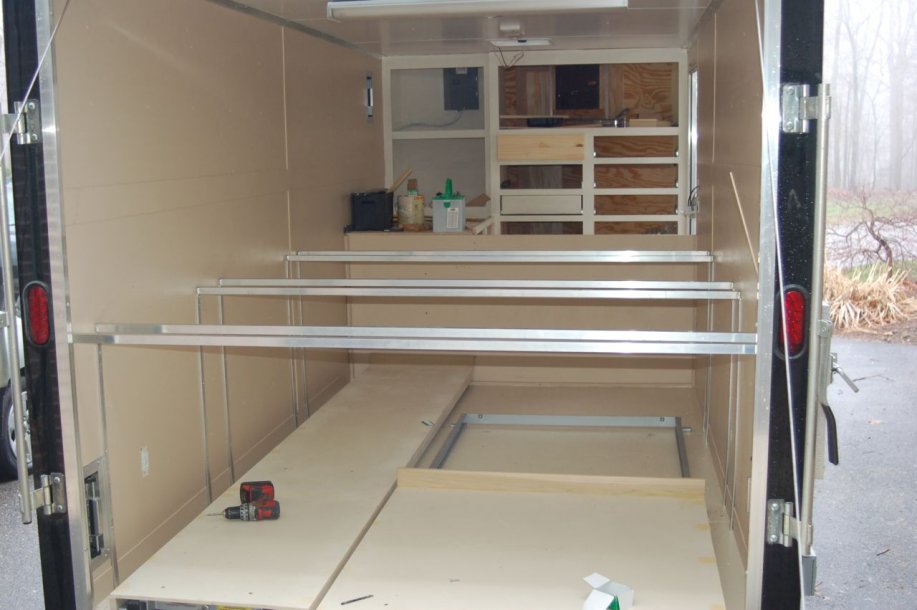

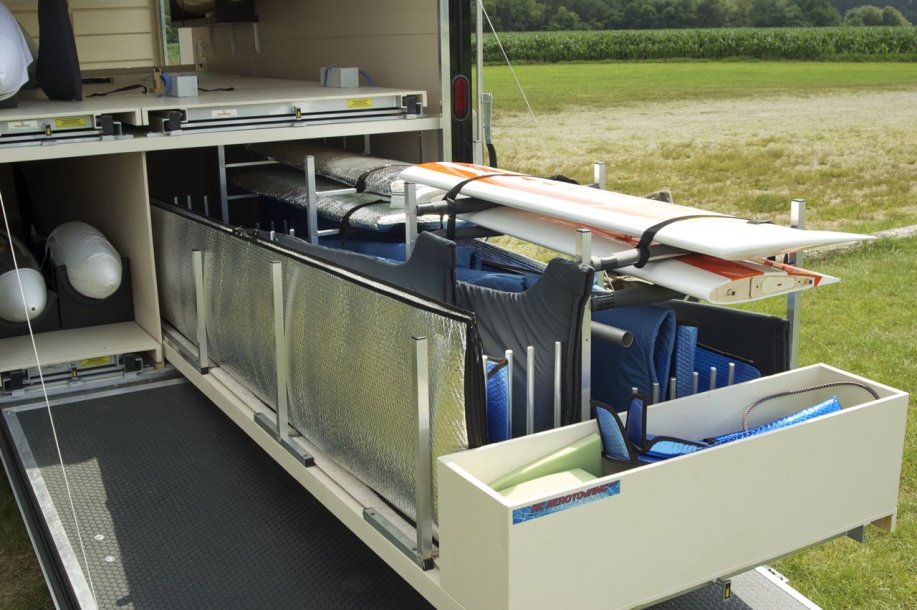

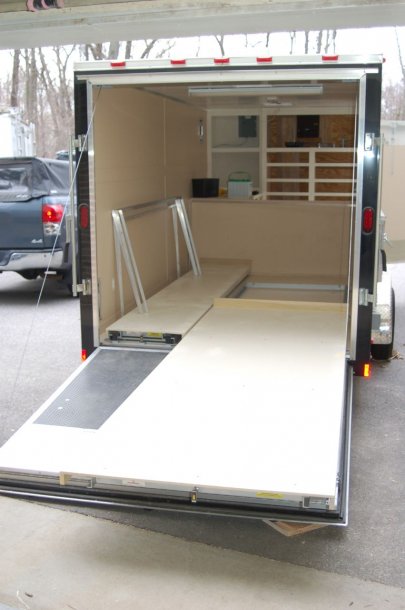

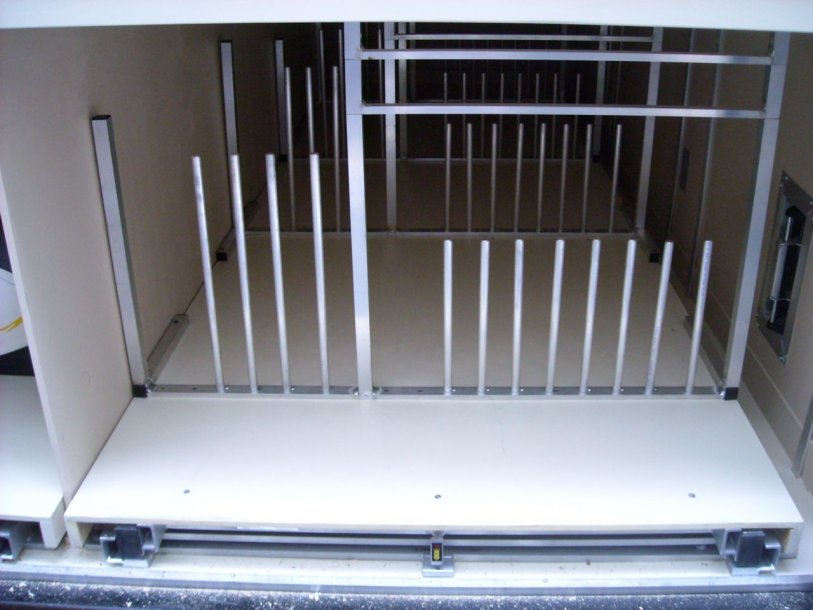

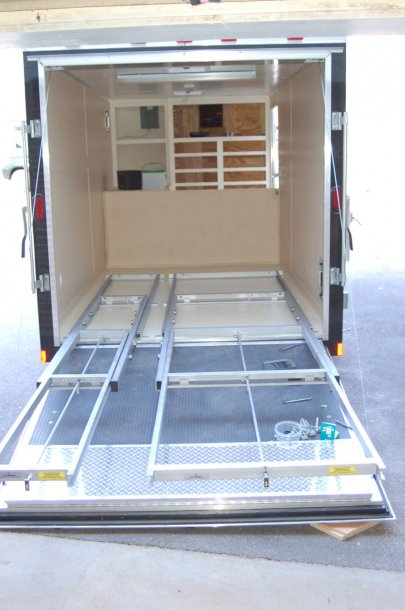

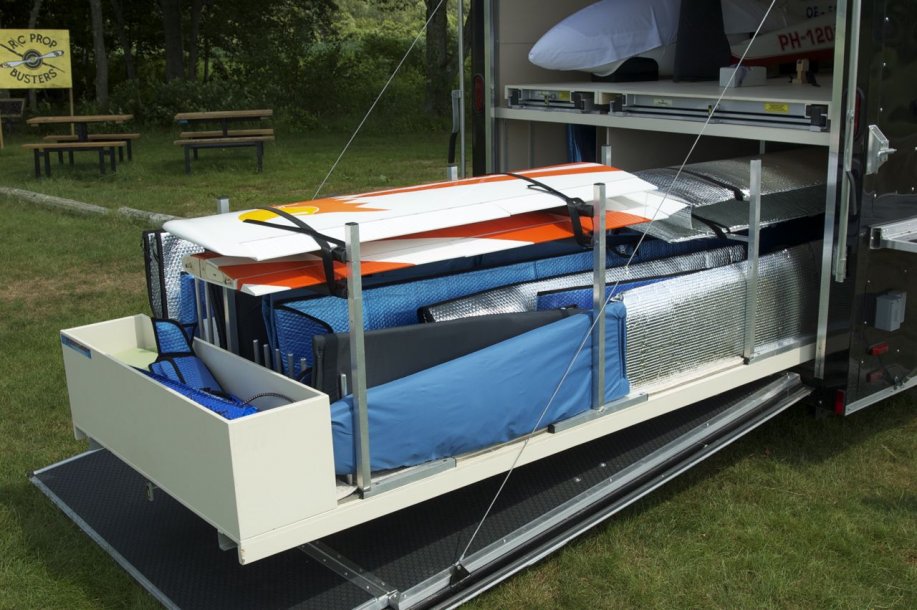

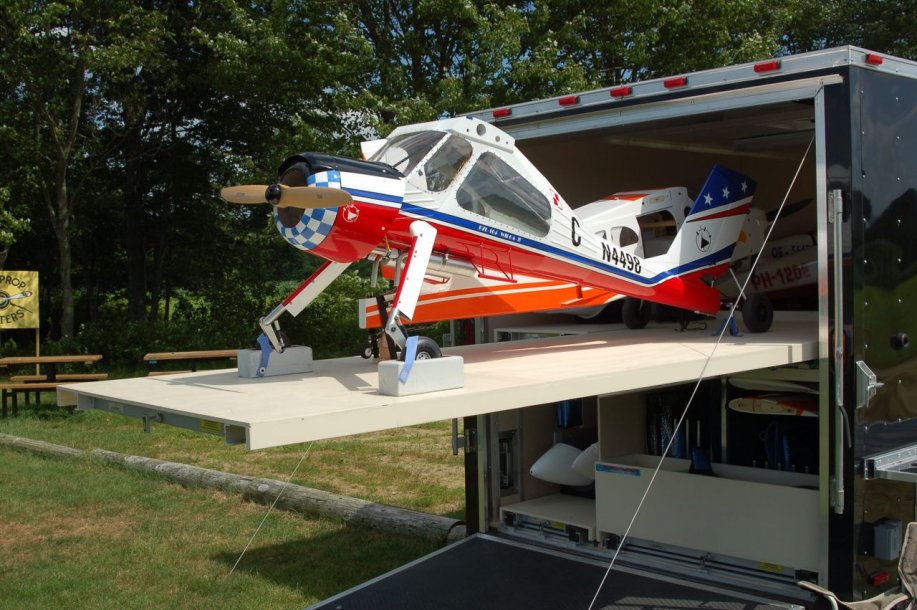

Next was the shelf for the metal Slides.. The slides were ordered from Slidemaster. They're ball bearing wheels that telescope out and allow full access whatever you have on it.
There are 4 units onboard. 2 narrow and 2 wide.

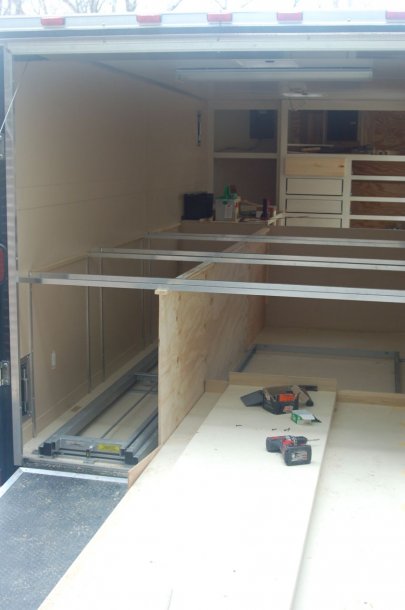

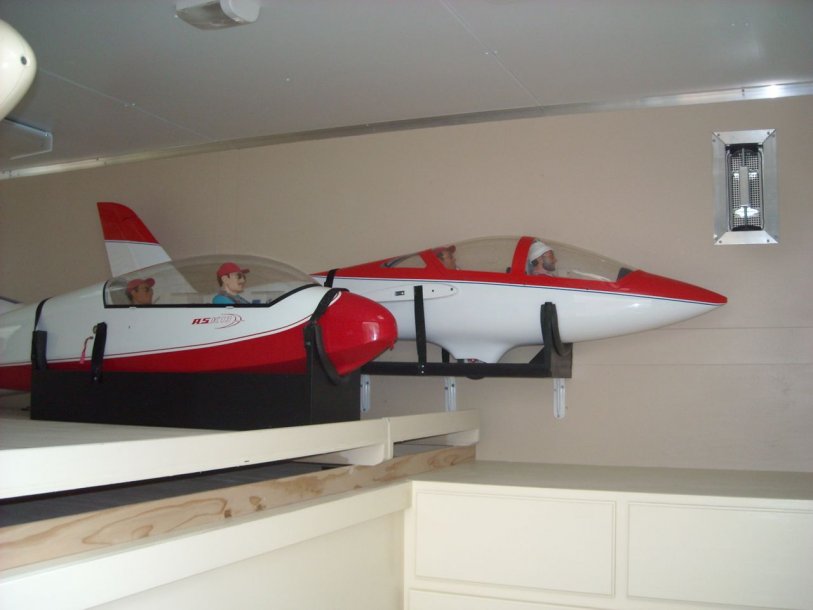

We them built decks for the planes to sit on and be secured in place. I also figured on thicker side walls so we could mount planes right to them

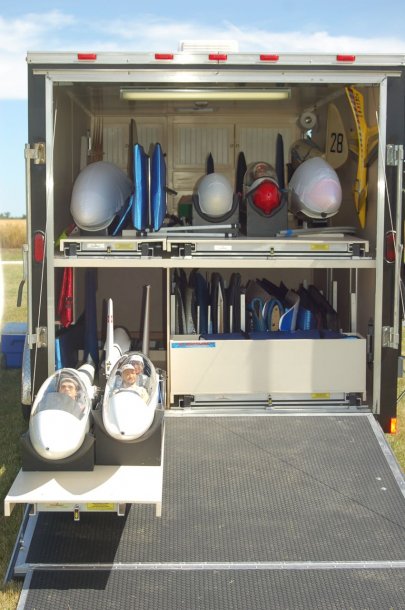

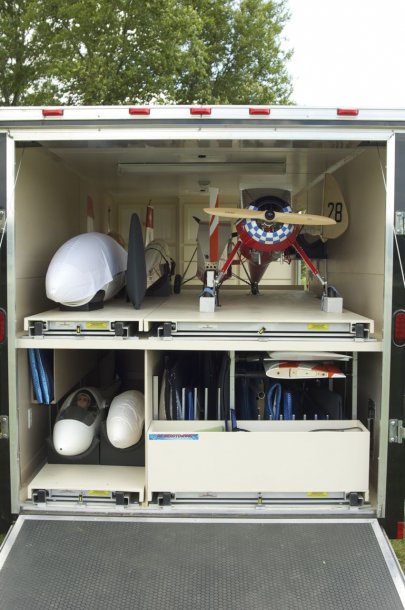

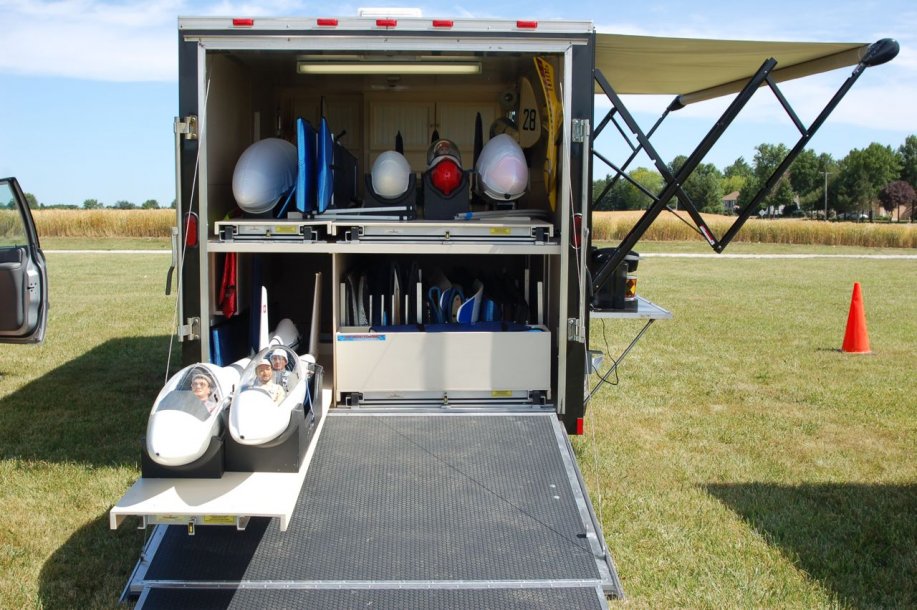

Were are some pictures, all done.
After the first season, I added an electric telescoping awning. Best thing ever. Due to the black trailer color, it would be too hot to use the shelf for charging.




Last edited:

wesley.

70cc twin V2
Holy $h$t that is nice!!! One question on the slide outs what are they where do you get them? I guess that was two questions.:lol2:


BalsaDust

Moderator
That is some serious Badassness. Here I am just hobing to buy a 4'x8' harbor freight trailer in the next year or so and make my own enclosed trailer


Len

30cc
Thank you guys. I do appreciate the kind words.

Yes, they are slidemaster.
If anyone is interested in these, I have another 4 of these slides that were mistakenly sized, they're 9 ft long.

1/2 price each ( $500 ) + Shipping.

2- 22 wide
2-44 wide

You put you're own top deck on it however wide you want.

LEN


Len

30cc
The latest improvement was to add two solar panels ( Harbor Freight ) with a controller that switches it on and off. This keeps the system charged at all times.

Last few pictures

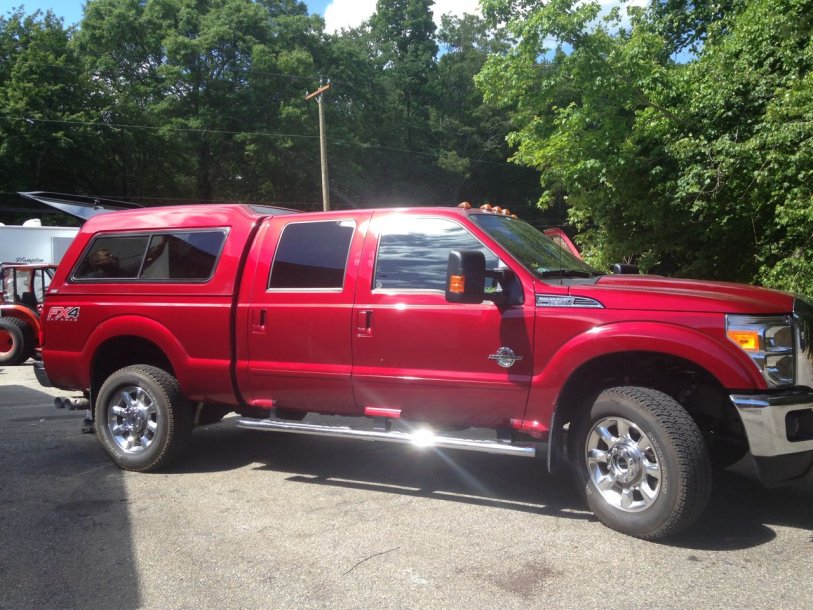

I was asked what I tow it with.. Originally a Toyota Tundra, which did perfectly fine but killed me in gas. Last spring I bought a Ford F-250 Diesel which gets better mileage. ( of course now the gas prices dropped )

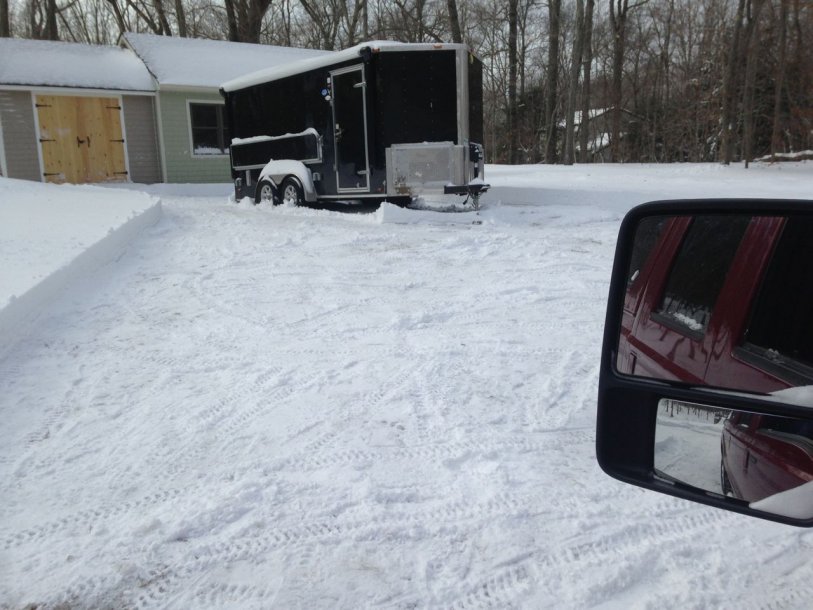

Here in CT, its not a happy trailer right now, Very cold and lots of snow.

Thanks for looking.


JimD

50cc

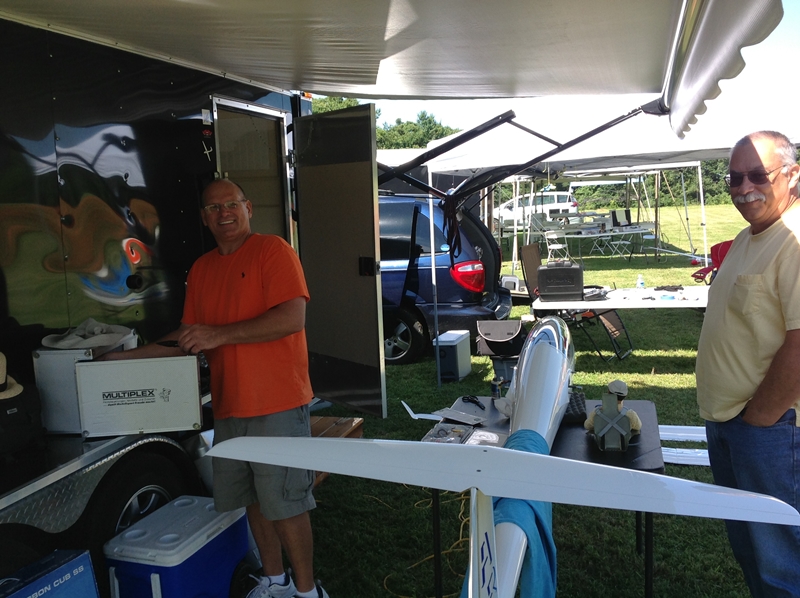

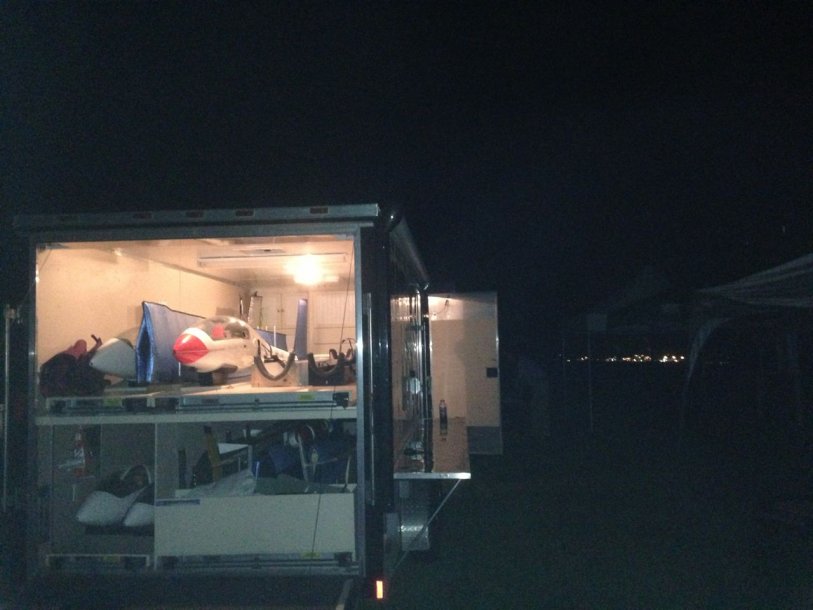

In his element at an aero tow event...the shop is open!



The locals at Len's home field pressed the work shelf into breakfast bar mode at the New England Aero Tow Event 2014 in Salem, CT.



Pistolera

HEY!..GET OUTTA MY TREE!
Yes....very nice! Love the fold down side table and awning. Gotta build something like that on my itty-bitty 6x10.

Would love to see more of the planes...tow and sail!
