Boost Tabs

[microwaves]

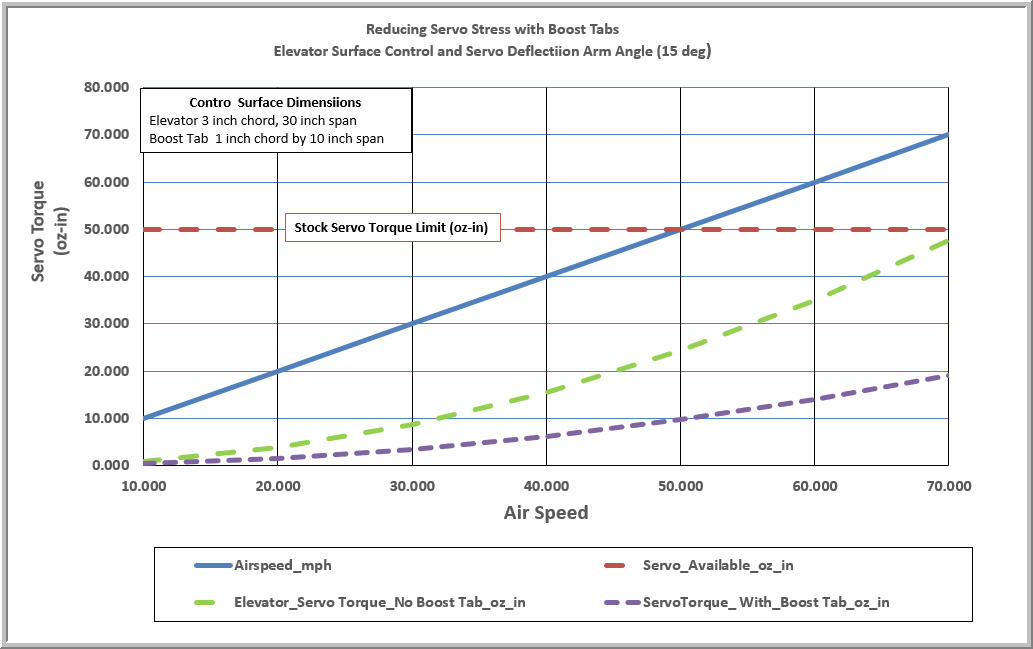

The plot shows that with an appropriately sized boost tab, servo torque drops significantly — well below the stock limit — even at high airspeed. That means less wear and tear on the servo, faster response due to lower mechanical resistance, more efficient control without over-specifying hardware, and better battery life in electric setups. Over-sizing a servo might mask the problem, but it doesn’t solve it. Boost tabs solve it aerodynamically.



[TonyHallo]

Welcome to GSN.



[microwaves]

Thanks. Any comments on the plot?



[WMcNabb]

Welcome to GSN!

Interesting plot.



[microwaves]

What a Boost Tab Actually Does
A boost tab is a small surface mounted on the trailing edge of a control surface, typically offset so that when the servo moves the elevator, the tab deflects in the opposite direction. This creates an aerodynamic force that helps push the main surface where you want it to go.

Think of it as a tiny wing doing free work for your servo.
• When the elevator moves up, the tab moves down.
• When the elevator moves down, the tab moves up.
• The airflow over the tab generates a moment that assists the servo.
Instead of fighting the air, you’re using it.

The Data: Torque Drops Dramatically

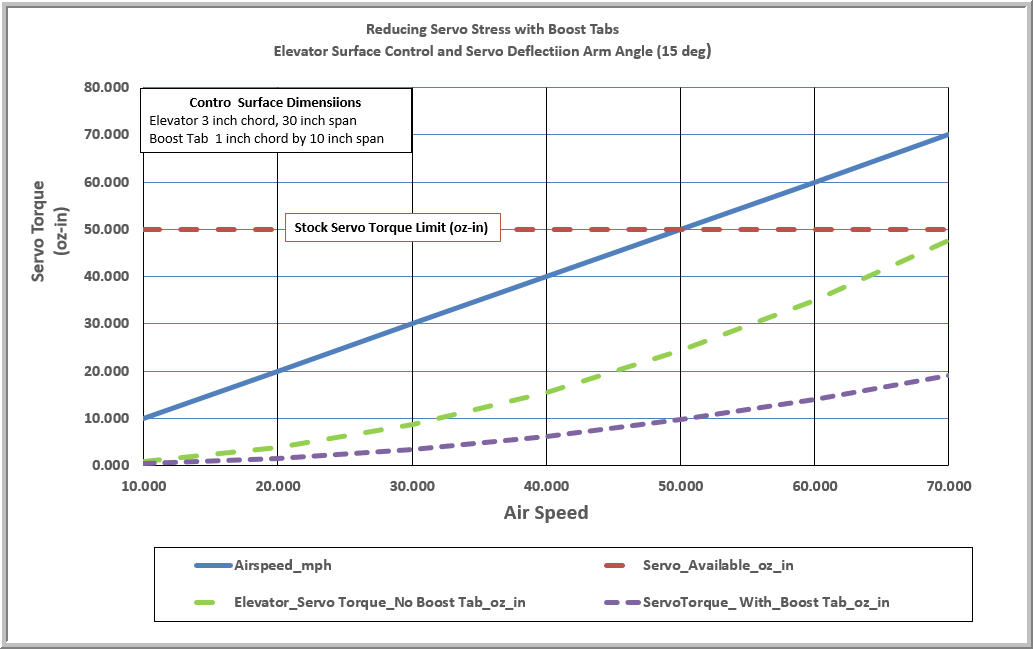

The plot shows a clear comparison:
• Without a boost tab:
Servo torque climbs rapidly with airspeed. At higher speeds, torque approaches or exceeds the servo’s rated limit — not great for reliability or precision.
• With a boost tab:
Torque stays far below the limit, even as airspeed increases. The servo is no longer the bottleneck; the airflow is doing the heavy lifting.
This isn’t a slight improvement — it’s a structural change in how the system behaves.

Why This Matters More Than “Just Use a Bigger Servo”
1. Lower Torque = Longer Servo Life
High torque loads generate heat, wear gears, and stress electronics. Reducing load means your servo isn’t constantly operating near its limits.
2. Faster, Cleaner Control Response
A servo under heavy load moves more slowly and with more dead band. Reducing the load sharpens the airplane's feel, especially in high-speed maneuvers.
3. Weight and Power Savings
Bigger servos mean bigger batteries, heavier wiring, and more current draw. Boost tabs give you performance without the penalty.
4. Aerodynamic Efficiency
You’re not forcing the surface through the air — you’re shaping the airflow to help you. That’s sound engineering.
Where Boost Tabs Shine
• High-speed aerobatic aircraft
• Scale warbirds with large elevators
• Vintage or classic designs with long tail moments
• Any model where servo access is difficult or weight matters
Even modestly sized tabs can make a huge difference. Your servo, your batteries, and your airplane all benefit.



[microwaves]



[dhal22]

Boost tabs, oil, servos. Conversations that can go on for decades……..



[TonyHallo]

Boost tabs work, there's no question about it. Back when I stated flying giant scale, I used Futaba S148 servos, 48 in-oz of torque, they worked, there was no 3D, surfaces were much smaller than today. Had I known about boost tabs then I would have used them. Today on the same size aileron I have 400 in-oz of torque with a servo the same size.
Your arguments are correct for servos that are marginally powered, but that's not the case with today's servos.



[microwaves]

I only brought up Boost tabs as another option for designers to consider. They’re not something everyone needs, especially with the kind of servo torque we have today, but they are a valid tool in specific setups. Back in the S148 days, they would’ve made a big difference, but with modern 300–400 in‑oz servos, the need isn’t the same. So really, I wasn’t saying “you must use boost tabs”—just putting them on the menu for anyone working with large surfaces or unique designs. Bigger servos mean bigger batteries, heavier wiring, and more current draw.



[Xpress]

Modern 1000oz/in+ servos don't have problems with 3D control surfaces even on 120" sized airplanes. As for current draw, we now have 12v style servos that see a big reduction in current draw which means good quality 22awg wiring can be used. These models don't need boost tabs, just good equipment. They add more complexity than it's worth, simplest is best.
