AeroWorks 150cc Yak 55M ARF QB - How Did We Miss This?!?!

SleepyC

150cc

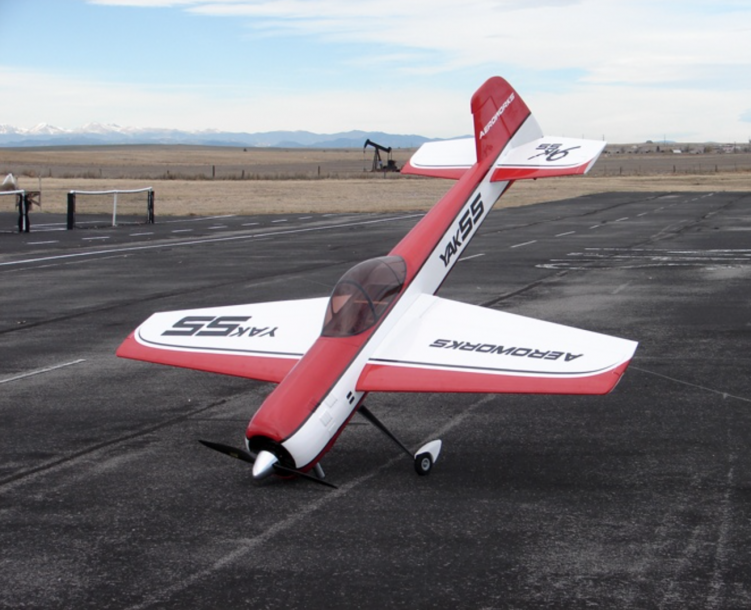

Screen Shot 2015-07-29 at 8.12.20 AM.png

150cc Yak 55M ARF QB

Aeroworks is proud to add the 150cc Yak 55M ARF QB to their line of Quick Build Series Aircraft. The Quick Build (QB) Series is top quality in both design and performance that has set a new standard for ARF aircraft. Designed with the customer in mind to provide the highest quality, light weight construction and fastest build time possible.
The 150cc Yak 55M was designed to be the best looking and best performing Yak to date. This aircraft requires minimal mixing and aileron differential creating the truest flying Yak EVER! The Yak 55M has unbeatable stability and precision flight characteristics and is certain to please both the beginner as well as the advanced competitor. Designed for both Precision and 3D Style flying this plane is sure to out perform all other aircraft.

SPECIFICATIONS
Wing Span 122 Inches
Wing Area 2775 Square Inches
Fuselage Length 109.5 Inches (Rudder to Front of Cowl)
Fuselage Length 115.5 Inches (Rudder to Front of Spinner)
Cowl Width 14 Inches
Weight 38 to 40 Pounds
Engine 150cc-200cc Gas
Spinner Size 5 Inches
Radio 6 Channels Minimum

Recommended Servos:
Throttle
Hitec HS-5625MG
Aileron
Hitec HS-7955TG (Quantity 4)
Elevator
Hitec HS-7955TG (Quantity 2)
Rudder
Hitec HS-7955TG (Quantity 3)
*See Manual for Minimum Operating Speed - Torque Output

Recommended Pilots:
Aeroworks
40% Ace, Hollywood, Ice, Maverick, Noll or Phantom
Cajun
45-50% Realistic Scale and Realistic Scale Masters

Ultracote™ Color Codes:
Red/White/Black Color Scheme
#866 True Red
#870 White
#846 Pearl Charcoal


FEATURING
Strong Light Weight Construction
Professionally Covered in Ultracote™
Pre-Mounted and Tinted Canopy Hatch Assembly
Pre-Mounted Fiberglass Cowl and Wheel Spats
Flush Fit Cowling with No External Mounting Bolts
Canister and Pipe Ready
Pre-Installed Engine Baffling
Pre-Installed and Fuel Proofed Engine Box
Laser Marked Firewall for DA and DLE Engines
Universal Engine Mounting Template Provided
Two Servo Wing
One Servo Elevator
Carbon Reinforced Wing Spar Increases Wing Strength
Large Control Surfaces Beveled for Maximum Throw
Pre-Installed Slot Style Hinges
Carbon Fiber Wing Tube
Carbon Fiber Stab Tubes
Carbon Fiber Landing Gear
Carbon Fiber Tail Wheel
Complete High Quality SAE Hardware Package Included
Adjustable Pushrods with Centering Nut
Complete and Detailed Instruction Manual
12 to 14 Hours Assembly Time

Optional Accessories:
Dash Panel
Wing and Stab Bag Set

Screen Shot 2015-07-29 at 8.12.20 AM.png

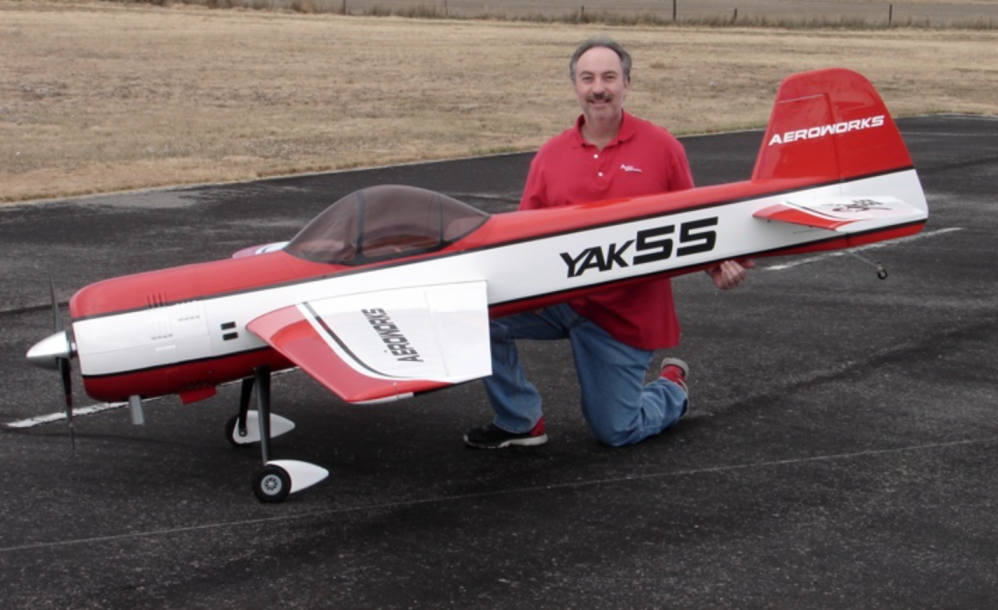

Screen Shot 2015-07-29 at 8.12.29 AM.png

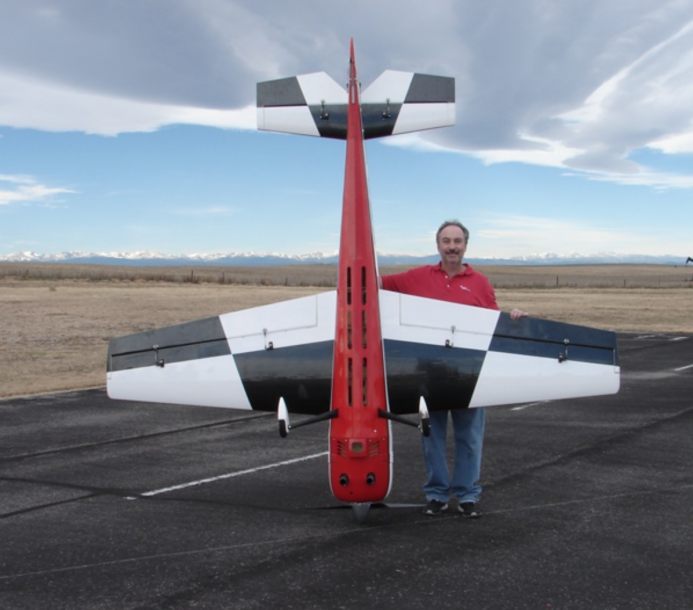

Screen Shot 2015-07-29 at 8.12.41 AM.png


FULL Pic Gallery HERE.

$2,195.95
IN STOCK - $250.00 SHIPPING (48 STATES)


dhal22

GSN Sponsor Tier 1
There was a discussion elsewhere about this model's price. Would have been great to have finished it but too much arguing and it got shut down. Beautiful plane for those of us considering the 55 as our next plane.
