motor mounts, aluminum is preferred....

[Bunky.F.Knuckle]

I have made two of these, But I also have contacted Chris's friend, Dan, who is also making me some that Are CNC. Thank you @Bunky.F.Knuckle for the introduction to your friend. I really appreciate you.

I made these yesterday and today, and

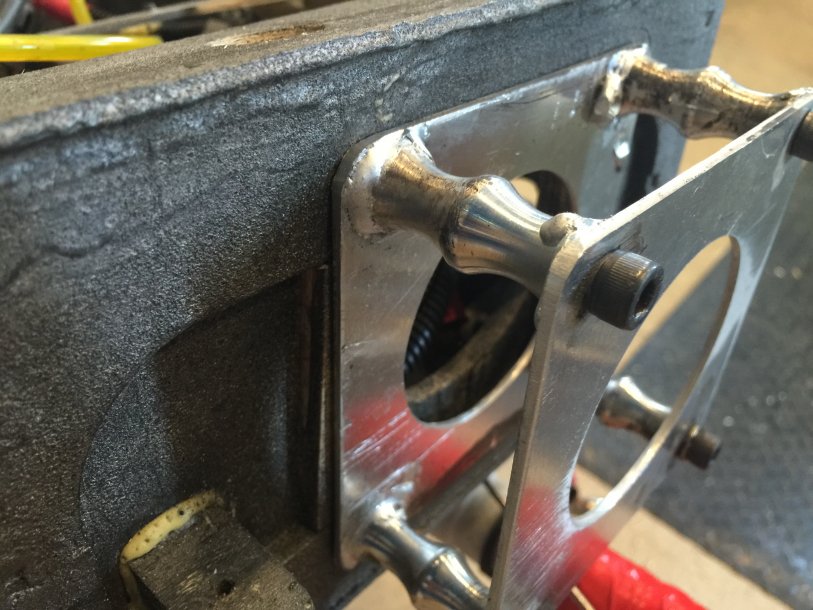

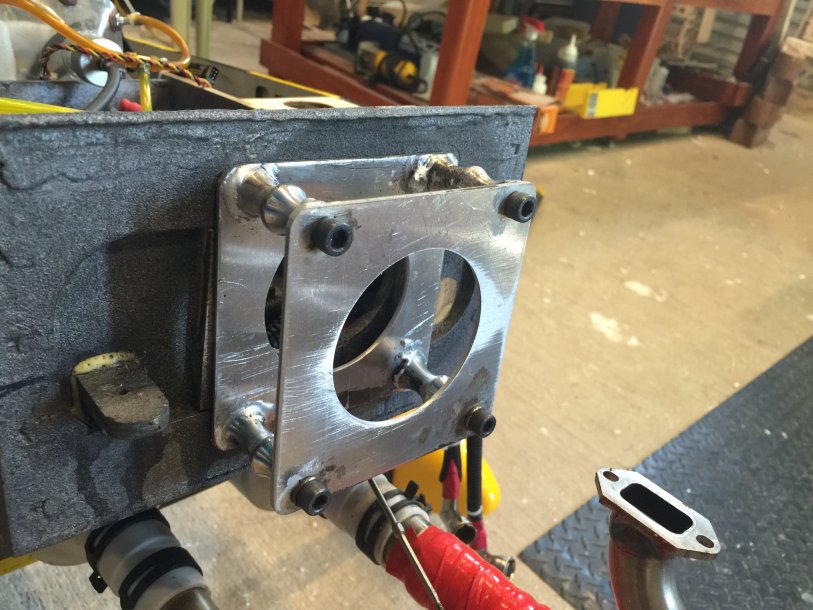

They are SWB standoffs, that I brazed aluminum solder onto a 1/8" aluminum plate, front and back. After I cut out a central hole, total weight is 4.7 ounces, and it feels very strong.

This piece, will get a nice polishing before it is installed, and the edges rounded out, so there are no sharp edges.

total length is 43 mm.

Once the ones come in from Dan, then I can decide which I will use. Now I will have over 6 mounts! Some with Different weights and material, so I can experiment.

View attachment 80598 View attachment 80599

No prob. Glad he is doing this for you. I think between he and I, we may invest in a Mill and lathe. This way, we can do this for us, and not have to fiddle with it on company time. I love doing govt work at work. But them days for me are about over.



[Robotech]

Could just be my ignorance showing, but why couldn't someone offer the front and back plate and varying sizes of stand-offs to fit between the plates. The standoffs could be over drilled to allow for bolt passage. You could even offer 1/4" spacers to fine tune the installation. Maybe because it might not have the rigidity of a one piece mount?



[orthobird]

Could just be my ignorance showing, but why couldn't someone offer the front and back plate and varying sizes of stand-offs to fit between the plates. The standoffs could be over drilled to allow for bolt passage. You could even offer 1/4" spacers to fine tune the installation. Maybe because it might not have the rigidity of a one piece mount?

i believe the front and rear plate is the key. Guess it does not have to be one piece, if all 4 bolts are tight and remain tight. if it is a single piece unit, and one bolt were to become less tight, it would still maintain its strength and rigidity, whereas if it was front plate - spacers - rear plate, and one came loose, then it would all lose strength??

This is my uneducated engineering physics on it!

Maybe some one can do a finite element analysis....



[Bunky.F.Knuckle]

Could just be my ignorance showing, but why couldn't someone offer the front and back plate and varying sizes of stand-offs to fit between the plates. The standoffs could be over drilled to allow for bolt passage. You could even offer 1/4" spacers to fine tune the installation. Maybe because it might not have the rigidity of a one piece mount?

That would be a killer idea. 2 3/16" plates, and aluminum dowel with a .270" hole thru the dowel, with varying length dowels.

May have to do 4 smaller bolts attaching the parts together. Harmonics and vibration.



[Jetpainter]

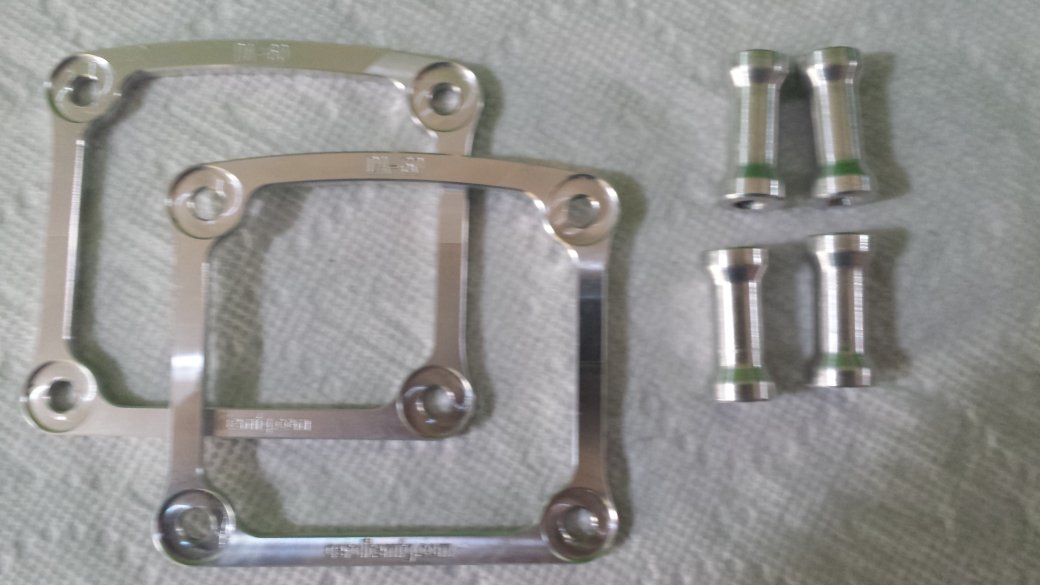

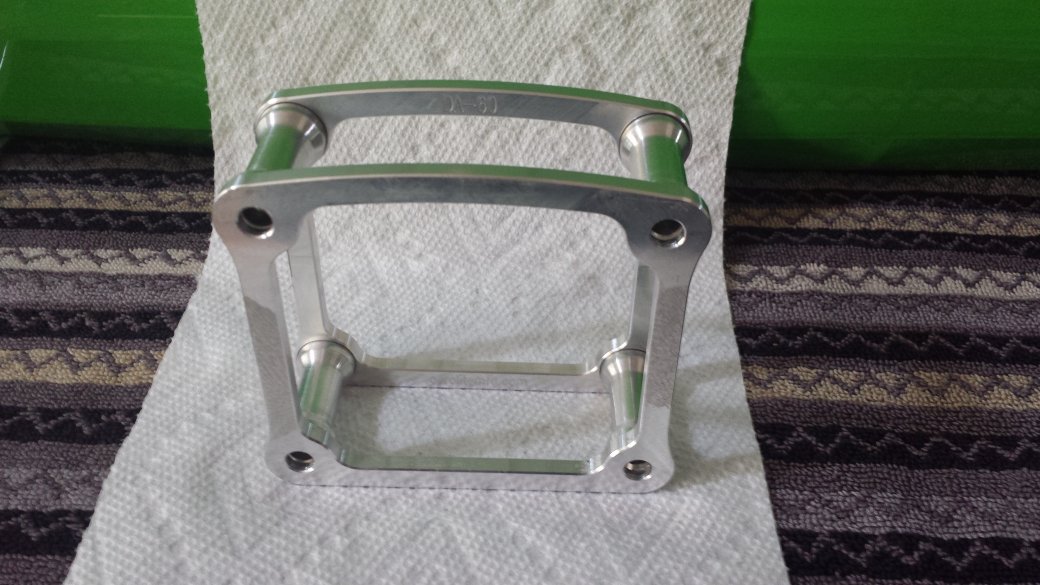

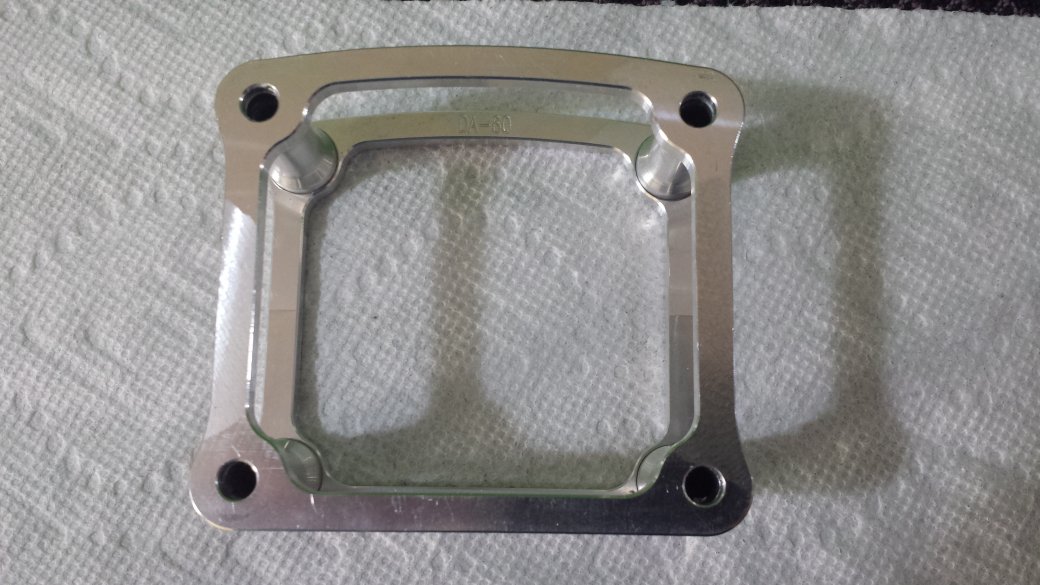

This is one by Aero Lite Mfg for a DA60 that my friend Chris @JC 3D had. A pretty neat design.



[orthobird]

that is awesome!
there you go @Robotech , someone has already made your idea!



[Bunky.F.Knuckle]

Dan just sent me a text message with a video attached. He is getting started on your mounts.

I would post it, but it is really pixelated. Damn resizing!



[Bunky.F.Knuckle]

He doesnt do bad work on a mill, for being a cnc lathe operator.



[orthobird]

thanks Chris, he also emailed me, but told me the file was too large to send. I totally understand and am excited to see the results!



[Bunky.F.Knuckle]

He posted a video on FaceBook. He is gettin right down to town on it.
