Assembly log. EF 104 Extra.

3dbandit

100cc
Hey guys,

I began putting my extra together a few days ago, all i have done is put it on it's legs and hinge the elevators.

I will begin posting pictures later today.


Setup:

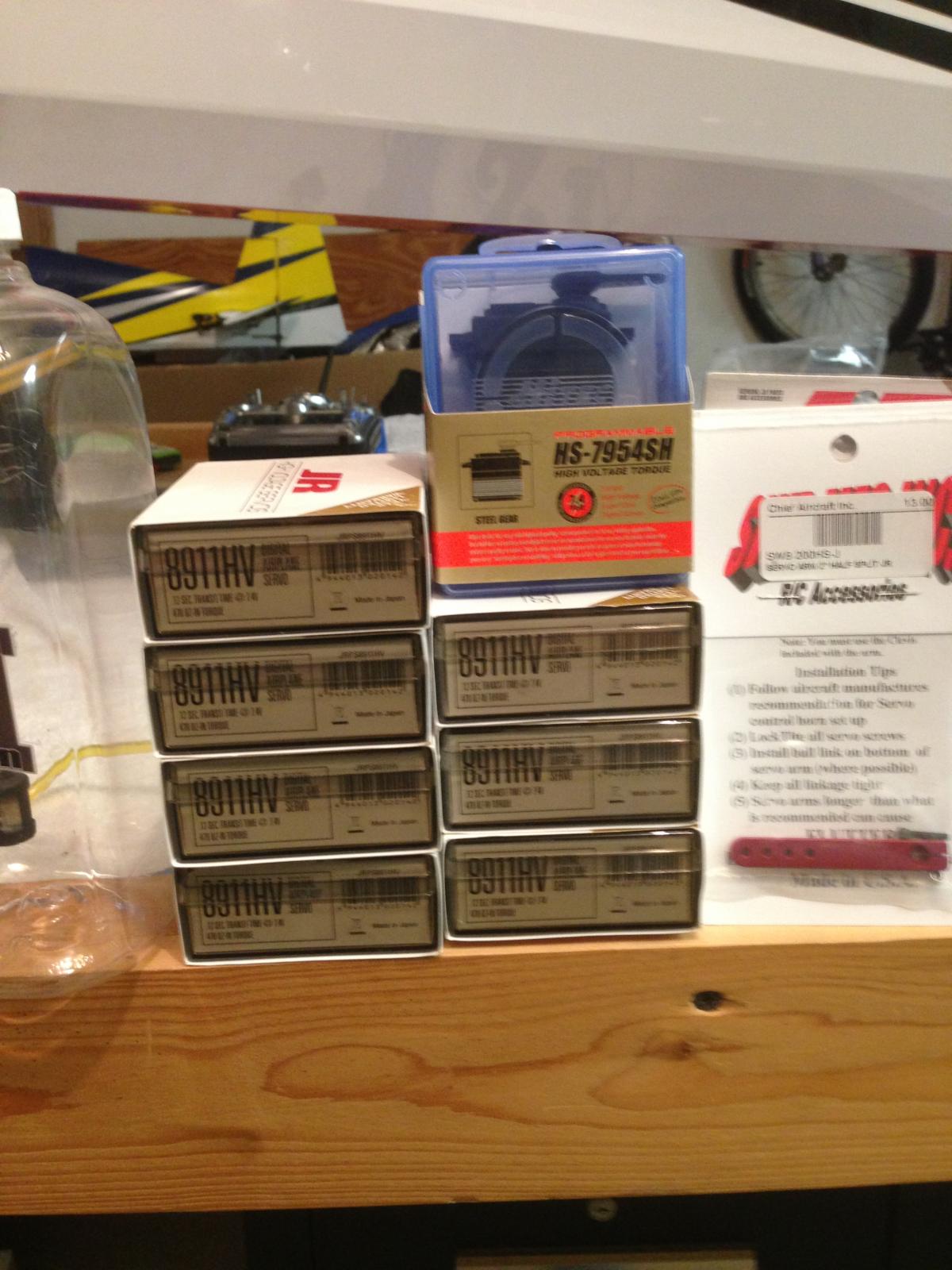

JR 8911HV's all the way around. 4 per wing, 2 on the elevators, and 1 on the rudder. hitec 7954 on throtle, jr 821 hv on choke.

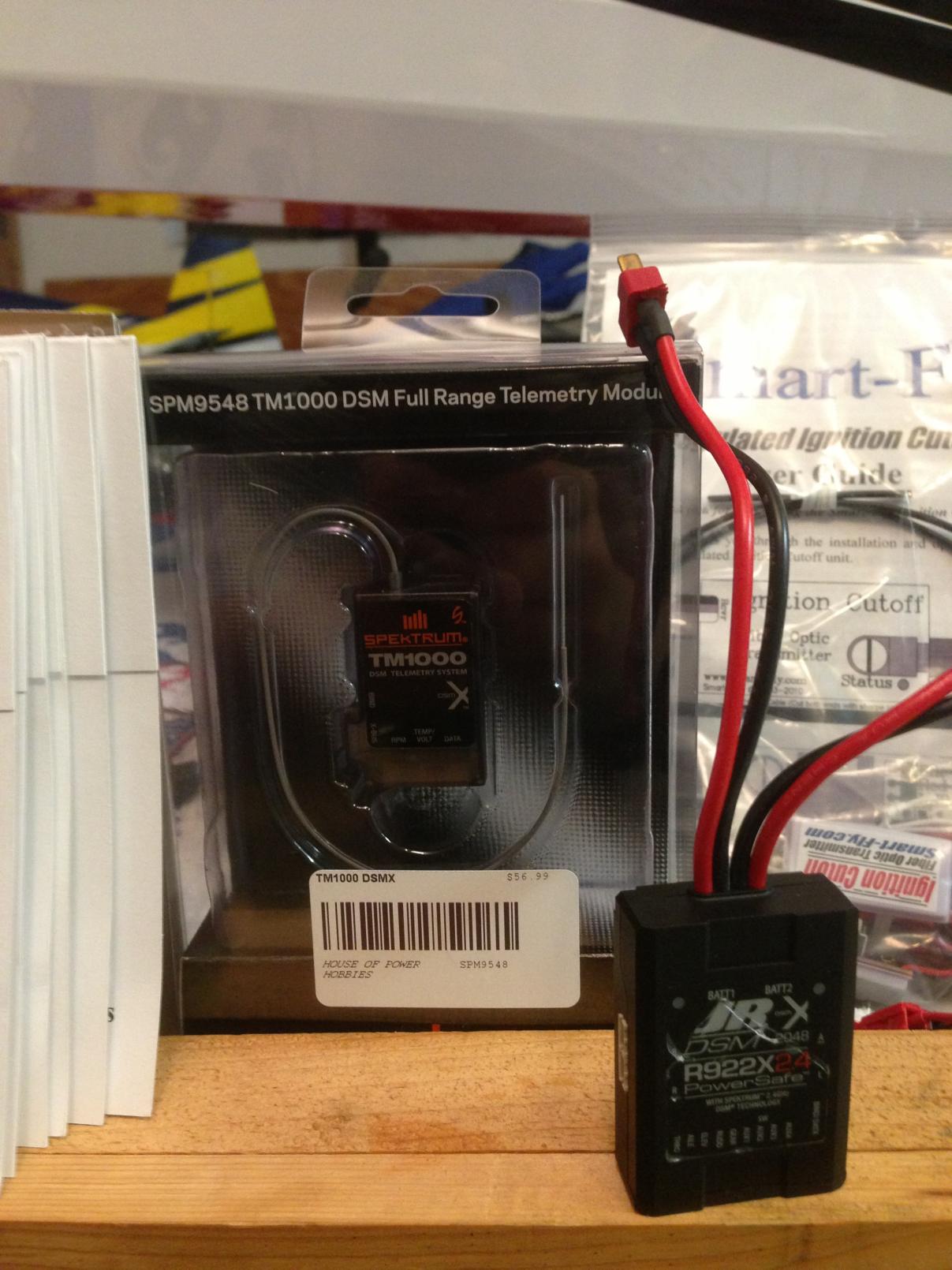

JR 922 power safe receiver.
SWB 2 inch servo arms all around.

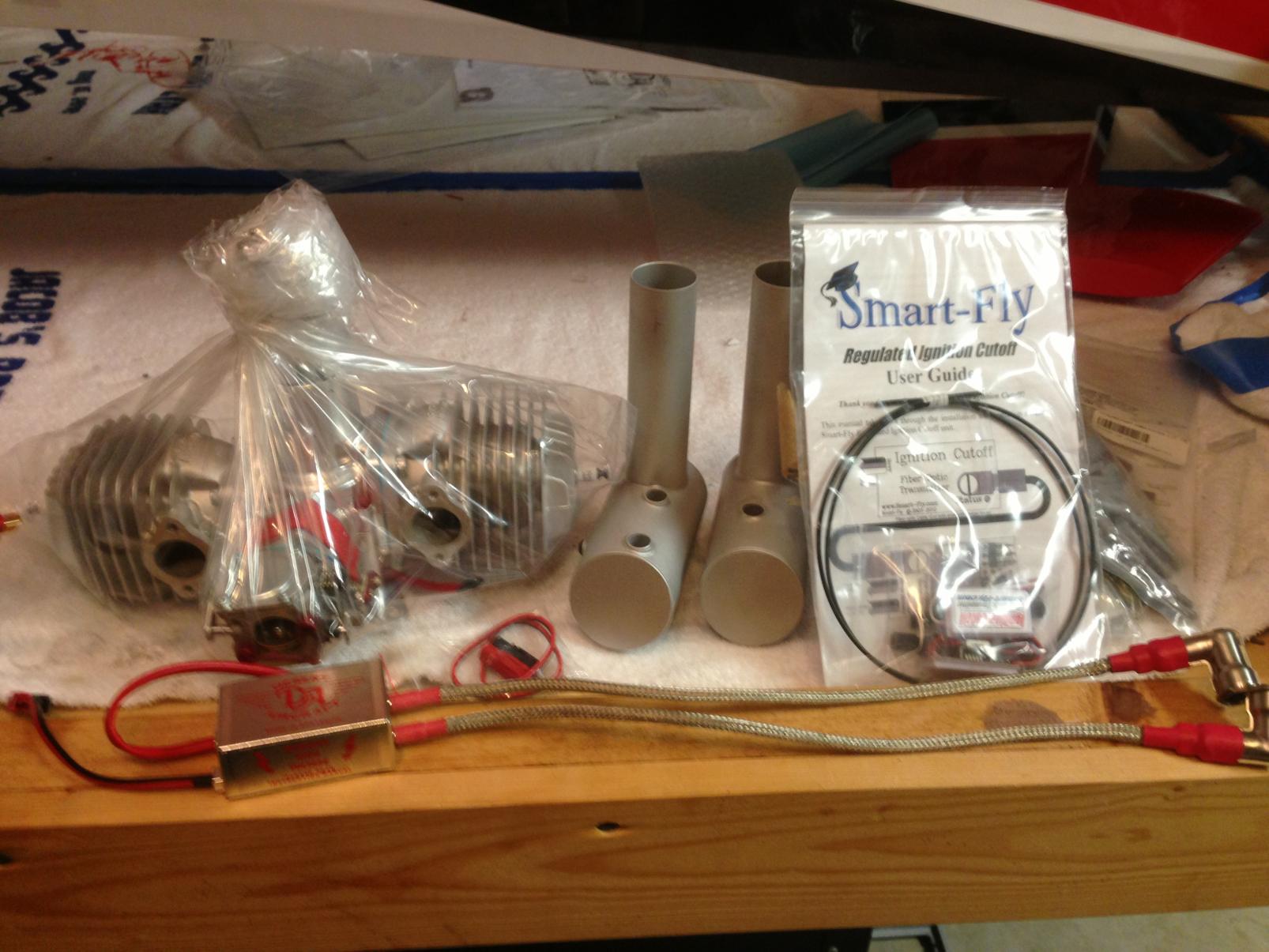

DA 120 on standard mufflers.
Smart-fly regulated opto kill.
Mejzlik 27x12TH

I will be running thunder power lipo batteries. I will choose the size later on when I am doing the CG.

Last edited by a moderator:

3dbandit

100cc

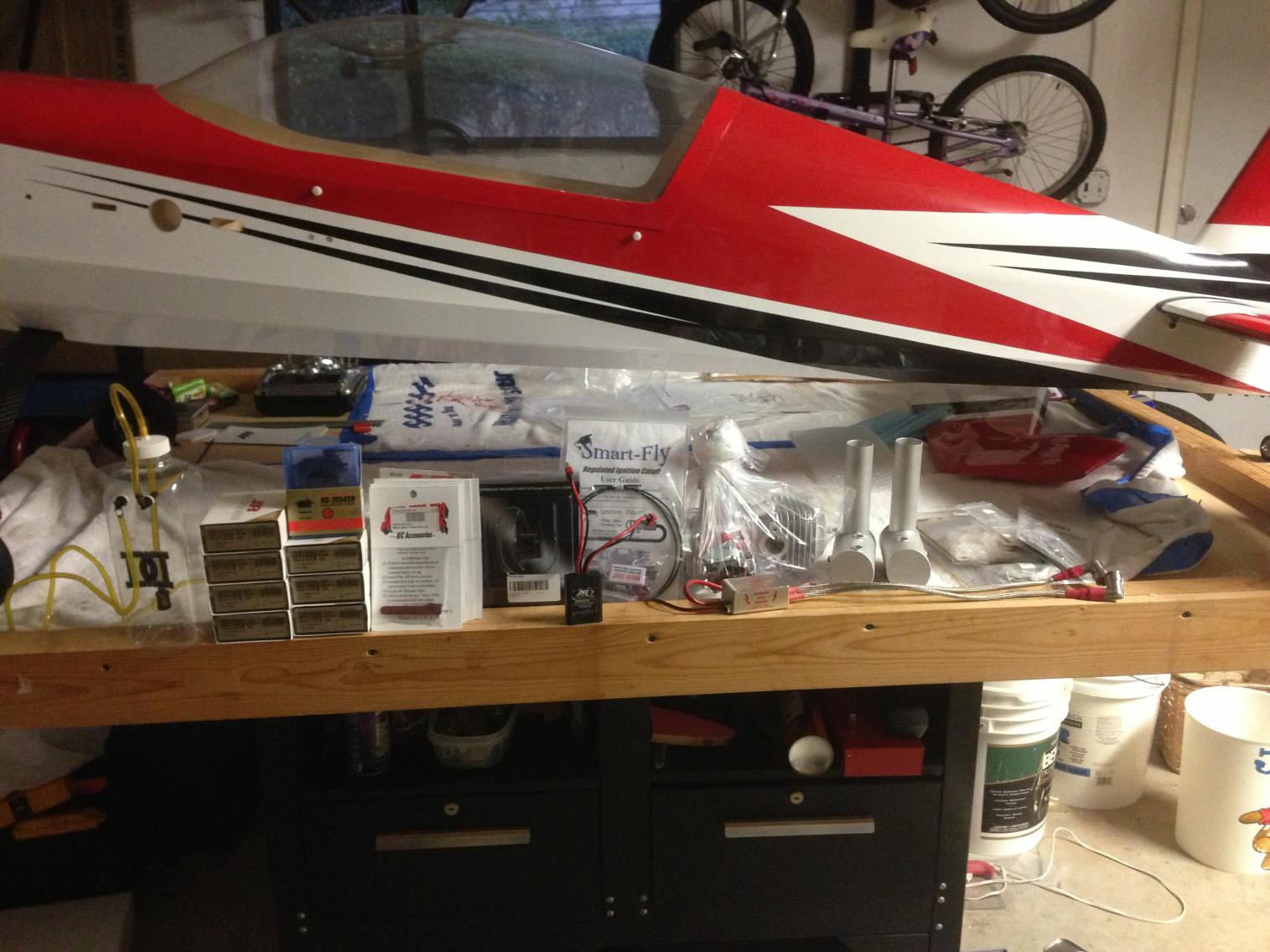

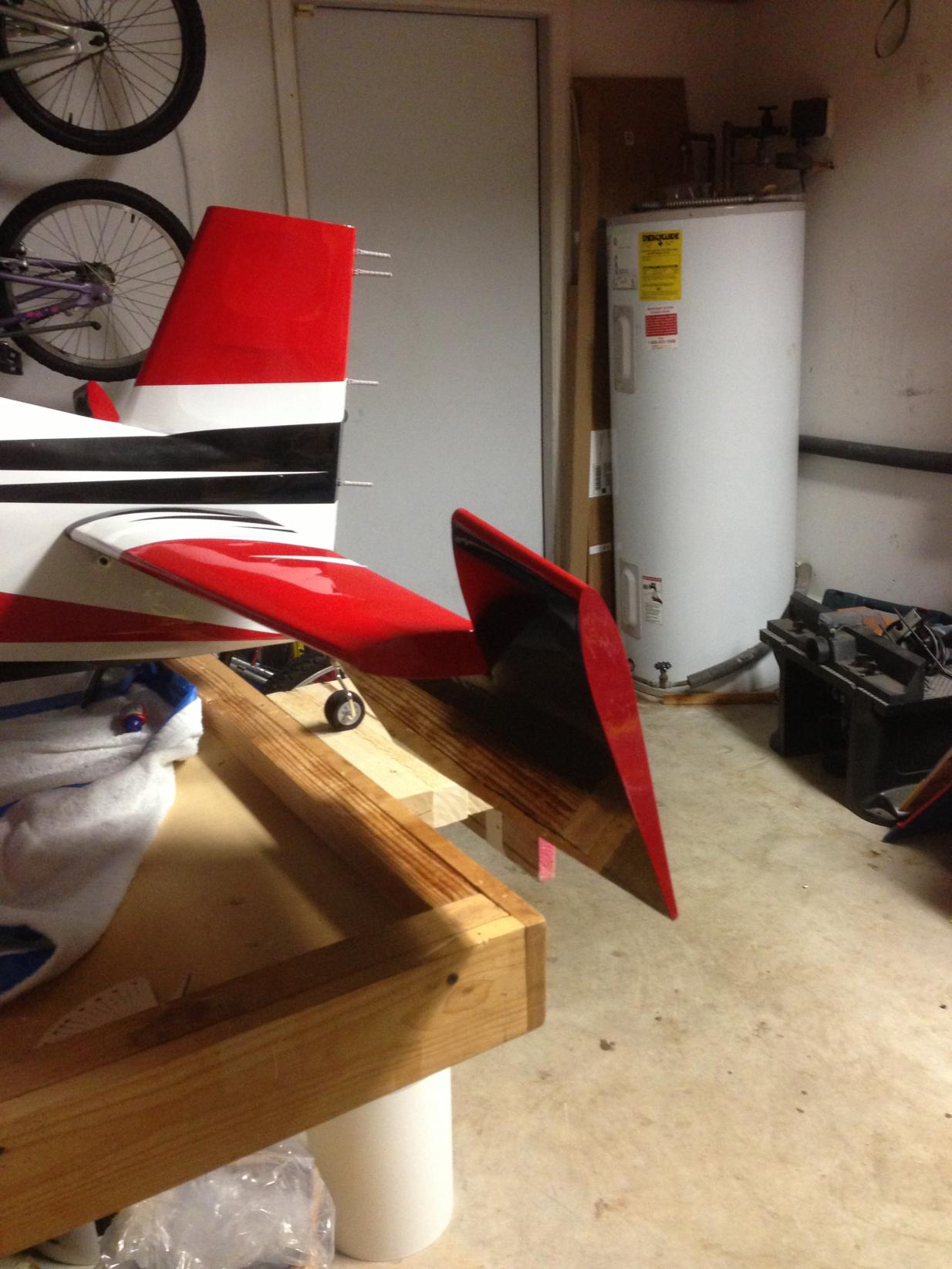

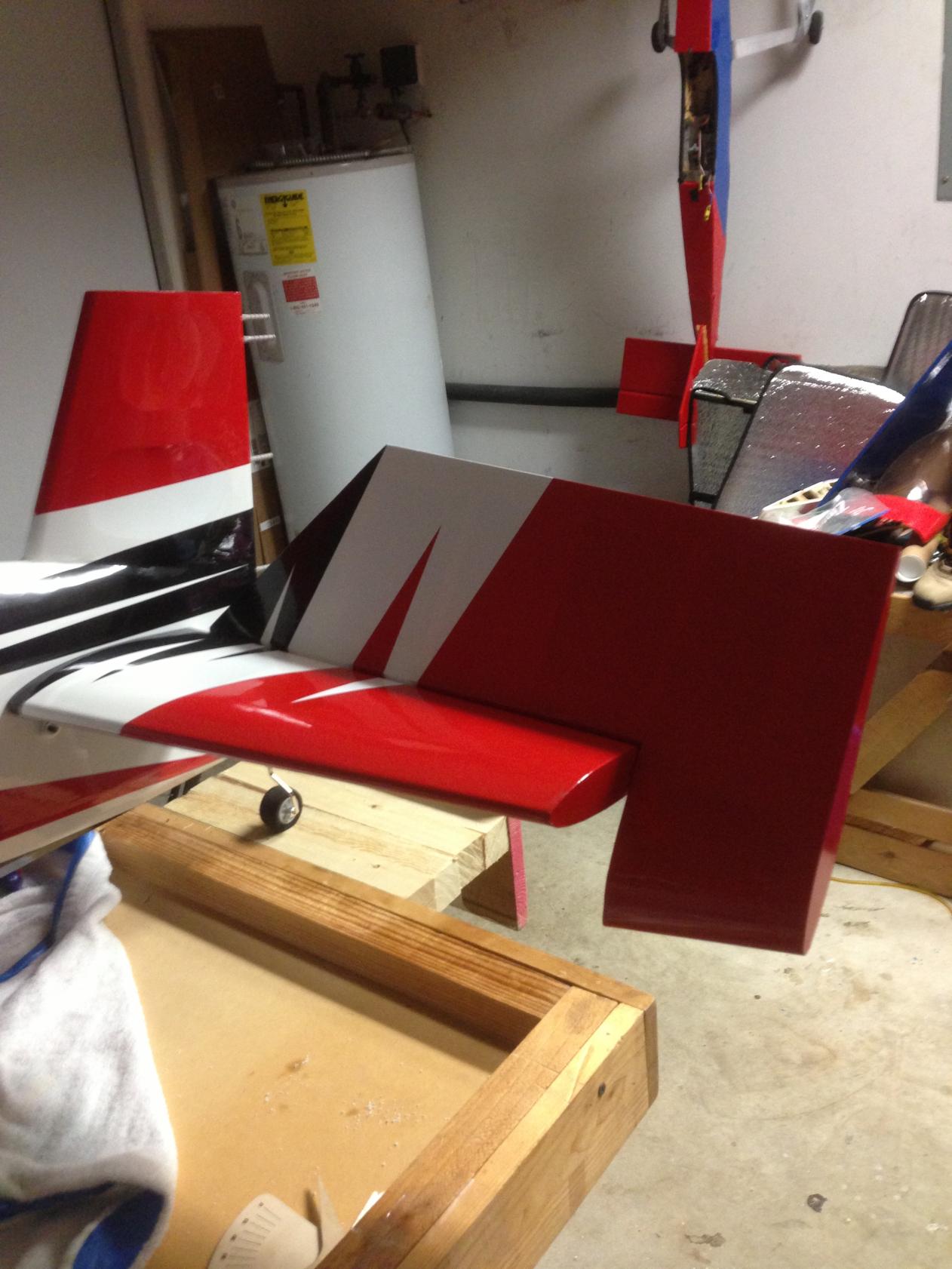

fully deflected elevators and the components.


Attachments

  • IMG_0204.jpg
    187.7 KB · Views: 353
  • IMG_0205.jpg
    188.5 KB · Views: 352
  • IMG_0206.jpg
    189.3 KB · Views: 343
  • IMG_0207.jpg
    188 KB · Views: 369
  • IMG_0208.jpg
    187.8 KB · Views: 377
  • IMG_0209.jpg
    184.5 KB · Views: 354

gyro

GSN Contributor
couldn't you get any more elevator throw than that?! (very, very sarcastic!)

Looks good so far!


3dbandit

100cc

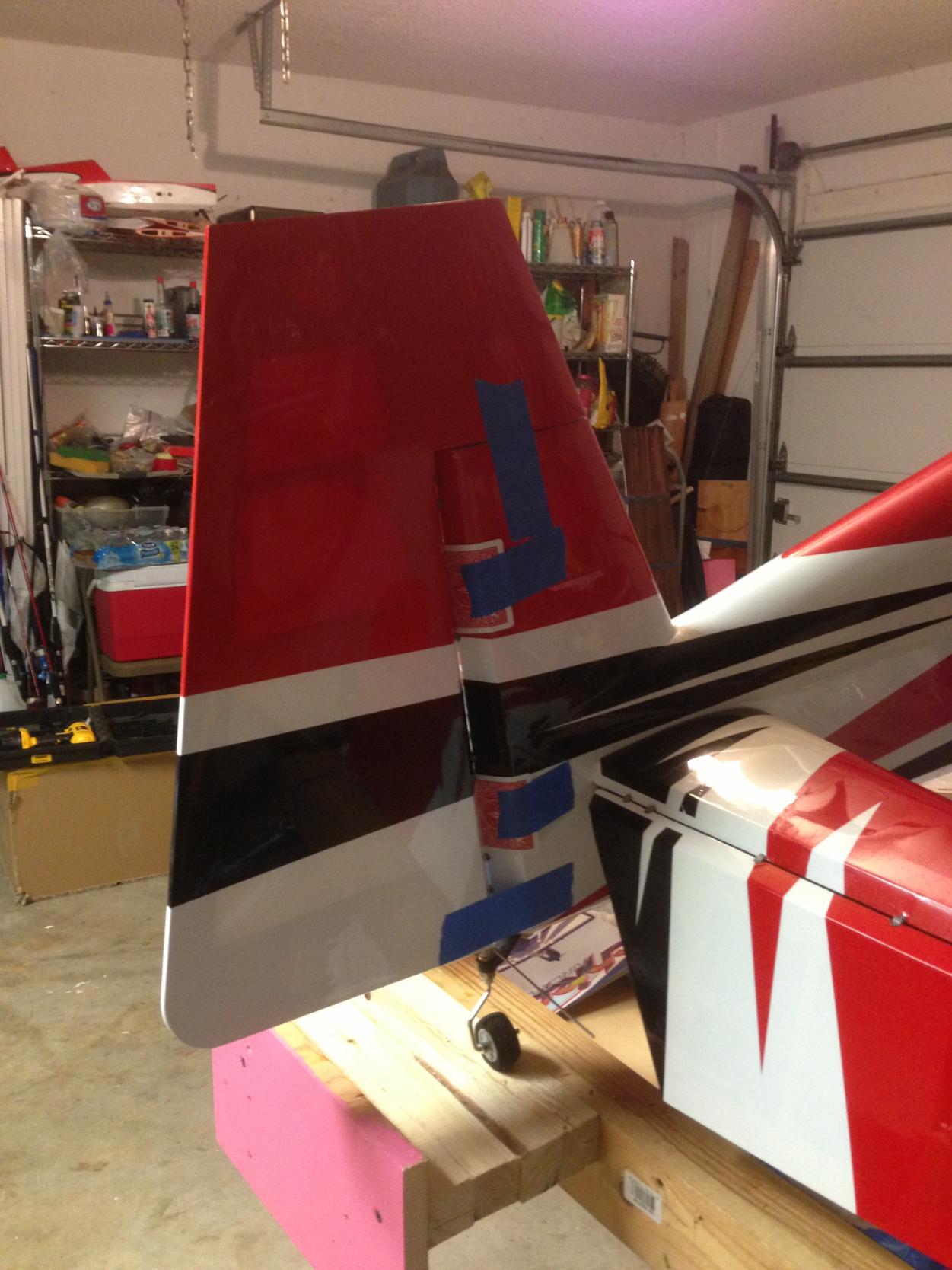

I began hinging the rudder, i did the stab side 30 minutes ago.

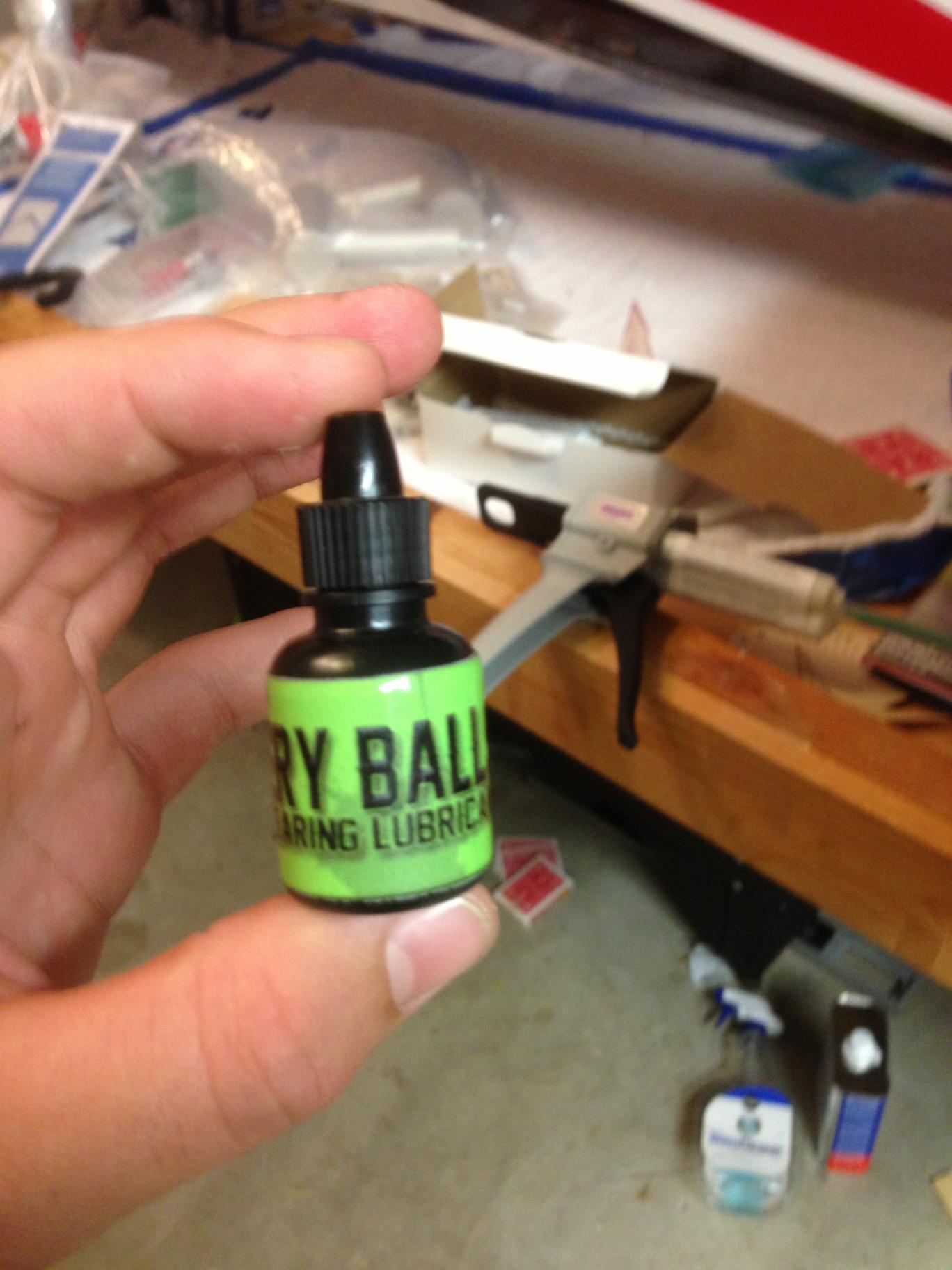

to keep glue from getting in the hinges i used an oil called slippery balls, it is usually used on bearings.


Attachments

  • IMG_0213.jpg
    188.7 KB · Views: 339
  • IMG_0214.jpg
    171.7 KB · Views: 313
  • IMG_0215.jpg
    187.3 KB · Views: 356

3dbandit

100cc

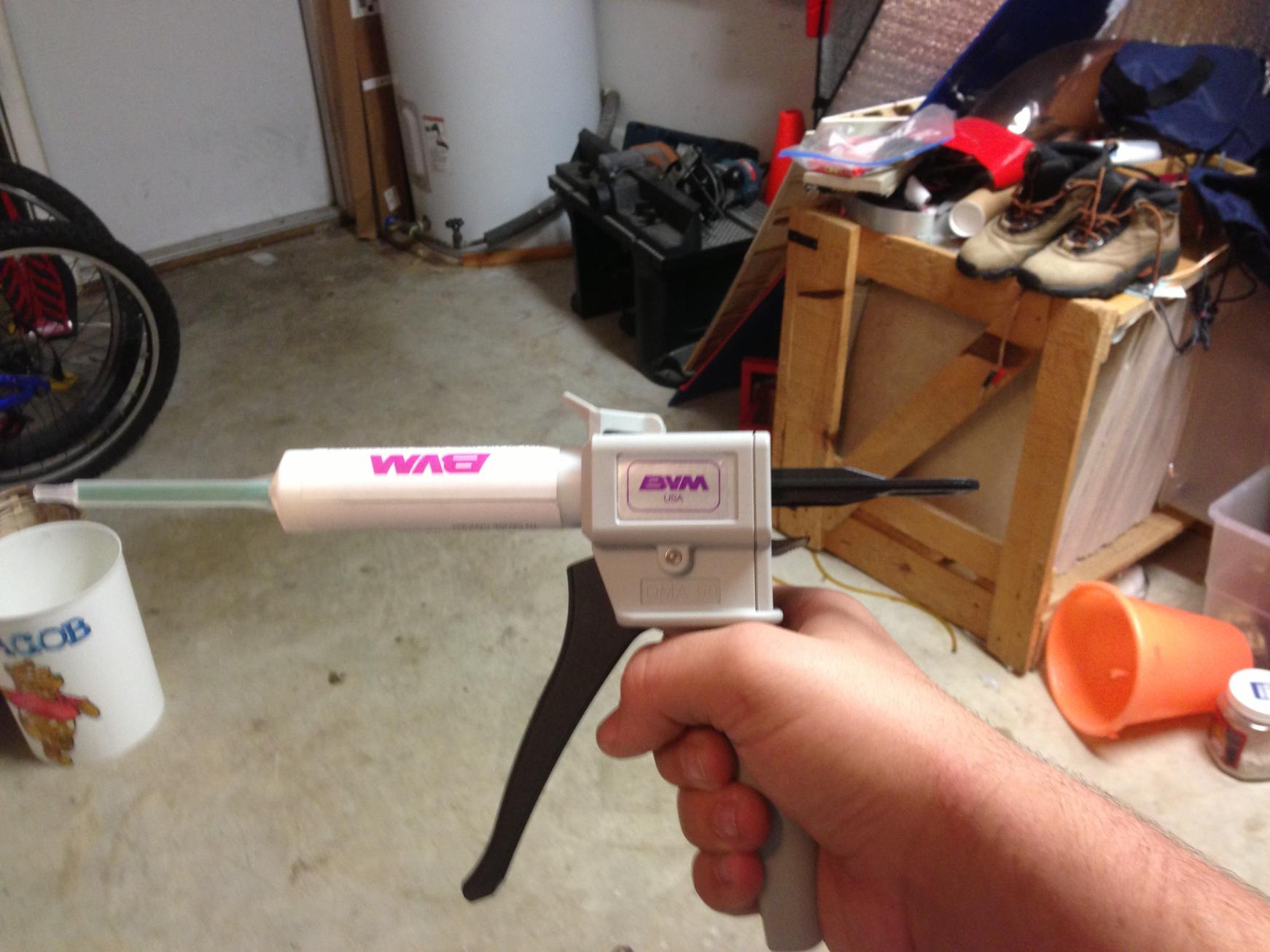

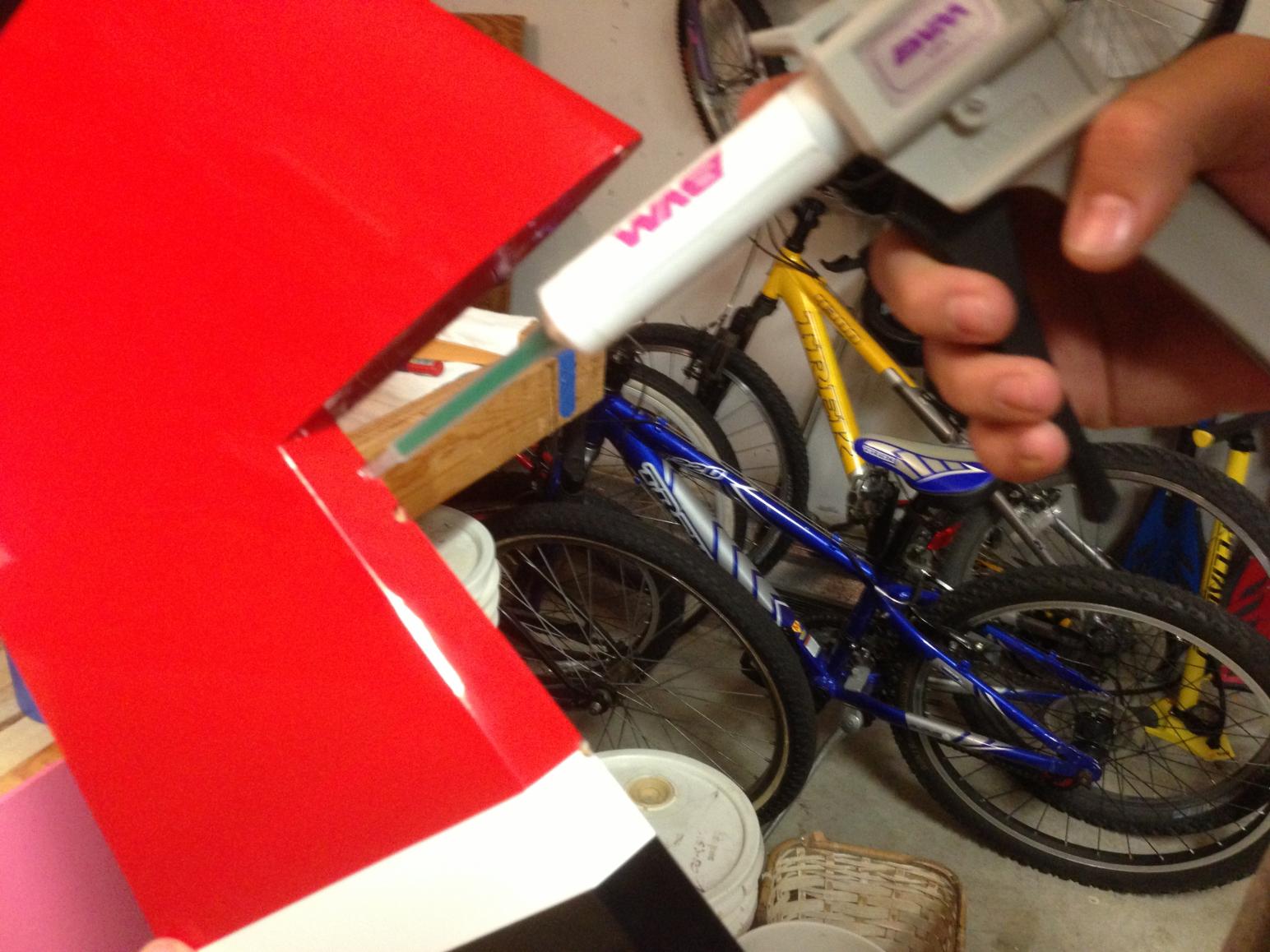

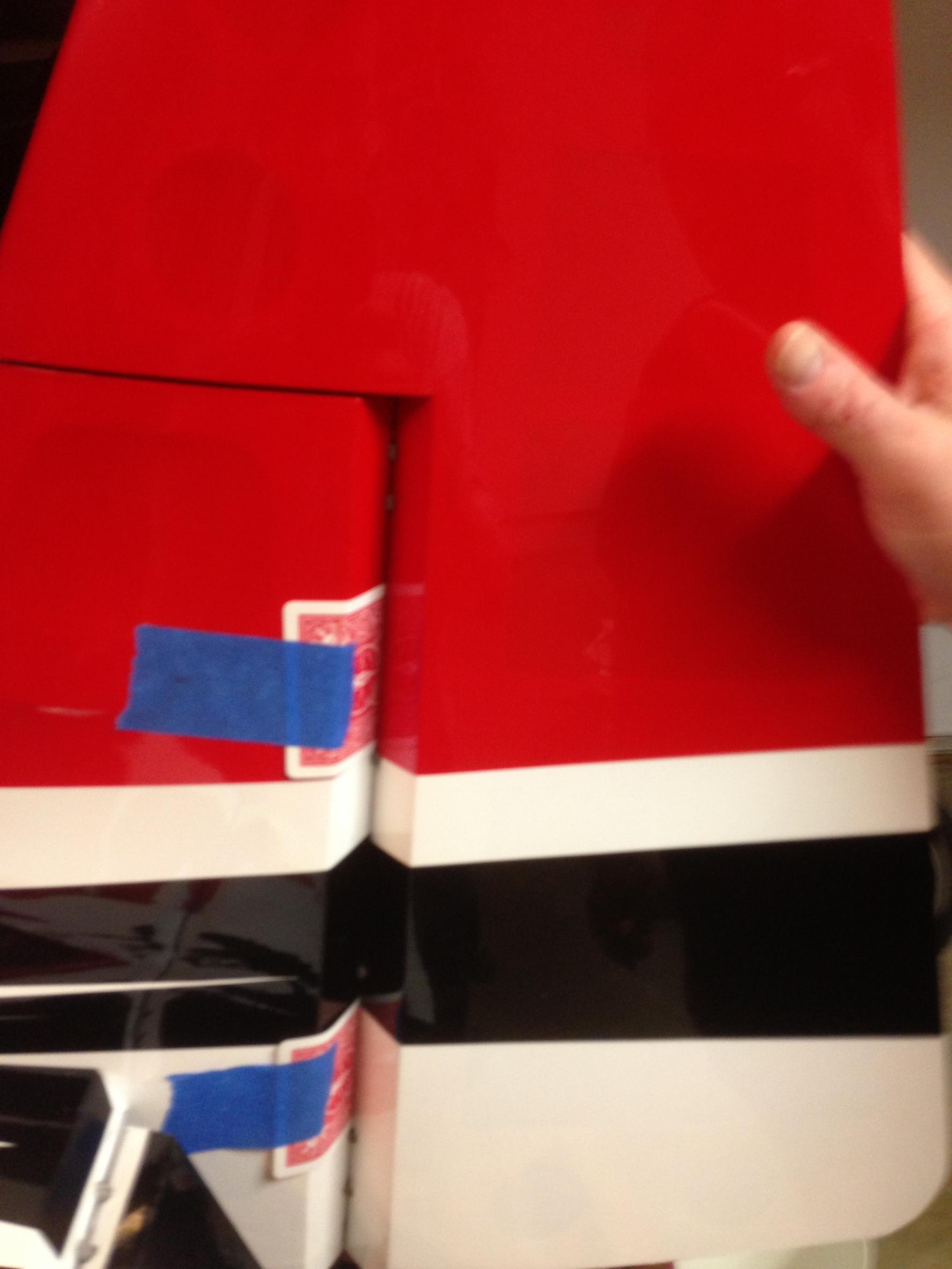

hinged the ruder side. It is now permanently attached with bvm v-poxy.

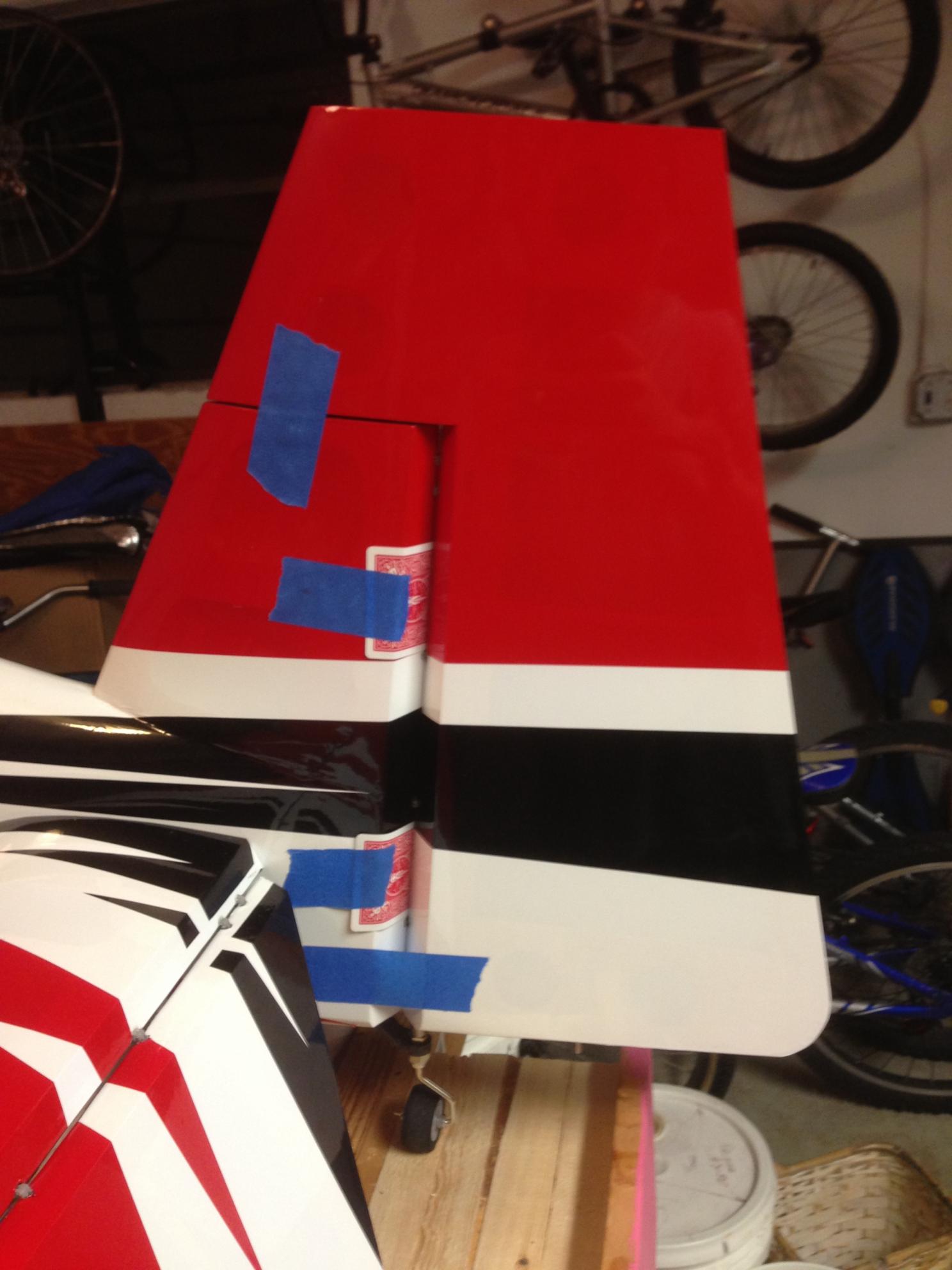

I was able to achieve the proper gap to get full deflection by taping a playing card in the hingeline. To get the 70 degrees i got on the elevators i needed 5 cards.


Attachments

  • IMG_0216.jpg
    182 KB · Views: 365
  • IMG_0218.jpg
    191.1 KB · Views: 395

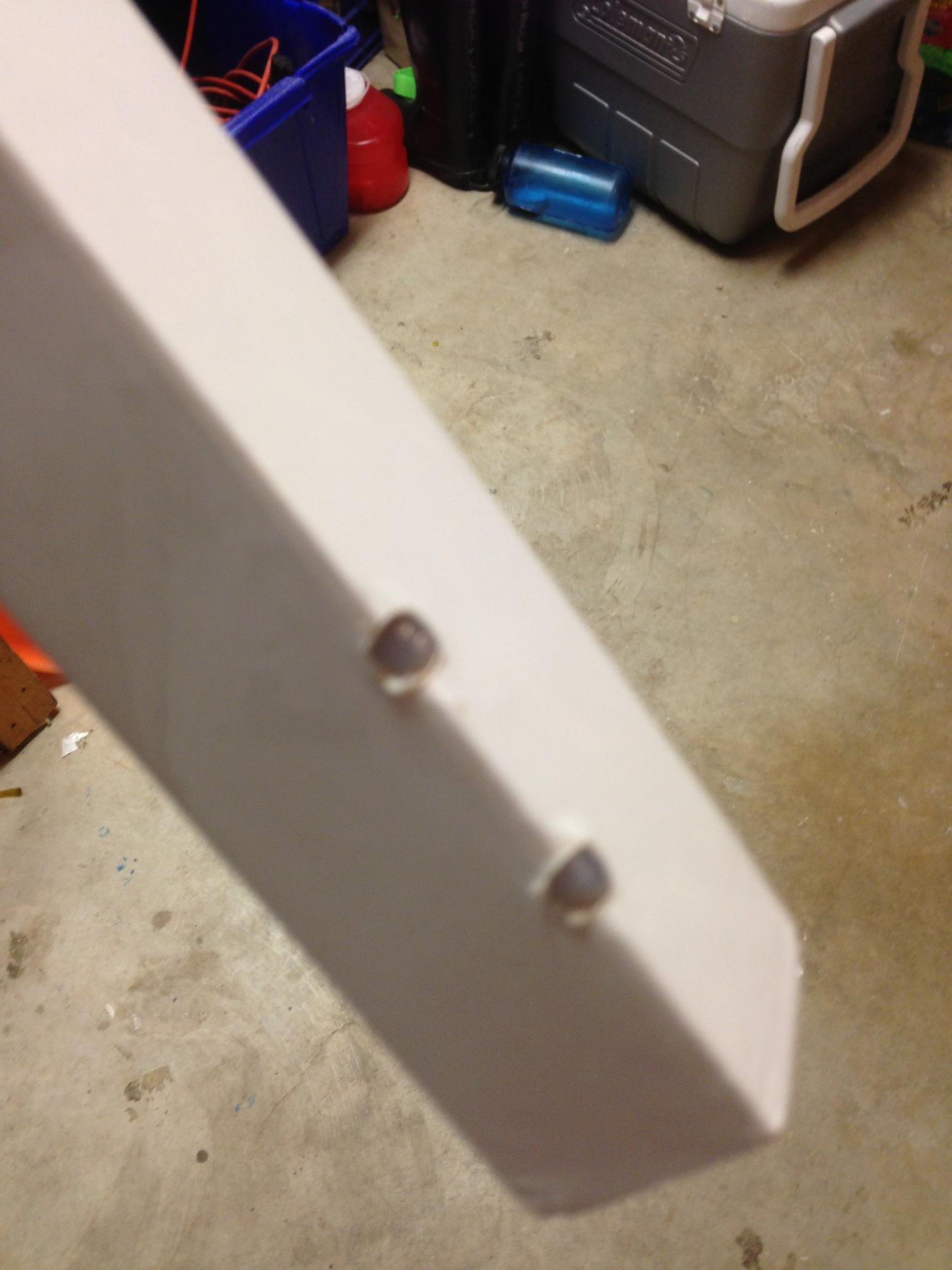

  • IMG_0220.jpg
    182.9 KB · Views: 340
  • IMG_0221.jpg
    197.2 KB · Views: 352

3dbandit

100cc

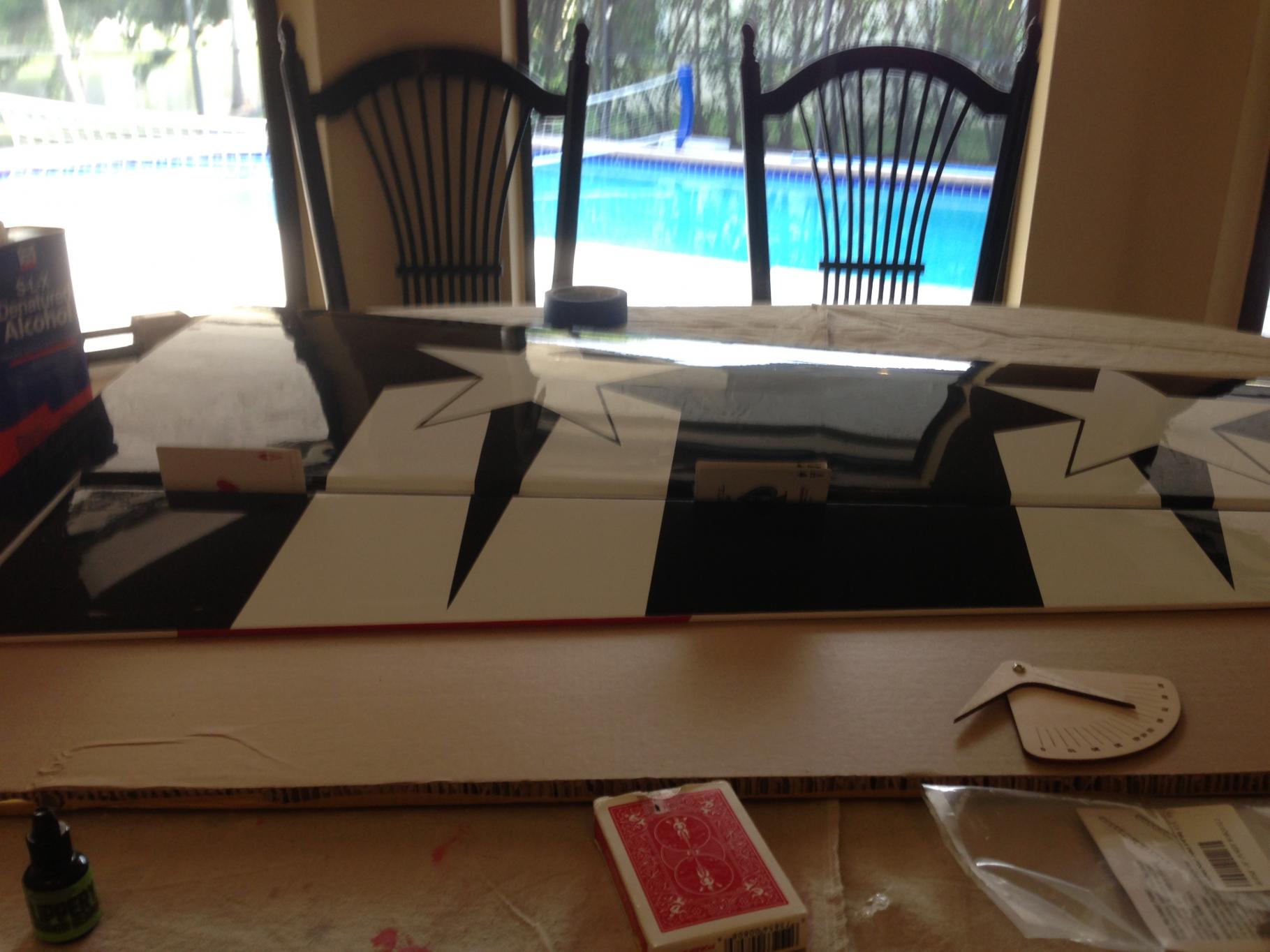

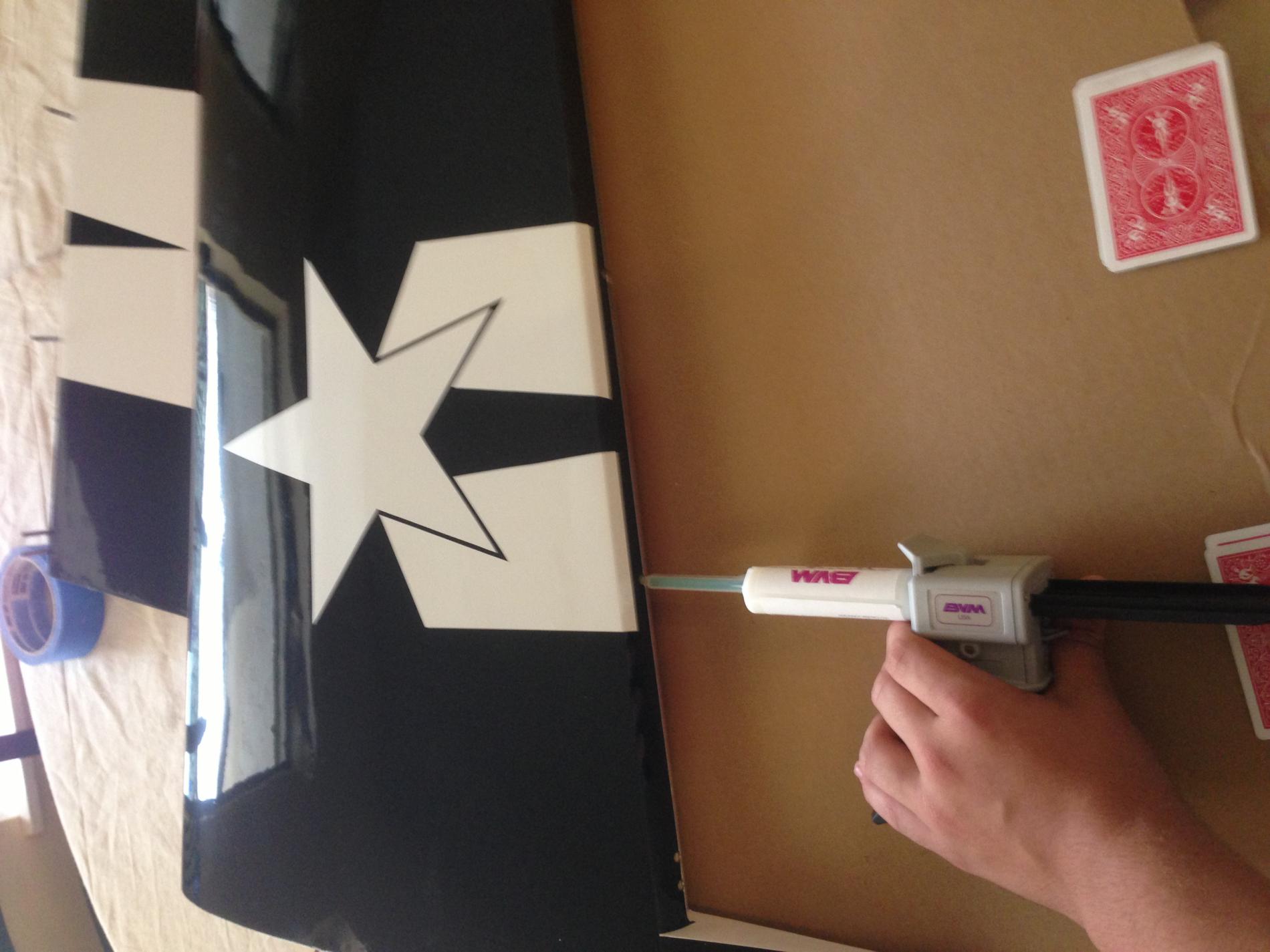

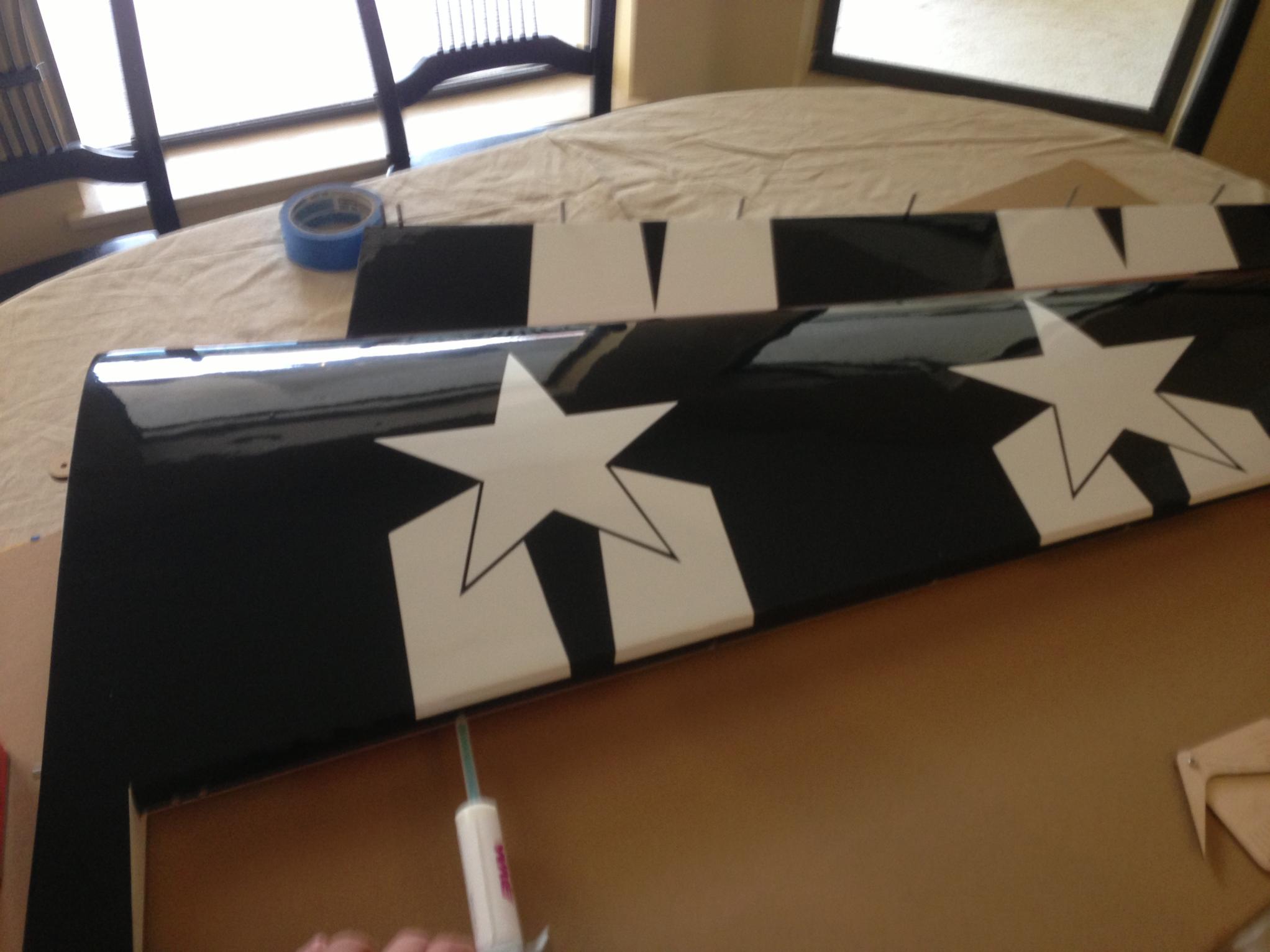

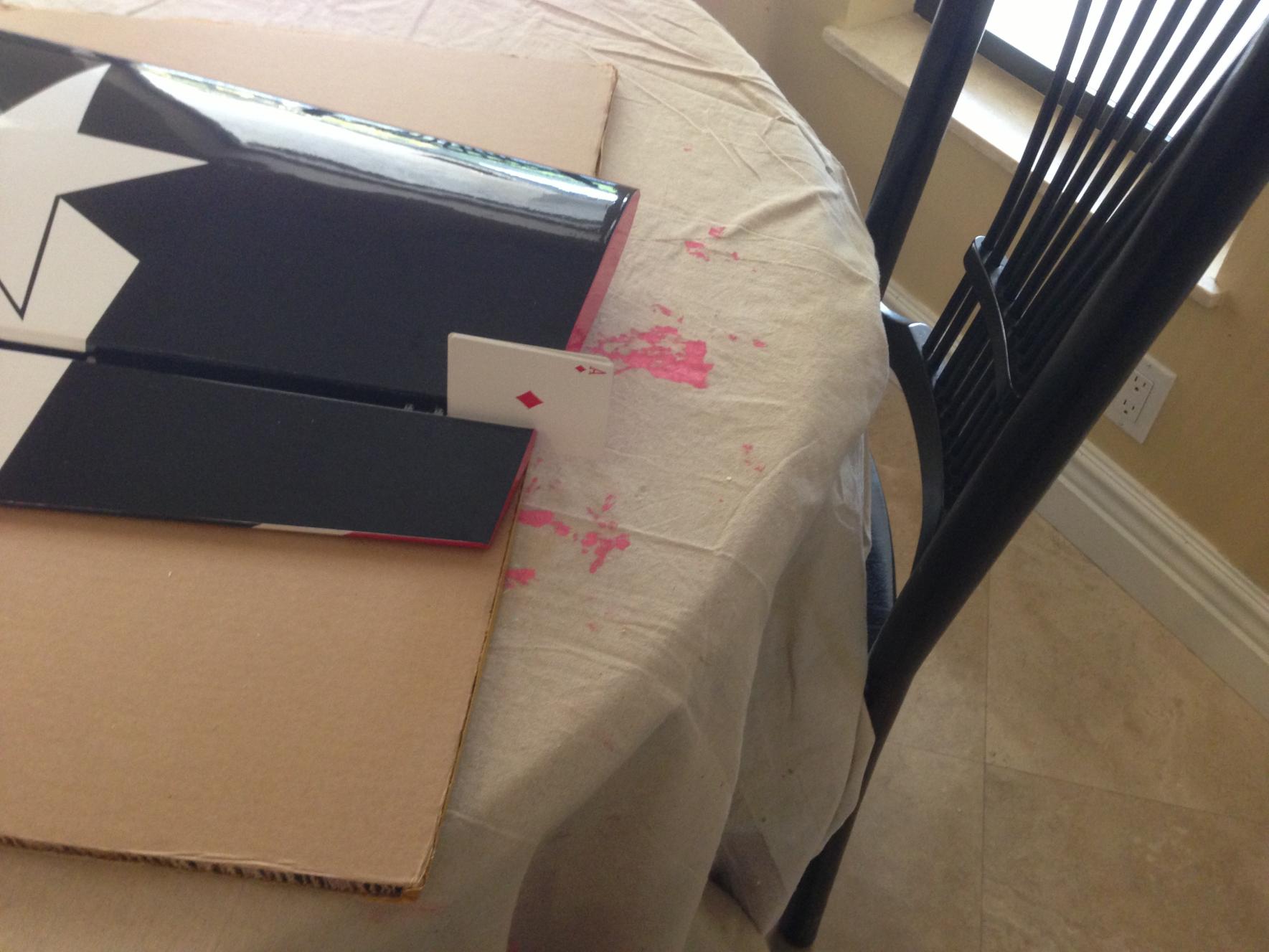

Began hinging the wings using the same card "trick" to maintain an even hinge gap.


Attachments

  • IMG_0224.jpg
    172.1 KB · Views: 336
  • IMG_0225.jpg
    187 KB · Views: 334
  • IMG_0226.jpg
    192.2 KB · Views: 316
  • IMG_0227.jpg
    182.2 KB · Views: 327
